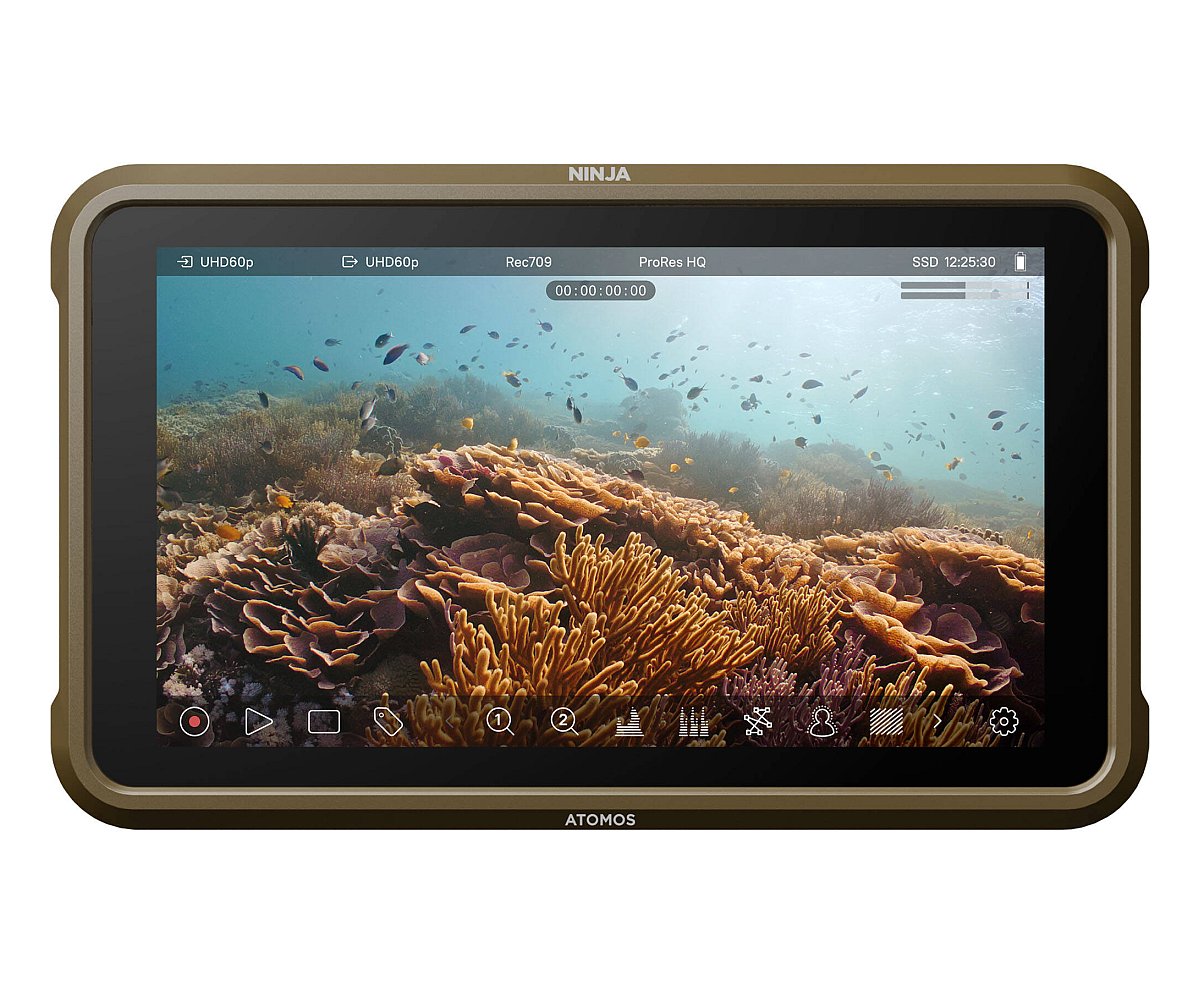

Atomos Ninja 5.2" 4K HDMI Rekorder Monitor
The Atomos Ninja is a stealthy, 5.2-inch, 4Kp60 10bit HDR daylight viewable 1000nit portable monitor/recorder. Perfect for Mirrorless, DSLRs and Gaming.
Record like a Ninja!
Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.
The SSD made Mini!
The new AtomX SSDmini is a little over 1/4 inch tall and 3" long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!
Small Monitor made perfect
The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.
HDR/SDR perfection every time
The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.
Record HDR Games
4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!
AtomOS Tools and Pocket Size Playback
AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.
Ultimate Pro-Video & Broadcast Monitor
Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.
Edit, finish & upload on Mac & PC
The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.
Endless Open Expansion
Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.
Ezt a terméket kizárólag közületeknek, vállalkozásoknak, intézményeknek értékesítjük.
Record like a Ninja!
Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.
The SSD made Mini!
The new AtomX SSDmini is a little over 1/4 inch tall and 3" long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!
Small Monitor made perfect
The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.
HDR/SDR perfection every time
The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.
Record HDR Games
4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!
AtomOS Tools and Pocket Size Playback
AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.
Ultimate Pro-Video & Broadcast Monitor
Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.
Edit, finish & upload on Mac & PC
The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.
Endless Open Expansion
Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.
Ezt a terméket kizárólag közületeknek, vállalkozásoknak, intézményeknek értékesítjük.
• 1x Atomos Ninja rekorder monitor
• 1x USB-C PD to 2.1mm DC tápkábel
• 1x akkumulátor eliminátor
• 1x USB-C PD to 2.1mm DC tápkábel
• 1x akkumulátor eliminátor
Atomos Ninja Specifications |
|||
| Physical | |||
Dimensions (W x H x D mm) |
151mm x 91.5mm x 31 mm / 5.95" x 3.6" x 1.2" | ||
Weight |
360g / 12.7oz | ||
Mounting Points |
Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points | ||
Environmental |
|||
Ambient Operating Temperature |
Up to 40 Degrees Celsius | ||
Construction |
|||
Body |
Aluminium Alloy Chassis with ABS Polycarbonate Rear Enclosure | ||
Cooling |
Heat Sink + Actively controlled Fan | ||
| Tally Light | LED on the Rear of the Device | ||
| Multi-Function Button | Power / Lock Screen | ||
| AtomXpansion Slot | Integrated into Battery Slot | ||
| Touch Screen | Capacitive Touch | ||
Power |
|||
Input Voltage |
6.2V to 16.8V | ||
Operating Power |
10 - 22W | ||
Compatible Batteries |
1 x NP-F / L-Series | ||
Battery Runtime (Record) |
5200mAh: Up to 2 Hours – 7800mAh: up to 3 Hours | ||
DC-in Connector |
Via locking DC Jack (5.5mm OD & 2.1mm ID) on Battery Eliminator | ||
| D-Tap | Via Battery Eliminator and optional D-Tap to DC-Barrel Cable | ||
| Fan Control | Low, Medium, Auto / Turbo Cool / Dim Display | ||
| Display | |||
Display Panel |
SuperAtom IPS Panel (Capacitive Touch) | ||
Size |
5.2" | ||
Resolution |
1920 x 1080 | ||
| Viewing Angle | 178 + H & V | ||
PPI |
423 | ||
Bit Depth |
10-Bit (8+2 FRC) | ||
Backlight Type |
Edge-Lit | ||
| Brightness (cd/m² / nits) | 1000 | ||
| Aspect Ratio | 16:9 | ||
| Color Gamut | Rec.709 | ||
| Calibration Support | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus | ||
Color Pipeline |
|||
Gamma |
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Arri LogC4, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log | ||
Gamut |
BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut | ||
| 3D LUT Display | .Cube Format (17 & 33 points supported) | ||
| 3D LUT Output | Loop out | ||
| 3D LUT 50/50 Split | Via Compare Option in LUT Menu | ||
| Monitoring Modes | Native / HLG / PQ / 3D LUT | ||
| HDR Output Conversion | Camera Log to HLG / PQ | ||
| Color Management | |||
| Calibration | ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus | ||
| Display Controls | Backlight, Lift, Gamma, Gain | ||
| AtomHDR | Built-in Technical Log to HDR EOTF | ||
| 3D LUTs | Load .Cube files from SSD into 8 LUT Slots On-Device – Use for Monitoring, bake into Recordings (optional), or apply to HDMI / SDI Output Signals | ||
| Legalize | Full to Legal Range Conversion available via Input Menu | ||
| Video Input | |||
| HDMI | 1 x HDMI (2.0) | ||
| SDI | 1 x 12G SDI (optional Atomos Connect Accessory required) | ||
| Bit Depth | 8/10-Bit for Video / up to 12-Bit for RAW | ||
| Video Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 | ||
| HDR | HDMI Auto Detection | ||
| Metadata | |||
| HDMI | RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut | ||
| SDI | File Name – Arri, Canon, RED, Sony. RAW – White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut (optional Atomos Connect Accessory required) | ||
| Operational Voltage Range | 100 - 240V AC | ||
| File Naming | |||
| Standard | Scene/Shot/Take & Rolling Scene/Shot/Take | ||
| Video Output | |||
| HDMI | 1 x HDMI 2.0 | ||
| Video Chroma Subsampling | 4:2:2 | ||
| Bit Depth | 10-bit Video | ||
| Video Signal Conversion | |||
| SDI to HDMI | Supported (optional Atomos Connect Accessory required) | ||
| Audio In/Out | |||
| Audio Quality | 24-Bit / 48kHz | ||
| Audio Codec | PCM | ||
| HDMI | 8ch 24-Bit, Input dependent | ||
| SDI | 12ch 24-Bit, Input dependent | ||

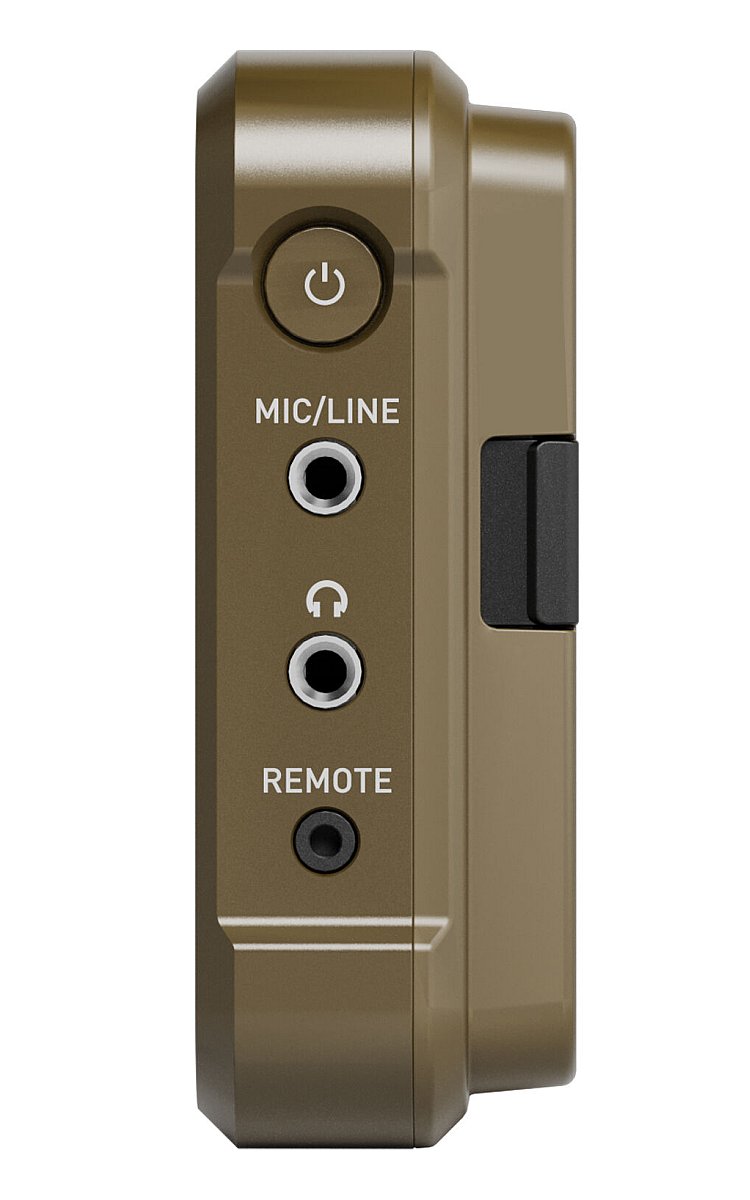

| Analog Audio In | 3.5mm Jack | ||
| Analog Audio Out / Headphone Jack | 3.5mm Jack | ||
| Audio Input Delay | Frame Delay on Analog Input + Automatic Offset Calibration via AtomOS | ||
| Timecode / Sync | |||
| HDMI Embedded | Supported | ||
| SDI Embedded | Supported (optional Atomos Connect Accessory required) | ||
| Time of Day | Supported | ||
| Wireless SYNC | AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required) | ||
| RF Network Range | 300m (optional Atomos Connect Accessory required) | ||
| RF Frequency | Region dependent (optional Atomos Connect Accessory required) | ||
| Number of RF Channels | 12 RF Channels per Region (optional Atomos Connect Accessory required) | ||
| Number of RF Clients | Region dependent (optional Atomos Connect Accessory required) | ||
| Bluetooth Network Range | 10-15m (line of sight) (optional Atomos Connect Accessory required) | ||
| Number of BT Clients | 2 Clients (optional Atomos Connect Accessory required) | ||
| Resolution and Frame Rates (Record, Monitor & Playback) | |||
| 6K RAW | up to 6Kp30 via HDMI & 6Kp30 via SDI (optional Atomos Connect Accessory required for SDI) | ||
| 4K RAW | up to 4Kp60 via HDMI / SDI (optional Atomos Connect Accessory required for SDI) | ||
| 3.5K Anamorphic RAW | up to 3.5Kp60 via HDMI | ||
| 2K RAW | up to 2Kp240 (optional Atomos Connect Accessory required for SDI) | ||
| 4K DCI | up to 4Kp60 | ||
| 2K DCI 2048 x 1080 | up to 2Kp60 (optional Atomos Connect Accessory required for SDI) | ||
| FHD 1920 x 1080 Progressive | up to 1080p120 | ||
| FHD 1920 x 1080 PsF | Only via Pulldown to Progressive | ||
| FHD 1920 x 1080 Interlaced | 1080i50 / 1080i60 | ||
| 1280 x 720p | up to 720p60 | ||
| Recording Codecs | |||
| Apple ProRes RAW | ProRes RAW & RAW HQ | ||
| Apple ProRes | HQ, 422, LT | ||
| Avid DNxHD | 220x, 220, 145, 36 (.MOV Wrapper – .MXF Support coming soon) | ||
| Avid DNxHR | HQX, HQ, SQ, LB (.MOV Wrapper – .MXF Support coming soon) | ||
| H.265 | XQ, HQ, MQ, LQ (.MOV Wrapper) | ||
| Recording Functions | |||
| Camera to Cloud | H.265 uploaded to Atomos Edit, Adobe Frame.io, Sony CI Media (optional Atomos Connect Accessory required) | ||
| Simultaneous Proxy Recording | ProRes RAW / ProRes / DNx + H.265 Proxy in C2C Mode (optional Atomos Connect Accessory required) | ||
| Pre-roll Recording | 8s HD / 4s 4K – ProRes & DNx only | ||
| Timelapse | Supported | ||
| Gang Control | Via AirGlu™ SYNC Timecode Network (optional Atomos Connect Accessory required) | ||
| Scheduled Recording | At specified Time of Day or after a specified Time has elapsed | ||
| Playback | |||
| Playlist | Selected Clips, Favorites, or Combined | ||
| Loop | Supported, with user-customizable In / Out Markers | ||
| Apple ProRes Raw | Yes, Recorded clips only | ||
| Apple ProRes | HQ, 422, LT (Linear PCM Audio only) | ||
| Avid DNx | DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only) | ||
| H.265 | Recorded clips only | ||
| Scheduled Playback | At specified Time of Day or after a specified Time has elapsed | ||
| Multi Input / Switching | |||
| Multiple HDMI Inputs | Supported (optional AtomX CAST Switching Dock required) | ||
| Multiview Display | Supported (optional AtomX CAST Switching Dock required) | ||
| Multiview Output | Supported (optional AtomX CAST Switching Dock required) | ||
| Picture in Picture (PiP) | Supported (optional AtomX CAST Switching Dock required) | ||
| Graphic Overlays | Supported (optional AtomX CAST Switching Dock required) | ||
| Media Pool Storage | 8 PNG Overlays (optional AtomX CAST Switching Dock required) | ||
| Input Transitions | Fade to White or Black (optional AtomX CAST Switching Dock required) | ||
| Supported Media | |||
| Master Caddy I | Not Supported | ||
| Master Caddy II | Supported – Not supported with AtomX CAST or Atomos Connect Accessories attached | ||
| Master Caddy III | Supported | ||
| SSDmini | Supported | ||
| CFast 2.0 | Supported via optional AtomX CFast 2.0 Adapter | ||
| Network | Capture to Cloud via Atomos Cloud Studio (optional Atomos Connect Accessory required) | ||
| File System | exFAT | ||
| Interface | SATA 3.0 | ||
| On-Screen Tools | |||
| Waveforms | 3 Sizes – Adjustable Opacity & Brightness | ||
| RGB Parade | 3 Sizes – Adjustable Opacity & Brightness | ||
| Vector Scope | 2 Sizes – Adjustable Opacity & Brightness | ||
| 1 x Zoom | Tap to Zoom | ||
| 2 x Zoom | Tap to Zoom | ||
| Focus Peaking | 3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity | ||
| Zebra | Adjustable Threshold (50% to 105%) | ||
| Isolate Color Channel | Blue Only | ||
| Cine Frame Guides | 6 Presets & Custom Frame Guide Calculator | ||
| Social Frame Guides | 4 Presets & Custom Frame Guide Calculator | ||
| Safe Areas | SMPTE Safe Title Area – 93% & 90% | ||
| Grid Markers | 9 Grid | ||
| Anamorphic Desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x | ||
| Display Flip | Vertical | ||
| Colorized Exposure | Atomos False Color, EL Zone System, Arri False Color | ||
| Frame Grab + Onion Skin Overlay | Capture lossless 1920 x 1080 Pixel Frame Grab & Overlay with various Position + Transparency Options | ||
| Onboard Signal Processing | |||
| 4K UHD Downscale for HD | Available on loop out | ||
| DCI Crop | Available on loop out | ||
| Interlaced to Progressive | 2:2 & 3:2 Pulldown | ||
| PsF to Progressive | 2:2 & 3:2 Pulldown | ||
| Optional Activation Keys | |||
| NDI HX2 TX (HD) | $99 optional Activation available via my.atomos.com | ||
| Remote Control | |||
| HDMI | Trigger Recording via Camera Record Button – Supported Protocols: Canon, Sony, Atomos Open Standard, Timecode (Rec Run) | ||
| SDI | Trigger Recording via Camera Record Button – Supported Protocols: Arri, Canon, Ikegami, JVC, Panasonic, RED, Sony, Timecode (Rec Run) (optional Atomos Connect Accessory required) | ||
| Serial 2.5mm Jack | Start & Stop Recording via compatible LANC Remotes – Calibration via optional USB to Serial Cable | ||
| Bluetooth LE | Via AtomRemote App (optional Atomos Connect Accessory required) | ||
| Wireless RF | AirGlu™ Gang Control (optional Atomos Connect Accessory required) | ||
| External Device Control | |||
| Serial 2.5mm Jack | Z CAM Camera Control via Remote to USB-C Cable | ||
| Cut & Tag | |||
| FCP XML | Up to 10 Tags supported for each Clip | ||
| Supported Applications | |||
| XML | Apple Final Cut Pro (.fcpxml) | ||
| Apple ProRes RAW | Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH, FilmLight Baselight | ||
| Video Codecs | All NLE applications that support Apple ProRes, Avid DNx and H.265 in .MOV Wrapper | ||
| What’s in the box | |||
| Box Contents | 1 x Ninja, 1 x Battery Eliminator, 1 x USB C PD to 2.1mm DC power lead, 1 x QuickStart Guide | ||
| Optional extras | Atomos Connect Accessory, AtomX CAST Switching Dock, Sunhood, DC to D-Tap, Power Kit, HDMI Cables, USB to Serial cable, UltraSync ONE, UltraSync Blue | ||
