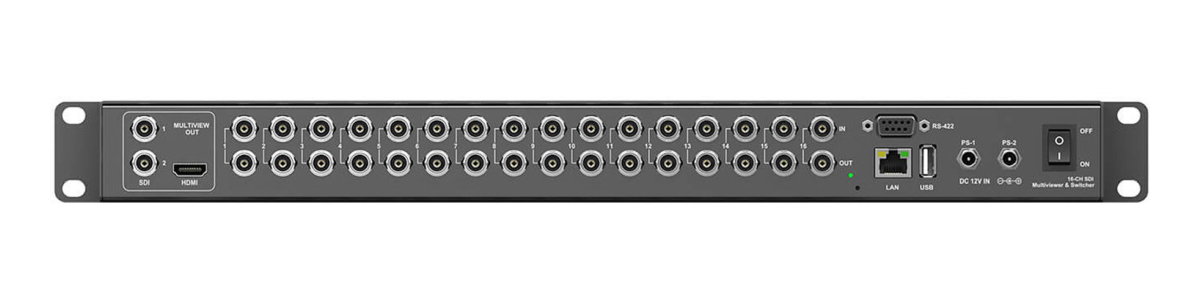

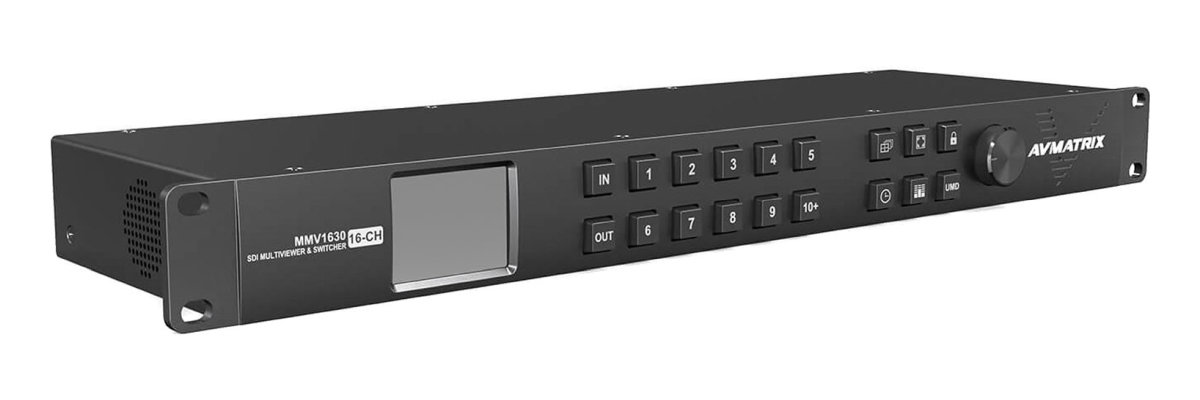

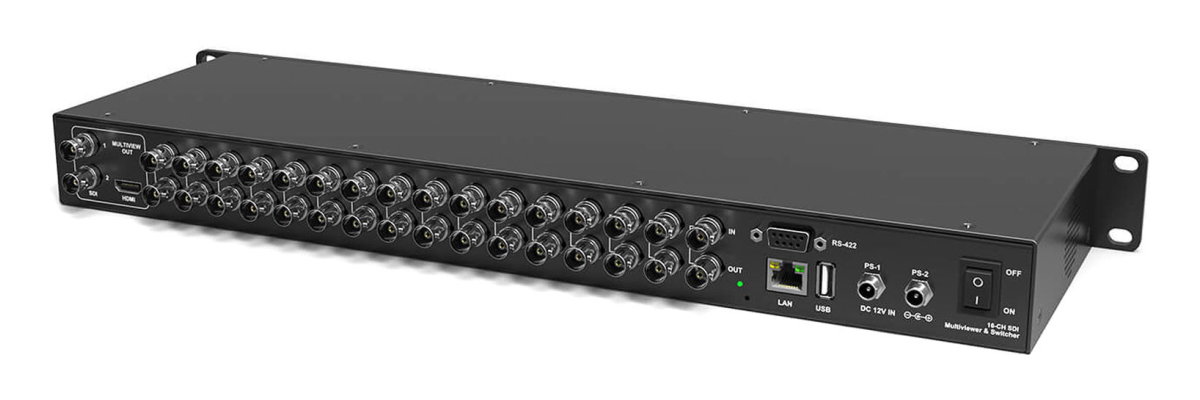

AVMatrix MMV1630 16-ch 3G-SDI Multiviewer és Matrix kapcsoló
Az MMV1630 két üzemmódot támogat egy eszközben: 16-ch multiviewer és 16 x 16 switcher.
Előlapi gombokkal, LCS kijelzővel rendelkezik. Megjelenítések: Time code, UMD, signal status, audio meter.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
AVMatrix MMV1630 16-ch 3G-SDI Multiviewer és Matrix kapcsoló
• Kettős üzemmód: 16-ch multiviewer és 16x16 mátrix kapcsoló
• 16x SD/HD/3G-SDI automatikus bemeneti felismerés
• 2x SDI, 1x HDMI multiview kimenet
• Time code, UMD, signal status, audio meter
• Előlapi gombok és vezérlőgombok LCD kijelzővel
• PC vezérlő szoftver (LAN-on)
• 16x SD/HD/3G-SDI automatikus bemeneti felismerés
• 2x SDI, 1x HDMI multiview kimenet
• Time code, UMD, signal status, audio meter
• Előlapi gombok és vezérlőgombok LCD kijelzővel
• PC vezérlő szoftver (LAN-on)
• AVMatrix MMV1630
• Tápegység
• 3 év jótállás
• Tápegység
• 3 év jótállás
AVMatrix MMV1630 Specifications |
|||
Multiviewer Mode | |||
Inputs | SD/HD/3G-SDI x16 | ||
Loop Outputs | SD/HD/3G-SDI x16 | ||
Outputs | SDI x2, HDMI x1 | ||
SDI Input format support
|
1920x1080p 60/59.94/50/30/29.97/25/24/23.98 |
||
SDI/HDMI Outputs format
|
1080p 60/50/30/25/24 |
||
SDI Auto Switching
|
Auto selects SD, HD and 3G-SDI on input | ||
SDI Video Rate | SD/HD/3G-SDI | ||
SDI Compliance
|
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M |
||
Color Space and Precision
|
YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 (SDI Input) YUV 4:2:2 (Multiview HDMI/SDI output) |
||
Switcher Mode | |||
Inputs | SD/HD/3G-SDI/DVB-ASI x16 | ||
Outputs | SD/HD/3G-SDI/DVB-ASI x16 | ||
SDI format support
|
2048x1080p 30/29.97/25/24/23.98 |
||
SDI Auto Switching
|
Auto selects SD, HD and 3G-SDI on input | ||
SDI Video Rate | SD/HD/3G-SDI | ||
SDI Compliance
|
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI |
||
Color Space and Precision
|
YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 / XYZ 4:4:4 | ||
Controls | |||
Control | Front panel buttons and knob control LAN (Software control and update) RS-422 (Software control) |
||
Power | |||
Power Connector | Threaded locking connector | ||
Voltage Range | DC 12~20V | ||
Power Supply | PS-1, PS-2, power redundancy | ||
Power Consumption | 36W | ||
Environment | |||
Operating Temperature | 0°C~60°C | ||
Storage Temperature | -30°C~70°C | ||
Relative Humidity | 0%~90% non-condensing | ||
Size | |||
Size | Standard 19" 1 rack unit | ||
Weight | 2 kg |
