AVMatrix MSS0811 1RU 8×8 3G-SDI Matrix
Az MSS0811 1RU egy 8x8-as videó mátrixkapcsoló, 8 SDI be- és 8 SDI kimenettel 3G/HD/SD SDI formátum támogatással
Kezeli az SDI jel beágyazott audio és kiegészítő adatait
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
AVMatrix MSS0811 1RU 8×8 3G-SDI Matrix

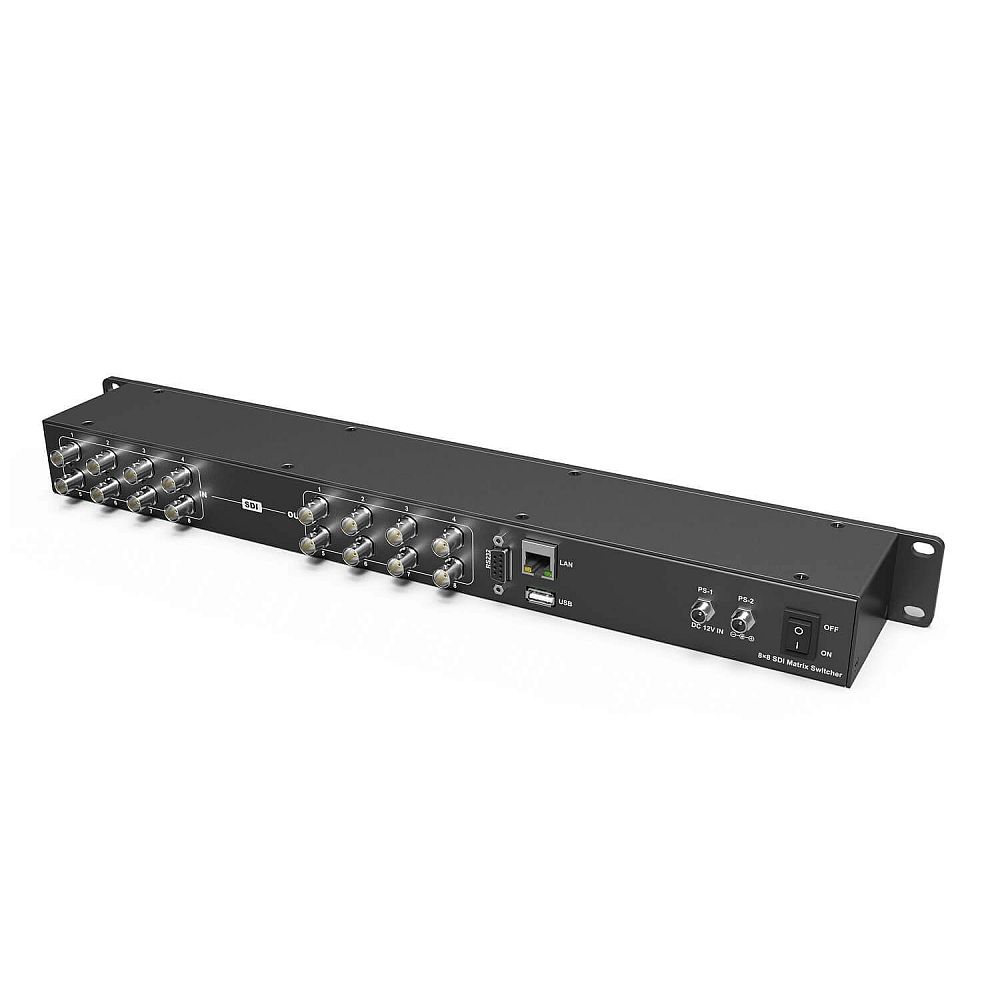

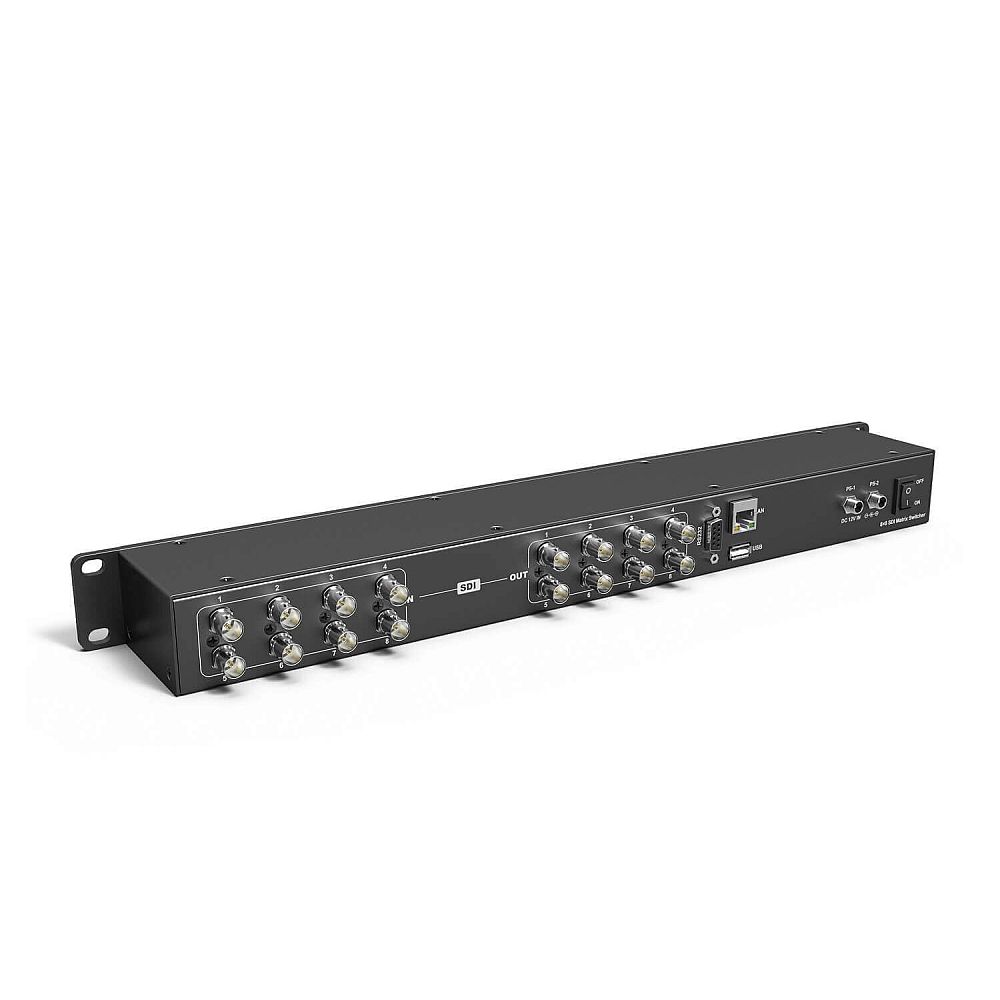

The compact SDI routing switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. It's conveniently control by front panel button, keyboard via USB and PC software via LAN/RS-232.
AVMatrix MSS0811 1RU 8×8 3G-SDI Matrix Switcher features:
• 8x3G-SDI inputs, 8x3G-SDI outputs
• SDI input signal auto detection & equalization
• Level A and level B signal supported
• Pass all ancillary data and embedded audio
• DVB-ASI interface compatible
• Free PC software control: LAN, RS-232
• Front panel buttons control & USB keyboard
• Redundant power design
Powerful Signal Routing
This matrix includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate.
Multiple Control Methods

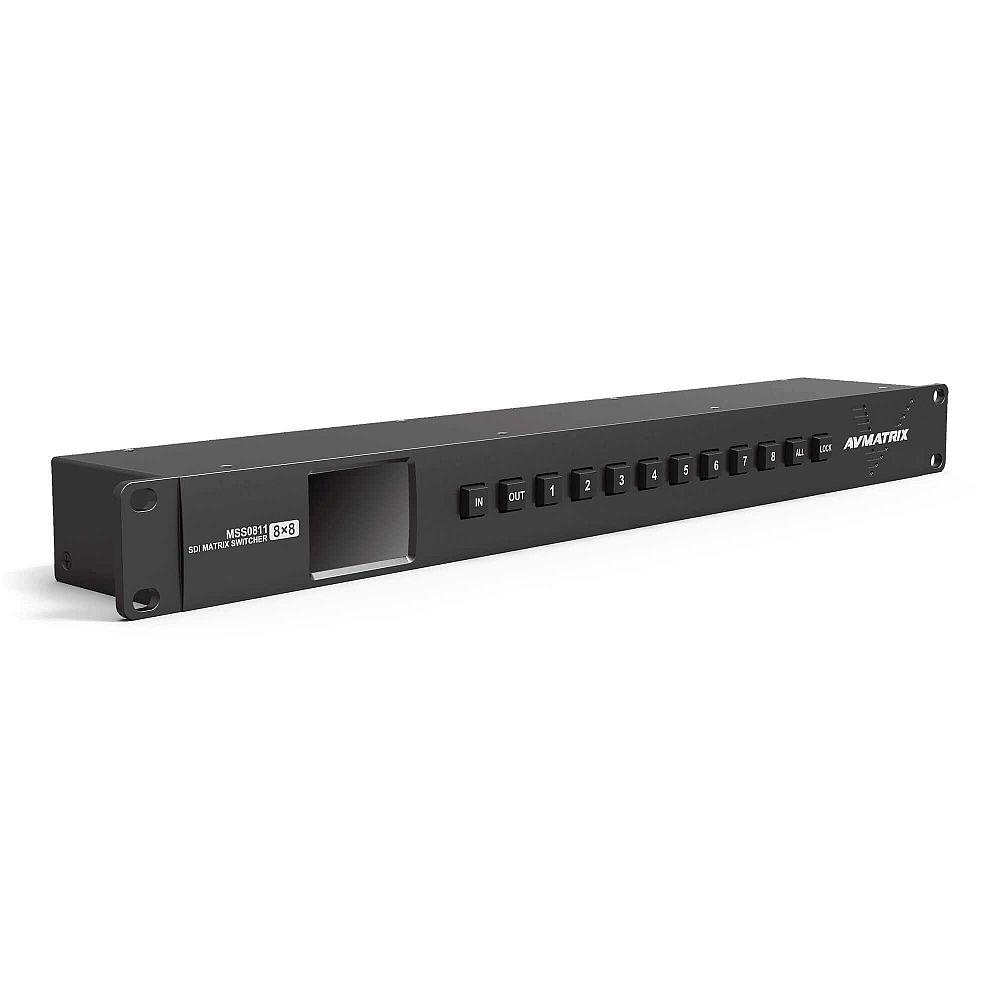

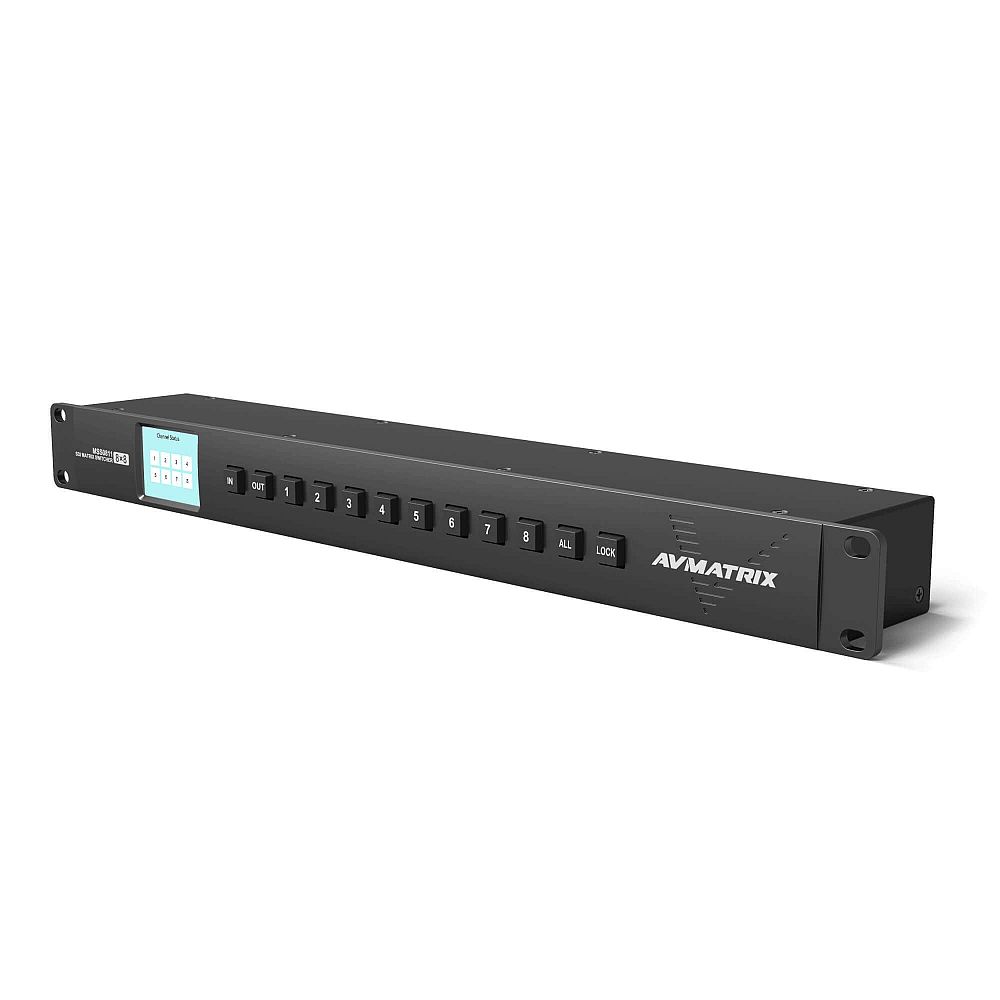

Front Panel: MSS0811 matrix switcher enables full control from the front panel. The currenct chanel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident error.
PC Software: The matrix switcher coming with a free PC control software, you can connect a computer via Ethernet to realise the network route control on a Windows PC. Also you can use the software control via the serial port RS-232 connecting your PC.
USB Keyboard: There is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration.
Redundant Power
The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.
Compact design
The super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.
AVMatrix MSS0811 1RU 8×8 3G-SDI Matrix Switcher features:
• 8x3G-SDI inputs, 8x3G-SDI outputs
• SDI input signal auto detection & equalization
• Level A and level B signal supported
• Pass all ancillary data and embedded audio
• DVB-ASI interface compatible
• Free PC software control: LAN, RS-232
• Front panel buttons control & USB keyboard
• Redundant power design
Powerful Signal Routing
This matrix includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate.
Multiple Control Methods
Front Panel: MSS0811 matrix switcher enables full control from the front panel. The currenct chanel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident error.
PC Software: The matrix switcher coming with a free PC control software, you can connect a computer via Ethernet to realise the network route control on a Windows PC. Also you can use the software control via the serial port RS-232 connecting your PC.
USB Keyboard: There is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration.
Redundant Power
The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.
Compact design
The super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.
• 1x AVMatrix MSS0811 (8x8 3G-SDI matrix switcher)
• 2x DC 12V 2A Power Adapter
• Technical specification
• 3 year limited warranty
• 2x DC 12V 2A Power Adapter
• Technical specification
• 3 year limited warranty
AVMatrix MSS0811 1RU 8×8 3G-SDI Matrix Switcher | ||
CONNECTIONS | Input: SD/HD/3G-SDI/DVB-ASI x8 Output: SD/HD/3G-SDI/DVB-ASI x8 |
|
FORMATS | SDI Input Format Support: (2K) 2048x1080p 30/29.97/25/24/23.98 (2K) 2048x1080PsF 30/29.97/25/24/23.98 (HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98 (HD) 1920x1080PsF 30/29.97/25/24/23.98 (HD) 1920x1080i 60/59.94/50 (HD) 1280x720p 60/69.94/50 (HD) 1280x720p 30/29.97/25/24/23.98 (SD) 625i 50 (SD) 525i 59.94 SDI Video Rate: SD/HD/3G-SDI SDI Compliance: SMPTE 259M, SMTPE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M SDI Color Space and Precision: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input |
|
CONTROLS | Front panel buttons
LAN (software control) RS-232 (software control) USB Type A (USB keyboard control) |
|
SIZE | Size: Standard 19" 1 rack unit Weight: 1.1Kg |
|
POWER | Power Connector: Threaded locking connector Power Supply: PS-1, PS-2, power redundancy Voltage Range: DC 6~24V Power Consumption: 7W |
|
ENVIRONMENT | Operating Temperature: -20°C~60°C Storage Temperature: -30°C~70°C Relative Humidity: 0%~90 non-condensing |
|
WARRANTY | 3 year limited warranty |
