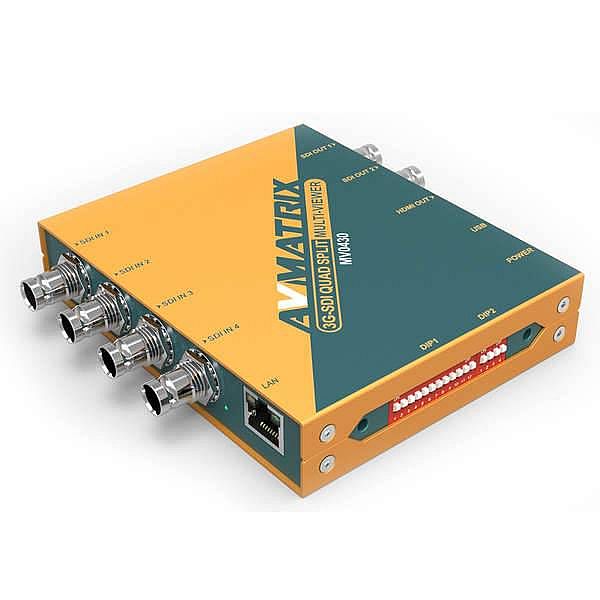

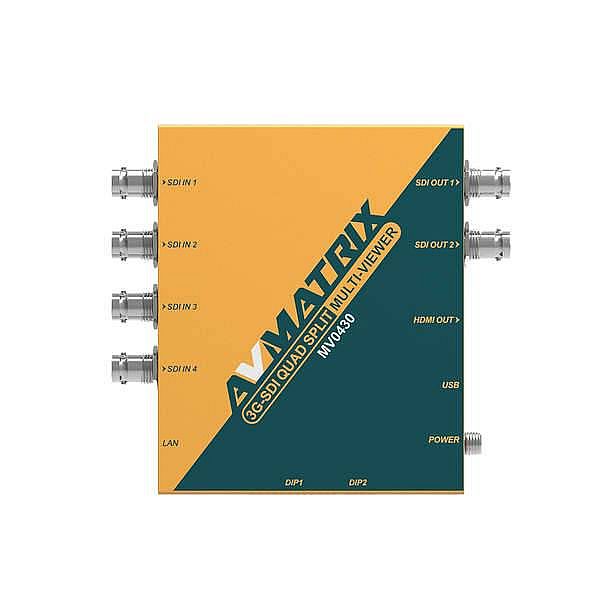

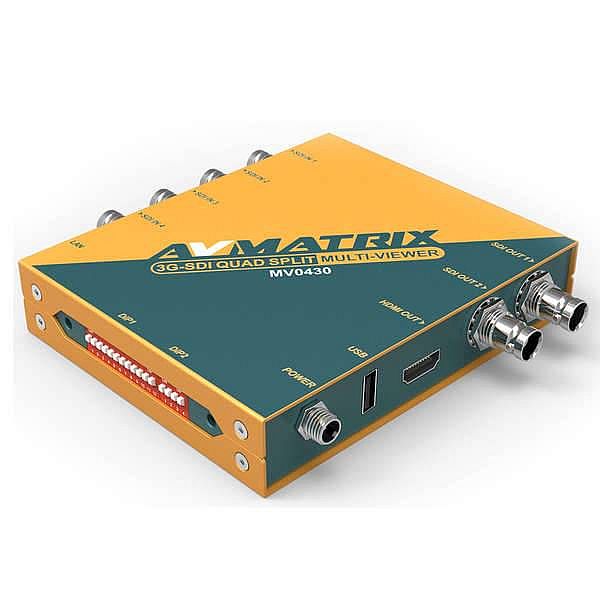

AVMatrix MV0430 3G-SDI Quad Split MultiViewer
MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and
2-channel 3G-SDI as well as 1-channel HDMI outputs.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
AVMatrix MV0430 3G-SDI Quad Split MultiViewer
MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.
AVMatrix MV0430 3G-SDI Quad Split Multiviewer jellemzők
• 4×SD/HD/3G-SDI inputs with auto detection
• 2×SD/HD/3G-SDI and 1×HDMI outputs for multiview
• 11 selectable SDI & HDMI output formats
• 16 preset layouts,Support both full-screen and multiview mode
• 11 character UMD overlay, support custom position and color
• Audio level meter overlay, support custom position
• Control easily via the DIP switches
• USB port for keyboard control
• LAN port for control and firmware update
• Threaded locking power connector
• Detachable bracket design for wall mounting
11 Output Formats Selectable
The SDI multiviewer features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices.
16 Group Preset Layouts
The SDI multiviewer provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.
User-defined UMD and Audio Meter Overlay
These user-friendly design is the other feature of MV0430, for example, in each individual window, users can set 11 characters UMD overlay separately and adjust it's size and position freely. Similarly, the size and position of the 2–channel audio metering can also be user-defined.
Easy Control over DIP Switches
Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.
AVMatrix MV0430 3G-SDI Quad Split Multiviewer jellemzők
• 4×SD/HD/3G-SDI inputs with auto detection
• 2×SD/HD/3G-SDI and 1×HDMI outputs for multiview
• 11 selectable SDI & HDMI output formats
• 16 preset layouts,Support both full-screen and multiview mode
• 11 character UMD overlay, support custom position and color
• Audio level meter overlay, support custom position
• Control easily via the DIP switches
• USB port for keyboard control
• LAN port for control and firmware update
• Threaded locking power connector
• Detachable bracket design for wall mounting
11 Output Formats Selectable
The SDI multiviewer features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices.
16 Group Preset Layouts
The SDI multiviewer provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.
User-defined UMD and Audio Meter Overlay
These user-friendly design is the other feature of MV0430, for example, in each individual window, users can set 11 characters UMD overlay separately and adjust it's size and position freely. Similarly, the size and position of the 2–channel audio metering can also be user-defined.
Easy Control over DIP Switches
Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.
• 1x MV0430
• 2x Bracket (felfogató konzol)
• 1x Hálózati adapter
• Technikai specifikáció (angol nyelven)
• 3 év garancia
• 2x Bracket (felfogató konzol)
• 1x Hálózati adapter
• Technikai specifikáció (angol nyelven)
• 3 év garancia
AVMatrix MV0430 3G-SDI Quad Split Multiviewer | ||
CONNECTIONS 3 | SDI Video Input: 4xSD/HD/3G-SDI SDI Video Output: 2xSD/HD/3G-SDI HDMI Video Output: 1xHDMI type A Configuration: DIP switches, LAN and USB Updates: LAN |
|
STANDARDS | SDI Input Format Support: 1080p 23.976/23.98/24/25/29.97/30/50/59.94/60 1080psf 23.976/23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/6 0 625i 50 525i 59.94 SDI&HDMI Output Format Support: 1080p 24/25/30/50/60 1080i 50/60 720p 24/30/50/60 SDI Video Rate: SD/HD/3G-SDI SDI Compliance: SMPTE 259M / SMPTE 292M / SMPTE 424M SDI Color Space and Precision: RGB or YUV for input, YUV for output SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input |
|
CONTROL | Dip Switch LAN (software control/firmware update) USB Type A (USB keyboard control) |
|
SIZE | Dimension (LWD): 125.5mm×104mm×24.5mm Weight: 465g |
|
POWER | Power Connector: Threaded locking connector Power Consumption: 6W Voltage Range: 6V~24V |
|
ENVIRONMENT | Operating Temperature: -20°C~60°C Storage Temperature: -30°C~70°C Relative Humidity: 0%~90 non-condensing |
|
WARRANTY | 3 year limited warranty |
