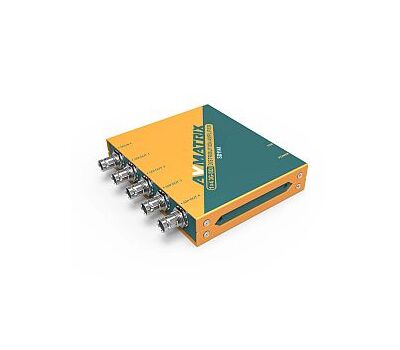

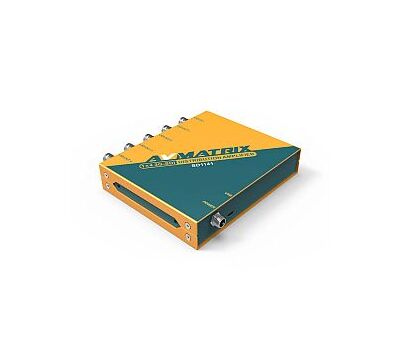

AVMatrix SD1141 1×4 SDI Reclocking Distribution Amplifier
The AVMatrix SD1141 is a miniature, low-cost 1×4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
AVMatrix SD1141 1×4 SDI Reclocking Distribution Amplifier
The AVMatrix SD1141 is a miniature, low-cost 1×4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.
AVMatrix SD1141 1×4 SDI Reclocking Distribution Amplifier features:
• Automatically detects SD, HD and 3G-SDI
• 4 buffered and re-clocked outputs
• 3G/HD/SD-SDI multi-rate signal processing
• Output 2 & 4 support DVB-ASI signal
• Automatic cable equalization and signal retiming
• Pass all ancillary data and embedded audio

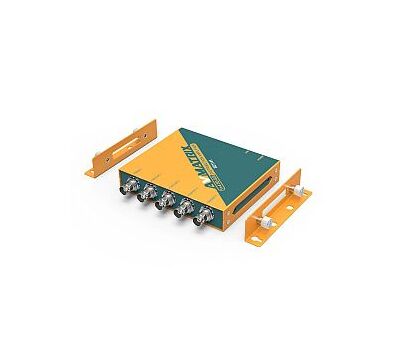

• Detachable bracket design for wall mounting
1x4 Distribution
SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz (2.97Gbps). Output 2 & output 4 support DVB-ASI signal.
120m SDI Re-clocking
SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter's processing. This allows longer cable lengths (3G: 120m, HD: 200m, SD:400m).
Widespread Application
SDI1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, rental and staging, and other applications.
AVMatrix SD1141 1×4 SDI Reclocking Distribution Amplifier features:
• Automatically detects SD, HD and 3G-SDI
• 4 buffered and re-clocked outputs
• 3G/HD/SD-SDI multi-rate signal processing
• Output 2 & 4 support DVB-ASI signal
• Automatic cable equalization and signal retiming
• Pass all ancillary data and embedded audio
• Detachable bracket design for wall mounting
1x4 Distribution
SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz (2.97Gbps). Output 2 & output 4 support DVB-ASI signal.
120m SDI Re-clocking
SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter's processing. This allows longer cable lengths (3G: 120m, HD: 200m, SD:400m).
Widespread Application
SDI1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, rental and staging, and other applications.
• 1x SD1141 (1x4 3G-SDI reclocking distribution amplifier)
• 1x Power Adapter
• 2x Bracket
• Technical specification
• 3 year limited warranty
• 1x Power Adapter
• 2x Bracket
• Technical specification
• 3 year limited warranty
| AVMatrix SD1141 1×4 SDI Reclocking Distribution Amplifier | ||

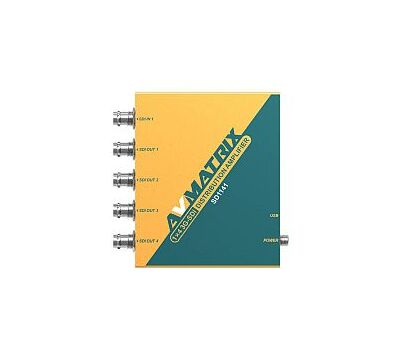

| CONNECTIONS | Input: SD/HD/3G-SDI x 1 Output: SD/HD/3G-SDI x 4 (output 2 & 4 support DVB-ASI) |
|
| FORMATS | SDI Input Format Support: (2K) 2048x1080p 30/29.97/25/24/23.98 (2K) 2048x1080PsF 30/29.97/25/24/23.98 (HD) 1920x1080p 60/59.94/50/30/29.97/25/24/23.98 (HD) 1920x1080PsF 30/29.97/25/24/23.98 (HD) 1920x1080i 60/59.94/50 (HD) 1280x720p 60/69.94/50 (HD) 1280x720p 30/29.97/25/24/23.98 (SD) 625i 50 (SD) 525i 59.94 SDI Video Rate: SD/HD/3G-SDI SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M ASI Compliance: DVB-ASI SDI Color Space and Precision: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input |
|
| SIZE | Size: 125.5x104x24.5mm Weight: 512g |
|
| POWER | Power Connector: Micro USB, Threaded locking connector Power Consumption: 1W Voltage Range: USB 5V, DC 5~17V |
|
| ENVIRONMENT | Operating Temperature: -20°C~60°C Storage Temperature: -30°C~70°C Relative Humidity: 0%~90 non-condensing |
|
| WARRANTY | 3 year limited warranty | |
75.352 Ft
