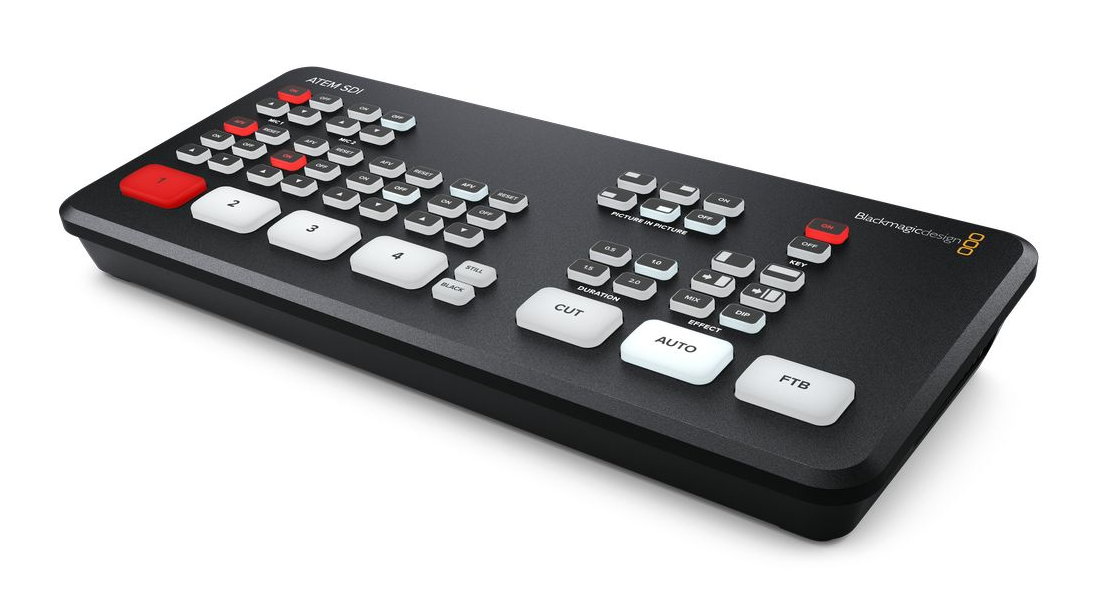

Blackmagic Design ATEM SDI mixer
A Blackmagic Design ATEM SDI 4 db SDI bemenettel, 2 db SDI, USB webkamera kimenettel, hangkeverővel,
EQ-val rendelkező 3G-SDI mixer.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések

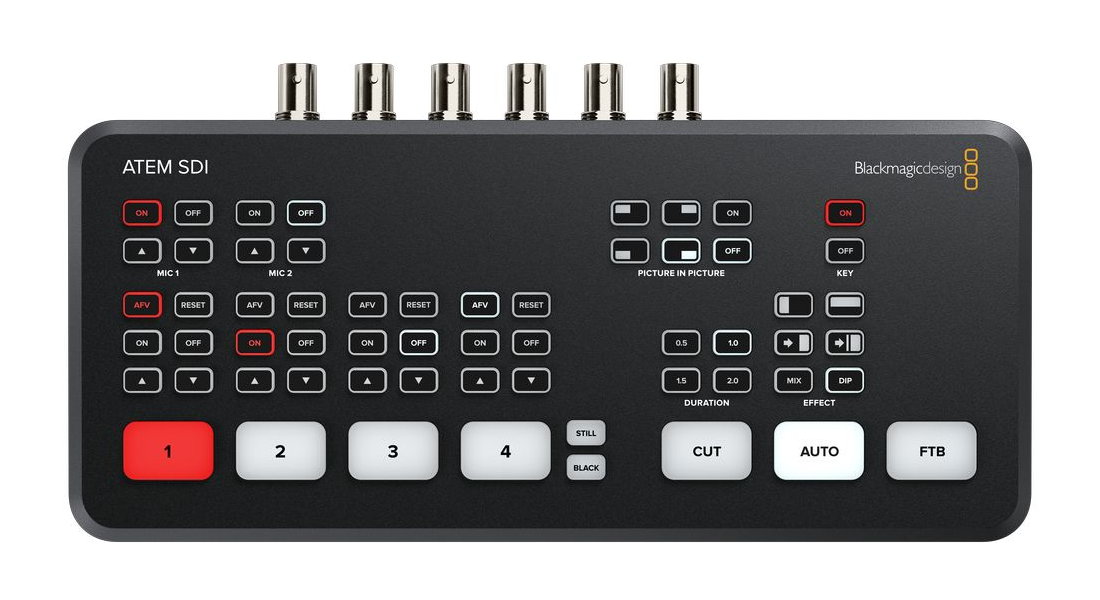

Blackmagic Design ATEM SDI mixer
• 4x SDI bemenet, 2x SDI kimenet
• Élő közvetítés közvetlenül a YouTube-ra
• Könnyen kezelhető gombok
• Kompakt méret, gyorsan beállítható és könnyen használható
• 2 db független 3,5 mm-es sztereó audiobemenet, Fairlight hangkeverő
• Automatikusan konvertál bármilyen SDI bemeneti formátumot
• DVE, Chroma/Luma Keyers
• Beépített médiatár
• ATEM Software Control
• Élő közvetítés közvetlenül a YouTube-ra
• Könnyen kezelhető gombok
• Kompakt méret, gyorsan beállítható és könnyen használható
• 2 db független 3,5 mm-es sztereó audiobemenet, Fairlight hangkeverő
• Automatikusan konvertál bármilyen SDI bemeneti formátumot
• DVE, Chroma/Luma Keyers
• Beépített médiatár
• ATEM Software Control
• Blackmagic Design ATEM SDI
• Tápegység
• Jótállás: 1 év
• Tápegység
• Jótállás: 1 év
Blackmagic Design ATEM SDI Specifications |
|||

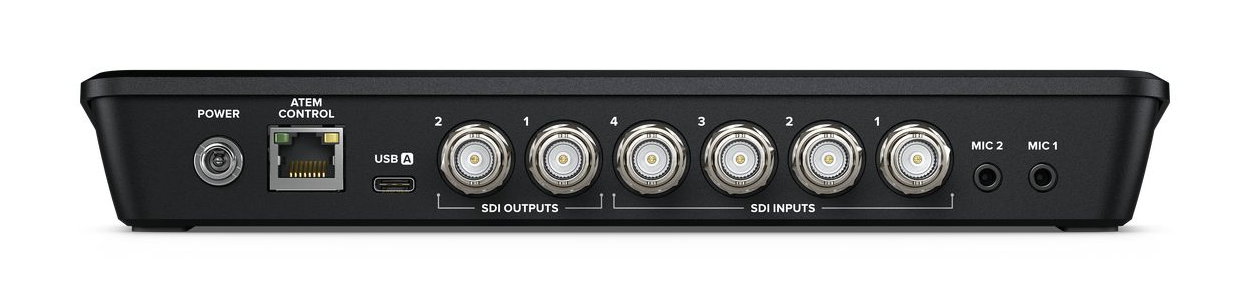

Connections |
|||
Total Video Inputs |
4 |
||
Total Outputs |
3 |
||
Total Aux Outputs |
2 |
||
Total Audio Inputs |
2 x 3.5mm stereo mini jack. |
||
Total Audio Outputs |
None, embedded audio only. |
||
Timecode Connection |
None |
||
SDI Video Inputs |
4 x 3G-SDI, 10-bit HD switchable. |
||
Video Input Re-Sync |
On all 4 SDI inputs. |
||
Frame Rate and Format Converters |
On all 4 SDI inputs. |
||
SDI Program Outputs |
2 |
||
Ethernet |
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection. |
||
Computer Interface |
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection. |
||
Standards |
|||
HD Video Input Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
||
HD Video Output Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
Video Streaming Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
Ultra HD Video Standards |
None |
||
Video Sampling |
4:2:2 YUV |
||
Color Precision |
10-bit |
||
Color Space |
Rec 709 |
||
Colorspace Conversion |
Hardware based real time. |
||
Product Specifics |
|||
Upstream Keyers |
1 |
||
Downstream Keyers |
1 |
||
Advanced Chroma Keyers |
1 |
||
Linear/Luma Keyers |
2 |
||
Transition Keyer |
DVE only. |
||
Total Number of Layers |
5 |
||
Pattern Generators |
1 |
||
Color Generators |
2 |
||
DVE With Borders and Drop Shadow |
1 |
||
Interface |
Minimum monitor resolution of 1366 x 768. |
||
Audio |
|||
Audio Mixer |
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
||
Analog Input |
Unbalanced stereo |
||
Analog Input Delay |
Up to 8 frames |
||
Input Impedance |
1.8k |
||
Max Input Level |
+6dBV |
||
Mic Plug In Power |
Available on both 3.5mm mini jack connections. |
||
Media Player |
|||
Media Players |
1 |
||
Channels |
Fill and key for each Media Player. |
||
Media Pool Still Image Capacity |
20 with fill and key. |
||
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
||
Control |
|||
Control Panel |
Built in control panel. Software control panel included. Supports optional hardware panel. |
||
Control Panel Connection |
Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection. |
||
Control Panel Compatibility |
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel. |
||
Control Panel Included |
ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11. |
||
Software |
|||
Software Updates |
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
Configuration |
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
Other Specifications |
|||
Operating Systems |
Mac 11.0 Big Sur, Mac 12.0 Monterey or later. Windows 10 and 11. |
Power Requirements |
Power Supply: 1 x External 12V power supply. Power Usage: 18W |
Operating Temperature |
5° C to 40° C (41° - 104° F) |
||
Relative Humidity |
0% to 90% non-condensing |
||
Storage Temperature |
-10° to 60° C (14° to 140° F) |
||
What's Included |
ATEM SDI |
||
Warranty |
12 Months Limited Manufacturer's Warranty. |
||
Dimensions |
23.75 x 11.86 x 3.51 cm |
||
Weight |
678 g |
||
Nem található bejegyzés
480.832 Ft
