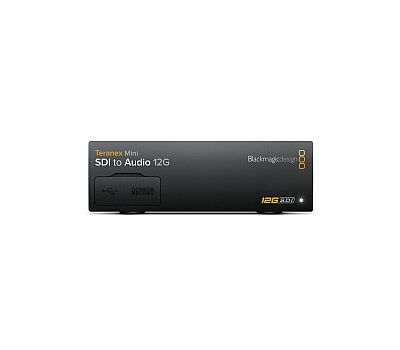

Blackmagic Design Teranex Mini SDI to Audio 12G Konverter
• Fejlett nagy adatátviteli sebességű jelátalakító
• Hang kivonása akár 4K SDI jelekből
• 4K DCI 4096x2160p
• Kimenet XLR, AES/EBU, RCA vagy S/PDIF keresztül
• 12G-SDI bemenet és kimenet
• AES/EBU-ra kapcsolható XLR csatlakozók
• Ethernet port távvezérléshez vagy PoE-hez
• Intelligens hőelvezetés
• 3 egység 1U rack-re szerelhető 19"-os rack-ben
• Opcionális LCD intelligens előlap
• Hang kivonása akár 4K SDI jelekből
• 4K DCI 4096x2160p
• Kimenet XLR, AES/EBU, RCA vagy S/PDIF keresztül
• 12G-SDI bemenet és kimenet
• AES/EBU-ra kapcsolható XLR csatlakozók
• Ethernet port távvezérléshez vagy PoE-hez
• Intelligens hőelvezetés
• 3 egység 1U rack-re szerelhető 19"-os rack-ben
• Opcionális LCD intelligens előlap
Blackmagic Design Teranex Mini SDI to Audio 12G Specifications |
|||

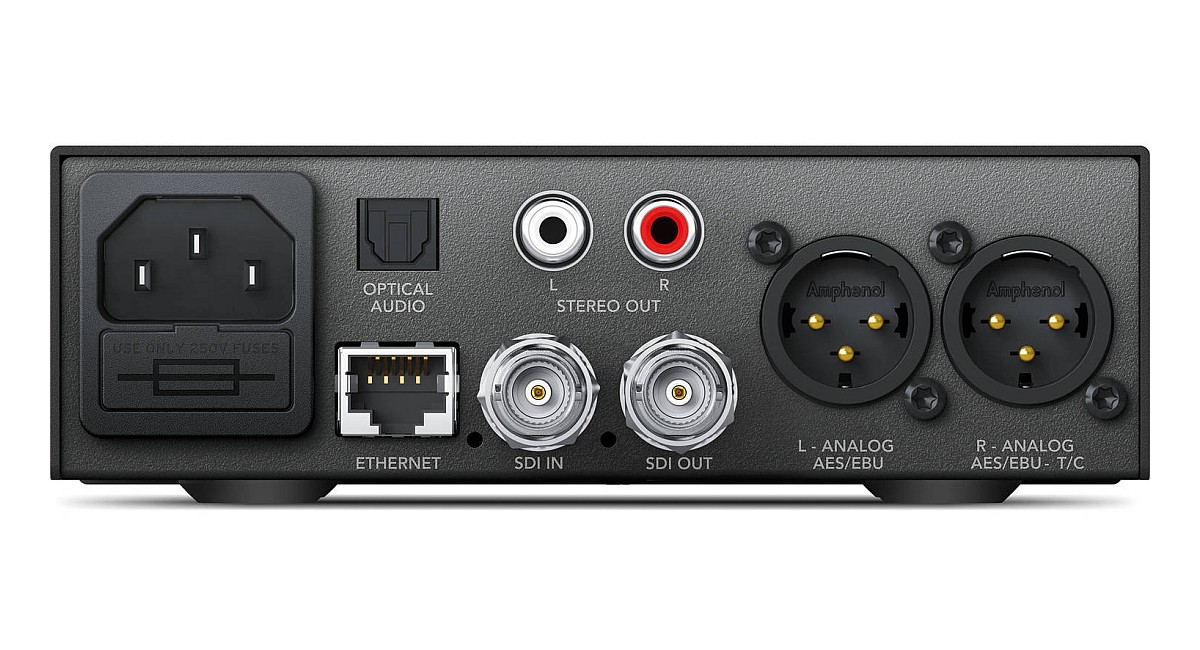

| Connections | |||
SDI Video Inputs |
1 x 12G-SDI SD/HD/2K/4K auto switching. | ||
SDI Video Outputs |
1 x 12G-SDI loop output. | ||
Analog Audio Outputs |
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output. | ||
Digital Audio Outputs |
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. | ||
Embedded Audio Support |
16 channels. | ||
Optical Audio Output |
S/PDIF Signal with TOSLINK Connector. | ||
Multi Rate Support |
Automatic switching between SD/HD/2K and 4K. | ||
| Updates and Configuration | USB or Ethernet. | ||
| Reclocking | Yes | ||
Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 | ||
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI | ||
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 | ||
| SDI Video Rates | SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI. | ||
| SDI Video Sampling | 4:2:2 and 4:4:4. | ||
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. | ||
| SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. | ||
| SDI Color Space | REC 601, REC 709 | ||
Software |
|||
Software Control |
Mac™ and Windows™ software upgrade via USB and Ethernet. | ||
Internal Software Upgrade |
Via included updater application. | ||
Settings Control |
|||
Basic Settings Control |
Mini Switches, USB and Ethernet via free software utility | ||
Optional Front Panel Control |
Front mounted Smart Panel with LCD, rotary knob and six settings buttons | ||
| Power Requirements | |||
| Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. | ||
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet). | ||
| Power Consumption | 16 Watts | ||
| Operational Voltage Range | 100 - 240V AC | ||
• Blackmagic Design Teranex Mini SDI to Audio 12G Konverter
• Szoftver SD kártya
• 3 év jótállás
• Szoftver SD kártya
• 3 év jótállás
