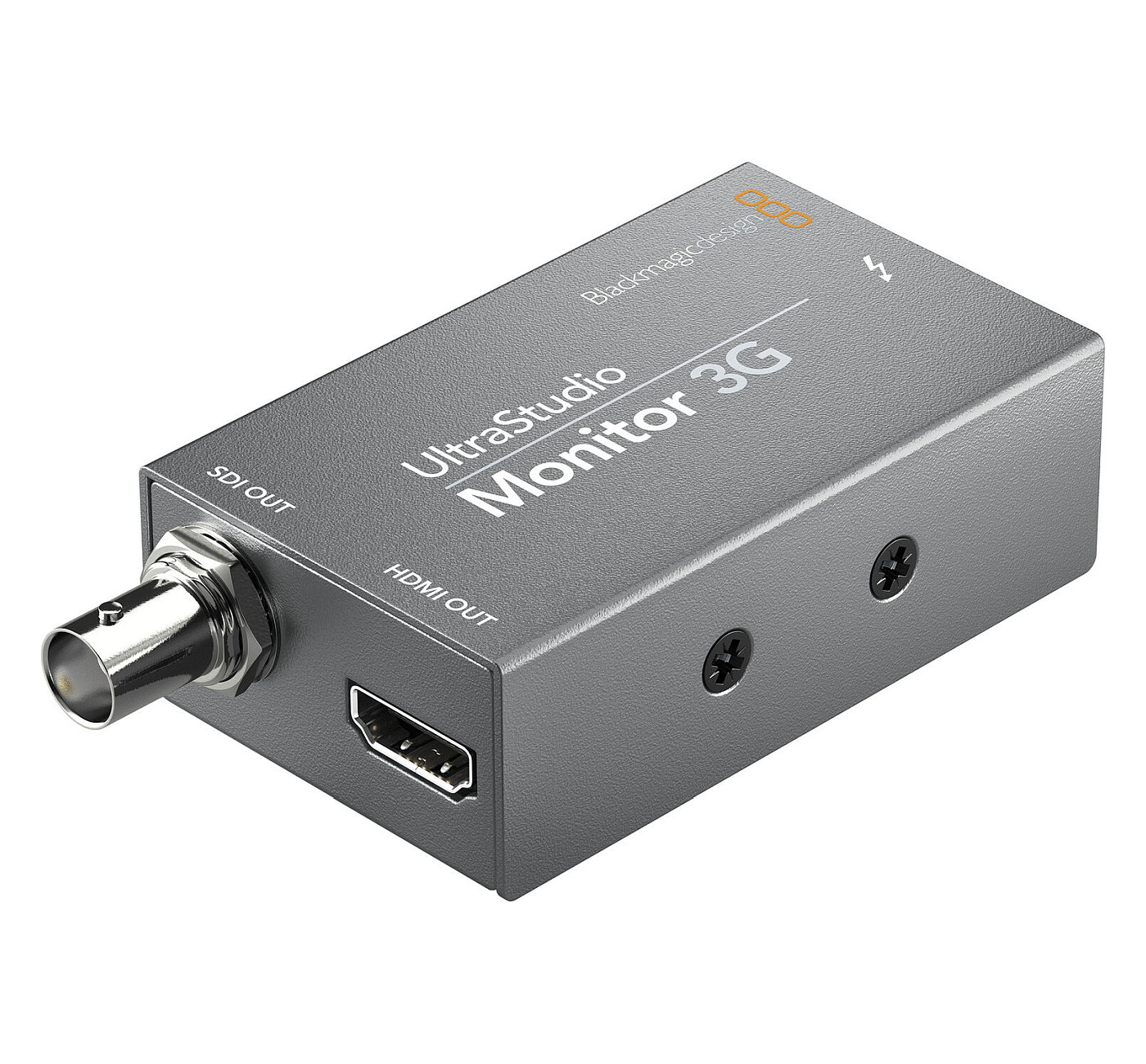

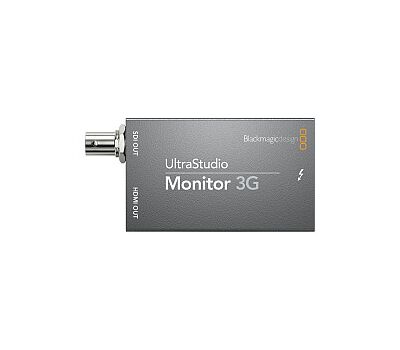

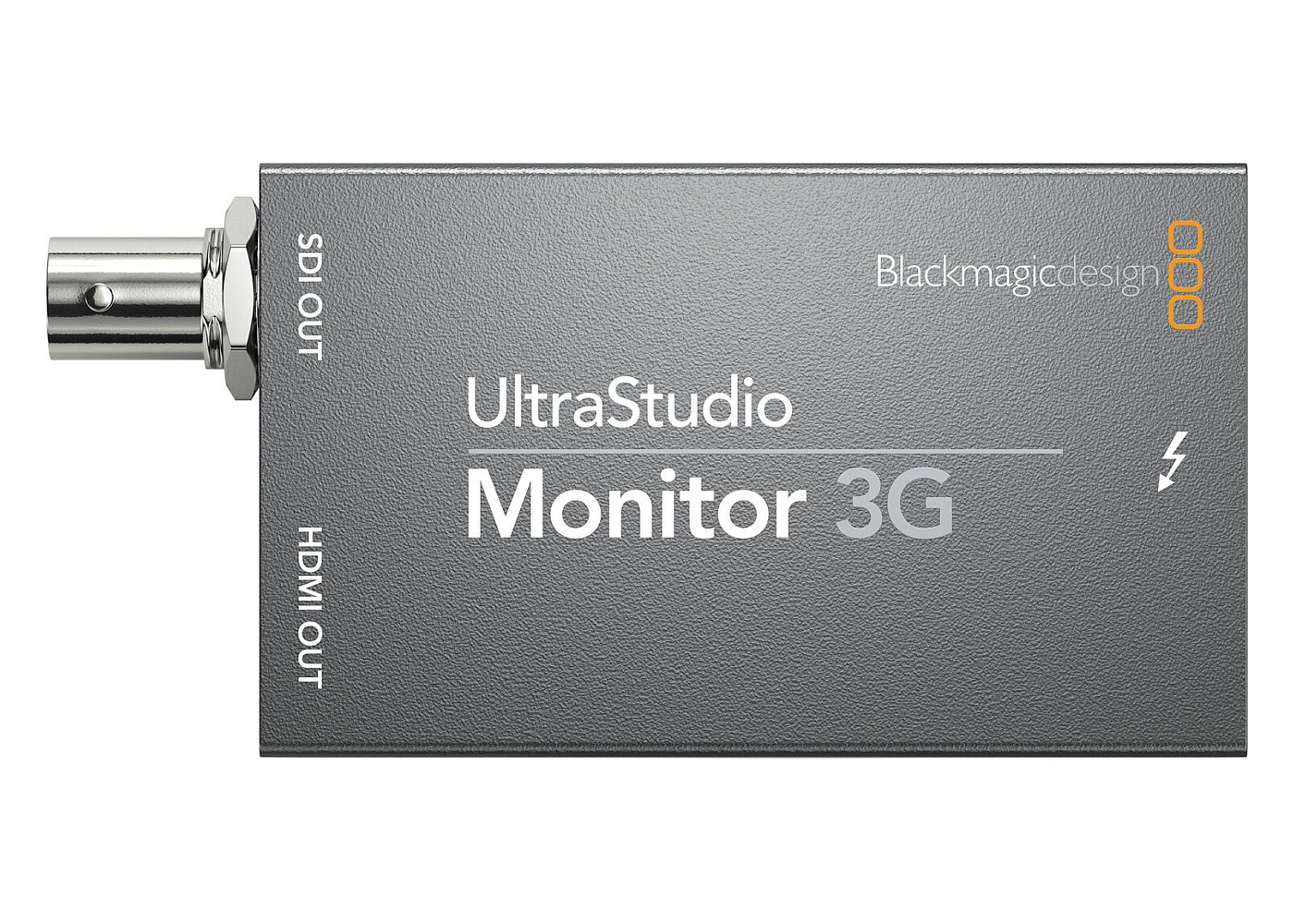

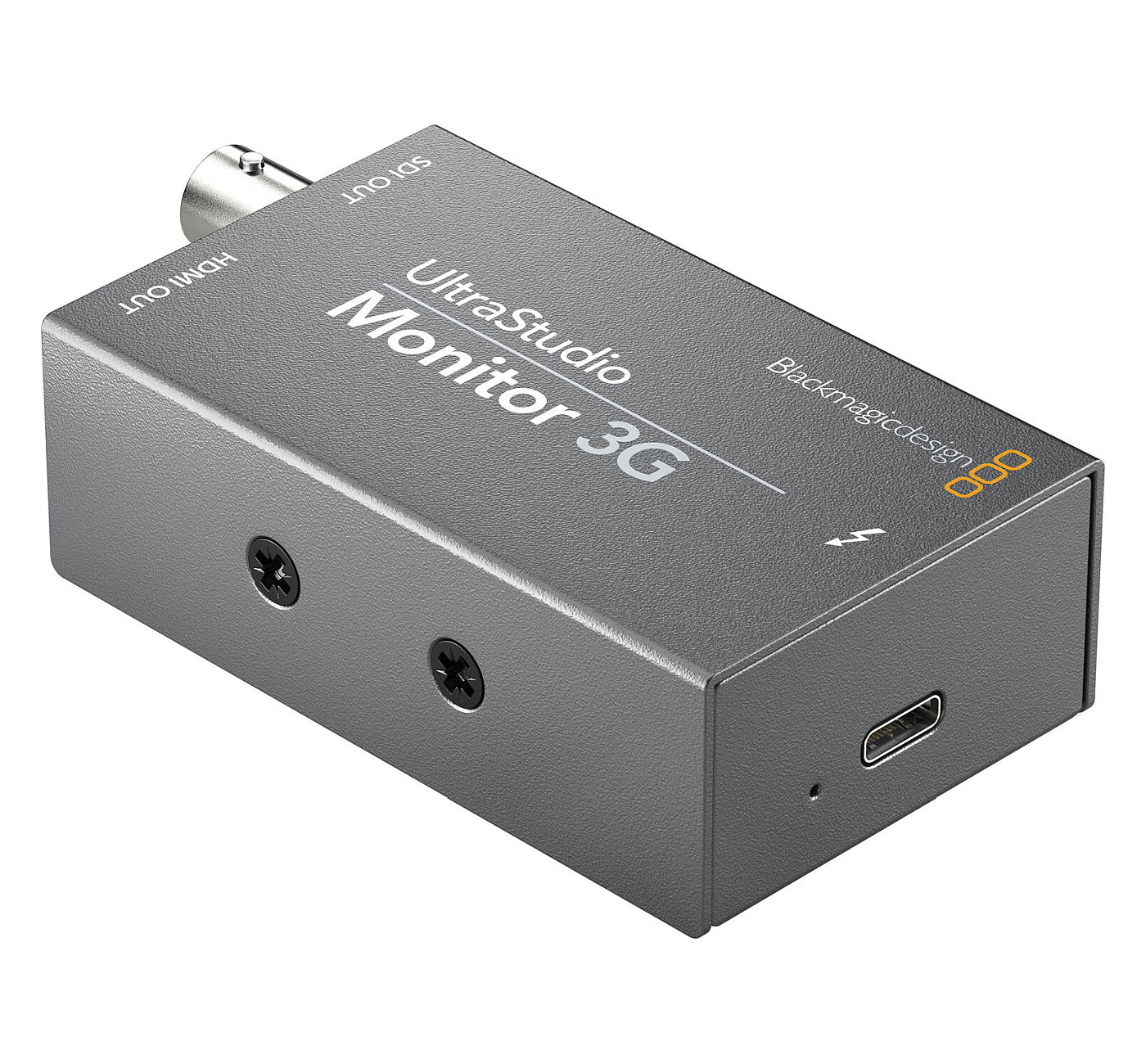

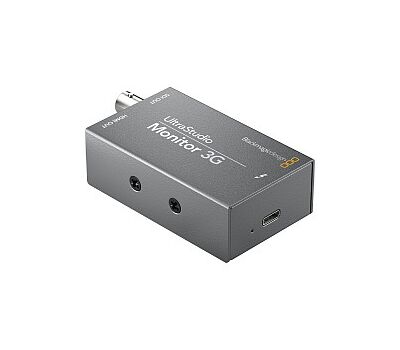

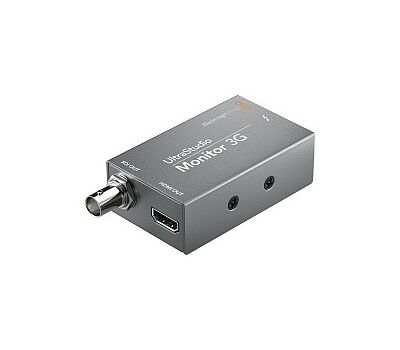

Blackmagic Design UltraStudio Monitor 3G
Késedelem nélküli monitorozási lehetőség 3G-SDI, HDMI és Thunderbolt 3 interfésszel. DaVinci Resolve,
Final Cut Pro, Media Composer, Adobe Premiere Pro CC stb. támogatás.
Blackmagic Design UltraStudio Monitor 3G
• HDR támogatás (HLG és PQ)
• Plug-and-play telepítés
• Nagy átviteli sebesség
• Kompakt méret
• DaVinci Resolve, Final Cut Pro, Media Composer, Adobe Premiere Pro CC stb. támogatás
• 1 év jótállás
Blackmagic Design UltraStudio Monitor 3G Specifications |
|||
Connections | |||
SDI Video Outputs |
1 x 10-bit SD/HD switchable | ||
SDI Rates |
270Mb, 1.5G, 3G | ||
SDI Audio Outputs |
16 Channels embedded in SD/HD | ||
HDMI Video Outputs |
1 x HDMI 2.0 type A connector | ||
HDMI Audio Outputs |
8 Channels embedded in SD/HD | ||
Computer Interface |
Thunderbolt™ 3 (Mac OS, Windows and Linux) | ||
Software | |||
Software Included |
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. | ||
Internal Software Upgrade |
Firmware built into software driver. Software driver loads upgrades at system start or via updater software. | ||
Software Applications |
DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC, Adobe Character Animator CC, Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo ... |
||
SDI Video Standards | |||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
||
SDI Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1 | ||
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. | ||
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. | ||
SDI Video Sampling |
4:2:2, 4:4:4 | ||
SDI Color Precision |
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. | ||
SDI Color Space |
REC 601, REC 709 and REC 2020 | ||
SDI HDR Support |
HDR metadata packing, HLG and PQ transfer characteristics. | ||
Multiple Rate Support |
SDI video connection is switchable between SD and HD. | ||
HDMI Video Standards | |||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
||
HDMI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. | ||
HDMI Video Sampling |
4:2:2 and 4:4:4 | ||
HDMI Color Precision |
10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. | ||
HDMI Configuration |
HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. | ||
HDMI Color Space |
REC 601, REC 709 and REC 2020 | ||
HDMI HDR Support |
HDR metadata packing, HLG and PQ transfer characteristics. | ||
Multiple Rate Support |
HDMI video connection is switchable between SD and HD. | ||
Processing | |||
Real Time Effects |
DaVinci Resolve, Final Cut Pro internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. | ||
Colorspace Conversion |
Hardware based real time. | ||
Physical Installation |
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. | ||
Environmental Specifications | |||
Operating Temperature |
5° to 40° C (32° to 104° F) | ||
Storage Temperature |
-20° to 45° C (-4° to 113° F) | ||
Relative Humidity |
0% to 90% non-condensing | ||
Others | |||
Supported Codecs |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
||
Hardware Frame Buffer |
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
||
Operating Systems |
Mac 11.1 Big Sur, Mac 12.0 Monterey or later |
||
Power Requirements |
Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port. |
||
Dimension |
91.9 x 45 x 24.9 mm | ||
Weight |
160 g |
