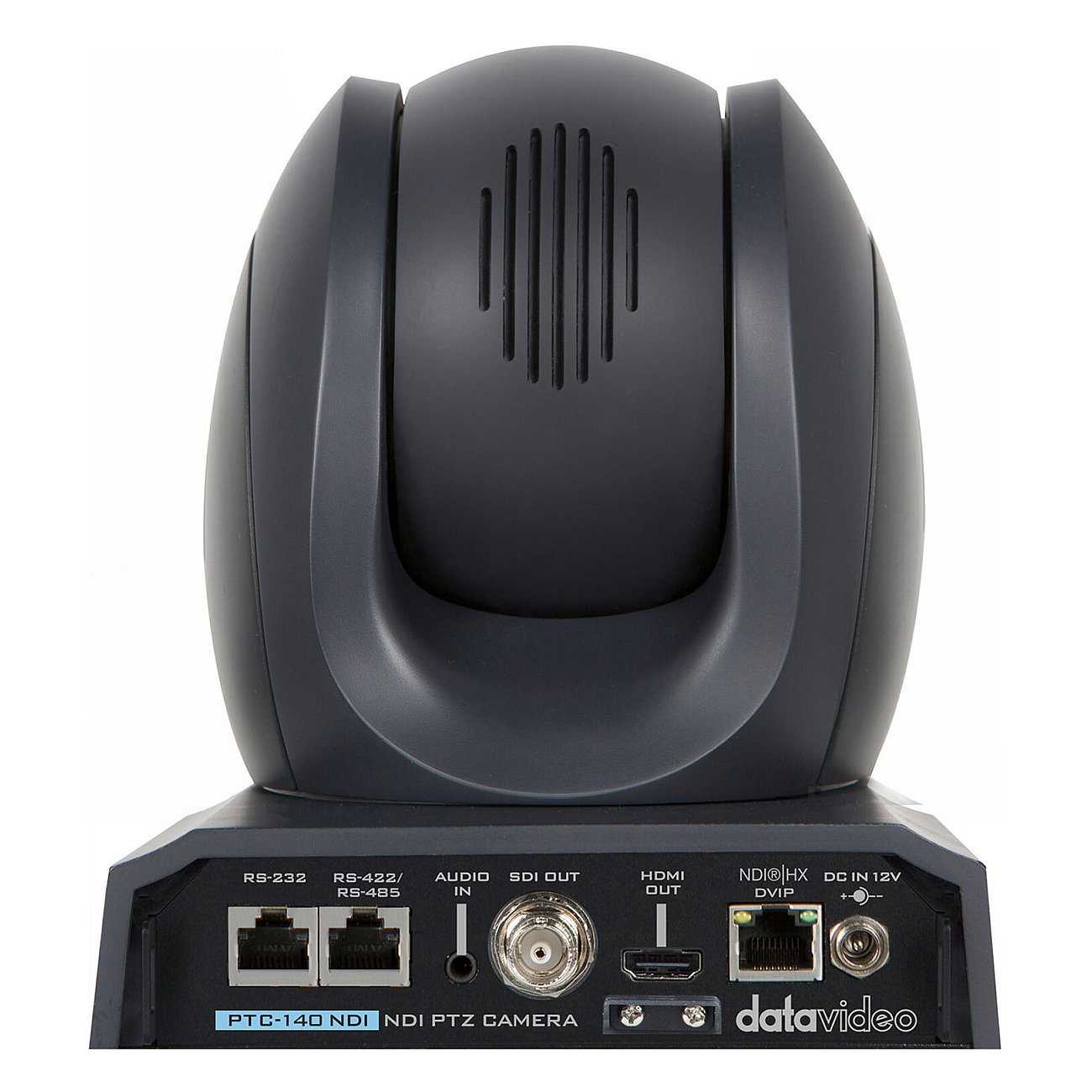

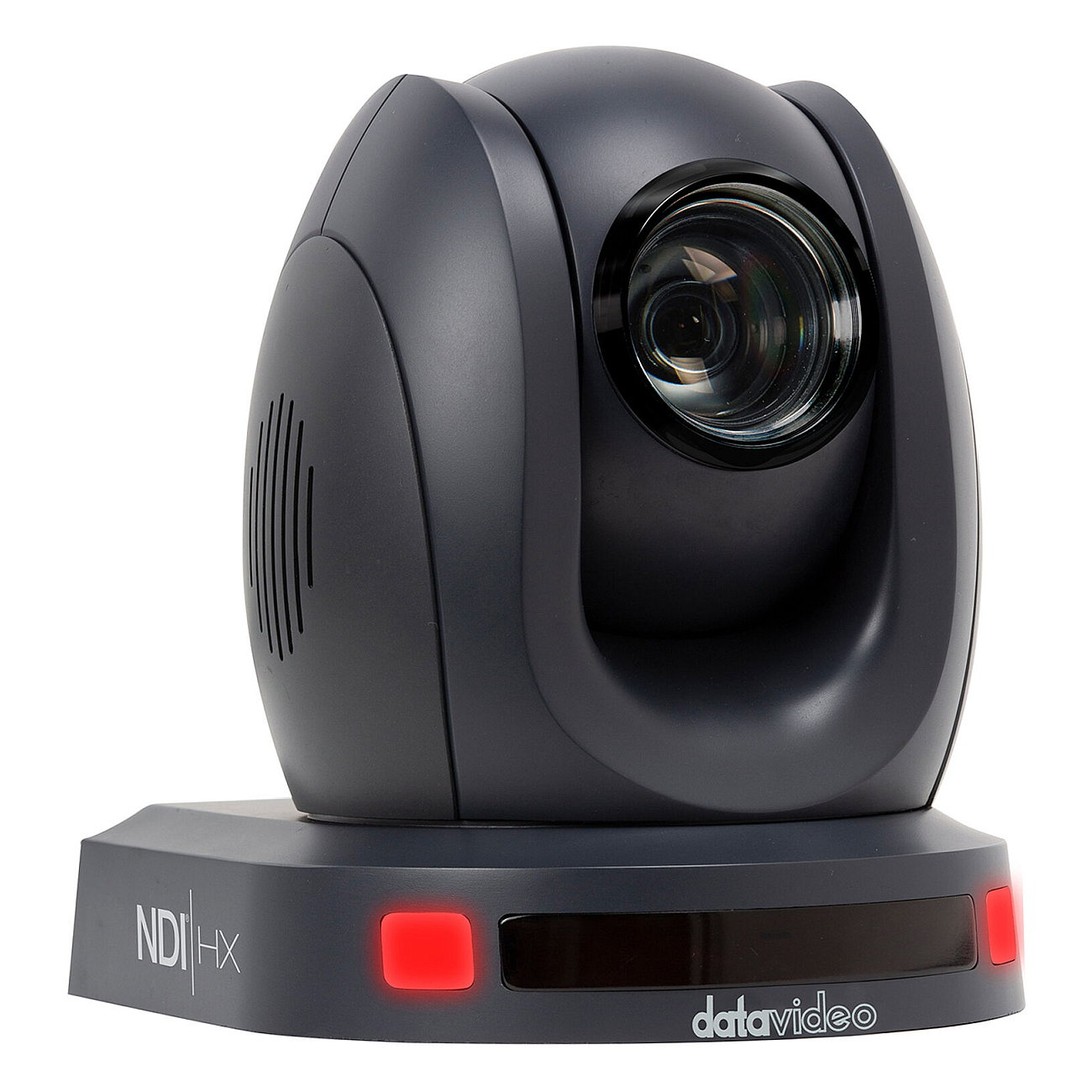

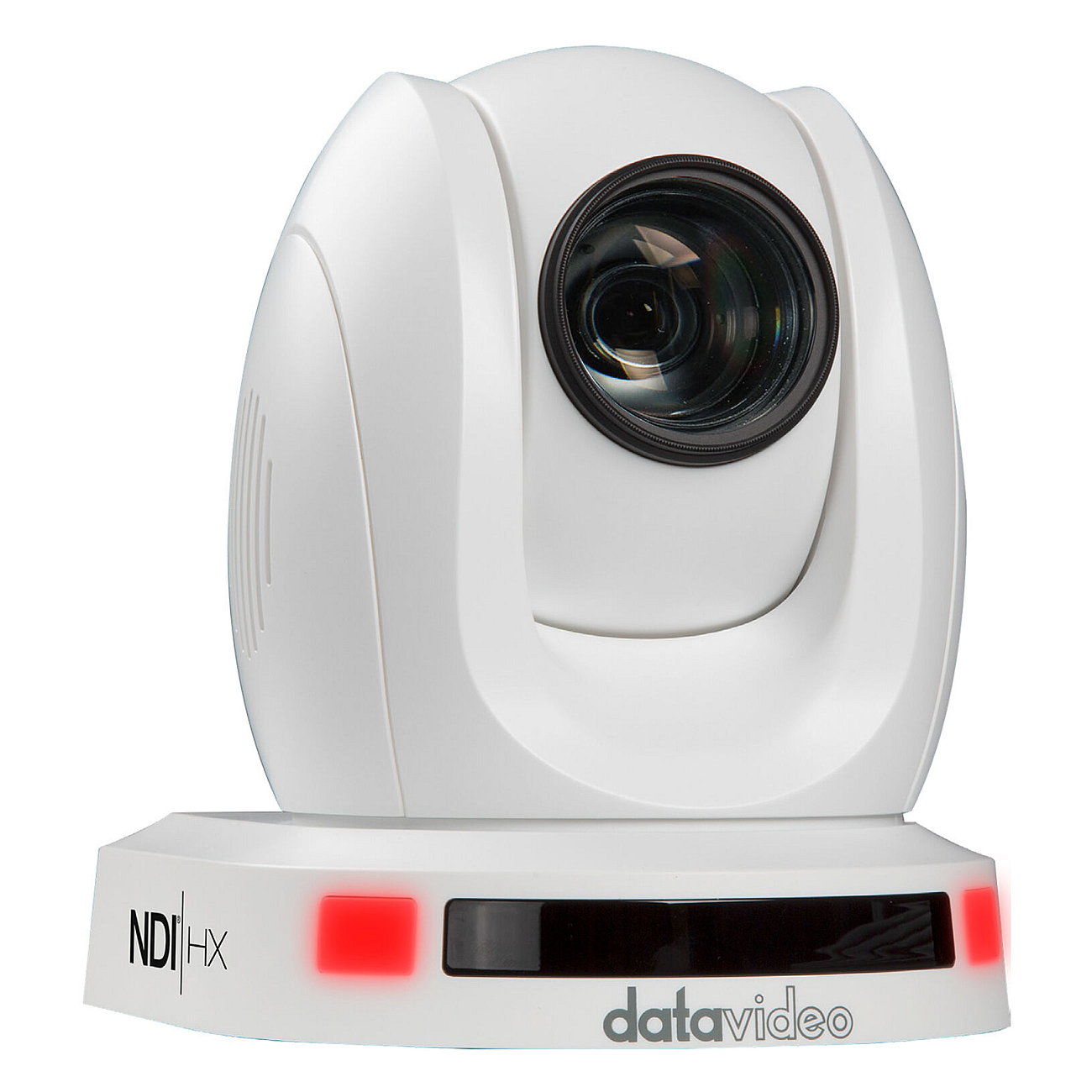

Datavideo PTC-140NDI HD NDI|HX PTZ kamera
A Datavideo PTC-140NDI PTZ kamera a PTC-140 kamera NDI-os változata. Az NDI lehetővé teszi, hogy egyetlen Ethernet
kábelen keresztül továbbítsunk videót, audiót, tápellátást, tallyt és vezérlést.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Datavideo PTC-140NDI HD NDI|HX PTZ kamera
• Felbontás akár 1920x1080
• 1/2,8" CMOS szenzor
• 20x optikai, 10x digitális zoom
• 3,5 mm-es audio bemenet
• H.264/H.265 videótömörítés
• AAC, MP3 és PCM audió tömörítés
• Vezérlés: DVIP, VISCA/Pelco-P/D
• RTSP, RTMP protokollok
• Szimultán kimenetek: HDMI, SDI
• Power over Ethernet
• PTZ View Assist
• Tally Light
• 1x Datavideo PTC-140NDI
• 1x Távvezérlő
• 1x Tápegység
• 1x Ceiling Mount Bracket
• 1 év jótállás
• 1x Távvezérlő
• 1x Tápegység
• 1x Ceiling Mount Bracket
• 1 év jótállás
Datavideo PTC-140NDI Specifications |
|||
| Video format/Resolution |
1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
||
Image Sensor |
1/2.8 inch high quality HD CMOS sensor |
||
Effective Pixels (approx.) |
2.07 Mega pixels |
||
S/N Ratio |
≥55dB |
||
Min. Illumination |
0.5 Lux @ (F1.8, AGC ON) |
||
Electronic Shutter |
Auto / Manual |
||
Zoom Ratio |
20x Optical Zoom, 10x Digital Zoom |
||
Gamma Control |
Off / Normal |
||
Iris Control |
Auto / Manual |
||
Digital Noise Reductions |
Yes |
||
On-Screen Display (OSD) |
English/Simplified Chinese |
||
White Balance |
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
||
AGC / Gain Control |
Auto / Manual |
||
Mirror / Flip Image |
Yes |
||
Focus Mode |
Auto/Manual |
||
Panning / Tilting Range |
Pan: 340° |
||
Panning / Tilting Speed |
Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
||
Preset |
255 Position |
||
Focal Length |
f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
||
Field of View (Horizontal, Wide) |
Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
||
Image Compensation |
Back light compensation |
||
Video Output |
HDMI x 1 SDI x 1 |
||
Audio Input |
3.5mm Line in |
||
Tally LED |
Dual color (Red, Green) |
||
Lens Filter |
M52.0 x 0.75 Thread with UV Protection |
||
Control Protocol |
Pelco-D, Pelco-P, VISCA, VISCA over IP DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP NDI |
||
Remote Control Interface |
LAN: for IP control (DVIP / NDI) RS-232, RS-422, RS-485 |
||
Video Compression Format |
H.264, H.265, Dual stream output |
||
Audio Compression Format |
AAC/MP3/G.711A Audio compression |
||
Audio Bitrate |
96Kbps, 128Kbps, 256Kbps |
||
HD IP Interface |
100M IP port(100BASE-TX); Support DVIP and NDI |
||
Streaming Protocols |
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc |
||
First Stream Supported Resolution |
---- |
||
Second Stream Supported Resolution |
---- |
||
Video Bitrate |
---- |
||
Video Bitrate Mode |
---- |
||
Encoding Frame rate |
---- |
||
POE |
IEEE802.3af |
||
F/W Update |
Ethernet |
||
IR Control |
Yes |
||
Camera Control Unit |
RMC-180 series/RMC-300 series/PTZ View Assist APP |
||
Tripod Mount |
1/4-20 UNC |
||
Dimension (LxWxH) |
156 x 184 x 186 mm |
||
Weight |
1.6 kg |
||
Operating Temp. Range |
0~40 °C |
||
Power |
DC 12V 12W |
||
Nem található bejegyzés
75.352 Ft
