Datavideo SE-1200MU HD Mixer
Datavideo SE-1200MU 6 inputos HD keverőpult, számítógépes irányítással, 4x HD-SDI és 2x HDMI bemenet
2x DSK Luma Key & Linear Key, Internal Frame Synchronizer, Tally Output.
Részletes leírás
Jellemzők
Specifikáció
Csomag tartalma
Küldés
Értékelések

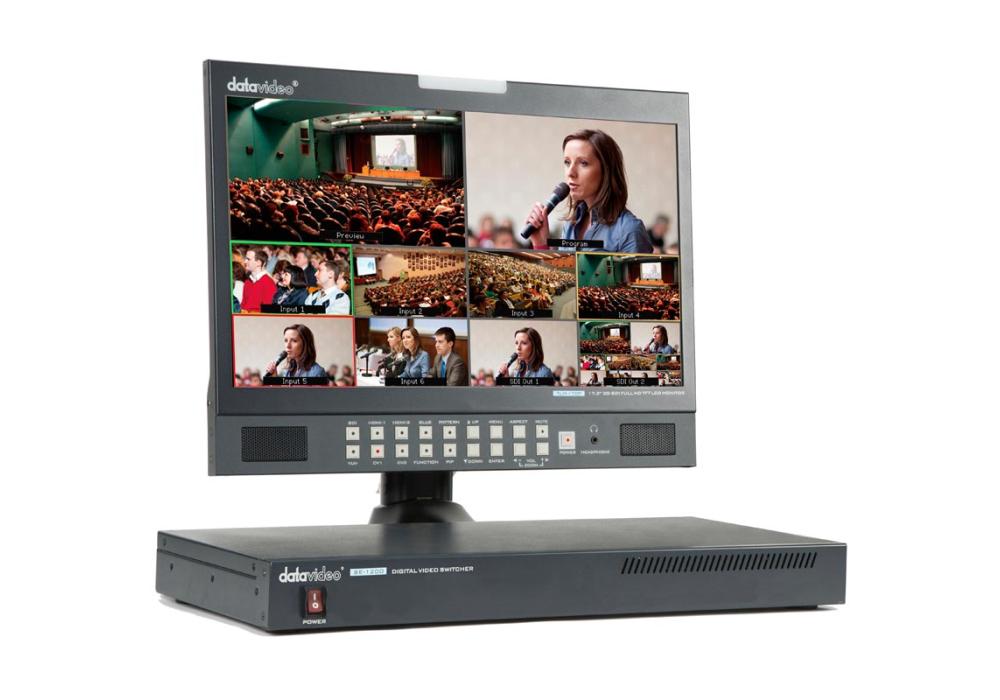

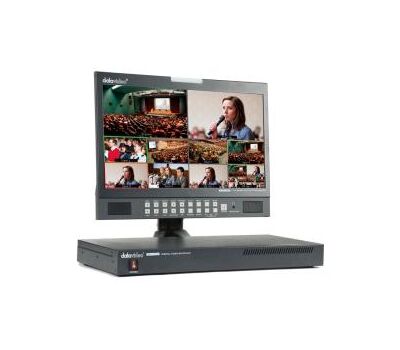

Datavideo SE-1200MU HD Mixer
Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.
SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

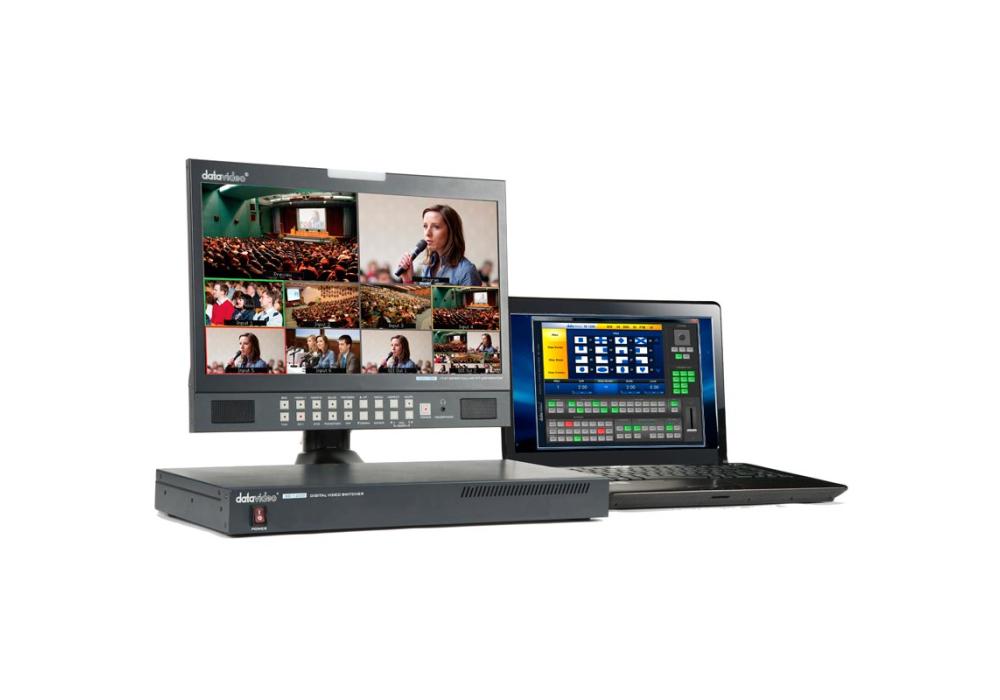

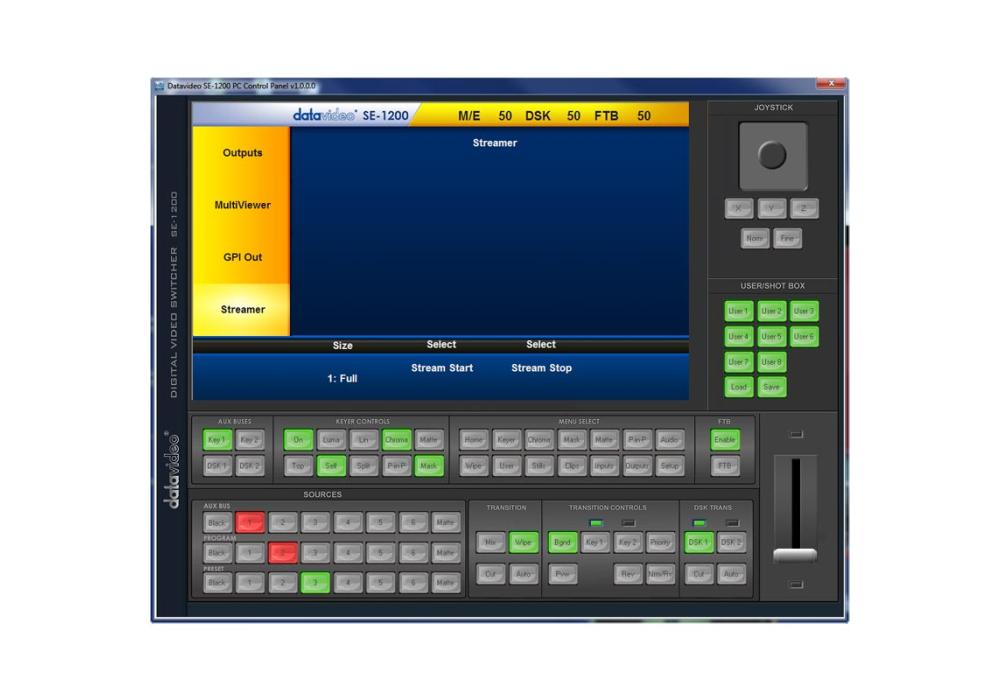

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.
SE-1200MU includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.
Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.
SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.
SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.
SE-1200MU includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.
Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.
- 6 video inputs ( SDI x 4 + HDMI x 2)
- Frame Sync on each input
- Flexible Mix/Effects Processor with
- 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
- 2 DSK, supporting Linear & Luma Key Modes
- 1 PIP (assignable to any of the 4 keyers
- Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
- Wipe, Mix & Cut Transitions
- Full M/E Preview function
- Any Input (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card
- Assignable Outputs
- Each SDI output can be switched in the Menu as:
- PROGRAM (w/ DSK)
- Clean PROGRAM (w/o DSK)
- Clean PREVIEW (w/o DSK)
- MULTISCREEN
- Input 1-6 - XPT (Cross Point Assignment)
- PC & Tablet control
- Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
- Tally output
- GPI output
- 1U rack mount
- Datavideo SE-1200MU 6 Input HD Digital Video Switcher
- 12 VDC Power Adapter and Cord
- Limited 1-Year Warranty (2 Years with Product Registration)
| Video Standard | HD |
|---|---|
| Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB 4:4:4 |
| Input Routable / Crosspoint | Up to 6, repeatable |
| Video Input | 4x HD-SDI 2x HDMI (RGB/YUV, 1080i/1080p/720p) |
| Mix HD & SD source | N/A |
| Computer Graphic Interface | 2 via HDMI |
| Video Output | 2x HD-SDI & 2x HDMI assignable: PGM, PVW, Multi-view |
| Down-converted Output | N/A |
| Built-in Multi-view monitoring out | HDMI & Ethernet (MJPEG) |
| Audio input | 2x Balanced XLR |
| Audio output | N/A |
| Embedded audio support | Only embedded analog audio |
| Audio Delay Calibration | N/A |
| A+V switching | N/A |
| Chromakey | 2 Keyers |
| DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
| Picture in Picture | 1 |
| Logo Insertion | Via DSK or Keyer |
| Still Store | 24 |
| Effects | FTB, Cut, 32 Wipe with border |
| Transition on Preview | Transition & Effect |
| Sync | Internal In |
| Reference In/Out | N/A |
| Tally Output | 1x D-sub 15pin, dual color |
| PC Remote Control | Via Ethernet or RS-232 |
| Built-in Audio Mixer | N/A |
| Special Features | Motion JPEG Multi-view streaming |
| Chassis | 1RU Rack-mount |
| Power | DC 12V 19W |
