Datavideo VP-633 100m SDI Repeater (Powered)
VP-633/VP-634 SDI repeaters can significantly extend
the maximum cable run of standard SDI cabling.

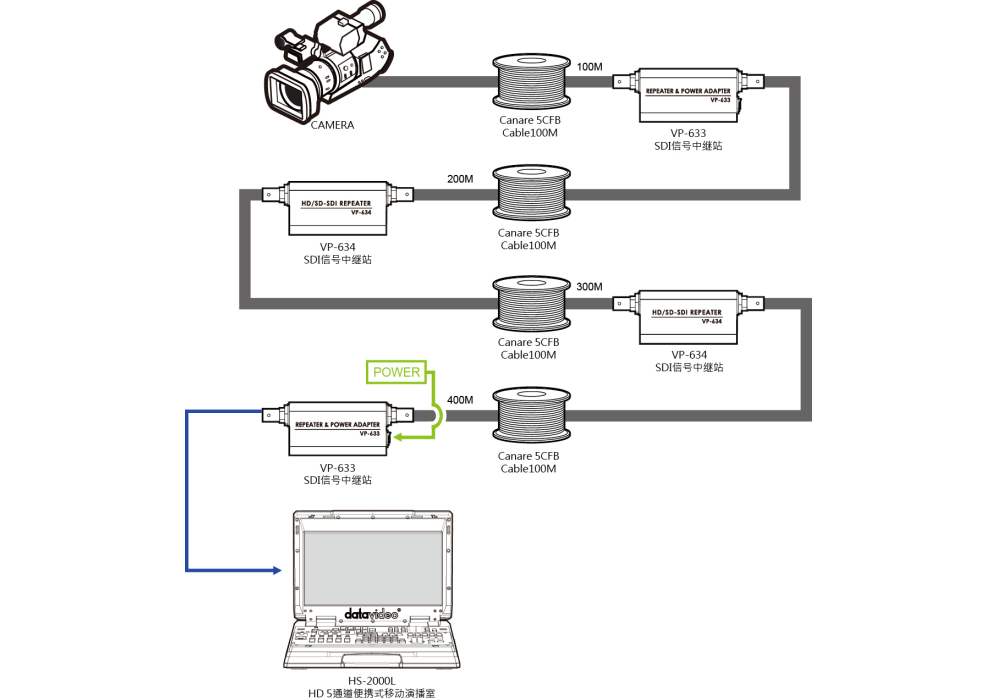

Up-to 4 SDI repeaters can be used in one chain,
allowing runs of up to 1000m SDI video through good quality SDI cable.
Each run must contain a VP-633 as this has a power connection to supply power through the SDI cables which then powers the subsequent VP-634’s (which do
not require additonal power).
For applications where runs of a few hundred meters
HD-SDI video are required (concert hall, sports stadium
etc.), the Datavideo VP-633 & VP-634 are a very cost
effective solution.

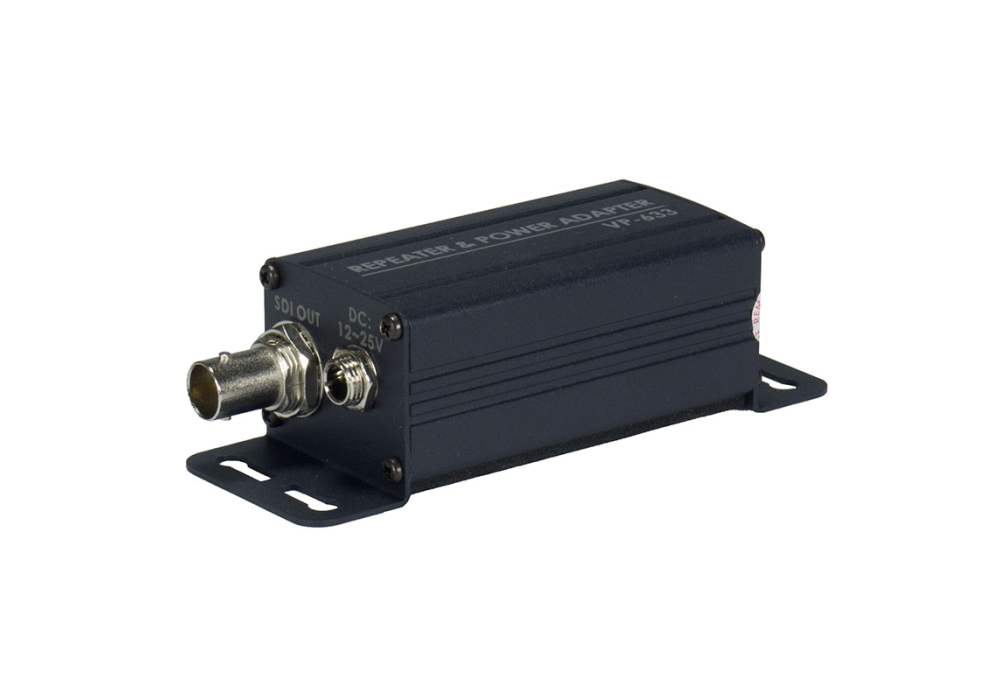

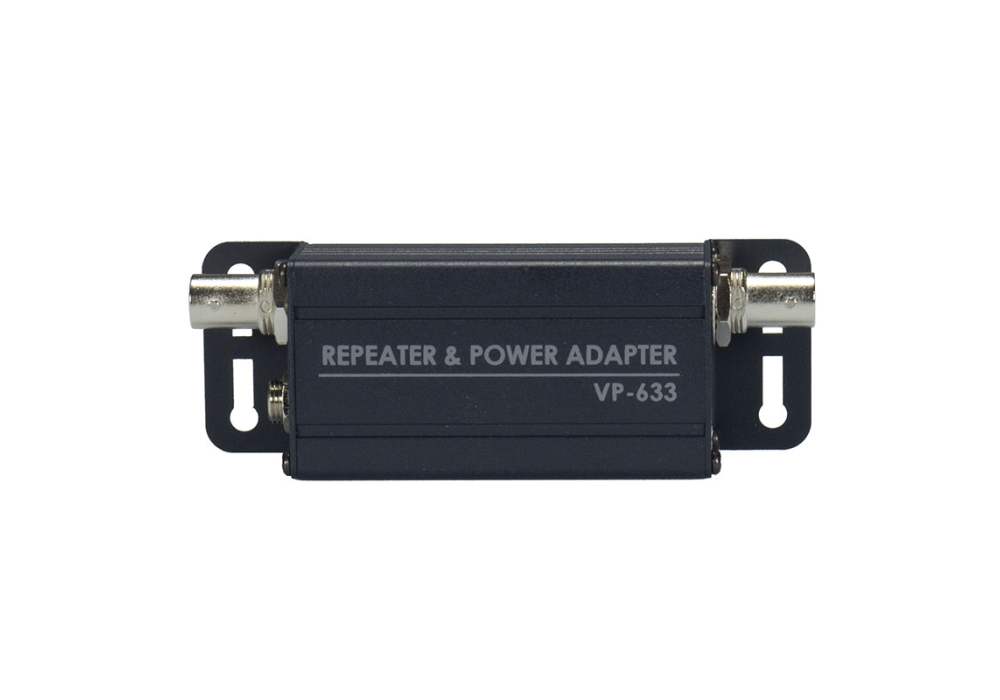

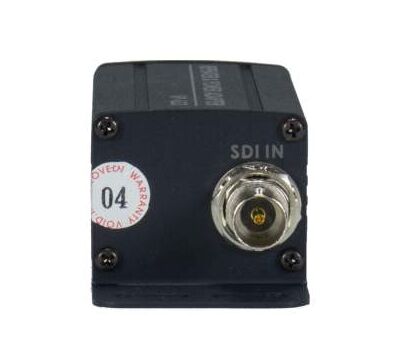

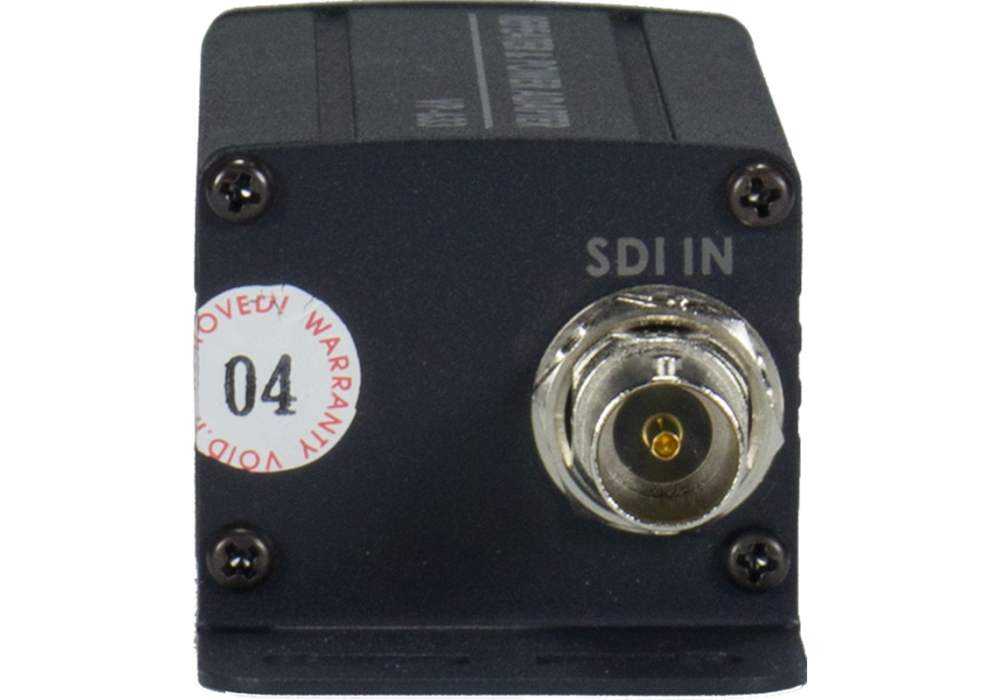

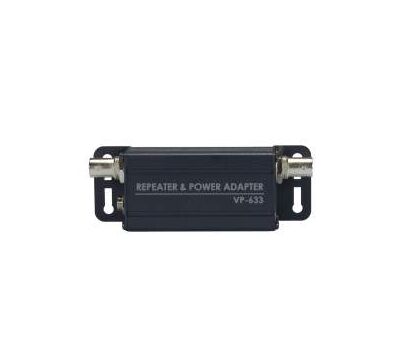

VP-633 SDI Repeater (Powered)
- Extend the capabilities of SDI cables
- Upto 4 SDI Repeaters (1 x VP-633 plus 3 x VP-634) can be used in one chain, allowing runs of up to 1000m with good quality SDI cable
- VP-633 can repeat SDI signal upto a further 200m (SDI Cable dependant, 3G 100m max between repeaters)
- Add up to 3 x unpowered VP-634 for each additional 200m required (SDI Cable dependant)
- 12v DC PSU Supplied
- 3G, HD & SD-SDI Support
- Datavideo VP-633 3G/HD/SD-SDI Repeater with DC Power Input
- Instruction Manual
- 2-Year Warranty with Online Product Registration within 30 Days of Purchase
- 1-Year Warranty without Registration
Video and Signal | Input: HD-SDI/SD-SDI Output: HD-SDI/SD-SDI |
---|---|
Standard | SD: SMPTE 259M HD: SMPTE 292M |
Video Format | SD︰720x480i、720x576i HD︰1280x720 50P/59.94P/ 60P 1920x1080 50i/59.94i/60i 1920x1080 24P/25P/30P |
Audio | SDI Embedded Audio |

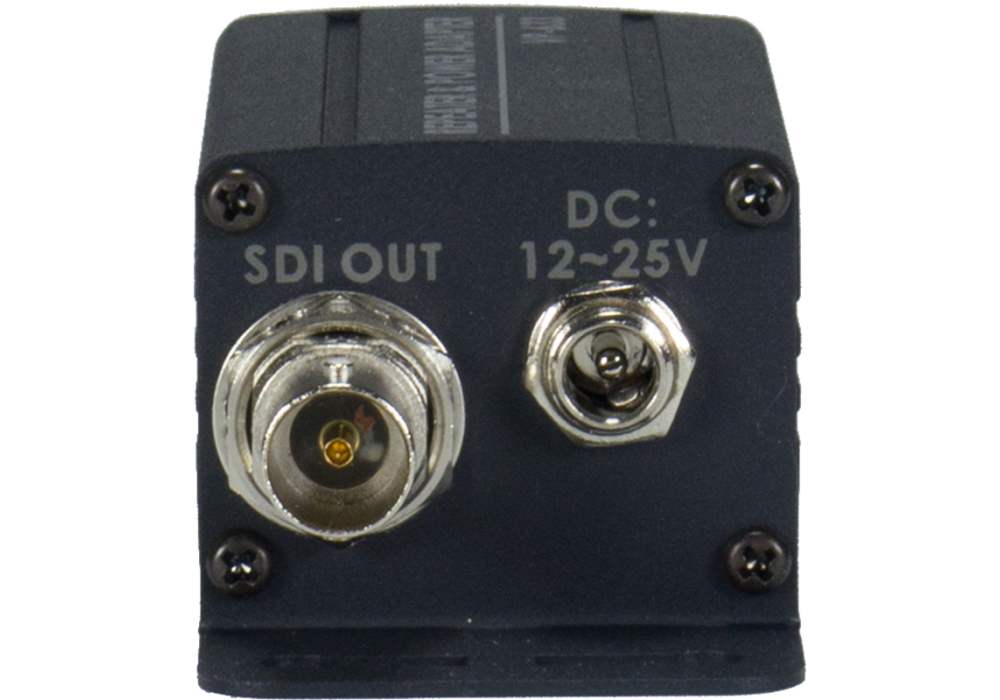

Power | DC 12V~25V |
