Datavideo VP-634 100m SDI Repeater (Unpowered)
VP-633/VP-634 SDI repeaters can significantly extend the maximum cable run of standard SDI cabling.

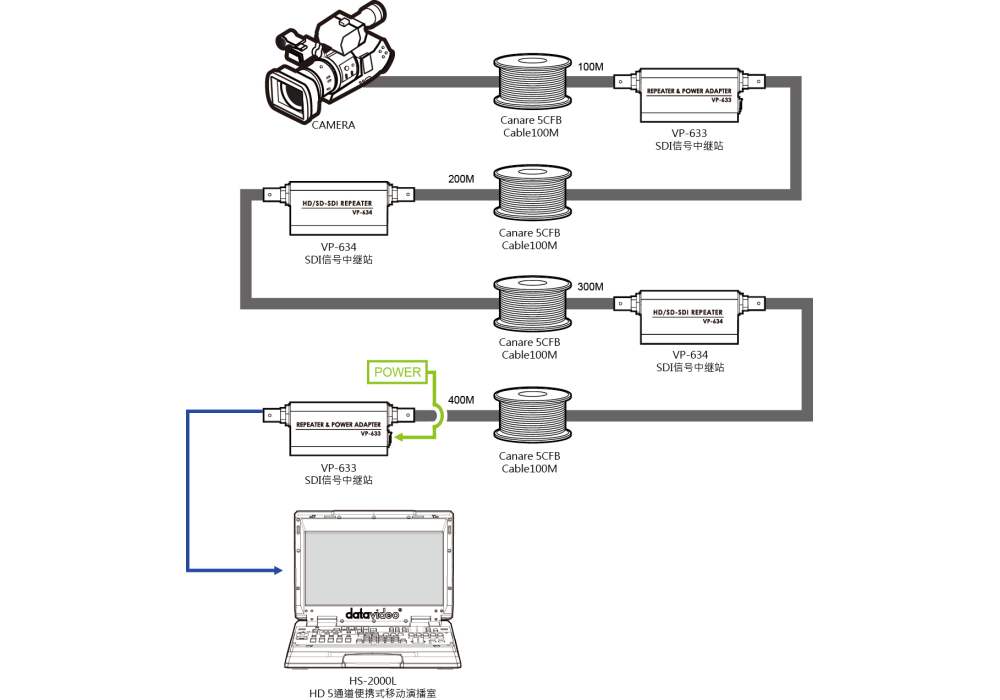

Up-to 4 SDI repeaters can be used in one chain, allowing runs of up to 1000m SDI video through good quality SDI cable.
Each run must contain a VP-633 as this has a power connection to supply power through the SDI cables which then powers the subsequent VP-634's (which do not require additonal power).
For applications where runs of a few hundred meters HD-SDI video are required (concert hall, sports stadium etc.), the Datavideo VP-633 & VP-634 are a very cost effective solution.
- Extend the capabilities of SDI cable
- 1 x VP-633 with 3x VP-634 SDI repeaters can each extend the range by a further 200m (high quality SDI cable)
- SDI Repeaters can be used in a chain, allowing runs of up to 1000m with good quality SDI cable.
- Requires 1 x VP-633 in chain to supply power
- Up to 3 VP-634 can be used with 1 x VP-633
- 3G, HD & SD-SDI Support
- Datavideo VP-634 3G/HD/SD-SDI Repeater
- Instruction Manual
- 2-Year Warranty with Online Product Registration within 30 Days of Purchase
- 1-Year Warranty without Registration
Video and Signal | Input: HD-SDI/SD-SDI Output: HD-SDI/SD-SDI |
---|---|
Standard | SD: SMPTE 259M HD: SMPTE 292M |
Video Format | SD︰720x480i、720x576i HD︰1280x720 50P/59.94P/ 60P 1920x1080 50i/59.94i/60i 1920x1080 24P/25P/30P |
Audio | SDI Embedded Audio |
Power | from VP-633 |
