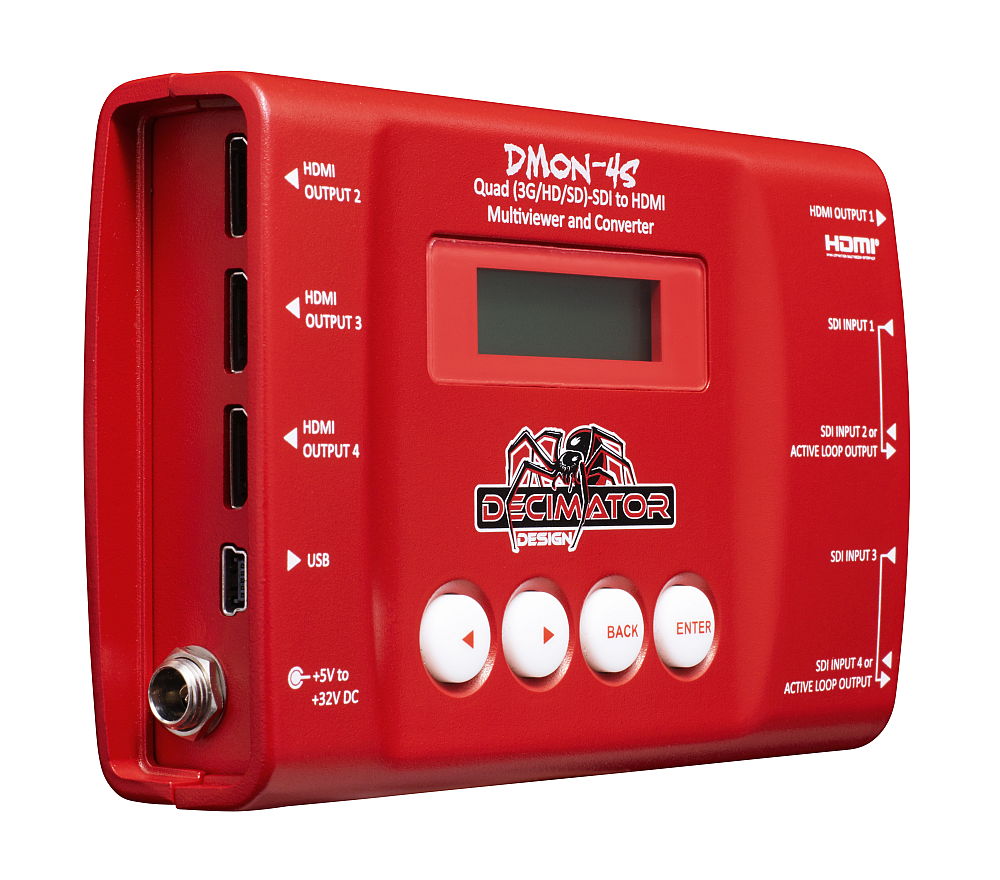

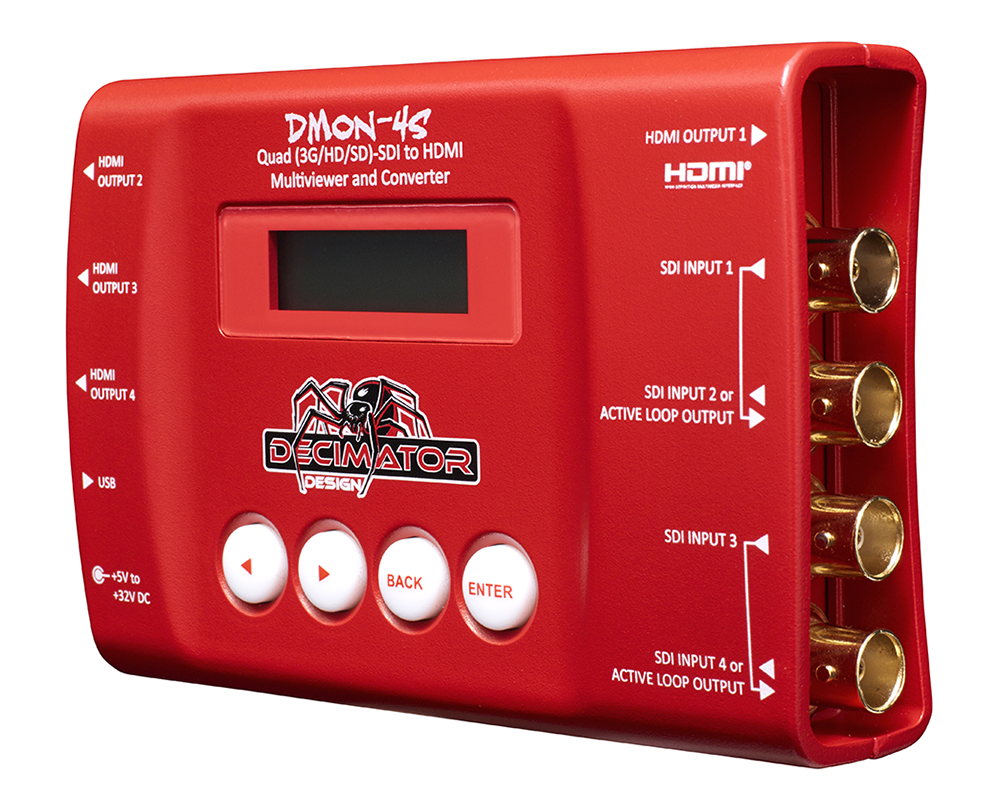

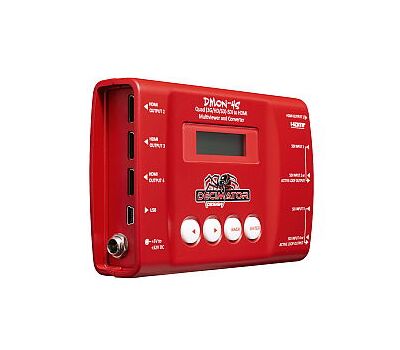

Decimator DMON-4S MultiViewer
Decimator DMON-4S MultiViewer biztosít 4 SDI bemenetről 4 HDMI kimenetet vagy kevesebb bemenetről biztosít különböző
kombinációkban multiview HDMI kimenetet vagy továbbfűzött SDI kimenetet.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Decimator DMON-4S MultiViewer
- Support for both 3G level A and B on the inputs.
- Horizontal and/or Vertical image flipping per window
- Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
For example you could use the unit to have:
- 4 independent SDI to HDMI converters
- 3 independent SDI to HDMI converters with a quad-split output
- 2 independent SDI to 2 x HDMI converters with loop through
- A single SDI or Multi-View to 4 x HDMI outputs - Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.
- Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Multi-View mode offers:
- Custom Layouts with various standard layouts
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selection of audio from any input
- 16 Character UMD overlay per window with individual enables,
custom positioning and size
- Low latency buffering for each input allowing non-synchronous
inputs
- Each window is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
- Variable aspect ratios per window - The DMON-4S is a truly portable converter, that incorporates our new
easy to use LCD and button control system. - This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
| DECIMATOR DMON-4S MULTI VIEWER SPECIFIKÁCIÓ | |||
| SDI bemenet formátumok | 3G: | SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz |
|
| HD: | SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz |
||
| SD: | SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
||
| HDMI kimenet formátumok | 1080p: 60/59.94/50Hz | ||
| 1080i: 60/59.94/50Hz | |||
| 1080p: 30/29.97/25/24/23.98Hz | |||
| 720p: 60/59.94/50/30/29.97/25 | |||
| 625i50 | |||
| 525i59.94 | |||
| Bemenetek | 4 x (3G/HD/SD)-SDI | ||
| Input Equalization > 100M using Belden 1694A | |||
| USB for control and updates | |||
| Kimenetek | 4 x mini HDMI Type C | ||
| Optional SDI Active Loop Out of inputs 1 and/or input 3 | |||
| LCD / Button menu options | Status for all 4 inputs | ||
| HDMI output type and source selection from SDI inputs 1 to 4 | |||
| Quad-Split output format selection | |||
| Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size | |||
| Quad-split individual aspect format for each input of Same as output, Letter-box or Pillar-box | |||
| Quad-split Border Enable | |||
| Quad-split mode reference of either Free-run or inputs 1 to 4 | |||
| LED állapotkijelző | Power | ||
| 12 x Signal lock and rate | |||
| Teljesítmény | 5 to 32 VDC Positive Centre Pin |
||
| Méretek | 79.5 x 123 x 29.5 mm / 3.1 x 4.8 x 1.2 in | ||
