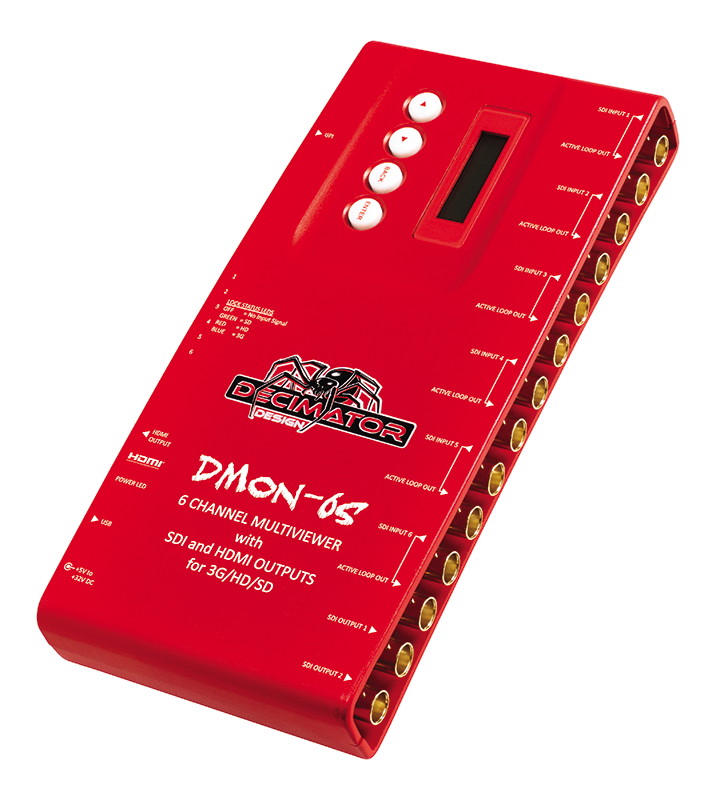

Decimator DMON-6S MultiViewer
- Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
- 6 x (3G/HD/SD)-SDI active loop copies of each input
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Support both 3G level A and B on the input and output.
Allowing conversion between 3G level A and B. - Pass-Through mode allowing any of the 6 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
- The DMON-6S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
- This unit also includes:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
DECIMATOR DMON-6S MULTI VIEWER SPECIFIKÁCIÓ | |||
SDI bemenet és kimenet formátumok | 3G: | SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz |
|
HD: | SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz |
||
SD: | SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
||
HDMI kimenet formátumok | 1080p: 60/59.94/50Hz | ||
1080i: 60/59.94/50Hz | |||
1080p: 30/29.97/25/24/23.98Hz | |||
720p: 60/59.94/50/30/29.97/25 | |||
625i50 / 525i59.94 | |||
Bemenetek | 6 x (3G/HD/SD)-SDI (BNC) | ||
Input Equalization > 100M using Belden 1694A | |||
USB for control and updates | |||
Kimenetek | 6 x SDI (3G/HD/SD)-SDI (BNC, active loop through) | ||
2 x SDI (3G/HD/SD)-SDI (BNC) | |||
1 x HDMI (Type A) | |||
LCD / Button menu options | HDMI output type | ||
Output Select | |||
Multi-Viewer Output Format | |||
Multi-Viewer Number of Windows | |||
Multi-Viewer Layout | |||
Multi-Viewer Audio Source | |||
Multi-Viewer Reference | |||
Full Screen is Scaled | |||
Input Routing | |||
GPI mode | |||
Setup | |||
LED állapotkijelző | Power | ||
6 x Signal lock and rate | |||
Teljesítmény | 5 to 32 VDC Positive Centre Pin |
||
Méretek | 220 x 103.7 x 29.5 mm / 8.7 x 4.1 x 1.2 in |
