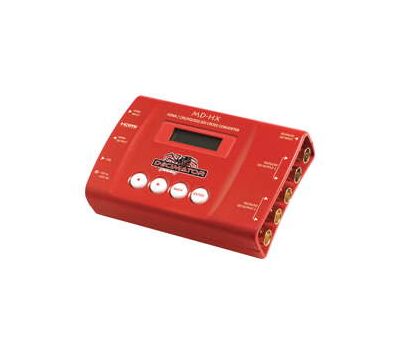

Decimator MD-HX Cross Konverter (HDMI to SDI & SDI to HDMI)
Decimator MD-HX HDMI-SDI, SDI-HDMI cross konverter robosztus burkolatú up/down/cross konverter HDMI és SDI
bemenetekkel és HDMI és SDI / (3G/HD/SD) aktív loop through vagy addition kimenetekkel.
Alternatíva
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Decimator MD-HX Cross Konverter (HDMI to SDI & SDI to HDMI)
- Support both 3G level A and B on the input and output. Allowing conversion between A and B.
- Horizontal and/or Vertical image flipping via the built in scaler.
- Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
- Robust Aluminium Case with easy to use LCD and button control system.
- Features the following 14 modes:
1. SDI IN to HDMI and SDI OUT
2. SDI IN to SDI OUT and HDMI IN to HDMI OUT
3. SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
4. SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
5. HDMI IN to SDI OUT and SDI IN to HDMI OUT
6. HDMI IN to HDMI and SDI OUT
7. HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
8. HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
9. Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
10. Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
11. Scaled SDI IN to HDMI and SDI OUT
12. Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
13. Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
14. Scaled HDMI IN to HDMI and SDI OUT - 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
- The audio pairs in the SDI and HDMI outputs can be rearranged as required.
- Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
- This unit also includes:
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
- Decimator MD-HX HDMI / SDI cross konverter
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
SDI TO HDMI CROSS KONVERTER SPECIFIKÁCIÓ | |||
SDI formátumok | 3G: | SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz |
|
HD | SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz |
||
SD: | SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
||
Bemenetek | 1 x HDMI (Type A) | ||
1 x SD/HD/3G-SDI (BNC) | |||
Kimenetek | 1 x HDMI (A-típus) | ||
4 x SD/HD/3G-SDI (BNC, 2 x active loop through or addition outputs, 2 x output) | |||
LCD / Button menu options | SDI output source from HDMI IN, SDI IN, Scaler | ||
SDI output 1 is loop | |||
HDMI output type and source from HDMI IN, SDI IN, Scaler | |||
Scaler source, reference, format and Aspect Controls | |||
Audio pair routing for HDMI and SDI output | |||
LCD backlight off time | |||
Back to Status time | |||
Teljesítmény | 5 to 32 VDC | ||
Positive Centre Pin | |||
Méretek | 79.5 x 123 x 29.5 mm / 3.1 x 4.8 x 1.2 in |
