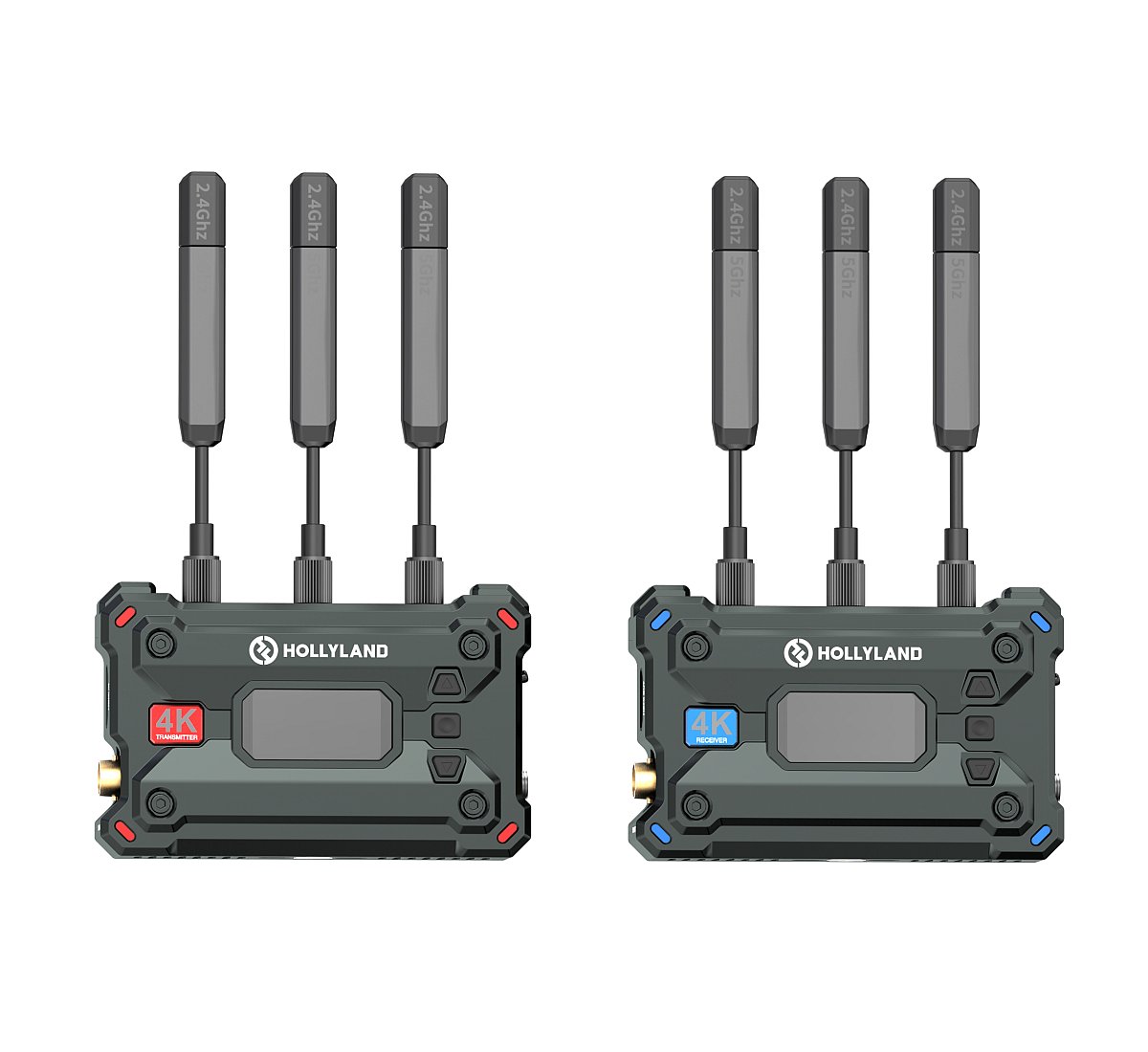

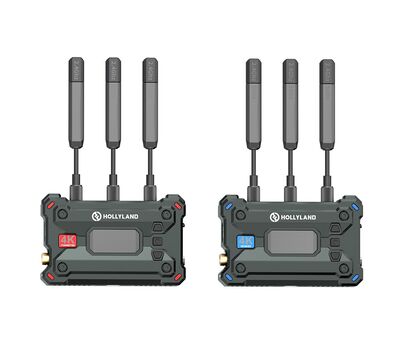

Hollyland Pyro S 4K HDMI/SDI vezeték nélküli jelátviteli rendszer
Hollyland Pyro S 4K HDMI/SDI vezeték nélküli jelátviteli rendszer
• HDMI/SDI be- és kimenet
• Késleltetés: 50 ms
• 2,4 és 5 GHz-es frekvenciasávok
• UVC és RTMP streaminghez
• 200m hatótáv broadcast módban
• Intelligens csatornakeresés
• 12 Mb/s bitsebesség
• Tápellátás: DC, NP-F akkumulátor, USB-C
• 1x Jelvevő
• 7x Antenna
• 1x cold shoe adapter
• 1x USB-C OTG adapter
• 1x Hollyland DC adapter Pyro S-hez
• 1 év jótállás
Akkumulátor nem tartozék
Hollyland Pyro S Specifications |
|||
| Transmitter | |||
Port |
DC Input: 2.0mm Core Socket |
||
Power Supply |
Battery Voltage Range: 6.8-8.4V DC Voltage Range: 6-16V |
||
Power Consumption |
<11W | ||
Net Weight |
207g | ||
Dimensions |
L x W x H: 112 x 71.2 x 34.1mm | ||
Input/Output Format |
HDMI Input: SDI Input |
||
Operating Frequency |
5 GHz Frequency Band 2.4 GHz Frequency Band |
||
Transmit Power |
<23 dBm | ||
Receiver Sensitivity |
/ | ||
Latency |
as low as 50ms | ||
Bandwidth |
20 Mhz (Broadcast: 40 MHz) | ||
Temperature |
-10-45°C (working) -40-60°C (working) |
||
| Receiver | |||
Port |
DC Input: 2-0mm Core Socket HDMI Input: HDMI 1.4b SDI Input: 3G SDO USB-C: USB 2.0 OTG Antenna: SMA Male |
||
Power Supply |
Battery Voltage Range: 6.8-8.4V DC Voltage Range: 6-16V |
||
Power Consumption |
<8W | ||
Net Weight |
207g | ||
Dimensions |
L x W x H : 112 x 71.2 x 34.1mm | ||
Input/Output Format |
HDMI Output SDI Output |
||
Operating Frequency |
5 GHz Frequency Band 5.150-5.250 GHz 5.250-5.350 GHz 5.470-5.725 GHz 5.725-5.850 GHz |
||
Transmit Power |
/ | ||
Receiver Sensitivity |
-85 dBm ( Broadcast: -80 dBm) | ||
| Latency | as low as 50ms | ||
| Bandwidth | 20MHz (Broadcast: 40 MHz) | ||
| Temperature | -10-45°C (working) -40-60°C (working) |
||
