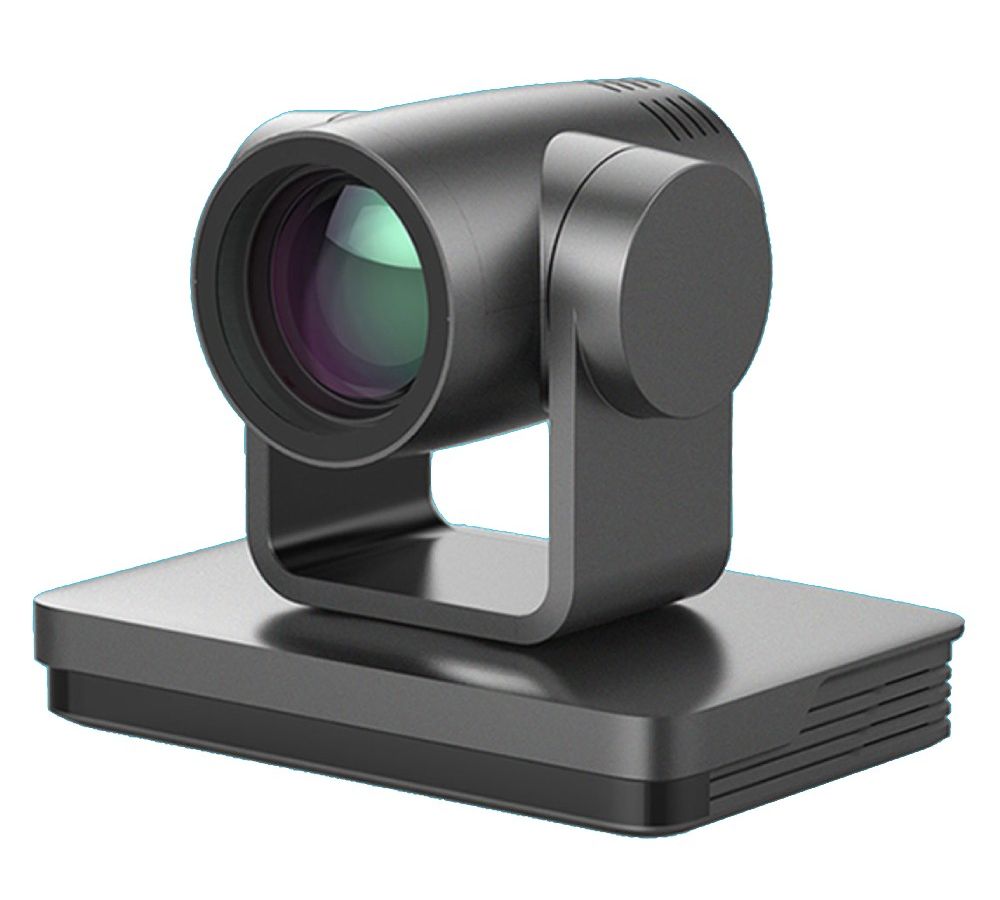

Minrray UV570-12-SDI Full HD PTZ kamera

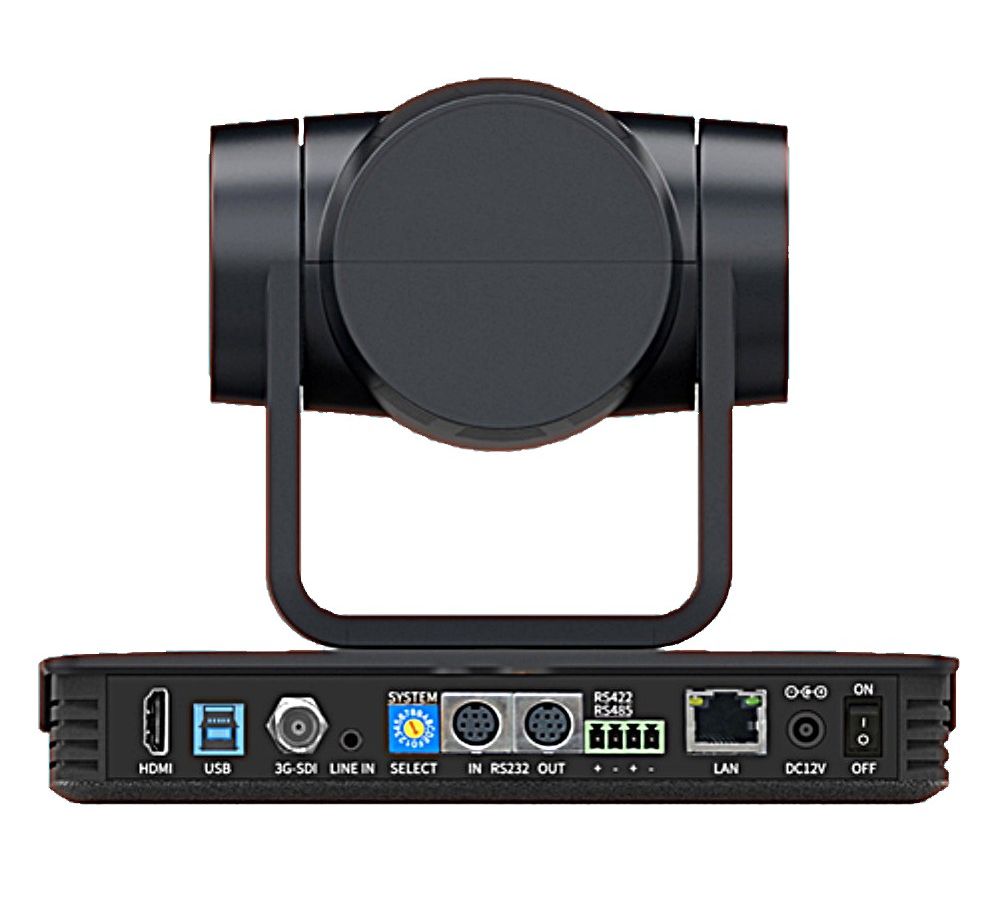

A Minrray UV570 egy Full HD PTZ robotkamera, HDMI, SDI és USB3.0 kimenetekkel, vonalszintű hang bemenettel
12x-es optikai zoommal, RS232 (in/out), RS422 csatlakozókkal, opcionális POE funkcióval.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Minrray UV570-12-SDI Full HD PTZ kamera
The UV570 series Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Key Features
1. Superb High-definition Image
UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
2. Multiple optical lens
5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.
3. Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. USB3.0 supports dual code streams
Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.
6. Multiple Control Protocols
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
7. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
8. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
Key Features
1. Superb High-definition Image
UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.
2. Multiple optical lens
5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.
3. Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. USB3.0 supports dual code streams
Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.
6. Multiple Control Protocols
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
7. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
8. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
- Minrray UV570-SDI kamera, 12x zoommal
- Hálózati adapter
- RS232 kontroll kábel
- USB3.0 kábel
- IR távszabályzó
- User Manual (en)
Minrray UV570 specifikáció | ||
Lens Parameter | ||
Optical Zoom | 12x | |
Gyújtótávolság | 3.9 ~ 46.8 mm | |
View Angle | 72.5° ~ 6.3° (wide-tele) | |
Iris | F1.8 – F2.4 | |
Camera Parameter | ||
Sensor | 1/2.8 inch high quality HD CMOS sensor | |
Effective Pixels | 16:9, 2.07 megapixel | |
Video Format | HDMI/SDI Video Output Format: 1080P60/50/30/25, 1080I60/50, 720P60/50,1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97 |
|
USB3.0 Main Stream:
YUY2/MJPEG/NV12/H.264/H.265 support: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 720×480P30, 640×360P30, 640×480P30, 320×176P30 |
||
USB3.0 Sub Stream:
YUY2/NV12 support 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264/H.265 support 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 720×480P30, 640×360P30, 640×480P30, 320×176P30 |
||
Minimum Illumination | 0.05Lux (F1.8, AGC ON) | |
DNR | 2D & 3D DNR | |
White Balance | Auto / Manual / One Push Specified Color Temperature |
|
Focus | Auto / Manual / One Push focus | |
Exposure | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority | |
Apenture | f1.8 ~ f11, CLOSE | |
Shutter speed | 1/25 ~ 1/10000 | |
BLC | ON/OFF | |
WDR | OFF/ Dynamic level adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
SNR | >50dB | |
Input/Output Interface | ||
Video Interfaces | HDMI, SDI, LAN(POE), USB3.0 (Type B compatible USB2.0) | |
Video Compression Format |
LAN support: H.264, H.265, USB3.0 Interface:Main stream supports YUY2/MJPEG/H.264/NV12/H.265; Sub stream supports YUY2/MJPEG/H.264/NV12 |
|
Audio Input Interface | sztereo 3.5mm linear Input | |
Audio Output | HDMI, SDI, LAN, USB3.0 | |
Audio Compression Format | AAC, MP3, G.711A | |
LAN Interface | 10M/100M/1000M adaptive Ethernet Port, support POE and audio/video output | |
Network protocol | RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocols, Support Remote Upgrade, reboot and reset | |
Control Interface | RS232 (Input & Output), RS422 (compatible with RS485) | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
Power Interface | HEC3800 Outlet (DC12V) | |
Power Adaptor | Input: AC110V-AC220V Output: DC12V/2.5A | |
PTZ Parameter | ||
Pan Rotation | -170°~ +170° | |
Tilt Rotation | -30° ~ +90° | |
Pan Control Speed | 0.1°/s ~ 100°/s | |
Tilt Control Speed | 0.1°/s ~ 45°/s | |
Preset Speed | Pan: 100°/s, Tilt: 45°/s | |
Preset Number | 255 presets (10 presets by remote controller) | |
Other Parameter | ||
Store Temperature | -10℃ ~ +60℃ | |
Store Humidity | 20% ~ 95% | |
Working Temperature | -10℃ ~ +50℃ | |
Working Humidity | 20% ~ 80% | |
Dimension | 181 × 115 ×149 mm | |
Weight | 1.15 kg |
