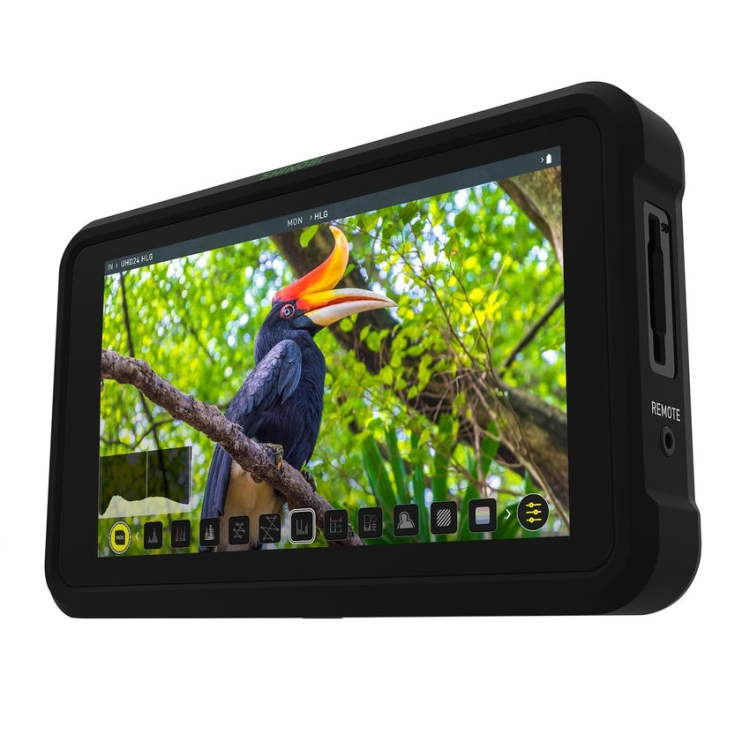

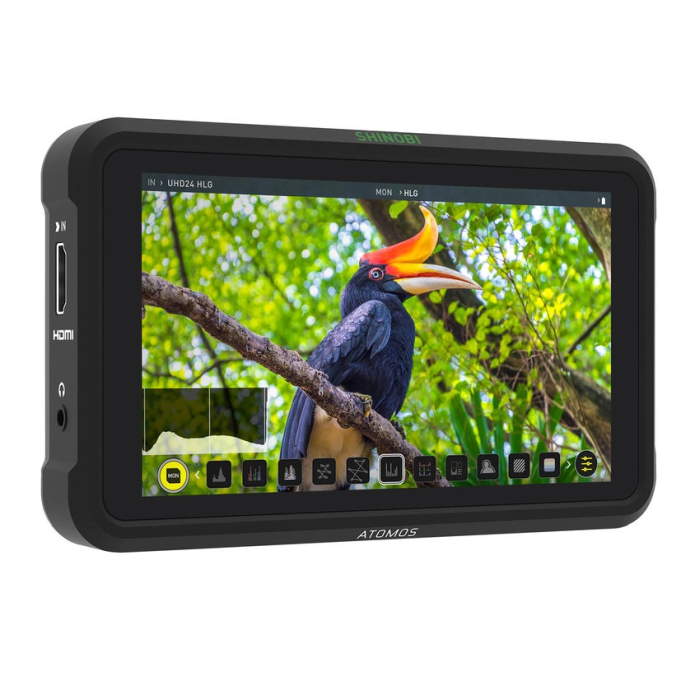

ATOMOS Shinobi 5" HDR 4K HDMI Monitor
A Shinobi 5" az ATOMOS HDR 4K HDMI photo és video monitorja 10 bit-es FRC jelfeldolgozással. A Shinobi 5" monitor 1000
nit nagy fényerejű-, 1920x1080 natív felbontású érintőképernyős kijelzővel és HDMI bemenettel rendelkezik.
ATOMOS Shinobi 5" HDR 4K HDMI Monitor
A Shinobi 5" 4K HDMI fotó és videó monitor 1000nit nagy fényerejű, 1920x1080 natív felbontású érintőképernyővel rendelkezik, amely lehetővé teszi a tiszta képmegjelenítést. A képernyő speciális AR bevonattal és Anti-Fingerprint technológiával készült.
A Shinobi 5" tartalmazza a focus, framing és exposure-hoz szükséges eszközöket, beleértve a Focus Peaking, 4:1 / 2:1 / 1:1 Zoom, Zebra, False Color, Frame Guides, SMPTE Safe Area, Waveform, RGB parade, vektorszkóp, rugalmas 3D és 1D LUT, Profile and Preset támogatás (upload.cube fájlok SD kártyán keresztül.)
Az új Analyzis funkciónak köszönhetően egyidőben látható a felvételi kép, a waveform, histogram és vektorszkóp.
Ezt a terméket kizárólag közületeknek, vállalkozásoknak, intézményeknek értékesítjük.
ATOMOS Shinobi 5" HDR 4K HDMI Monitor | ||||
Power | ||||
Operating power | 4 - 7W | |||
Compatible batteries | NP-F series and supporting accessories. AtomX or other. | |||
Input voltage (battery) | 6.2V to 16.8V | |||
Battery time (based on 7.4V) |
Standby 2600mAh - 3hrs, 5200mAh - 6hrs, 7800mAh - 12hrs Monitor 2600mAh - 1.5hrs, 5200mAh - 3hrs, 7800mAh - 6hrs |
|||
DC In | via Battery Eliminator | |||
Touchscreen | ||||
Size | 5.2" | |||
Resolution | 1920 x 1080 | |||
PPI | 427 | |||
Aspect ratio | 16:9 native | |||
Color Gamut | REC709 HDTV | |||
LUT support | 3D LUT (.cube format) *Extended Support planned | |||
Anamorphic de-squeeze | 2x, 1.5x, 1.33x | |||
Technology | IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit | |||
HDR | ||||
AtomHDR | Yes | |||
HDR Monitoring (Gamut) | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 |
|||
Bit Depth | 10-bit (8+2 FRC) | |||
Brightness | 1000nit (+/- 10%) | |||
Screen Mirror/Flip | Horizontal Flip (Selfie mode), Vertical Flip * Landscape/Portrait mode planned for future firmware release |
|||
Video input | ||||
HDMI | 1x HDMI (1.4) | |||
Signal | Up to Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
|||
Supported Formats (Video Input) | ||||
4K 4096 x 2160 | 23.98p, 24p, 25p, 29.97p | |||
UHD 3840 x 2160 |
23.98p, 24p, 25p, 29.97p | |||
HD 1920 x 1080 | 23.98p, 24p, 25p, 29.97p, 50p, 59.94p | |||
HD 1280 x 720 | 50p, 59.94p ats (Video Input) | |||
Audio In (48kHz) | ||||
HDMI | 2ch 24-bit 48kHz | |||
SD Card Slot | ||||
Full size SD Card slot | SD Card Slot allows LUTs to be loaded to the unit and is also used when updating AtomOS firmware | |||
AtomOS | ||||
Monitoring | Luma Waveform, RGB parade, RGB Overlay, Vectorscope, Vectorscope Zoom, Histogram, RGB Histogram, Anlaysis mode (Multiview scopes: Waveform, Histogram, Vectorscope), Focus Peaking, Zebra, False Color, Blue Only Exposure, Zoom (1:1, 2:1, 4:1), SMPTE Safe Areas, Cinema Guides, Anamorphic Desqueeze. | |||
Audio Out | ||||
Headphone out | 3.5mm |
Az ATOMOS Shinobi 5" HDR 4K HDMI Monitor csomag tartalma
• 1x ATOMOS Shinobi 5" HDR 4K HDMI Monitor
• 1x 12V-15W AC tápegység
• 1 év jótállás
