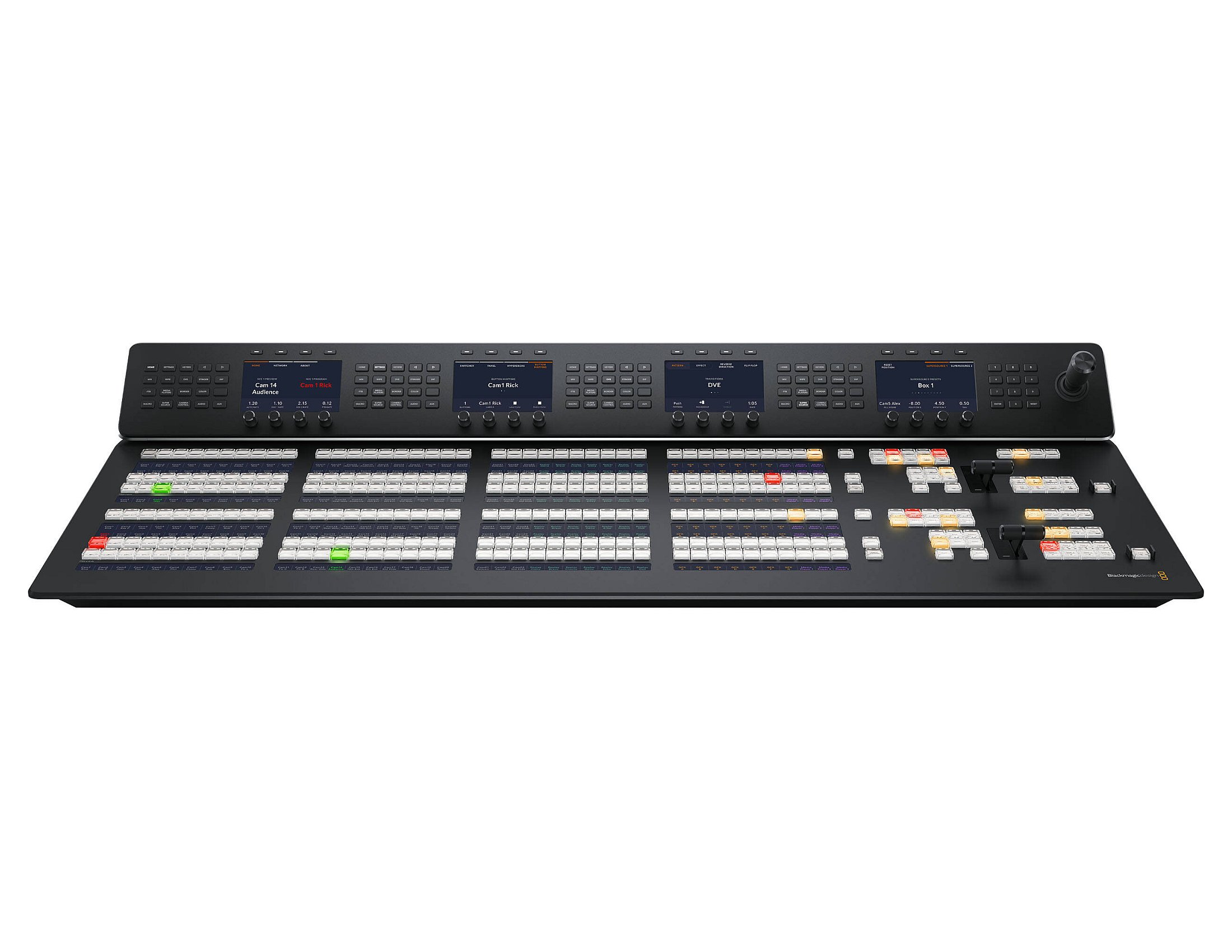

Blackmagic Design ATEM 2 M/E Advanced Panel 40 vezérlőpanel
• Hardveres vezérlőpanel ATEM Constellation mixerekhez,
• 2x M/E sor, 40 bemeneti gomb soronként
• 4 db LCD kijelző, 3 tengelyes joystick
• 4 x Gigabit Ethernet Loop kimenet
• DVE átmenetek, fader sáv
• 2x M/E sor, 40 bemeneti gomb soronként
• 4 db LCD kijelző, 3 tengelyes joystick
• 4 x Gigabit Ethernet Loop kimenet
• DVE átmenetek, fader sáv
• Blackmagic Design ATEM 2M/E Advanced Panel 40
• Jótállás: 1 év
• Jótállás: 1 év
Blackmagic Design ATEM 2 M/E Advenced Panel 40 Specifications |
|||

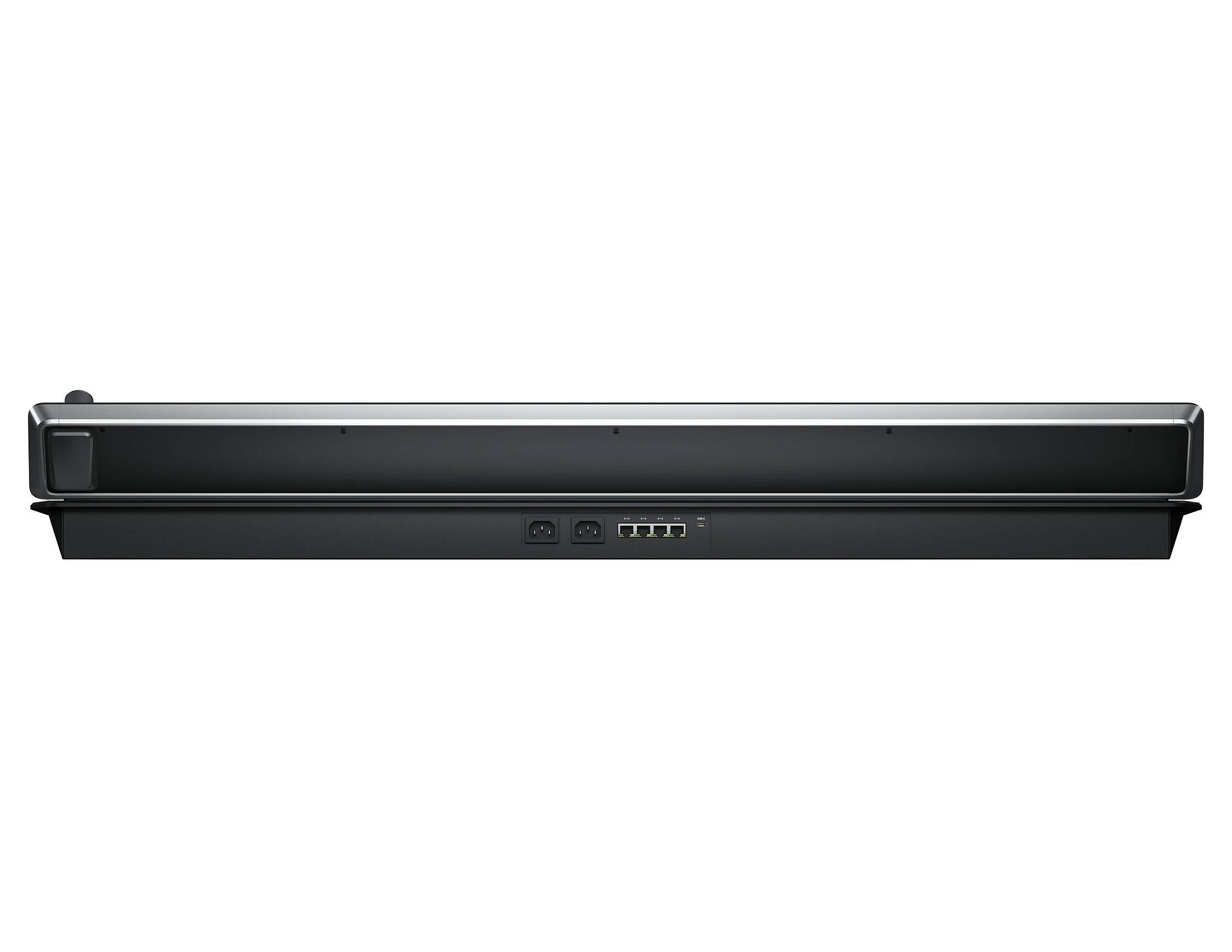

| Connections | |||
Ethernet |
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers | ||
Software Updates |
1 x USB-C for firmware updates | ||
| Product Specifics | |||
| Number of Mix Effects Rows | 2 | ||
Direct Cross Points |
40 | ||
Shifted Cross Points |
80 | ||
Crosspoint Button Type |
Tri-Color LED | ||
Crosspoint Label |
6 rows 24 character LCD | ||
On-Air indicator |
10 | ||
Power Status Indicators |
None | ||
| DSK Transition Selectors | 4 x Auto, Cut, Tie/Preview | ||
Preview Transition |
2 | ||
Transition Rate Displays |
Via main menu | ||
LCD Menu Displays |
4 | ||
Menu Control |
4 x 20 buttons | ||
Dedicated Macro Buttons |
2 x 20 buttons | ||
| Transport Control Buttons | 8 | ||
Destination Bus |
2 | ||
Source Select Bus |
2 | ||
| Fader Bar | 2 | ||
| 3 Axis Joystick | 1 | ||
| Numeric Keypad | 1 | ||
| Software | |||
Software Applications |
ATEM Software Control Panel. | ||
| Operating Systems | |||
| Operating Systems | Mac 11.1 Big Sur |
||
| Power Requirements | |||
| Input Voltage | 2 x Internal 100 - 240V AC. | ||
| Redundant Power | Yes | ||
| Power Usage | 160W | ||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40° C (32° to 104° F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | Up to 95% | ||
