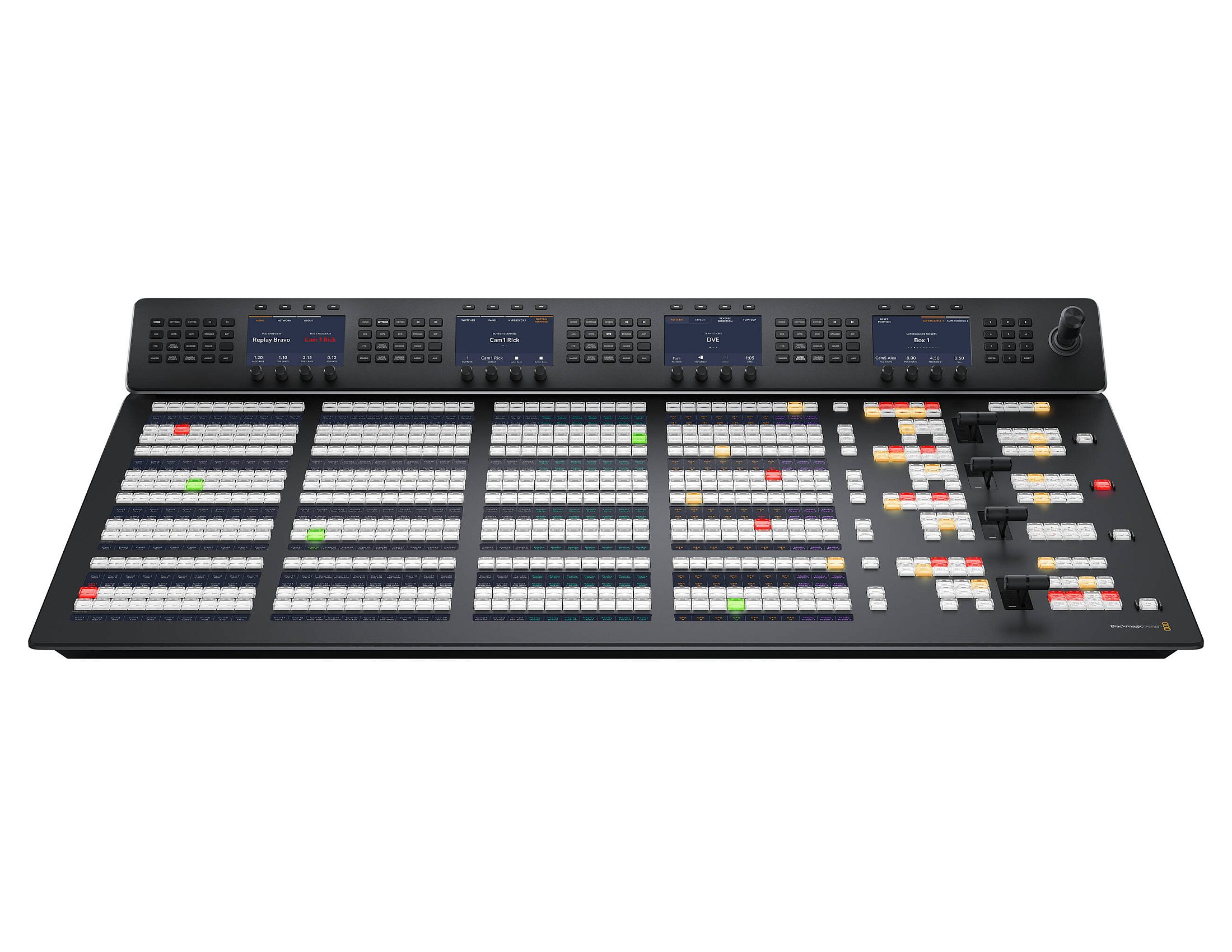

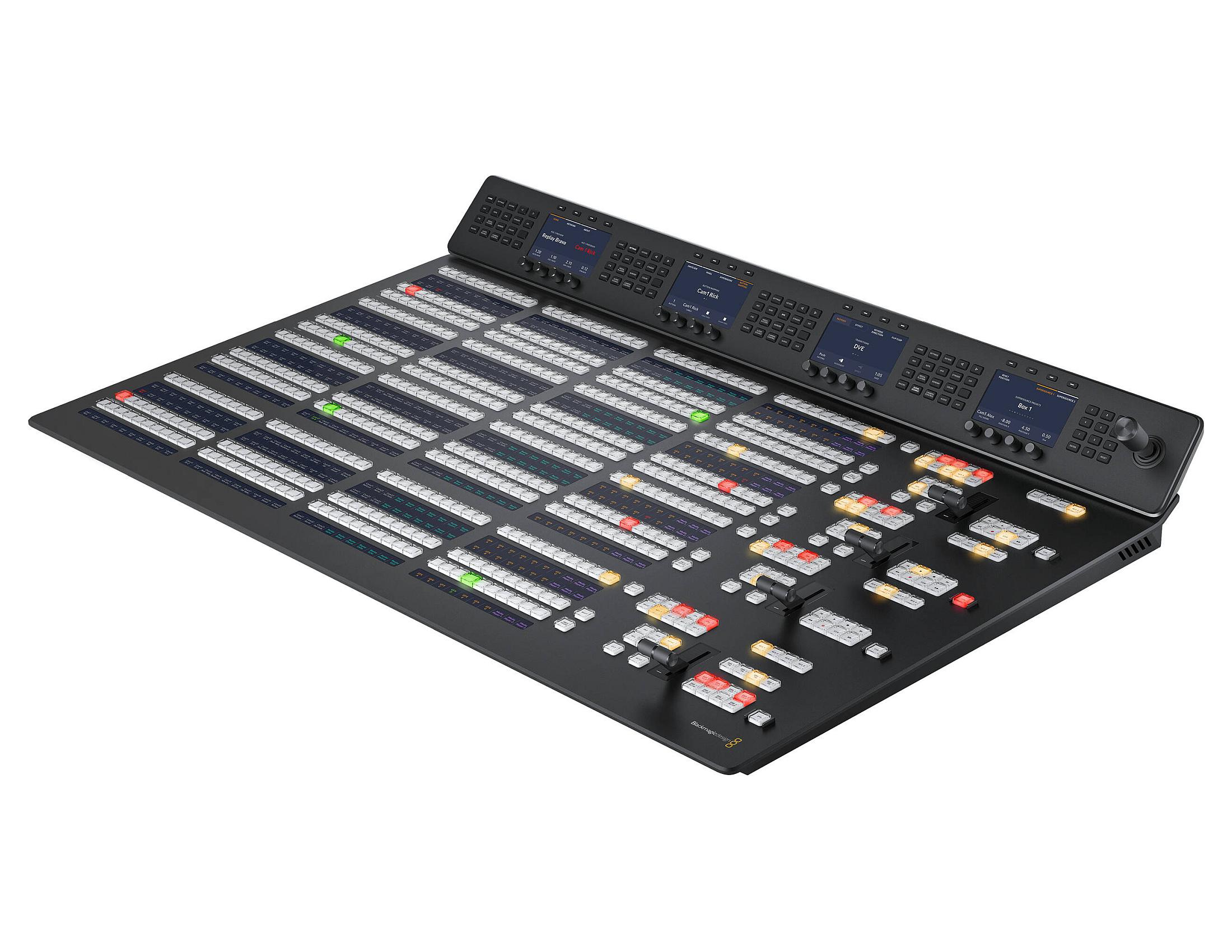

Blackmagic Design ATEM 4 M/E Advanced Panel 40 vezérlőpanel
• Hardver kezelőpanel ATEM Constellation keverőkhöz
• 4 db M/E sorral rendelkezik, soronként 40 bemeneti gombbal
• 24 független, 4 rendszer vezérlő LCD kijelző
• Joystick, 4 fader sáv
• 4 x Gigabit Ethernet Loop kimenet
• 4 db M/E sorral rendelkezik, soronként 40 bemeneti gombbal
• 24 független, 4 rendszer vezérlő LCD kijelző
• Joystick, 4 fader sáv
• 4 x Gigabit Ethernet Loop kimenet
• Blackmagic Design ATEM 4 M/E Advanced Panel 40
• Jótállás: 1 év
• Jótállás: 1 év
Blackmagic Design ATEM 4 M/E Advenced Panel 40 Specifications |
|||
Connections | |||
Ethernet |
4 x 10/100/1000 BASE-T with loop output for additional control panels or computers | ||
Software Updates |
1 x USB-C for firmware updates | ||
Product Specifics | |||
Number of Mix Effects Rows | 4 | ||
Direct Cross Points |
40 | ||
Shifted Cross Points |
80 | ||
Crosspoint Button Type |
Tri-Color LED | ||
Crosspoint Label |
10 rows 24 character LCD | ||
On-Air indicator |
20 | ||
Power Status Indicators |
None | ||
DSK Transition Selectors | 4 x Auto, Cut, Tie/Preview | ||
Preview Transition |
4 | ||
Transition Rate Displays |
Via main menu | ||
LCD Menu Displays |
4 | ||
Menu Control |
4 x 20 buttons | ||
Dedicated Macro Buttons |
4 x 20 buttons | ||
Transport Control Buttons | 24 | ||
Destination Bus |
4 | ||
Source Select Bus |
4 | ||
Fader Bar | 4 | ||
3 Axis Joystick | 1 | ||
Numeric Keypad | 1 | ||
Software | |||
Software Applications |
ATEM Software Control Panel. | ||
Operating Systems | |||
Operating Systems | Mac 10.14 Mojave |
||
Power Requirements | |||
Input Voltage | 2 x Internal 100 - 240V AC. | ||
Redundant Power | Yes | ||
Power Usage | 250W | ||
Environmental Specifications | |||
Operating Temperature | 0° to 40° C (32° to 104° F) | ||
Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
Relative Humidity | Up to 95% |
