Blackmagic Design ATEM Mikrofon Konverter
• Audió bemenetek az ATEM Television Studio termékekhez
• MADI-n keresztül csatlakozik a mixerhez
• 64 csatornás MADI digitális audio I/O portok

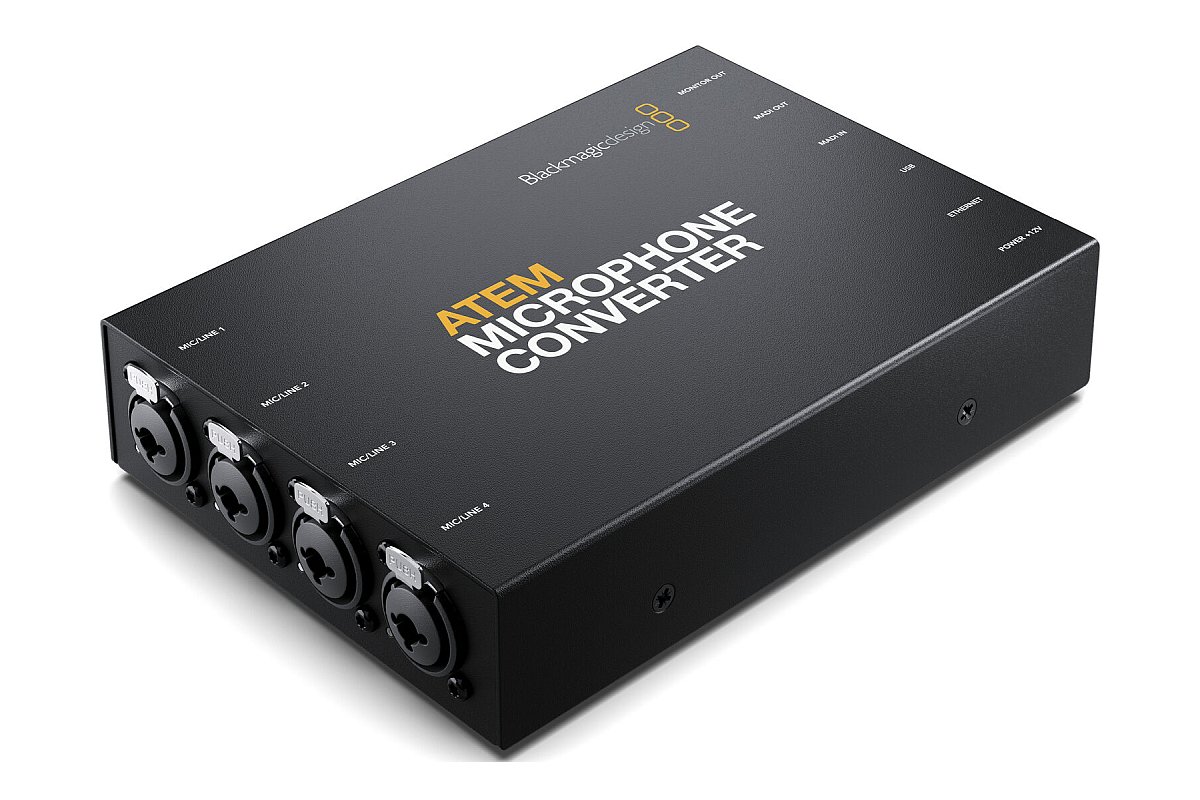

• 4 db XLR-1/4" Combo Mic/Line bemenet, +48V
• 8 ADCs/Channel, 24-Bit / 48 kHz Audio
• HDMI monitor kimenet, USB-C és Ethernet portok
• MADI-n keresztül csatlakozik a mixerhez
• 64 csatornás MADI digitális audio I/O portok
• 4 db XLR-1/4" Combo Mic/Line bemenet, +48V
• 8 ADCs/Channel, 24-Bit / 48 kHz Audio
• HDMI monitor kimenet, USB-C és Ethernet portok
• Atem Mikrofon Konverter
• Jótállás: 3 év
• Jótállás: 3 év
Blackmagic Design ATEM Microphone Converter Specifications |
|||

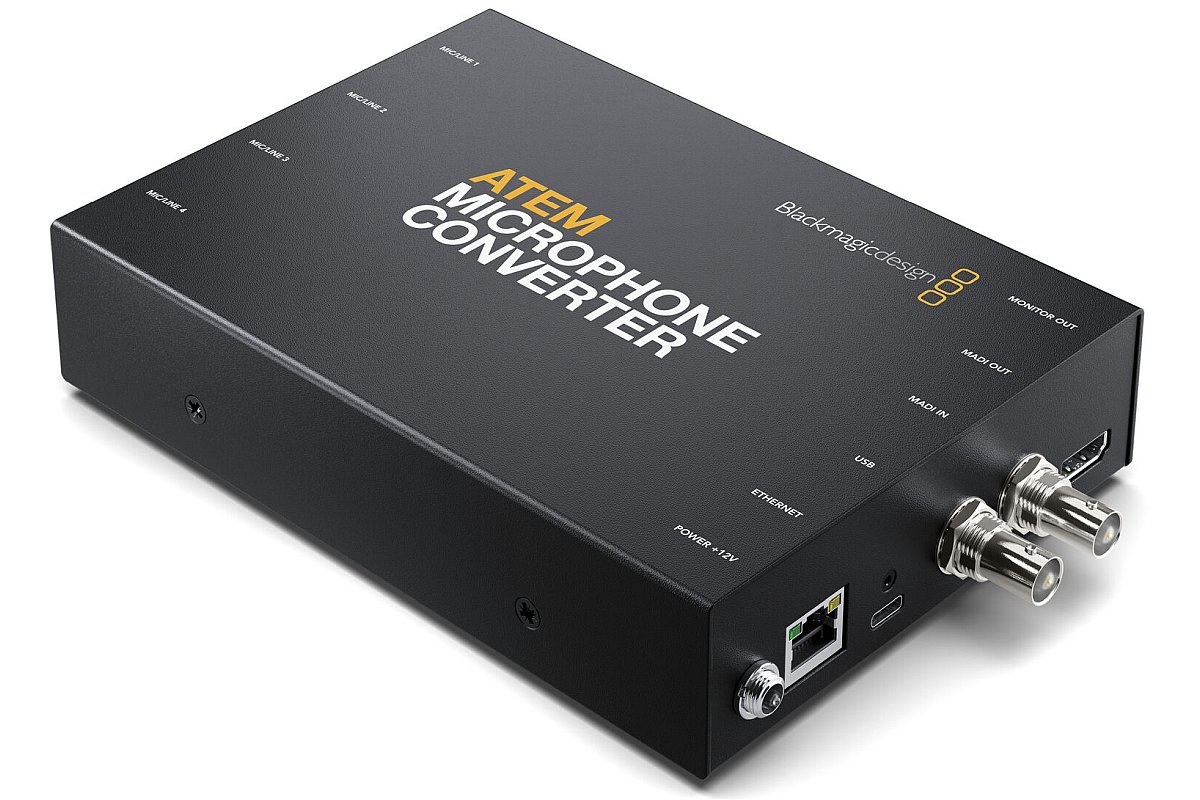

| Connections | |||
Ethernet |
Supports 10/100/1000 BASE‑T. | ||
| Analog Audio Inputs | 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phacntom power. | ||
| MADI Inputs | 1 x BNC supports 64 channel MADI digital audio | ||
| MADI Outputs | 1 x BNC supports 64 channel MADI digital audio | ||
| HDMI Video Outputs | 1 x monitor out. | ||
Computer Interface |
1 x USB-C with locking screw | ||
| HDMI Output Standards | |||
| HD Video Standards | 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60 | ||
HDMI Monitoring |
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status. | ||
| Audio | |||
ADCs Per Input |
8 | ||
| Digital Preamp | 32-bit | ||
| Dynamic Range | 131dB(A) | ||
| Noise Floor | -129dBV | ||
| Total Harmonic Distortion at full scale | 0.002% | ||
| Output Sample Depth | 24-bit | ||
| Output Sampling Rate | 48KHz | ||
| MADI Compliance | AES10-2020 | ||
| Software | |||
| Software Control | Mac™ and Windows™ software upgrade via USB or Ethernet. |
||
| Internal Software Upgrade | Via downloadable utility application. | ||
| Operating Systems | |||
| Operating Systems | Mac 12.0 Monterey, Mac 13.0 Ventura or later Windows 10, 64-bit. Windows 11. |
||
| Settings Control | |||
| Software Settings Control | USB and Ethernet via free software utility. | ||
| Hardware Switches | Mini switches for selecting mic or line level and setting +48V phantom power on/off. | ||
| Power Requirements | |||
| Power Supply | 1 x External 12V power supply with locking connector. | ||
| Power Consumption | 12W max. | ||
| Operational Voltage Range | 12V to 17.5V DC | ||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40°C (32° to 104°F) | ||
| Storage Temperature | -20° to 60°C (‑4° to 140°F) | ||
| Relative Humidity | 0% to 90% non‑condensing | ||
Nem található bejegyzés
Add new post
|
1.493.373 Ft
