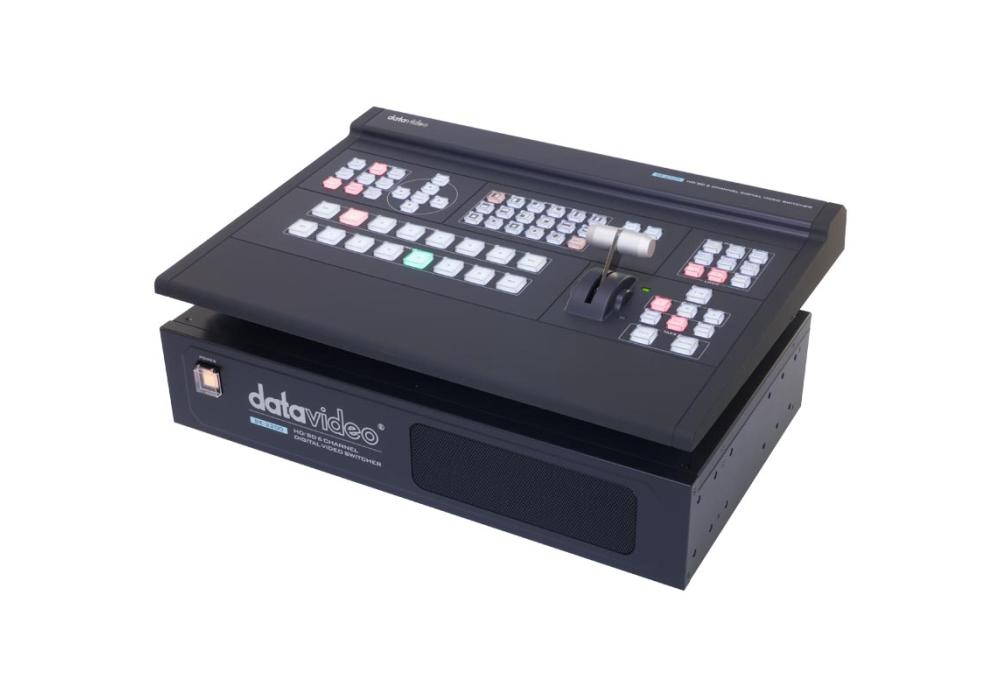

Datavideo SE-2200 HD Mixer
Datavideo SE-2200 Digitális HD Videokeverő 6x HD-SDI & 2x HDMI bemenettel.
6x6 SDI genlocked Matrix, Dual PIP.
Datavideo SE-2200 HD Mixer
The SE-2200 6 input multi-definition switcher is perfect for live production, religious worship, meetings or conference purposes.
It is a technically smart and cost effective portable broadcast-quality switcher.
SE-2200 is a solution that comes with a great features such as 6x6 SDI genlocked Matrix, Dual PIP and built-in title overlay system that works with entry level Datavideo CG systems, or other graphics programmes.
SE-2200 consists of 6 HD-SDI video inputs or with a combination of 4 HD-SDI and 2 HDMI inputs; all of the inputs are reassignable, thus it is able to adapt to your needs. One of the HDMI inputs can be used to accept video from a PC/Laptop computer to work with built-in title overlay system such as Datavideo's CG solutions, including CG-200.
- 6 input HD broadcast quality switcher
- Ideal for live production venues, religious worship, meetings or conference purposes
- Inputs: 6 x HD-SDI, 2 x HDMI (CH 5 & 6)
- 6x6 SDI Genlocked Matrix, Dual PIP and a built-in title creator system that works with Datavideo CG systems, PowerPoint and other graphics programmes

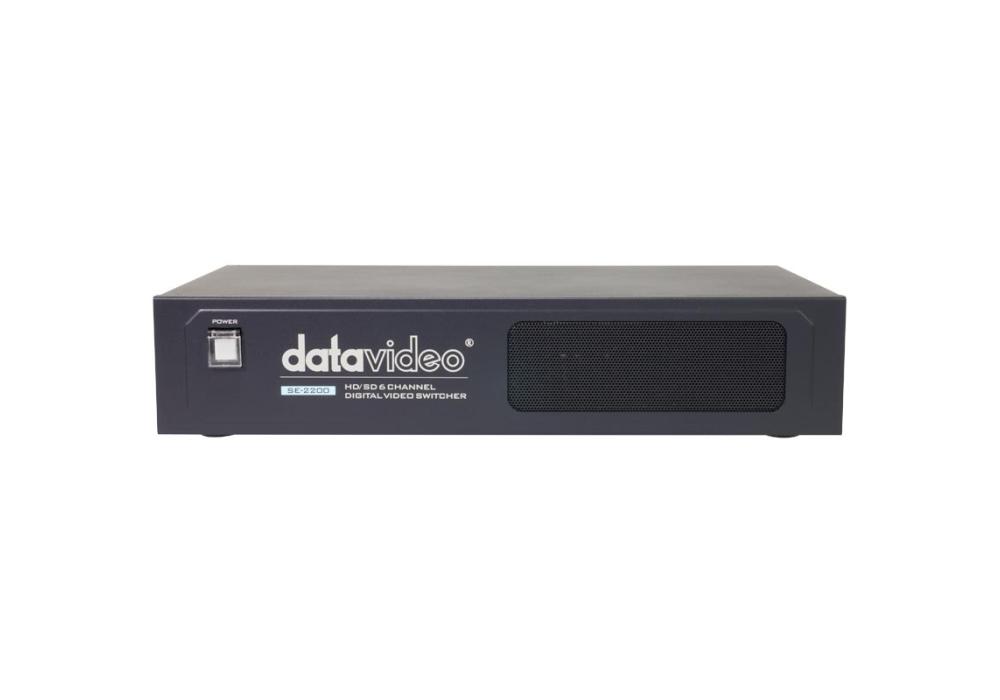

- SE-2200 Main Unit

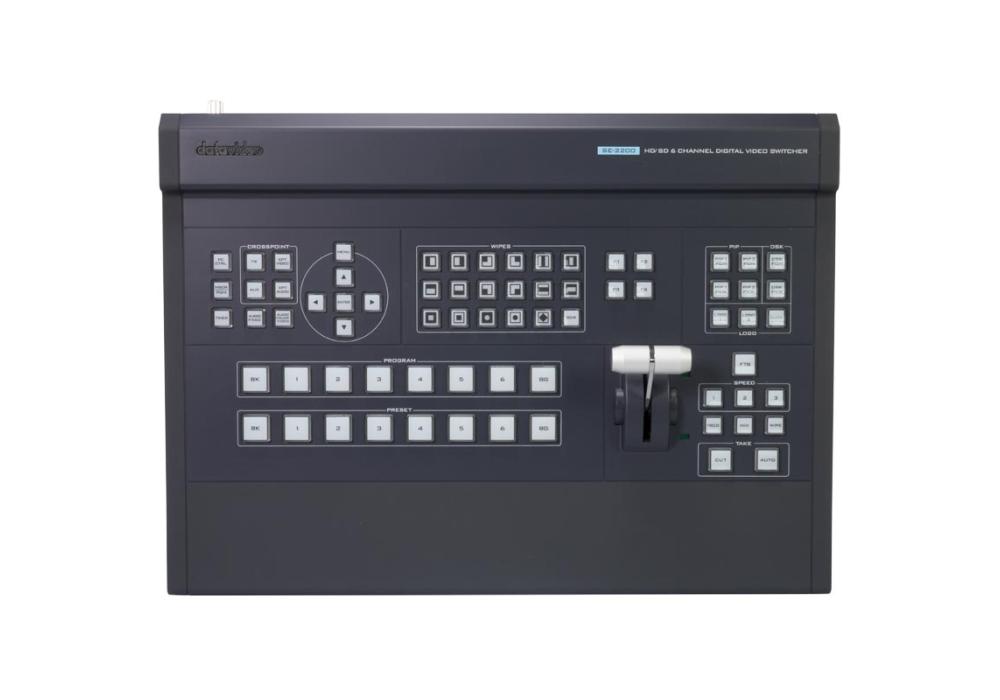

- SE-2200KB Control Panel
- 12VDC Power Adapter and Cord
- 1x DB9P TO DB9P Cable
- 1x CB-41 / XLR to XLR Cable
- 1x CG-200 Utility CD w/ CD Bag
- 12x Screw
- 2x 2U Ear Rack
- 1x Thank You Card
- Limited 1-Year Warranty (2 Years with Product Registration)
Video Standard | HD |
---|---|
Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60 Hz |
Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB 4:4:4 |
Input Routable / Crosspoint | All 6, repeatable |

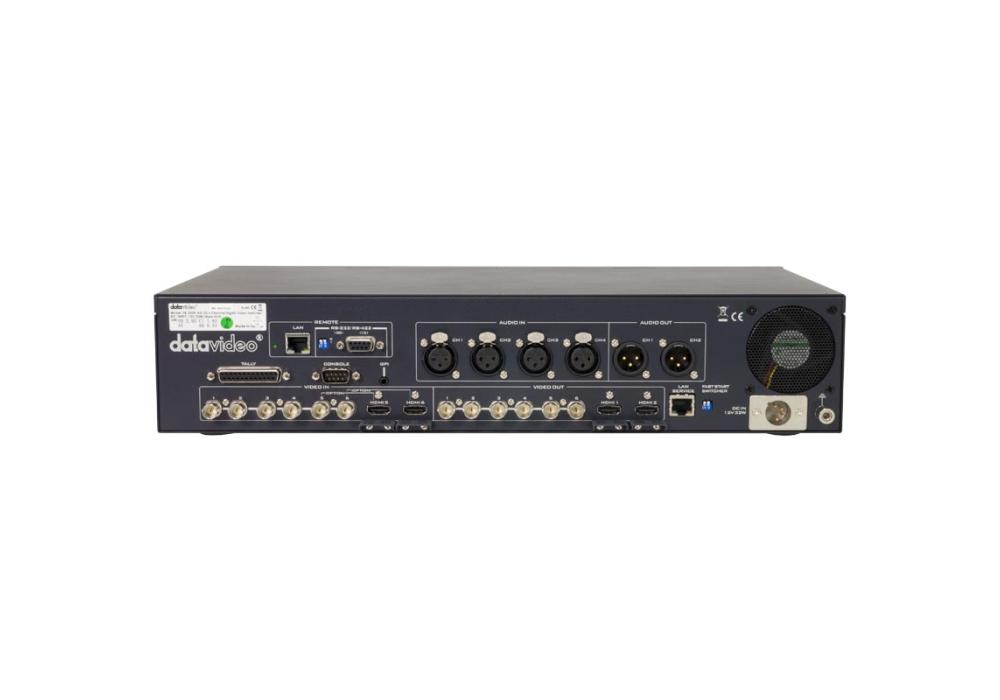

Video Input | 6x HD-SDI, 2x HDMI (on CH5 & 6) |
Mix HD & SD source | N/A |
Computer Graphic Interface | 2 via HDMI |
Video Output | 6x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean & Multi-view 2x HDMI assignable: PGM & Multi-view |
Down-converted Output | N/A |
Built-in Multi-view monitoring out | 2x HDMI |
Audio input | 4x Balanced XLR |
Audio output | 2x Balanced XLR |
Embedded audio support | Input up to 16 channels, Output 4 channels |
Audio Delay Calibration | N/A |
A+V switching | Yes |
Chromakey | N/A |
DSK | 1x DSK support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 2 |
Logo Insertion | 2 (or 1 logo + 1 clock) |
Still Store | 6 |
Effects | FTB, Cut, 8 Wipe with border |
Transition on Preview | PiP & DSK |
Sync | Built-in Genlock |
Reference In/Out | N/A |
Tally Output | 1x D-sub 25pin, dual color |
PC Remote Control | Via Ethernet or RS-422 / RS-232 |
Built-in Audio Mixer | N/A |
Special Features | 6x6 Matrix seamless switch, built in CD System |
Chassis | 2 units, rack-mount mainframe |
Power | DC 12V 32W |
