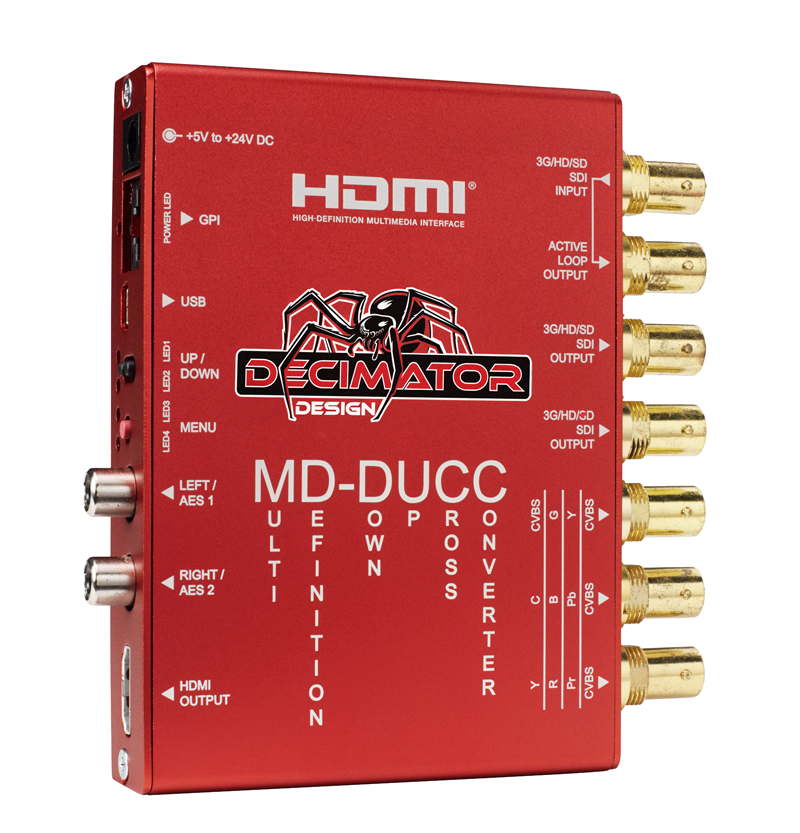

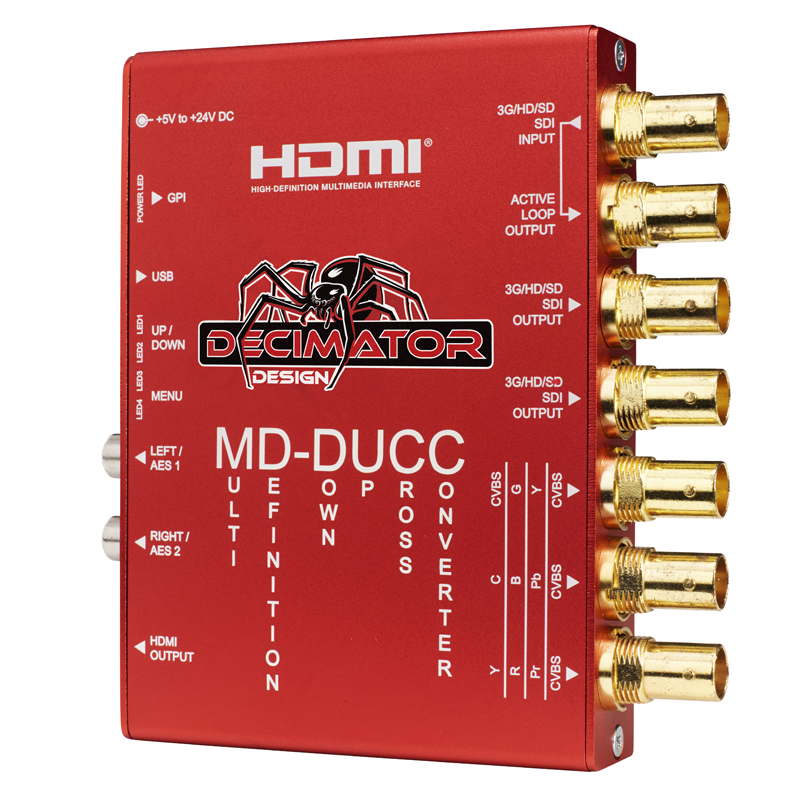

Decimator MD-DUCC Multi-Definition Down Up Cross konverter
Decimator MD-DUCC Multi-Definition Down Up Cross konverter (3G/HD/SD)-SDI-ról (3G/HD/SD)-SDI, HDMI és Analogue
Video-ra konvertál 2 x AES/EBU vagy 2 x Analogue Audio Kimenetekkel
Részletes leírás
Specifikáció
Küldés
Értékelések
Decimator MD-DUCC Multi-Definition Down Up Cross konverter
- Support both 3G level A and B on the input and output.
Allowing conversion between A and B. - Horizontal and/or Vertical image flipping via the built in scaler.
- Auto detects 3G, HD or SD (26 Formats in total)
- Full 10-bit data path and multipoint interpolation
- Professional motion-adaptive de-interlacing
- True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
- Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
- Full 16-Channel Audio metering with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment - Adjustable Graticules Generator with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross - Text Overlays with:
- (NEW) Custom Position, Size and Justification
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status - The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
- When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
- HDMI output
- Selectable analogue video output from:
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out - 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
- GPI on RJ-45 for Tallies
- 3G/HD/SD-SDI Active Loop-Through Output
- De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
- LEDs for status and buttons for basic configuration
- USB port for control and firmware updates
- Locking DC Power Socket
- The following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket
| DECIMATOR MD-DUCC CROSS KONVERTER SPECIFIKÁCIÓ | |||
| Támogatott formátumok | 3G: | SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz |
|
| HD | SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz |
||
| SD: | SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
||
| Bemenetek | 1 x (SD/HD/3G)-SDI: 10-bit (BNC) | ||
| Kimenetek | 1 x HDMI | ||
| 1 x SD/HD/3G-SDI (BNC, active loop through) | |||
| 2 x SD/HD/3G-SDI (BNC, 10-bit) | |||
| (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C) | |||
| AES 1 / Unbalanced Analogue Audio - Left | |||
| AES 2 / Unbalanced Analogue Audio - Right | |||
| Controls | HDMI format type | ||
| Analogue Video format type | |||
| Output format | |||
| Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions | |||
| On-Screen Overlays Enables | |||
| Basic Audio Meter control | |||
| Basic Graticule Enables | |||
| LED állapotjelző | Power | ||
| Signal Lock | |||
| Teljesítmény | 5 to 24 VDC, approx. 5W Positive Centre Pin |
||
| Méretek | 90 x 123 x 23 mm / 3.5 x 4.8 x 0.9 in | ||
