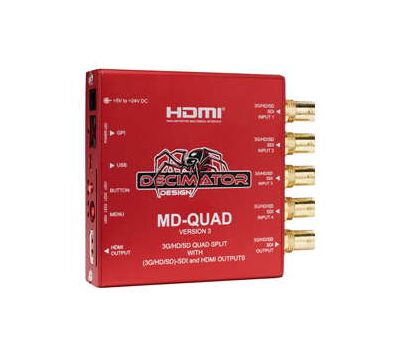

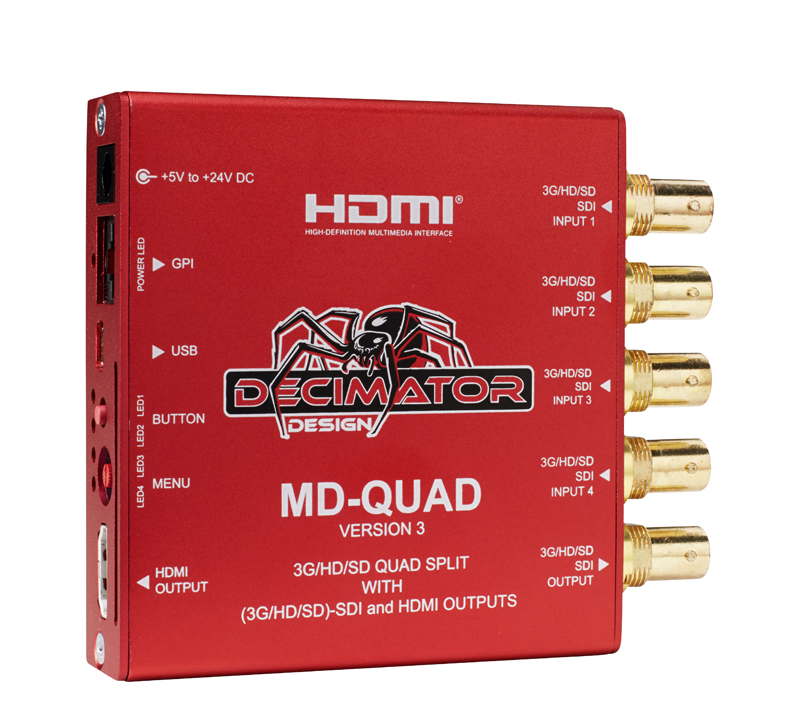

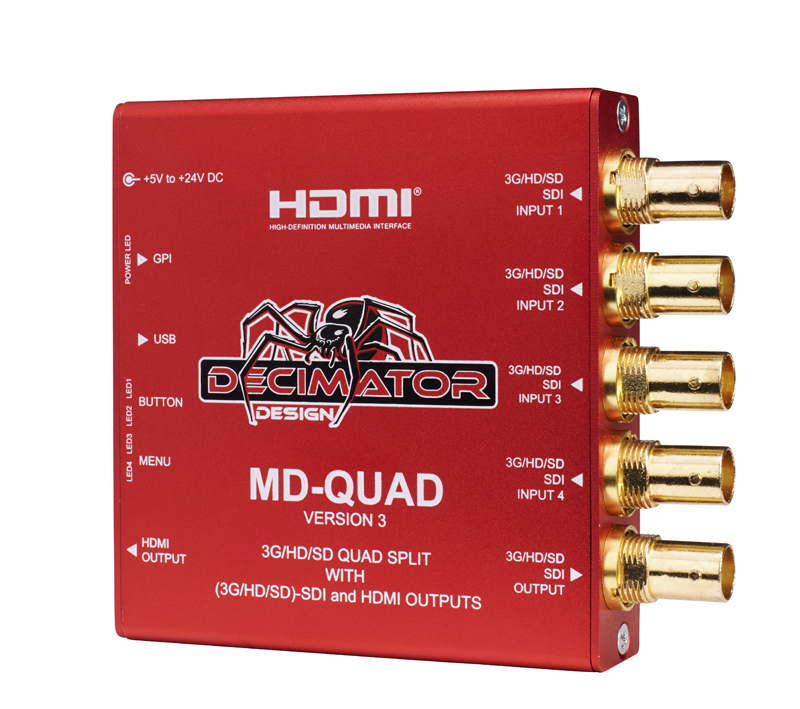

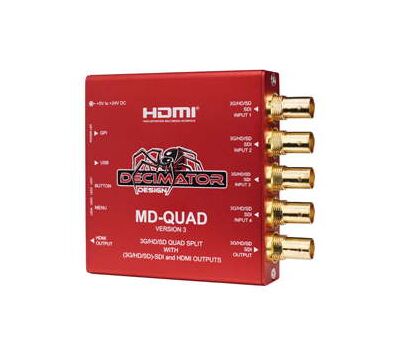

Decimator MD-QUAD V3 MultiViewer
- Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Tallies can be applied to either Tally Boxes (Default) or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 4 x (3G/HD/SD)-SDI inputs with auto detection (4 Formats supported in total)
- Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
- Horizontal and/or Vertical image flipping per window
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
- An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
- USB port for control and updates
- Locking DC Power Socket
- 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching
- RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol
- The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
• Power Supply
• HDMI Cable
• USB Cable
• Mounting Bracket
• HDMI Cable
• USB Cable
• Mounting Bracket
DECIMATOR MD-QUAD-V3 MULTI VIEWER SPECIFICATIONS | |||
SDI bemenet és kimenet formátumok | 3G: | SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz |
|
HD: | SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz |
||
SD: | SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
||
Menu opcions | Input status for all 4 inputs | ||
Output format | |||
Output selection of Quad Split or input 1, 2, 3 or 4 | |||
Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size | |||
Individual aspect format for each input of Same as output, Letter-box or Pillar-box | |||
Border Enable | |||
Quad split mode reference of either Free-run or input 1 | |||
Enables for On-Screen Overlays | |||
Basic Audio Meter control | |||
Bemenetek | GPI on RJ-45 | ||
Input Equalization > 100M using Belden 1694A | |||
USB for control and updates | |||
Kimenetek | HDMI | ||
1 x 10-bit (3G/HD/SD)-SDI Re-clocked | |||
LED állapotkijelző | Power | ||
4 x Signal lock and rate | |||
Teljesítmény | 5 to 24 VDC, 6 Watts Positive Centre Pin |
||
Méretek | 90 x 94 x 23 mm / 3.5 x 3.7 x 0.9 in |
