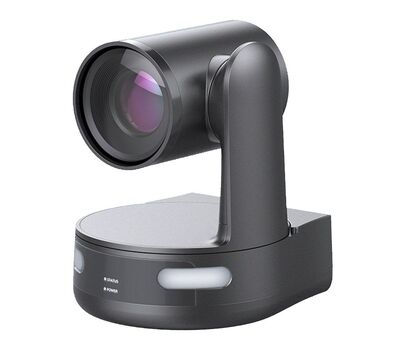

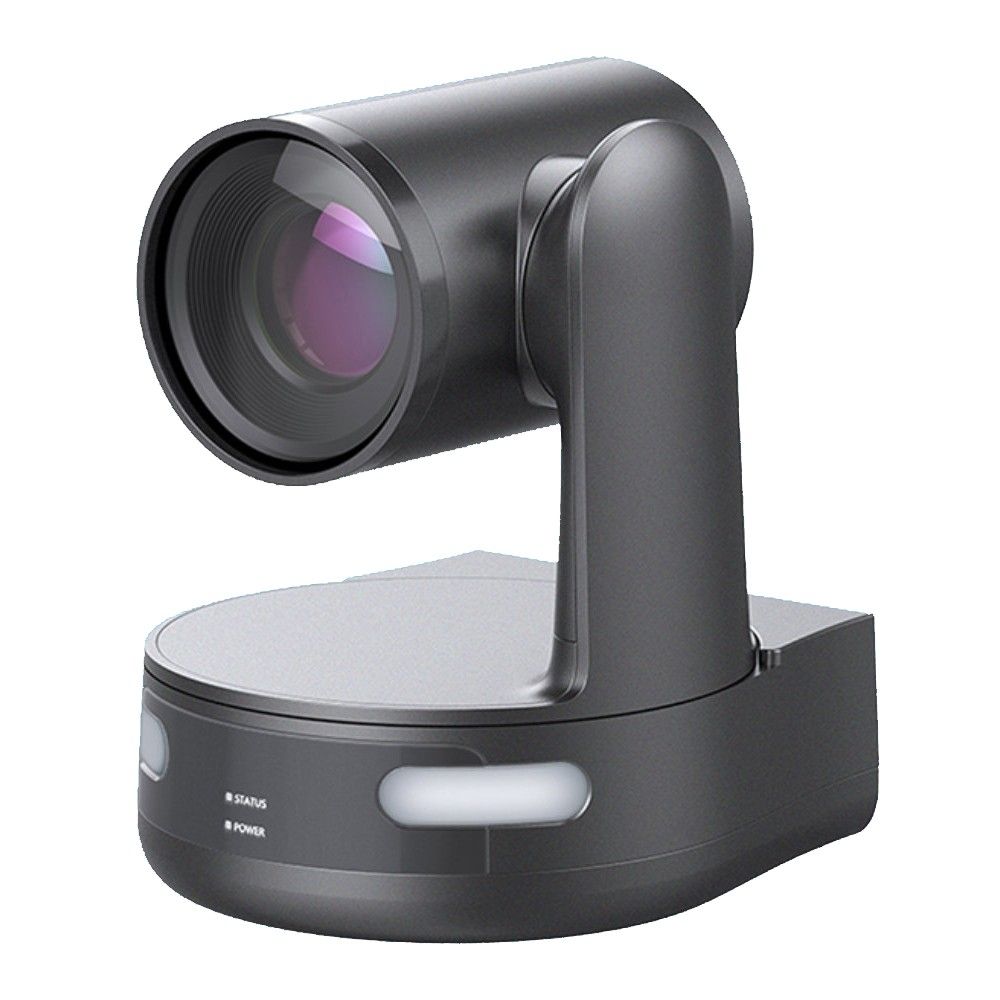

Minrray UV401 UHD 4K PTZ kamera
A Minrray UV410 egy UHD 4K PTZ robotkamera, HDMI és USB3.0 kimenetekkel, vonalszintű hang bemenettel
12x-es optikai zoommal, RS232 (in/out), RS422 csatlakozókkal, opcionális POE funkcióval.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Minrray UV401 UHD 4K PTZ kamera
Key Features:
1. 4K Ultra HD
1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840x2160) with frame rate up to 60fps.
2. Optical Zoom Lens
12X optical zoom lens, with 80.4° FOV without distortion.
3. Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
4. Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.
5.Multiple network protocol
Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza, FMS); RTP multicast mode; VISCA control protocol
6.Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
7. Multiple preset
Up to 255 presets (10 presets for remote control).
8. IR & Wireless Remote Control
IR remote control (default)
Wireless remote control (optional):
2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
1. 4K Ultra HD
1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840x2160) with frame rate up to 60fps.
2. Optical Zoom Lens
12X optical zoom lens, with 80.4° FOV without distortion.
3. Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
4. Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.
5.Multiple network protocol
Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza, FMS); RTP multicast mode; VISCA control protocol
6.Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
7. Multiple preset
Up to 255 presets (10 presets for remote control).
8. IR & Wireless Remote Control
IR remote control (default)
Wireless remote control (optional):
2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
- Minrray UV401 kamera, 12x zoommal
- Hálózati adapter
- RS232 kontroll kábel
- USB3.0 kábel
- IR távszabályzó
- User Manual (en)
Minrray UV401 specifikáció | ||
Lens Parameter | ||
Optical Zoom | 12x | |
Gyújtótávolság | 3.85 ~ 43.06mm | |
View Angle | horizontális: 81°~7.59° (wide-tele) vertikális: 50,0°~4,6° (wide-tele) |
|
Iris | F1.8 – F3.6 | |
Camera Parameter | ||
Sensor | 1/2.5 inch high quality 4K SONY CMOS sensor | |
Effective Pixels | 16:9, 8.51 megapixel | |
Video Format | HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 |
|
USB3.0 Video Output Format:
YUY2/NV12 support:
1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264 support: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
||
USB3.0 compatible with USB2.0:
YUY2/NV12 support 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264 support 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
||
Minimum Illumination | 0.05Lux (F1.8, AGC ON) | |
DNR | 2D & 3D DNR | |
White Balance | Auto / Manual / One Push Specified Color Temperature |
|
Focus | Auto / Manual / One Push focus | |
Exposure | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority | |
Apenture | f1.8 ~ f11, CLOSE | |
Shutter speed | 1/25 ~ 1/10000 | |
BLC | ON/OFF | |
WDR | OFF/ Dynamic level adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
SNR | >50dB | |
Input/Output Interface | ||

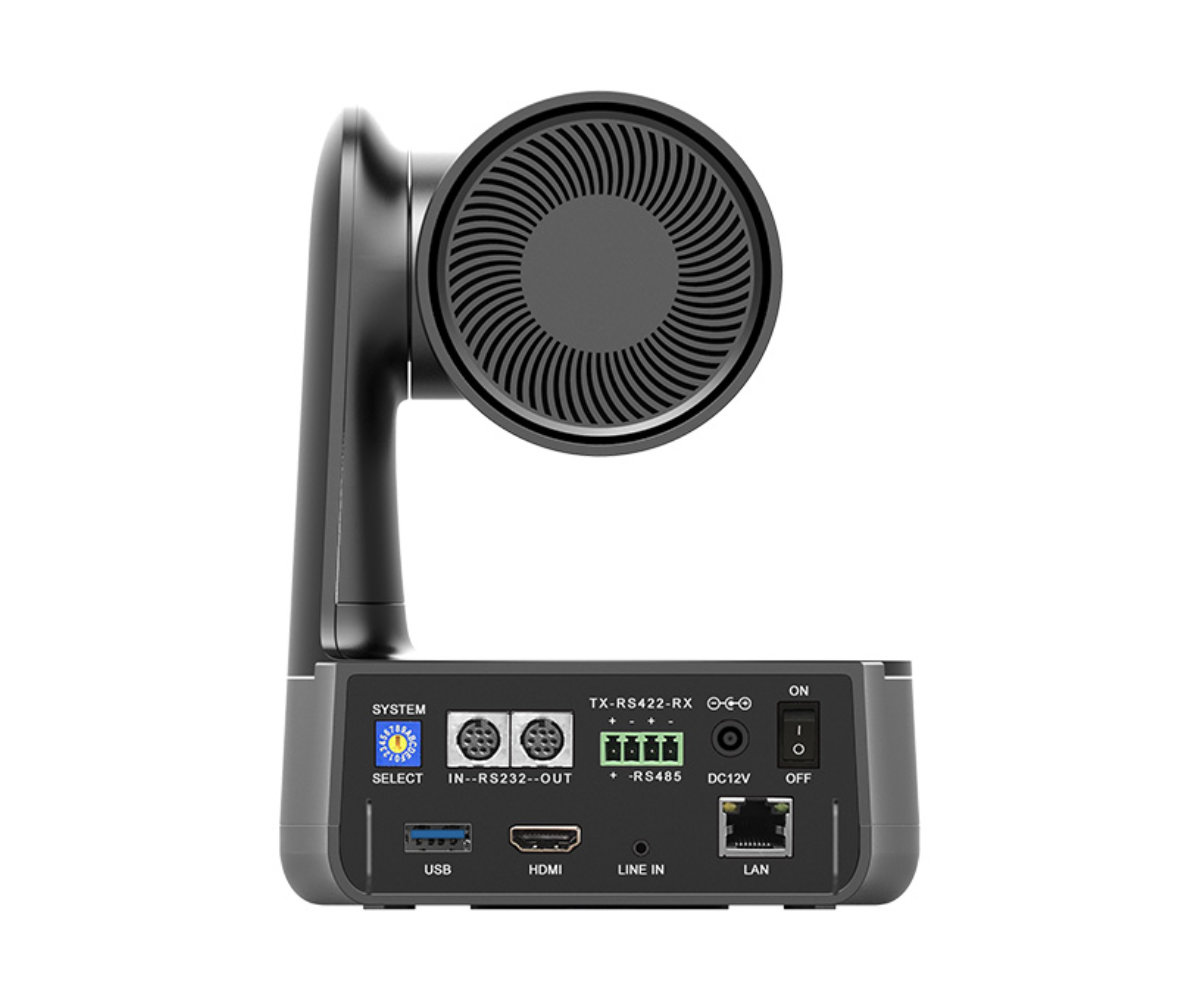

Video Interfaces | HDMI, LAN(POE), USB3.0 (Type B compatible USB2.0) | |
Video Compression Format |
LAN support: H.264, H.265 USB 3.0 support: MJPG, H264, YUY2, NV12 |
|
Audio Input Interface | sztereo 3.5mm linear Input | |
Audio Output | HDMI, LAN, USB3.0 | |
Audio Compression Format | AAC, MP3, G.711A | |
LAN Interface | 10M/100M/1000M adaptive Ethernet Port, support POE and audio/video output | |
Network protocol | RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocols, Support Remote Upgrade, reboot and reset | |
Control Interface | RS232 (Input & Output), RS422 (compatible with RS485) | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
Power Interface | HEC3800 Outlet (DC12V) | |
Power Adaptor | Input: AC110V-AC220V Output: DC12V/2.5A | |
PTZ Parameter | ||
Pan Rotation | -170°~ +170° | |
Tilt Rotation | -30° ~ +90° | |
Pan Control Speed | 0.1°/s ~ 120°/s | |
Tilt Control Speed | 0.1°/s ~ 80°/s | |
Preset Speed | Pan: 120°/s, Tilt: 80°/s | |
Preset Number | 255 presets (10 presets by remote controller) | |
Other Parameter | ||
Store Temperature | -10℃ ~ +60℃ | |
Store Humidity | 20% ~ 95% | |
Working Temperature | -10℃ ~ +50℃ | |
Working Humidity | 20% ~ 80% | |
Dimension | 157.5 × 189 × 201 mm | |
Weight | 2.6 kg | |
Using enviroment | Indoor only |
