Minrray UV430A-NDI|HX UHD 4K Robotkamera
A Minrray UV430A-NDI egy UHD PTZ robotkamera, HDMI, LAN/NDI® USB3.0 kimenetekkel, vonalszintű hang bemenettel,
12x-es optikai zoommal, RS232 (in/out), RS422 csatlakozókkal, opcionális POE funkcióval, Newtek NDI® 4.0 liszensszel.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Minrray UV430A-NDI|HX UHD 4K Robotkamera
Az UV430A-NDI egy UHD 4K PTZ robotkamera, HDMI, LAN/NDI|HX® USB3.0 kimenetekkel, vonalszintű hang bemenettel, 12x-es optikai zoommal, USB 3.0, HDMI, LAN/NDI, RS232 (in/out), RS422, RS485 csatlakozókkal, POE támogatással. Az UV-430A tartalmazza a Newtek NDI® 4.0 licence-ét.
Minrray UV430A-NDI jellemzők
• További adatok a Specifikációk menüpont alatt...

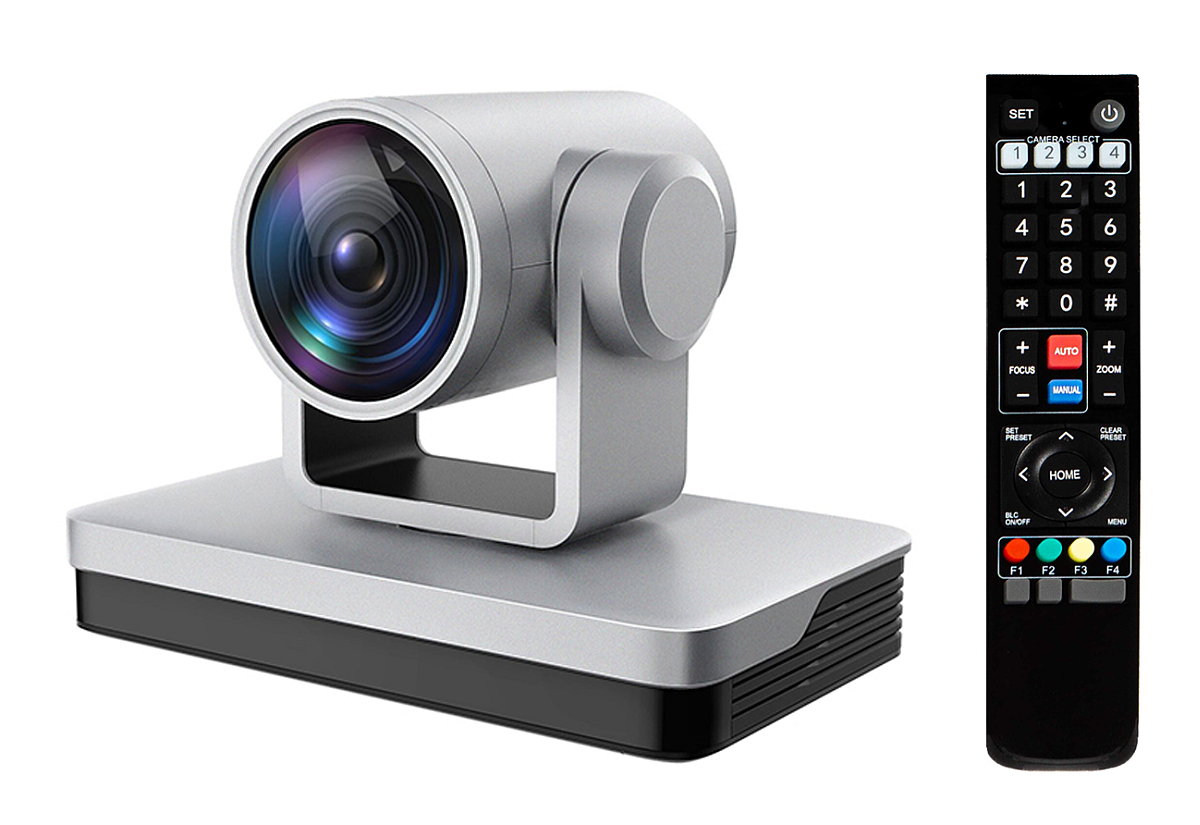

- Minrray UV430A-NDI kamera , 12x zoommal
- Hálózati adapter (AC110V-AC220V kimenet: DC12V/2.5A)
- RS232 kontroll kábel
- IR távszabályzó (PTZ funkciókra és kamera poziciók letárolása/előhívása is)
- User Manual (en)
- Garancia kártya
- 2 év jótállás
| Minrray UV430A-NDI specifikáció | ||
| Lens Parameter | ||
| Optical Zoom | 12x | |
| Gyújtótávolság | 3.85~43.06mm | |
| View Angle | horizontális: 81°~7.59° (wide-tele) vertikális: 50,0°~4,6° (wide-tele) |
|
| Iris | F1.8 – F3,6 | |
| Camera Parameter | ||
| Sensor | 1/2.5 inch high quality 4K SONY CMOS sensor | |
| Effective Pixels | 16:9, 8,51 megapixel | |
| Video Format | HDMI Video Output Format: 4K@60fps/50fps/30s/25fps 1080P@60fps/50fps/30fps/25fps/29.97fps 1080I@60fps/50fps/59.94fps 720P@60fps/50fps/30fps/25fps/29.97fps |
|
| USB3.0 Video Output Format:
YUY2/NV12 support:
1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264 support: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
||
| USB3.0 Video Output Format:
YUY2/NV12 support 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264 support 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30 |
||
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) | |
| DNR | 2D & 3D DNR | |
| White Balance | Auto / Manual / One Push 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
|
| Focus | Auto / Manual / One key focus | |
| Exposure | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority | |
| Apenture | f1.8 ~ f11, CLOSE | |
| Shutter speed | 1/25~ 1/10000 | |
| BLC | ON/OFF | |
| WDR | OFF/ Dynamic level adjustment | |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
| SNR | >50dB | |
| Input/Output Interface | ||

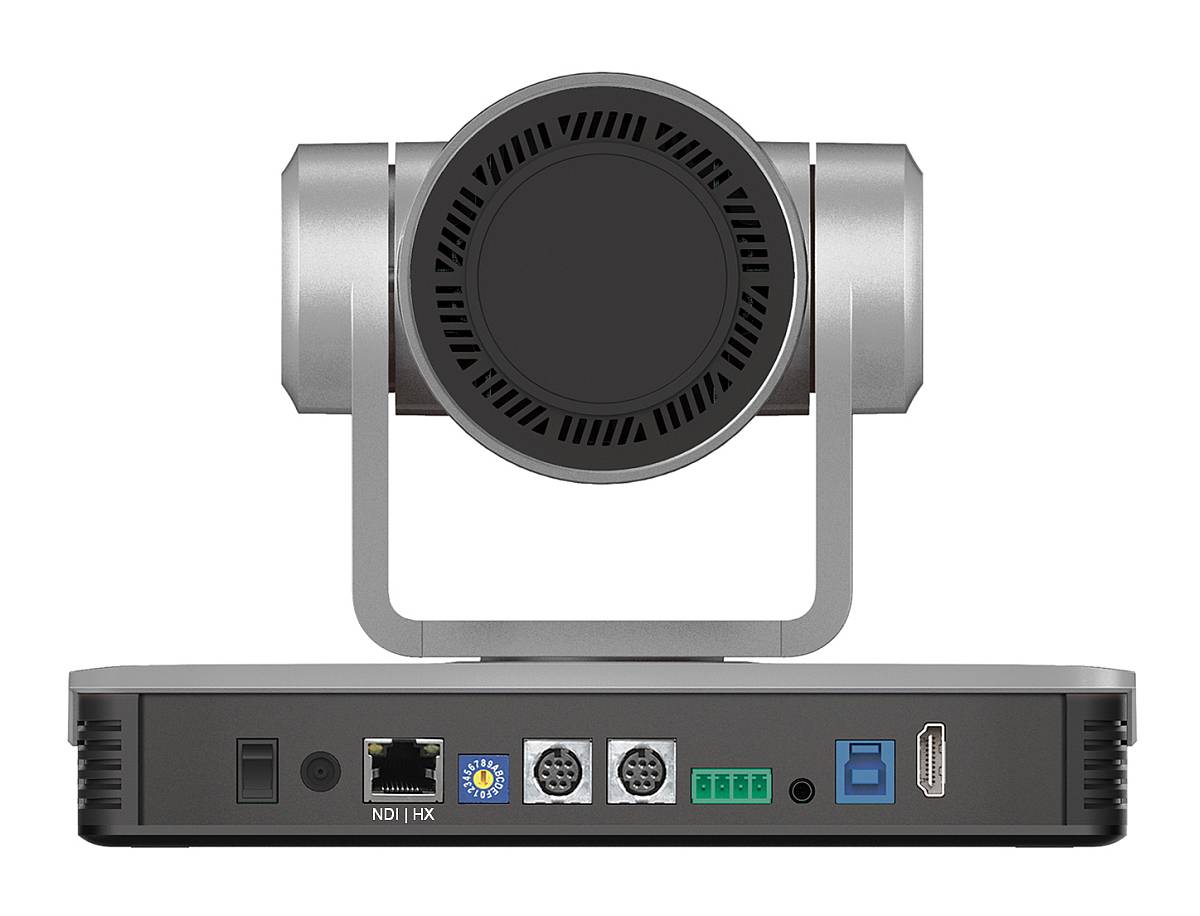

| Video Interfaces | HDMI, LAN(POE), USB3.0 （Type B compatible USB2.0） | |
| Video Compression Format |
LAN support: H.264, H.265 USB 3.0 support: MJPG, H264, YUY2, NV12 |
|
| Audio Input Interface | A-IN, Double track 3.5mm linear Input | |
| Audio Output | HDMI, LAN, USB3.0 | |
| Audio Compression Format | AAC, MP3, G.711A | |
| LAN Interface | 10M/100M/1000M adaptive Ethernet Port, support POE power supply, support audio and video output (NDI) |
|
| Network protocol | Support RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols. Support Remote Update, Reboot and Reset |
|
| Control Interface | RS232 (Input & Output), RS422 (compatible with RS485) | |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
| Power Interface | HEC3800 Outlet (DC12V) | |
| Power Adaptor | Input: AC110V-AC220V Output: DC12V/2.5A | |
| PTZ Parameter | ||
| Pan Rotation | -110°~ +110° | |
| Tilt Rotation | -30°~ +30° | |
| Pan Control Speed | 0.1°/s~ 100°/s | |
| Tilt Control Speed | 0.1°/s~ 70°/s | |
| Preset Speed | Pan: 100°/s, Tile: 70°/s | |
| Preset Number | 255 presets (10 presets by remote controller) | |
| Other Parameter | ||
| Store Temperature | -10℃~ +60℃ | |
| Store Humidity | 20%~ 95% | |
| Working Temperature | -10℃~ +50℃ | |
| Working Humidity | 20%~ 80% | |

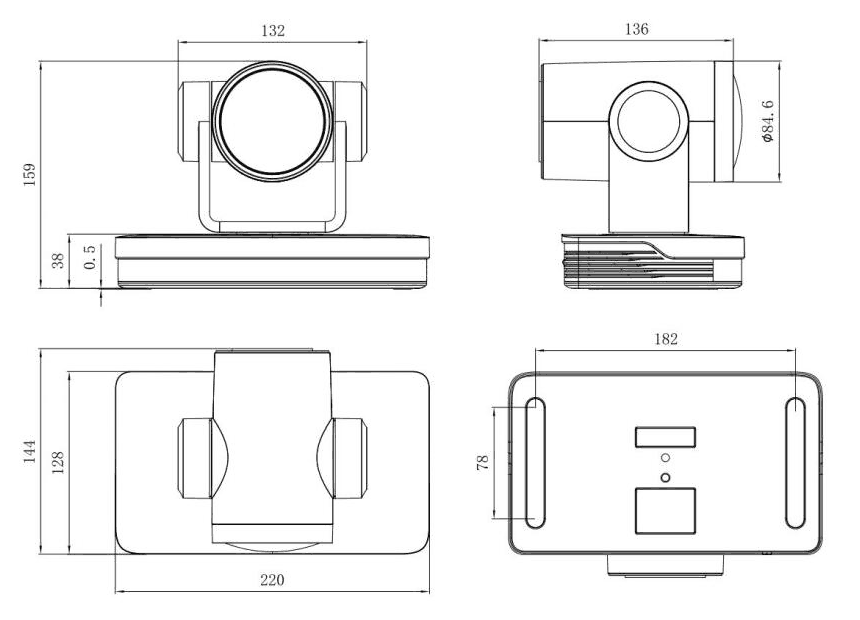

| Dimension | 220mm*144mm*159mm | |
| Weight | 1.7KG | |
| Using enviroment | Indoor only | |
| Accessory | ||
| Included Accessory | Power supply, RS232 control cable, USB3.0 connection cable, remoter, manual, warranty card |
|
Nem található bejegyzés
213.923 Ft
