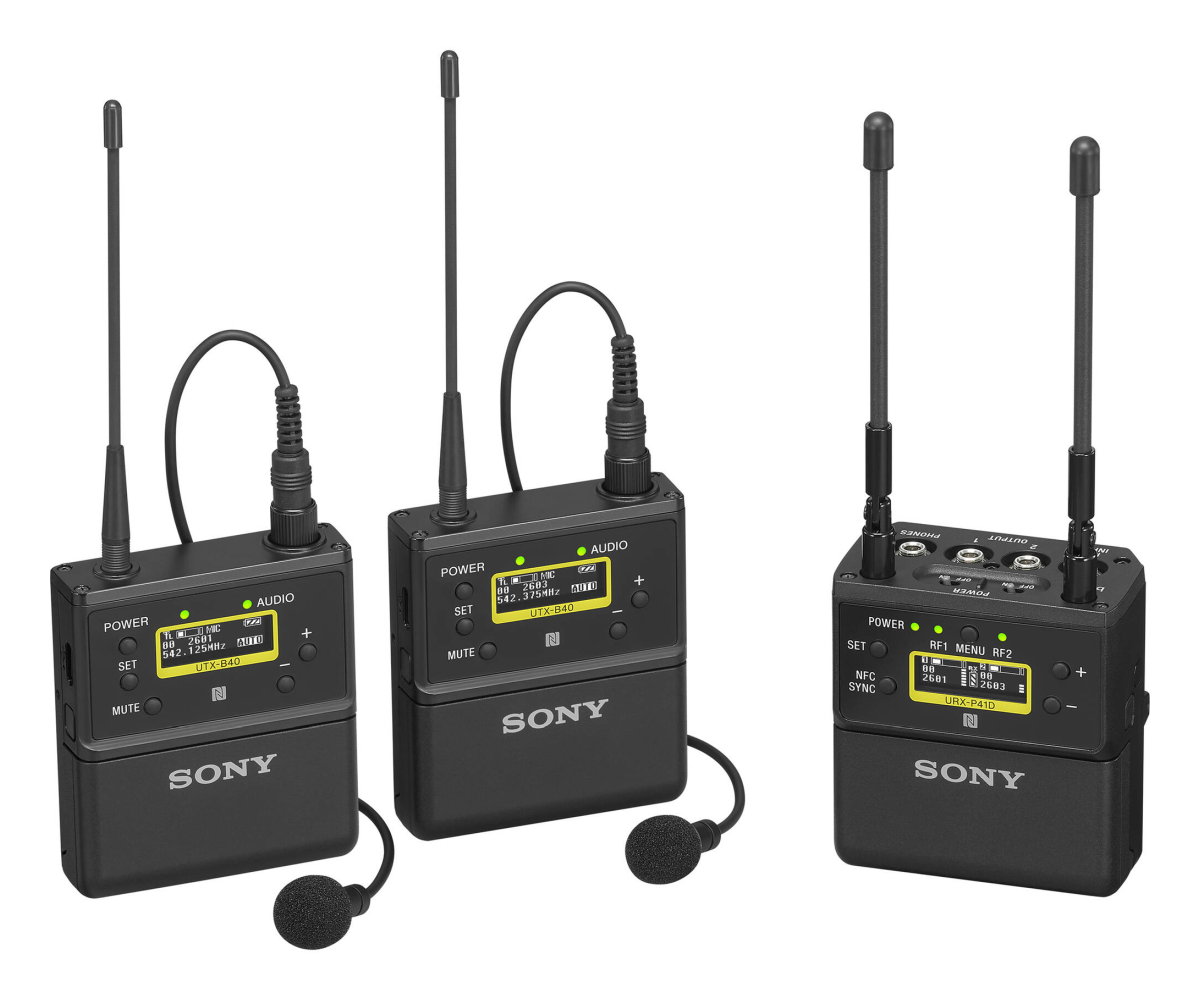

Sony UWP-D27 Kétcsatornás mikroport szett
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Sony UWP-D27 Kétcsatornás mikroport szett
• Kétcsatornás True-Diversity vevőegység
• 2 db zsebadó automata erősítéssel
• 2 db omnidirekcionális csiptetős mikrofon
• 100m hatótáv
• OLED kijelző, 4 csatornás mixer
• 2 db zsebadó automata erősítéssel
• 2 db omnidirekcionális csiptetős mikrofon
• 100m hatótáv
• OLED kijelző, 4 csatornás mixer
• 1x Sony URX-P41D
• 2x Sony UTX-B40
• 2x Sony ECM-V1BMP
• 2x Mikrofoncsipesz
• 2x Szélvédő
• 3x övcsipesz
• Vakusín adapter a vevőhöz
• 2x XLR-ről 3,5 mm-es zárható kimeneti kábelek
• 2x Sony UTX-B40
• 2x Sony ECM-V1BMP
• 2x Mikrofoncsipesz
• 2x Szélvédő
• 3x övcsipesz
• Vakusín adapter a vevőhöz
• 2x XLR-ről 3,5 mm-es zárható kimeneti kábelek
Sony UWP-D27 Specifications |
|||
| UTX-B40 bodypack transmitter | |||
Oscillator Type |
Crystal-controlled PLL synthesizer | ||
Antenna Type |
1/4 λ wave length wire antenna | ||
Carrier Frequencies |
14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 29CN : 638.025 MHz to 694.000 MHz (UHF-TV channels 29-35) BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
||
RF Output Power |
30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models) |
||
Capsule Type |
Elect retcondenser | ||
Directivity |
Omni-directional | ||
Input Connector |
3.5 mm diameter 3-pole locking mini jack | ||
Reference Audio Input Level |
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input) |
||
Audio Attenuator Adjustment Range |
0 dB to 27 dB (3 dB steps) | ||
Frequency Response |
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model) |
||
Signal-to-Noise Ratio |
60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
||
Distortion |
Approx. 0.35 ms | ||
Tone Signal Frequency |
In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
||
Display |
OLED | ||
Power Requirements |
DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
||
HDMI Output Format |
1080p 24/25/30/50/60fps | ||
DC Port |
5.5mm x 2.1mm center positive | ||
DC Voltage |
7.4~16.8V | ||
OLED Display |
1.3inch | ||
Power Consumption |
4,2Watt (Typical) | ||
Battery life* |
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). |
||
Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) | ||
Storage/Transport Temperature |
-20 °C to +55 °C (–4 °F to +131 °F) | ||
| Dimensions | 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna) | ||
| Mass | Approx. 83 g (2.9 oz) (excluding batteries) | ||
| URX-P41D Dual Channel Portable Receiver | |||
| Oscillator Type | Crystal-controlled PLL Synthesizer | ||
| Reception Type | Space diversity* | ||
| Antenna Type | 1/4 λ wavelength wire antenna (angle-adjustable) | ||
| Carrier Frequencies | 14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36) 42LA: 638.125 MHz to 697.875 MHz(UHF-TV channels 42-51) 90U: 941.625 MHz to 951.875 MHz, 953.000MHz to 956.125 MHz, and 956.625MHz to 959.625 MHz 21CE: 470.025 MHz to 542.000 MHz(UHF-TV channels 21-29) 33CE: 566.025 MHz to 630.000 MHz(UHF-TV channels 33-40) 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48) 29CN: 638.025 MHz to 694.000 MHz(UHF-TV channels 29-35) BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.375 MHz |
||
| Frequency Response | 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models) 40 Hz to 15 kHz (typical) (J model) |
||
| Distortion (T.H.D) | 0.9% or less (1 kHz sine wave, 5kHz modulation) | ||
| Signal-to-Noise Ratio | 60 dB (1 kHz sine wave, 5 kHz modulation) 96 dB (max deviation, A-weighted) |
||
| Audio Delay | Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |
||
| Analog Input | 3.5-mm diameter 3-pole locking mini jack (unbalanced) | ||
| Analog Input Level | -50dBV (±12dB Adjustable, 3-dB step) | ||
| Audio Output level | –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output) –20 dBFS (external connection, digital output) –50 dBV (external connection, analog output) |
||
| Audio Output Adjust Range | -12dB to +12dB (3dB step) | ||
| Audio Output connector | 3.5mm diameter 3-pole locking mini jack (balanced), External connection |
||
| Headphone Output Connector | 3.5mm diameter mini jack | ||
| Headphone Output Level | Max. 10 mW (16-ohm) | ||
| Tone signal frequency | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
||
| Display | OLED | ||
| Power Requirements | DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0 V (supplied from USB Type-C connector) |
||
| Battery Life | Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF | ||
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | ||
| Storage/ Transport Temperature | -20ºC to +55ºC (-4ºF to +131ºF) | ||
| Dimensions | 63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna) | ||
| Mass | Approx. 159 g (5.6 oz) (excluding batteries) | ||
Nem található bejegyzés
73.741 Ft
