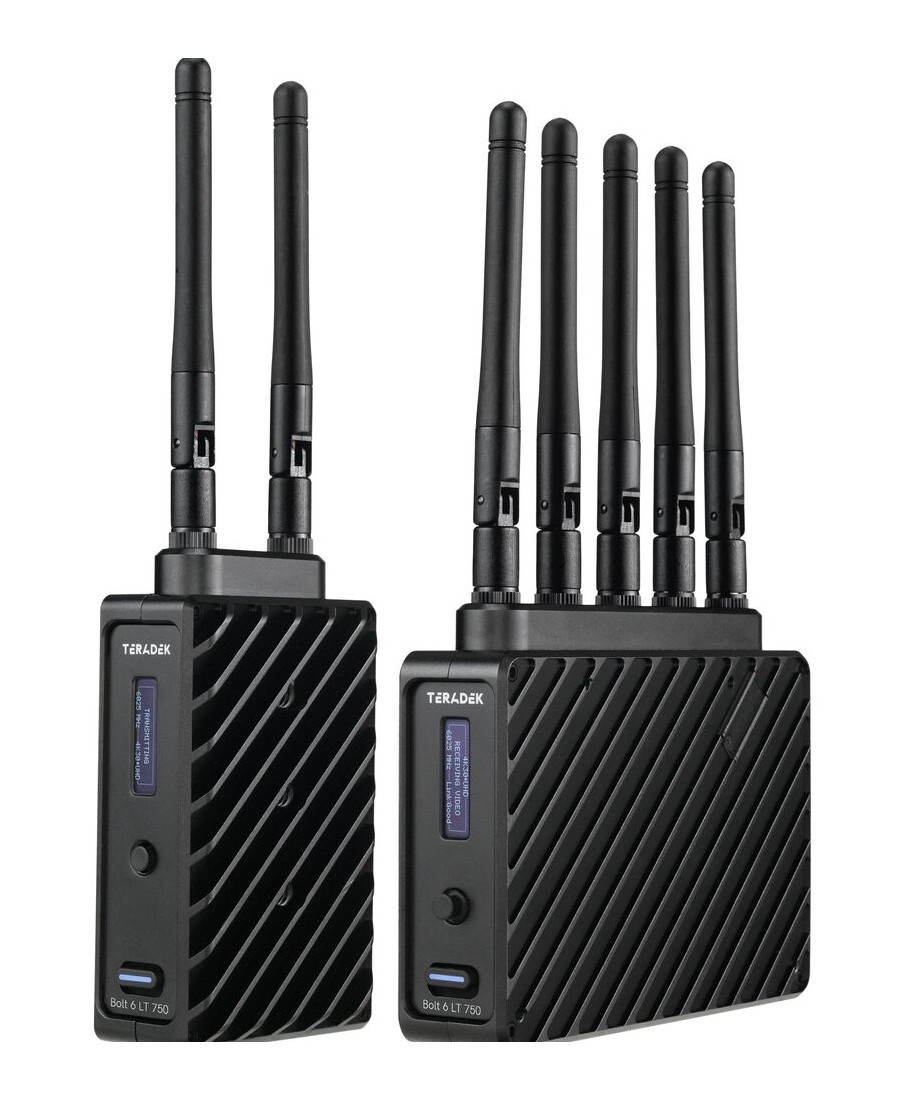

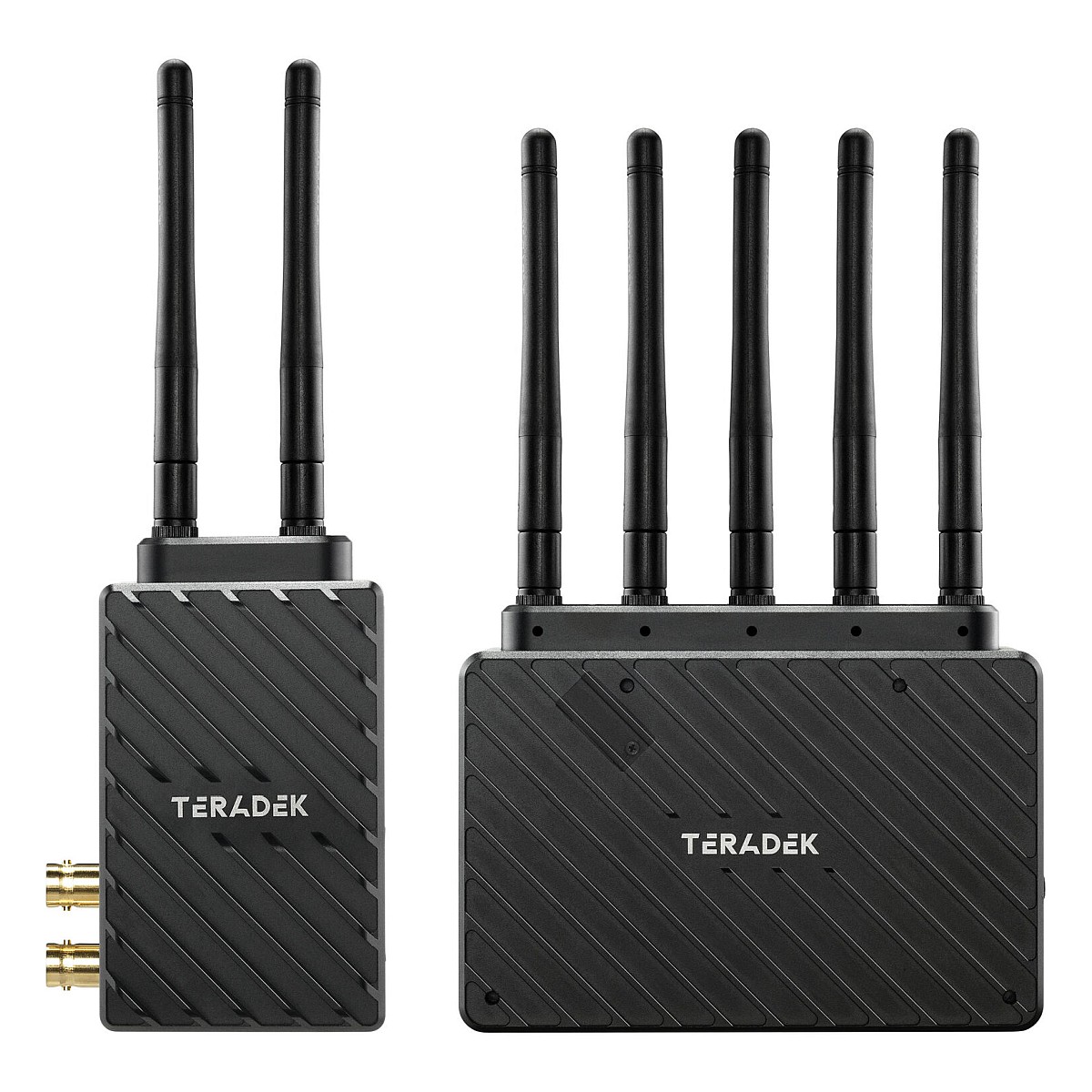

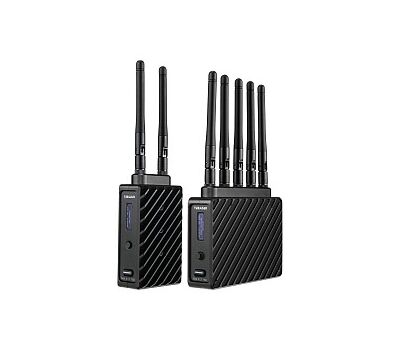

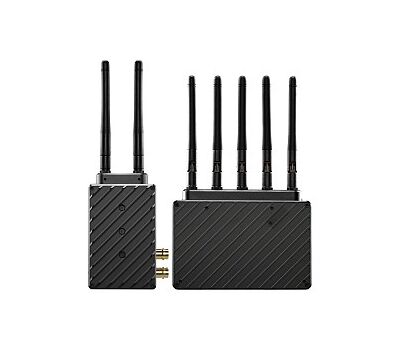

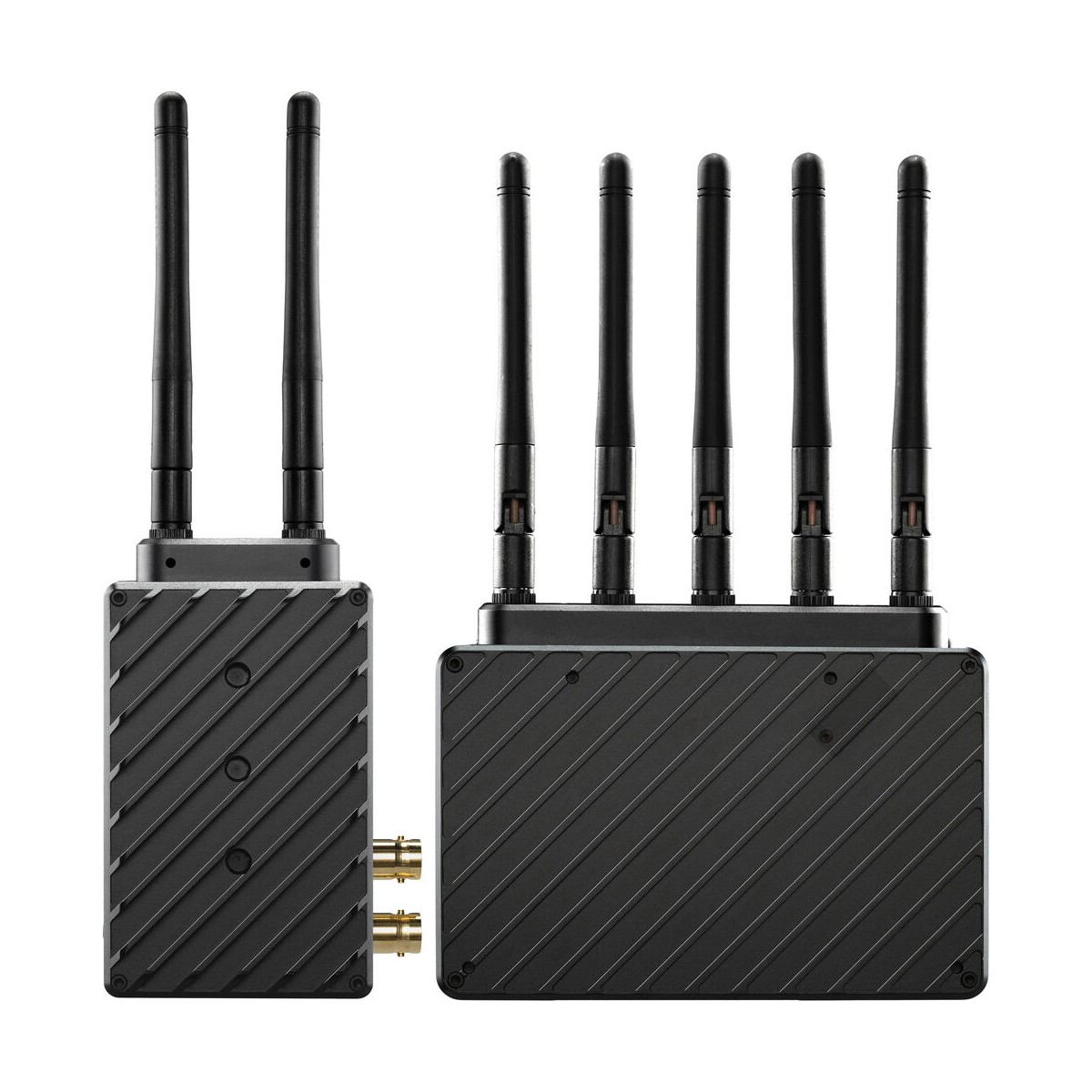

Teradek Bolt 6 LT 750 vezeték nélküli jelátviteli rendszer
• 3G-SDI/HDMI adó és vevő szett
• Támogatja a 6 GHz-es frekvenciasávot
• Hatótáv: 750 ft (228 m)
• Videobemenet: 4Kp30 (HDMI) 1080p60 (SDI)
• Támogatja a 10-bit 4:2:2 szín-mintavételezést, késleltetés nélkül
• Kereszt-kompatibilis a Bolt 4K sorozatú 5G TX/RX készülékekkel
• Támogatja a 6 GHz-es frekvenciasávot
• Hatótáv: 750 ft (228 m)
• Videobemenet: 4Kp30 (HDMI) 1080p60 (SDI)
• Támogatja a 10-bit 4:2:2 szín-mintavételezést, késleltetés nélkül
• Kereszt-kompatibilis a Bolt 4K sorozatú 5G TX/RX készülékekkel

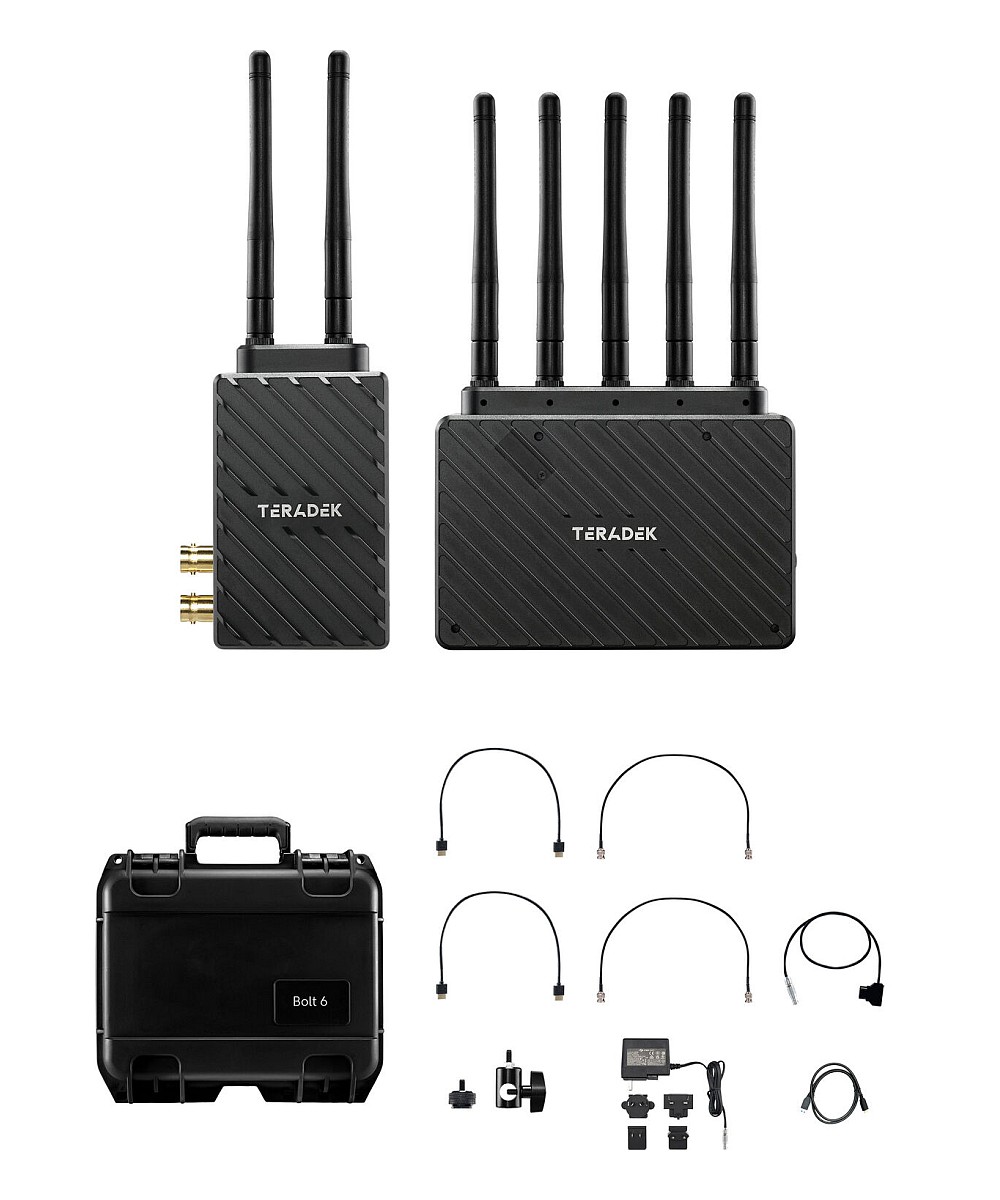

• 1x Bolt 6 LT 750 3G-SDI/HDMI adó
• 1x Bolt 6 LT 750 3G-SDI/HDMI vevő
• 1x 2-Pin to D-Tap tápkábel
• 1x USB 2.0 Type-A Male to Micro-USB Male kábel
• 2x HDMI Type A Male to HDMI Type A Male kábel
• 2x BNC to BNC SDI kábel
• 1x Tápegység
• 7x Antenna
• 1x 1/4"-20 állványadapter
• 1x Shoe Adapter
• 1x Koffer
• Jótállás: 1 év
• 1x Bolt 6 LT 750 3G-SDI/HDMI vevő
• 1x 2-Pin to D-Tap tápkábel
• 1x USB 2.0 Type-A Male to Micro-USB Male kábel
• 2x HDMI Type A Male to HDMI Type A Male kábel
• 2x BNC to BNC SDI kábel
• 1x Tápegység
• 7x Antenna
• 1x 1/4"-20 állványadapter
• 1x Shoe Adapter
• 1x Koffer
• Jótállás: 1 év
Teradek Bolt 6 LT 750 Specifications |
|||
| Bolt 6 LT 750 TX | |||
Video Inputs |

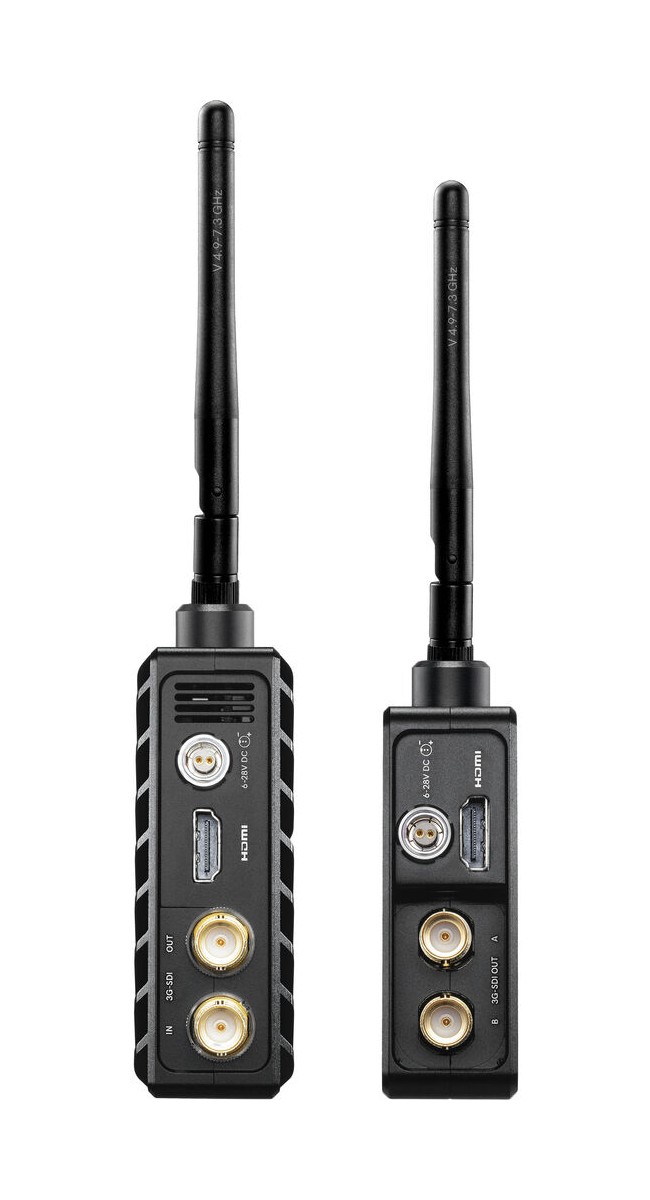

3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle |
||
Video Outputs |
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) | ||
Sdi Ancillary Data Support |
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | ||
Color Sampling |
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit | ||
Delay Tx To Rx |
<0.001sec | ||
Input Cross Conversion |
Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) | ||
Supported Resolutions |
4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 |
||
Video Compression |
Visually Lossless | ||
Color Correction |
None | ||
Audio Compression |
48kHz 24-bit PCM | ||
Audio Input |
Embedded SDI/HDMI Audio Input (2 Channel) | ||
Dimensions |
60mm x 103mm x 33mm | ||
Weight |
206g (7.3oz) | ||
Construction |
Milled Aluminum(Chassis) and regulation-compliant PCB | ||
Mountability |

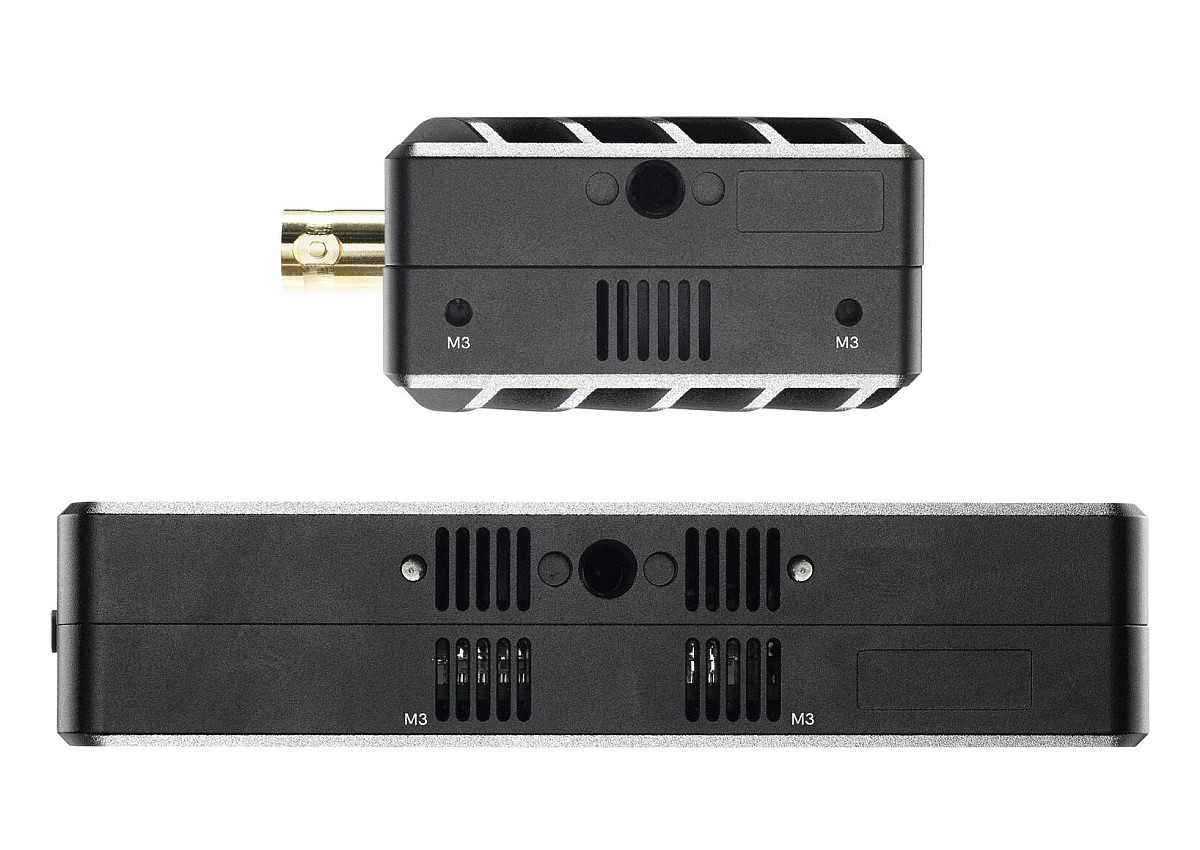

Multiple mounting options with 1/4"x20 and M3 holes | ||
Configuration Interfaces |

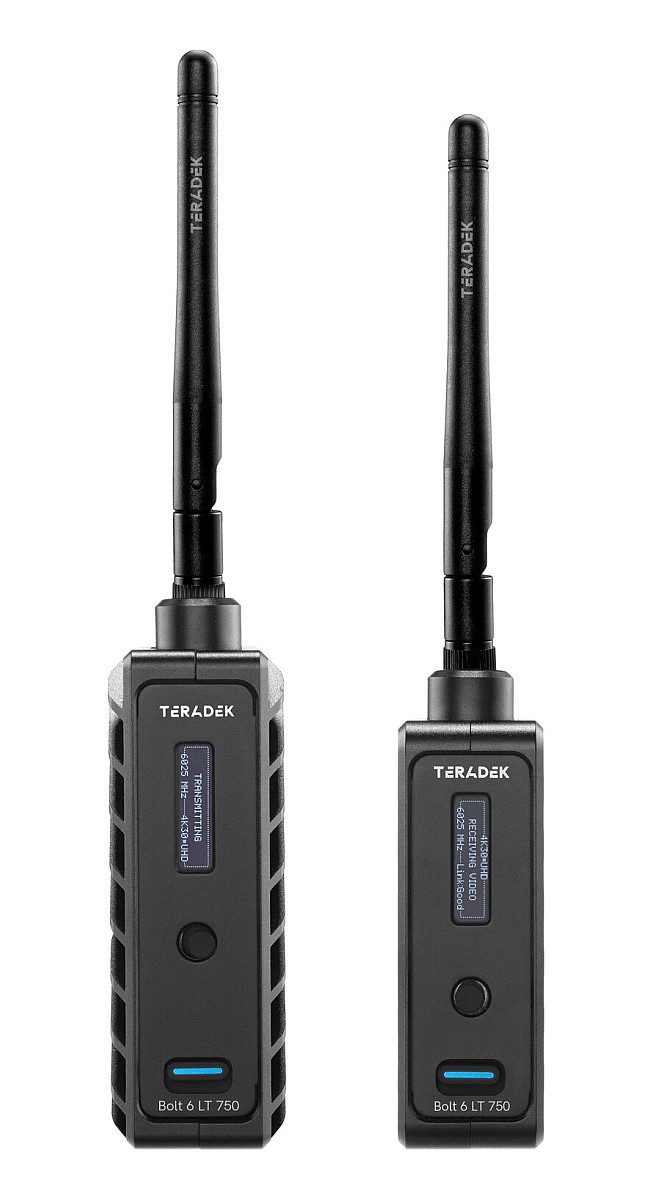

OSD with Menu, Joystick Navigation | ||
Switches |
On/Off Switch | ||
Mobile App |
Bolt App | ||
Desktop App |
Bolt Manager application for OSX & Windows | ||
Usb Interface Functionality |
Upgrade via Micro-USB | ||
Bluetooth |
2.4 GHz | ||
Dimensions |
105mm x 66mm x 32mm (Antennas not included) | ||
Antennas |
2 External 2dBi antennas (included) | ||
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
||
| Rf Channel Selection | Auto, Manual | ||
| Encryption | AES-256, RSA-1024 key exchange | ||
| Rf Power | 23 dbm EIRP | ||
| Range | Up to 750 ft, line of sight | ||
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers | ||
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
||
| Interoperability Compatibility | Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) | ||
| Power Input | 2-Pin Circular locking Connector 6-28 VDC | ||
| Battery | None, optional Sony/Canon dual battery plate | ||
| Nominal Power Consumption | 9 Watts | ||
| Bolt 6 LT 750 RX | |||
| Video Outputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle |
||
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | ||
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit | ||
| Output Video Scaling | No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output | ||
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 |
||
| Video Compression | Visually Lossless | ||
| Test Pattern Generator Support | Yes | ||
| Spectrum Analyzer | Yes | ||
| Color Correction | 17x17x17 3D LUT (supports 10-bit color) | ||
| Audio Compression | 48kHz 24-bit PCM | ||
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) | ||
| Dimensions | 122mm x 94mm x 27mm | ||
| Weight | 292g (10.3oz) | ||
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB | ||
| Mountability | Multiple mounting options with 1/4"x20 and 3/8"x16 holes | ||
| Configuration Interfaces | OSD with Menu, Joystick Navigation | ||
| Switches | On/Off Switch | ||
| Mobile App | Bolt App | ||
| Desktop App | Bolt Manager application for OSX & Windows | ||
| Usb Interface Functionality | Upgrade via Micro-USB | ||
| Bluetooth | 2.4 GHz | ||
| Antennas | 5 External 2 dBi antennas (included) | ||
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
||
| Rf Channel Selection | Auto, Manual | ||
| Encryption | AES-256, RSA-1024 key exchange | ||
| Rf Power | 21 dbm EIRP | ||
| Range | Up to 750 ft, line of sight | ||
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers | ||
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
||
| Interoperability Compatibility | Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | ||
| Power Input | 2-Pin Circular locking Connector 6-28 VDC | ||
| Battery | None, optional Gold or V mount battery plate | ||
| Nominal Power Consumption | 11 Watts | ||
