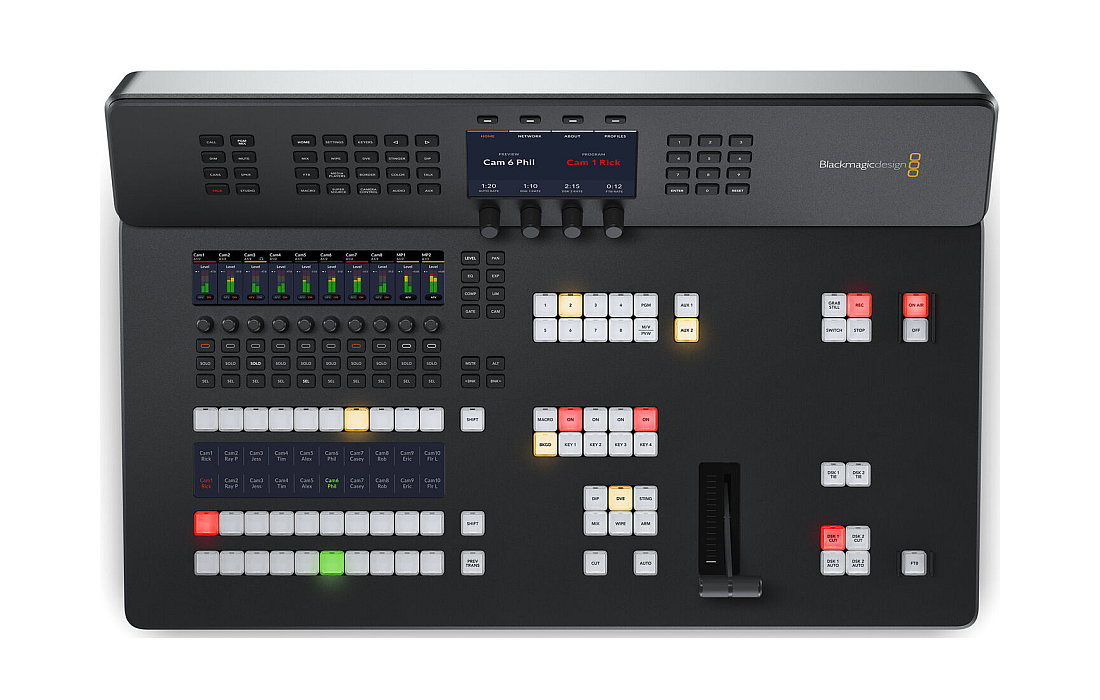

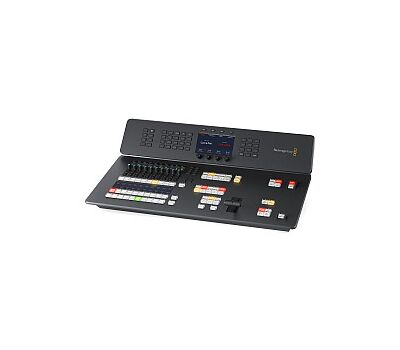

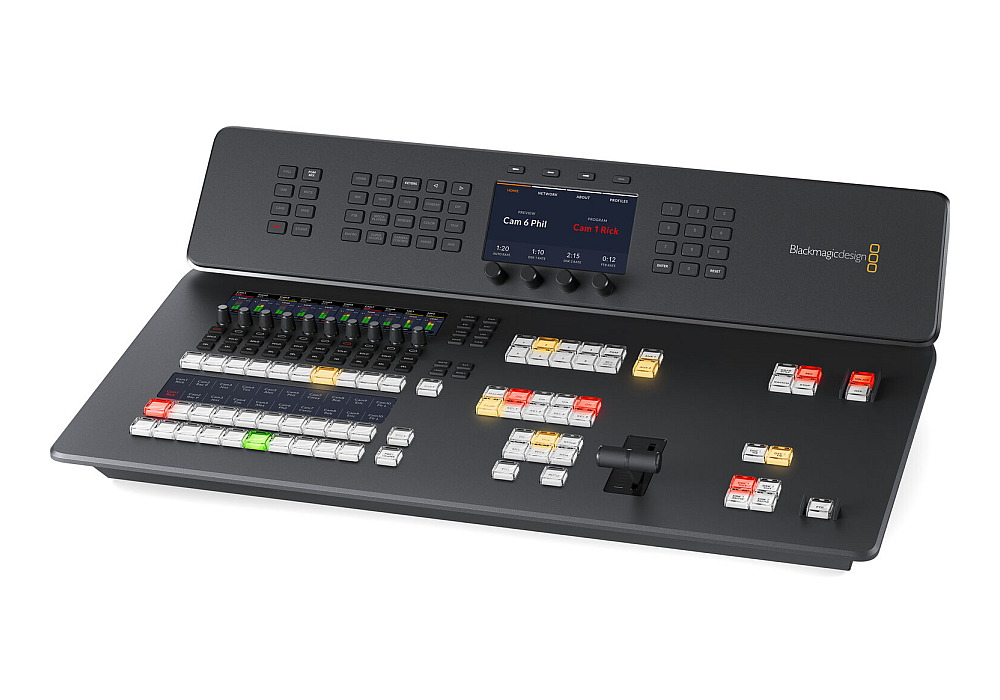

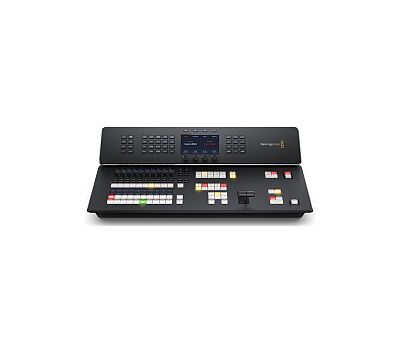

Blackmagic Design ATEM Television Studio HD8 mixer
A legújabb ATEM Television Studio HD8, HD8-ISO és 4K8 mixer-családdal a BMD toronymagasra tette a mércét a többi gyártó számára. A sorban az első, a HD8 egy multiformat HD keverő akár televíziós élő adáshoz, akár internetes élő közvetítéshez. Rengeteg újítást tartalmaz elődjéhez, a nem is olyan rég megjelent Studio Pro HD keverőhöz képest.
HD8 Mixer fontosabb újdonságok
- 8 db 3G-SDI bemenet (resize, rescale, re-sync)
- 12 db 3G-SDI kimenet (8 + PGM + 2 AUX + SDI multiview) + HDMI multiview

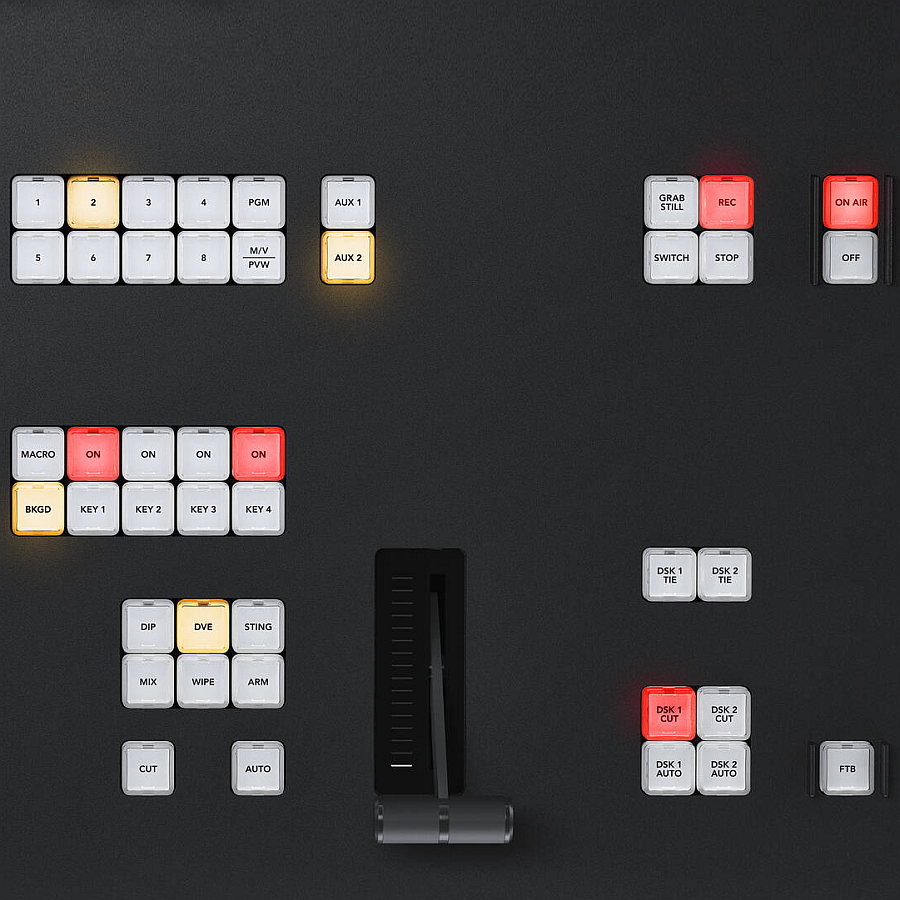

- T-Bar
- Ref in/out
- Timecode in/out
- Multiview 16 osztott képig
- 58-csatornás audio-mixer
- MADI dig. audio bemenet (opcionális ATEM Microphone Converter használatával kiterjeszthetők a bemenetek, pl több mikrofon használatára, fantomtáppal), + gördíthető audio waveform megjelenítés HDMI-n)
- MADI dig. audio kimenet külső hangkeveréshez
- HiFi audio bemenet (RCA)
- 5 tűs XLR csatlakozó broadcast intercom (talkback) headset-ekhez
- Control Room Audio és Studio Audio csatlakozók (monitoring és intercom)
- Hangszintek finom(abb) kijelzése és állítása az összes csatornára + MP1/MP2-re
- Nagyteljesítményű SuperSource multi-layer processzor (4 extra DVE réteget + háttérréteget biztosít, mindezeket további bemeneti forrásként egymásra rétegezve)
- PGM felvétel külső USB disk-re vagy ha egy opcionális beépíthető M.2 flash disk telepítve van, akkor közvetlenül rögzíthet erre is
- Akár az USB disk(ek), akár a belső tároló tartalma megosztható helyi Ethernet hálózaton keresztül
- USB-C csatlakozó (összesen 2 db) flash disk-re rögzítéshez vagy stream-eléshez mobil telefon csatlakoztatásával
- USB-C emulált webcam kimenethez (Zoom, Teems, Skype, stb kompatibilis) vagy streaming szoftverekhez (Open Broadcaster, XSplit, vMix, stb.)
- Egy-gombos online közvetítés Youtube-ra, Facebook Live-ra vagy más közösségi médiára:
RTMP direct stream Ethernet vagy USB-C-n keresztül megosztott internet kapcsolattal - Külön Ethernet port intercom rendszerekhez (Clearcom, RTS, stb.)
- 4-portos 10G Ethernet switch
- Választható Broadcast vagy A/B stílusú (egyszerűbb) használati mód

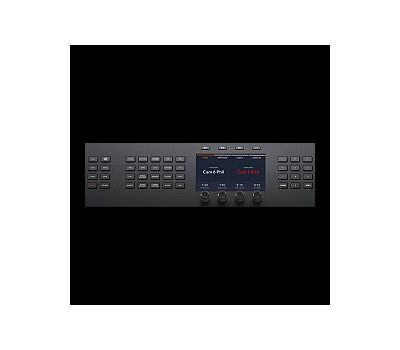

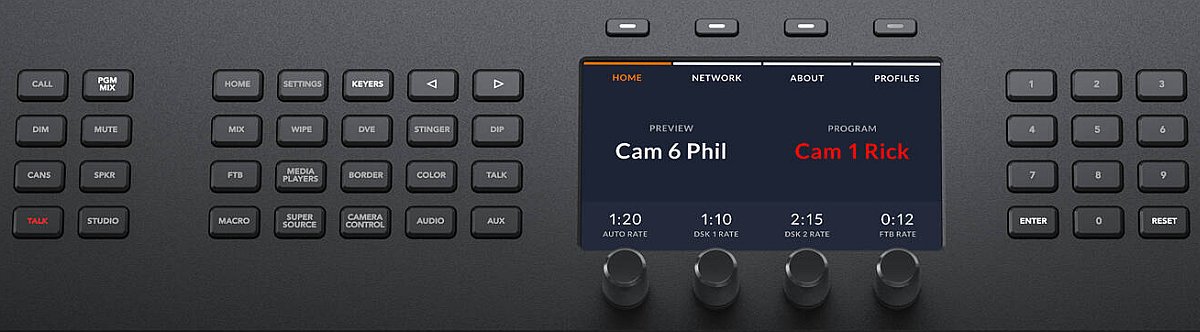

- Nagyméretű LCD kijelző

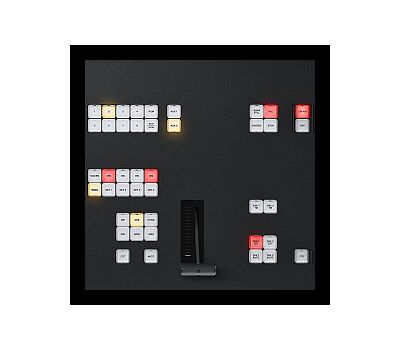

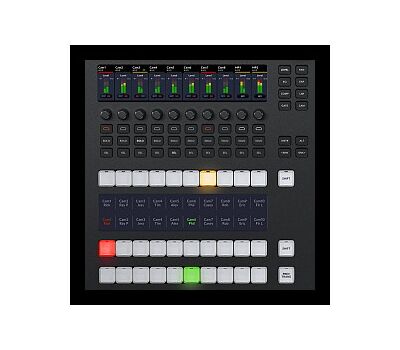

- Új, könnyen navigálható nyomógomb kiosztás
- Polikarbonát nyomógombok
És a már megszokott jellemzők
- Bemeneti és kimeneti formátumok:
720p 50/59,94/60,
1080i 50/59,94/60,
1080p 23,98/24/25/29,97/30/50/59,94/60 - Beépített DVE
- PiP egyedi grafikával
- Átmenetek
- Színkorrekció
- Média lejátszó
- Média tár alfa-csatornás grafikával feliratokhoz és logókhoz (átlátszóság és rétegek támogatása)
- Alfa-csatornás animáció támogatása (400 képkocka kisHD-ban, 200 képkocka FHD-ban)
- 4 ATEM Advanced Chroma Keyers
- 8 kompatibilis BMD kamera vezérlése, Tally, Intercom lehetőséggel
- Atem Software Control macOS vagy Windows-ra
• Blackmagic Design ATEM Television Studio HD8 keverő
• Jótállás: 1 év
• Jótállás: 1 év

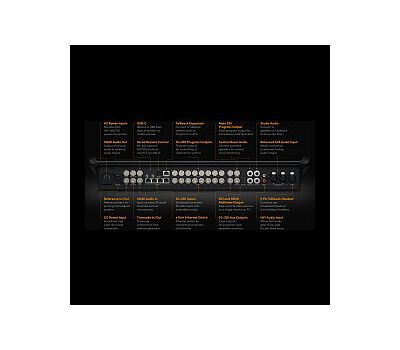

Blackmagic Design ATEM Television Studio HD8 Specifications |
|||

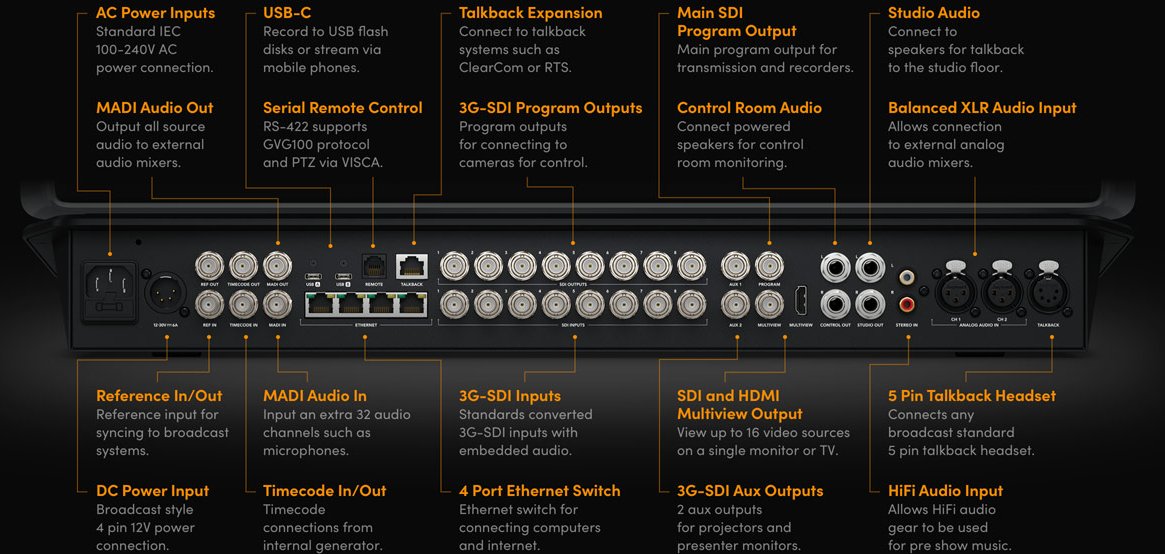

Connections | |||
SDI Video Inputs |
8 | ||
SDI Video Outputs |
12 | ||
SDI Rates |
1.5G, 3G, | ||
HDMI Video Outputs | 1 | ||
Total Audio Inputs |
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback. |
||
Total Audio Outputs |
4 x 1/4 inch Jack analog audio 1 x BNC 64 Ch MADI digital audio, up to 50 active 1 x 5 pin XLR Talkback |
||
SDI Audio Inputs |
4 Ch embedded audio on all SDI inputs. | ||
SDI Audio Outputs |
2 Ch embedded audio on all SDI outputs. | ||
Timecode Connections |
1 x BNC In, 1 x BNC Out. | ||
Reference Input |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
||
Video Input Re-Sync |
On all 8 inputs. | ||
Frame Rate and Format Converters | On all 8 inputs. | ||
SDI Aux Outputs | 2 | ||
SDI Program Outputs | 1 | ||
Webcam Output | 2 x USB-C supporting 720p or 1080p at PGM frame rate. | ||
Total Multi Views | 1 x 3G-SDI 1 x HDMI |
||
Remote | RJ12 supports RS-422 | ||
Control Panel Connection | Ethernet. Direct connection between panel and chassis, or via network. | ||
Internal Timecode Generator | Yes | ||
Talkback | RJ45 for 3rd party talkback systems. | ||
Tally Output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). | ||
Ethernet | 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. | ||
Computer Interface | 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection. | ||
Standards | |||
SD Video Standards |
None | ||
HD Video Input Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. | ||
Video Sampling |
4:2:2 | ||
Color Precision |
10-bit | ||
Color Space |
REC 709 | ||
SDI Auto Switching | Automatically detects between 1.5G-SDI and level A or level B 3G-SDI | ||
Product Specifics | |||
Upstream Keyers |
4 | ||
Downstream Keyers |
2 | ||
Advanced Chroma Keyers |
4 | ||
SuperSource |
1 | ||
Linear/Luma Keyers |
7 | ||
Transition Keyer (Stinger/DVE) |
1 Stinger, 1 DVE. | ||
Total Number of Layers |
8 | ||
Pattern Generators |
7 | ||
Color Generators |
2 | ||
Control Panel |
Integrated panel with full control of switching and settings. | ||
Routable Windows |
16 | ||
Windows Source Labels |
Yes | ||
Tally |
Red for program and green for preview indication. | ||
Talkback Support |
Yes | ||
Mix Minus Support | Yes | ||
Multi View Monitoring | |||
Multi View Monitoring |
1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters. |
||
Multi View Video Standard | HD | ||
Display Minimum Resolution | 1366 x 768 | ||
Media Player | |||
Media Players |
2 | ||
Channels |
Fill and key for each media player. | ||
Media Pool Still Image Capacity |
20 | ||
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. | ||
Media Pool Clip Capacity |
2 x up to 1080p60. | ||
Media Player Clip Length in 720 HD |
400 frames. | ||
Media Player Clip Length in 1080 HD |
200 frames. | ||
Media Pool Video File Format | TGA sequence. | ||
Media Pool Audio File Format | WAV, MP3 and AIFF. | ||
Processing | |||
Processing Delay |
< 10 lines when genlocked and in the same format as the switcher. | ||
Audio Mixer |
58 Channel mixer. Selectable On/Off/Audio-Follow-Video.Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. |
||
Camera Control |
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. | ||
Down Conversion | None | ||
Software | |||
Control Panel Included |
ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11. | ||
Software Updates |
Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility. | ||
Streaming Sources |
|||
Total Streaming Sources |
Up to 8 | ||
Streaming Source Format |
RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. | ||
Streaming Source Setup | Mapped to inputs in ATEM Software Control Settings. | ||
Streaming | |||
Direct Streaming | Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C. | ||
Recording | |||
Direct Recording Video and Audio | Direct recording to optional internal M.2 flash memory or to external media via USB-C expansion ports. | ||
Video Recording | Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. | ||
Media Format | Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac). |
