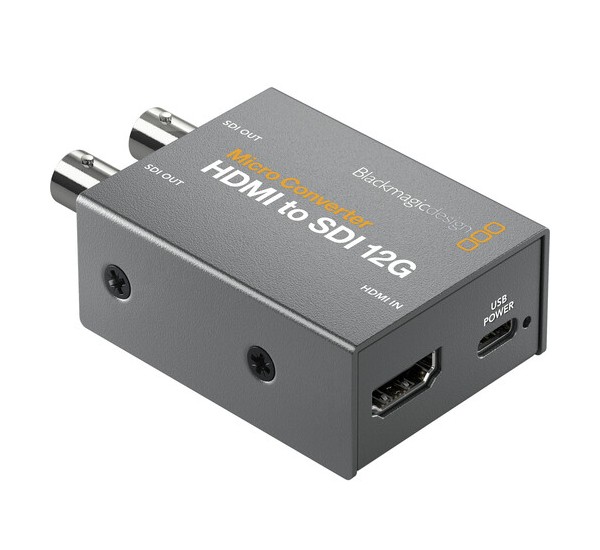

Blackmagic Design HDMI to SDI 12G Micro Konverter tápegységgel
A Blackmagic Design HDMI to SDI 12G konvertere a beérkező HDMI jelet alakítja át SDI jellé. Tápegységgel szállított változat.
Kapcsolódó termékek
Részletes leírás
Csomag tartalma
Küldés
Értékelések
Blackmagic Design HDMI to SDI 12G Micro Konverter tápegységgel
Blackmagic Design HDMI to SDI 12G Micro Converter Specifications |
|||
| Connections | |||
SDI Video Outputs |
2 Automatically matches the HDMI input. |
||
HDMI 2.0 Video Outputs |
1 x type A. | ||
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. | ||
Multi Rate Support |
Auto detection of SD, HD, 2K, Ultra HD and 4K. | ||
Updates, Configurations and Power |
USB Type‑C. | ||
Reclocking |
Yes | ||
Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | ||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 | ||
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. | ||
SDI Color Precision |
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
SDI Color Space |
YUV | ||
SDI Auto Switching |
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. | ||
HDMI Video Standards |
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
||
HDMI Color Precision |
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
HDMI Color Space |
YUV | ||
Copy Protection |
|||
Via MacOS™ and Windows™ software utility connected by USB. |
|||
Power Requirements |
|||
Power Consumption |
4W max. | ||
| Operational Voltage Range | 4.4V to 5.25V DC | ||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40° C (32° to 104° F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
• 1x HDMI to SDI 12G Micro Konverter + tápegység
Nem található bejegyzés
3.965 Ft
