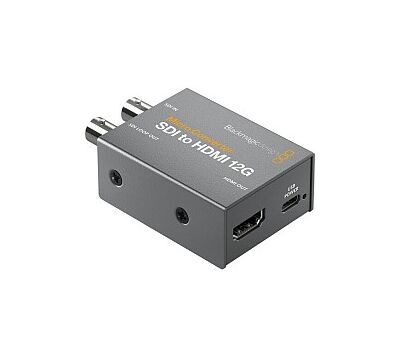

Blackmagic Design SDI to HDMI 12G Micro Konverter tápegységgel
A Blackmagic Design SDI to HDMI 12G Mikro konvertere a beérkező SDI jelet alakítja át HDMI jellé.
Ez a tápegységgel együtt szállított változat.
Kapcsolódó termékek
Részletes leírás
Csomag tartalma
Küldés
Értékelések
Blackmagic Design SDI to HDMI 12G Micro Konverter tápegységgel
Micro Converter SDI to HDMI 12G wPSU Specifications |
|||
| Connections | |||
| SDI Video Inputs | 1 | ||
SDI Video Outputs |
1 x loop out. | ||
HDMI 2.0 Video Outputs |
1 x type A. | ||
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. | ||
Multi Rate Support |
Auto detection of SD, HD, 2K, Ultra HD and 4K. | ||
Updates, Configurations and Power |
USB Type‑C. | ||
Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | ||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 | ||
SDI Color Space |
YUV | ||
SDI Auto Switching |
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. | ||
HDMI Video Standards |
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
||
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. | ||
SDI Color Precision |
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
| SDI Color Space | YUV | ||
| SDI Auto Switching | Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI. | ||
| HDMI Video Standards | 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
||
| HDMI Color Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
| HDMI Color Space | YUV | ||
Settings Control |
|||
Via MacOS™ and Windows™ software utility connected by USB. |
|||
Software |
|||
Internal software upgrade via USB. |
|||
| Power Requirements | |||
| Power Supply | +5V universal power supply included with international socket adapters for most countries. | ||
| Power Consumption | 4W max. | ||
| Operational Voltage Range | 4.4V to 5.25V DC | ||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40° C (32° to 104° F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
• 1x SDI to HDMI 12G Micro Konverter + tápegység
