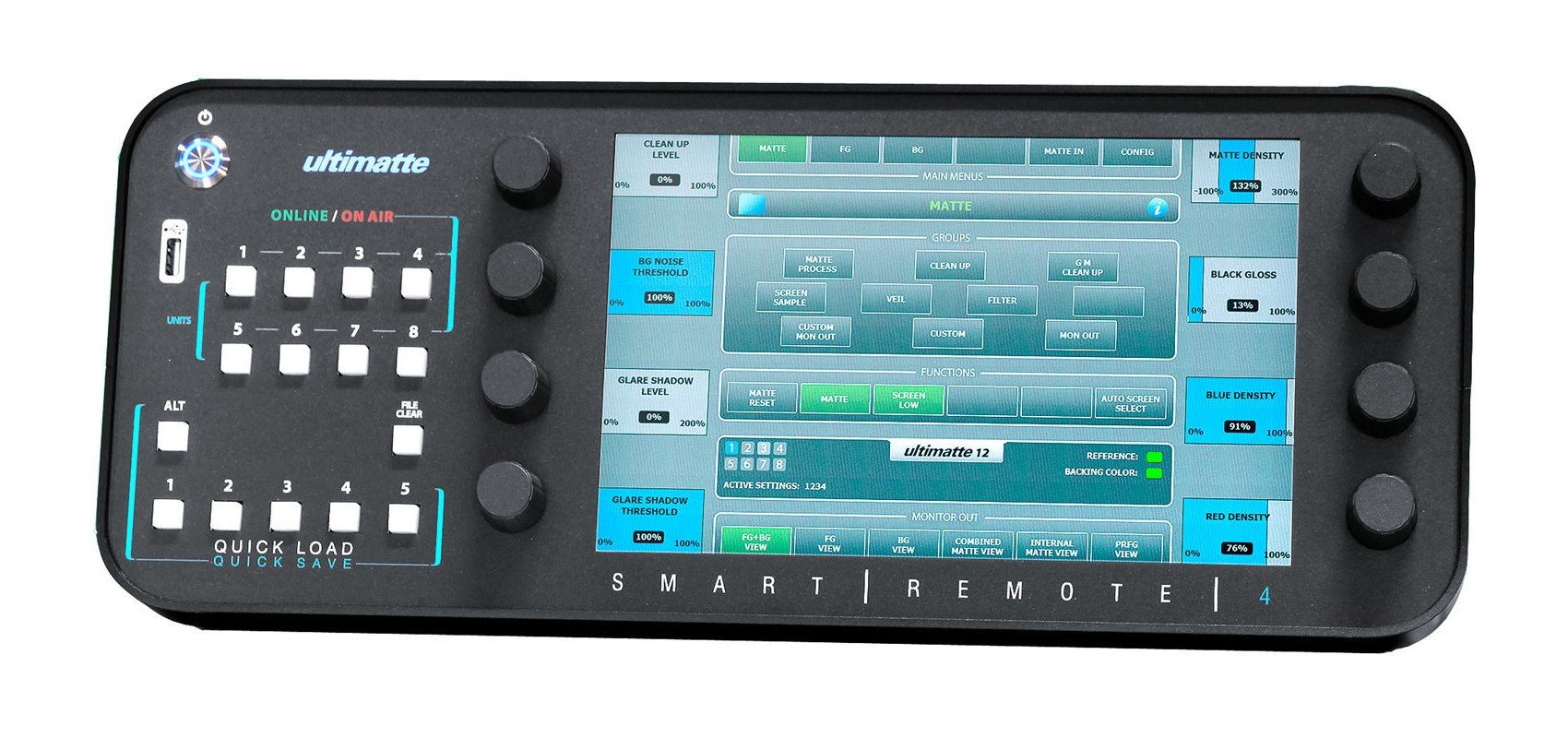

Blackmagic Design Ultimatte Smart Remote 4 vezérlő
• Akár 8 Ultimatte egység vezérlése
• LCD Kapacitív érintőképernyő
• Felhasználóbarát interfész
• On Line és On Air kijelzők egységenként
• Ethernet
• LCD Kapacitív érintőképernyő
• Felhasználóbarát interfész
• On Line és On Air kijelzők egységenként
• Ethernet
• Blackmagic Design Ultimatte Smart Remote 4
• Jótállás: 1 év
• Jótállás: 1 év
Blackmagic Design Ultimatte Smart Remote 4 Specifications |
|||
Connections |
|||
Software Updates |
2 x USB 2.0 and 1 x USB 3.0 for software updates. |
||
SVGA and Display Port Outputs |
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor. |
||
Ethernet |
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12. |
||
RS-422 |
2 x for controlling Ultimatte 11. |
||
|
Product Specifics |
|||
Rotary Knobs |
8 x rotary knobs for adjusting parameters. |
||
Unit ID Buttons |
8 x buttons. Illuminated blue for active. |
||
Unit ID LED Indicators |
Alt button plus 5 buttons for saving presets. |
||
Quick Load/Save Buttons |
5 x buttons for loading presets. |
||
File Clear Button |
1 x button for Auto Key. |
||
Alt + File Clear |
Alt button plus file clear button for Auto Key using some user defined presets. |
||
Customizable Menus |
4 x menus for building your own menu with your most used controls. |
||
| LED Control | User adjustable brightness control for LEDs. | ||
| Fan Speed Control | User adjustable. | ||
|
Software |
|||
Software Updates |
Software updates via USB to load Smart Remote utility. |
||
| Control |
|||
Touchscreen |
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus. |
||
Operating Systems |
|||
Operating Systems |
Windows 10, 64-bit. |
||
|
Power Requirements |
|||
Power Supply |
100 - 240V AC. |
||
Power Usage |
24W |
||
Physical Installation |
|||
Physical Installation |
Adjustable desk mounting option. |
||
| Environmental Specifications | |||
| Operating Temperature | 0° to 35°C (32° to 95°F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | 0% to 90% non-condensing. | ||
