Panasonic AG-CX350 UHD 4K HDR Kamera



Panasonic AG-CX350 UHD 4K HDR Kamera 1" MOS képérzékelővel, 24,5 mm nagylátószöggel. 20x optikai, 32x intelligens



zoom. 5 tengelyes képstabilizálás.


Tegyen ajánlatot! » Ha szeretné olcsóbban megvásárolni, kattintson és tegyen ajánlatot.
1.507.338 HUF
Ár:


Szállítási cél

Szállítási költség és szállítási idő: kérjük, kattintson a "Kosárba!" feliratra!

Elérhetőség:   Raktáron


Részletes leírás
Specifikáció
Küldés
Értékelések

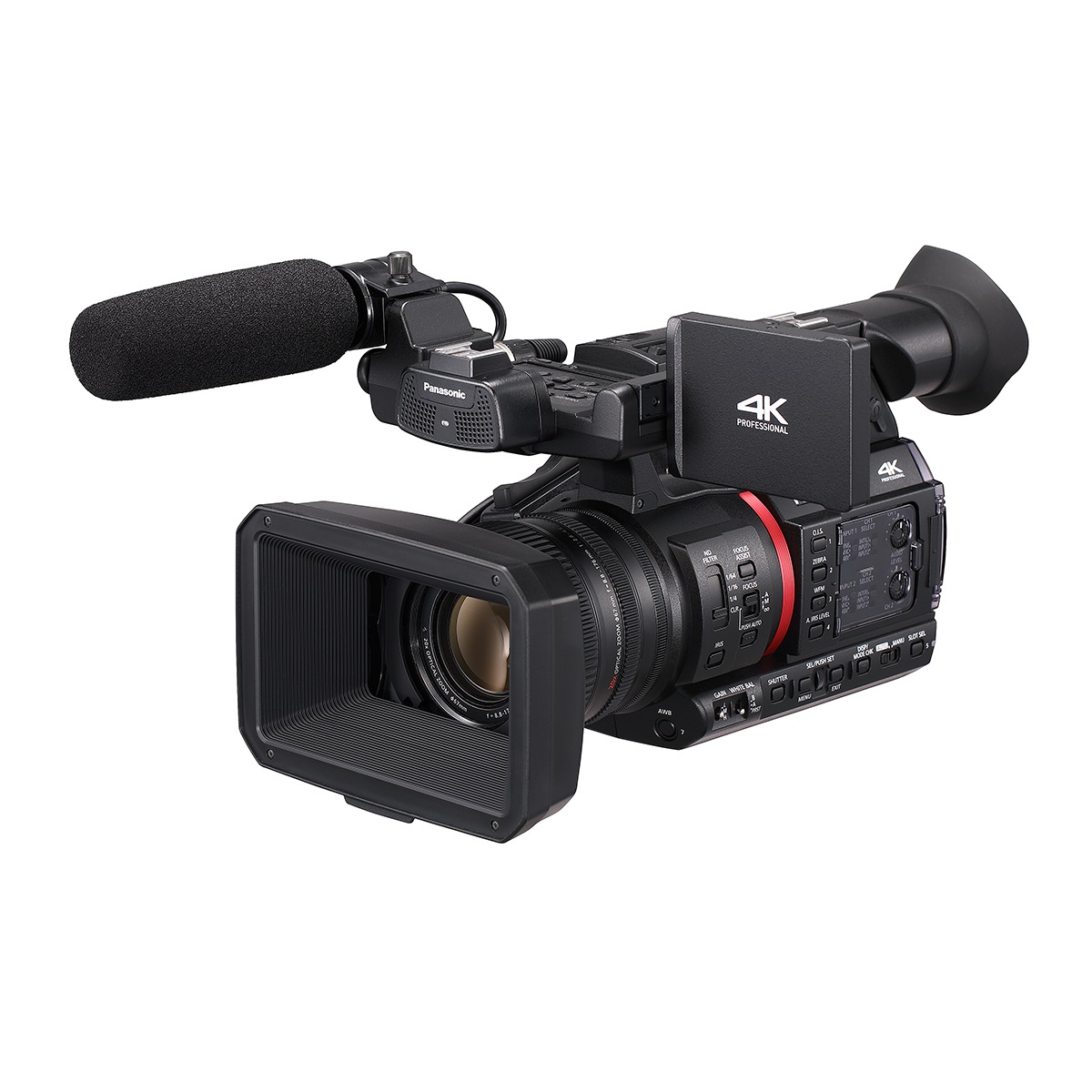

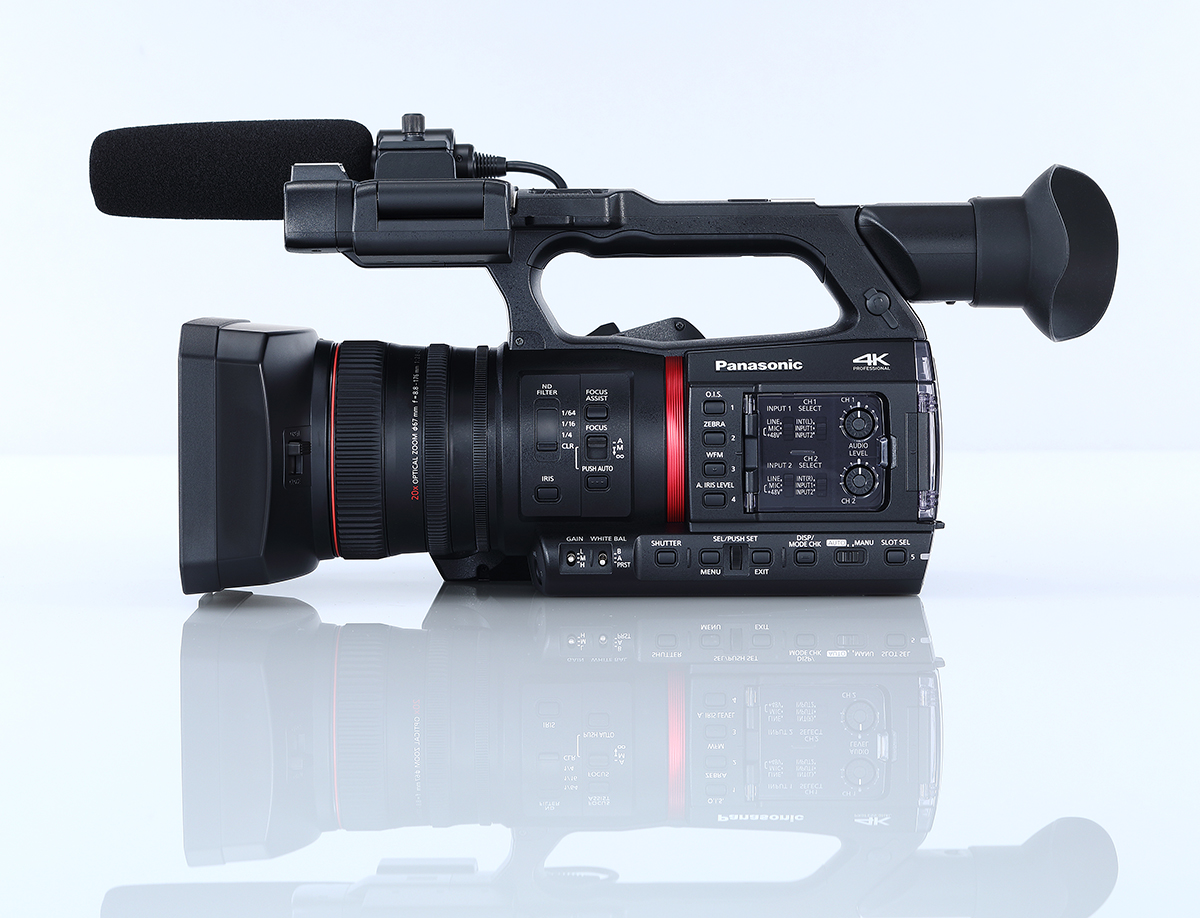

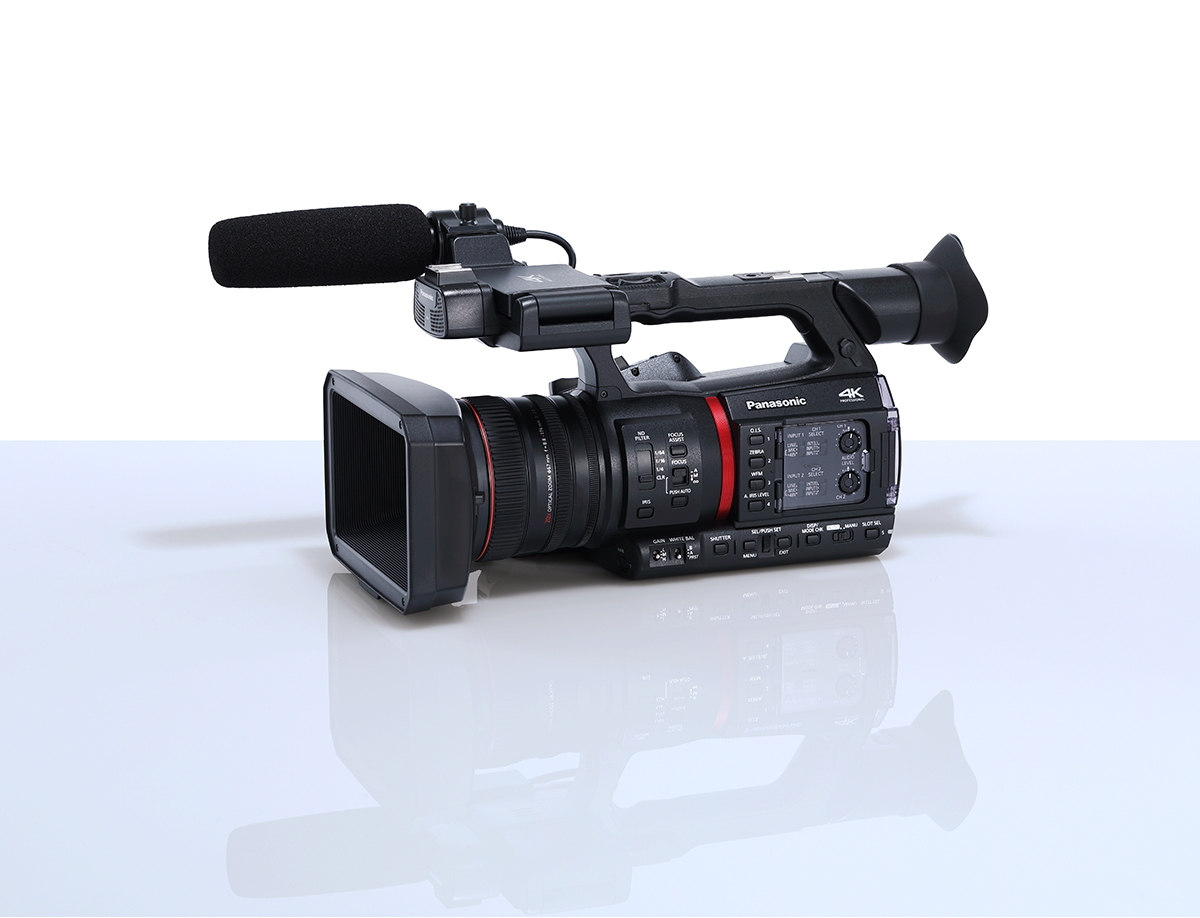

Panasonic AG-CX350 UHD 4K HDR Kamera


A Panasonic AG-CX350 UHD 4K HDR Kamera egy prémium minőségű kamkorder 1" MOS képérzékelővel, 20x optikai, 32x intelligens zoommal. IP vezérlésű, NDI HX jelátvitel és vezérlés Ethernet csatlakozón keresztül. TC ki/be, 3G-SDI, HDMI kimenet áll használója rendelkezésére. Emellett megtalálható: USB 3.0 Device, USB 2.0 Host, LAN Port. Szintén opcionális RTMP/RTSP live streaming. Panasonic AG-CX350 UHD 4K HDR Kamera:

Panasonic AG-CX350 UHD 4K HDR Kamera bemutató videó


General
Power DC 7.28 V (when the battery is used)
DC 12 V (when the AC adaptor is used)
Power Consumption

17 W (when the LCD monitor is used)

11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 80 % (no condensation)
Weight Body: approx. 1.9 kg (4.19 lb)
(body only, excluding lens hood, battery, and accessories)
Shooting: approx. 2.3 kg (5.07 lb)
(including lens hood, battery, and microphone holder)
Dimensions 180 mm (W) x 173 mm (H) x 311 mm (D)
(7-1/8 inches x 6-13/16 inches x 12-1/4 inches)
(excluding protrusion and eye cup)
Camera Unit
Pickup Device 1.0-type (effective size) MOS solid state image sensor
Effective Pixels 15,030,000 pixel
Lens Optical image stabilizer lens, optical 20x motorized zoom
F value: F2.8 to F4.5
Focal length: f=8.8 mm to 176 mm
35 mm equivalent: 24.5 mm to 490 mm
Filter Diameter: 67 mm
ND Filter: Clear, 1/4, 1/16, 1/64
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.):
Approx. 10 cm (W), 1.0 m (T) from the front lens
Gain Setting L/M/H selector switch
–3 dB to 18 dB (Adjustable in 1 dB steps)
24dB, 30 dB, 36 dB switched
(when assigning [S. GAIN] to the USER button)
Color Temperature Setting ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode:
1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 29.97p mode:
1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 23.98p mode:
1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode:
1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
• 25p mode:
1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
Shutter Speed:
(Slow Shutter)
When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
• 29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
• 23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
• 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
Shutter Speed:
(Synchro Scan)
When [SYSTEM MODE] = 59.94 Hz
• 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
• 29.97p mode: 1/30.0 sec. to 1/7200 sec.
• 23.98p mode: 1/24.0 sec. to 1/7200 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/50.0 sec. to 1/7200 sec.
• 25p mode: 1/25.0 sec. to 1/7200 sec.
Shutter Open Angle 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
VFR Recording Frame Rate When [SYSTEM MODE] = 59.94 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
When [SYSTEM MODE] = 50.00 Hz
1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)
Super Slow Recording When [SYSTEM MODE] = 59.94 Hz
1920 x 1080 (FHD): shooting frame rate 120 fps
When [SYSTEM MODE] = 50.00 Hz
1920 x 1080 (FHD): shooting frame rate 100 fps
Sensitivity When [HIGH SENS.] mode
F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
Horizontal Resolution 2000 TV or higher (UHD: center)
1000 TV or higher (FHD: center)
i.Zoom ×32 (FHD), ×24 (UHD)
Digital Zoom ×2/×5/×10
Lens Hood Hood with lens cover
Memory Card Recorder
Recording Media SDHC memory card (4 GB to 32 GB),
SDXC memory card (32 GB to 128 GB)
UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported
microP2 card (A series, B series)
Please see back cover for the “Available Memory Card” table.
Recording Slot microP2/SDXC UHS-II card slot x 2
Recording Pixels 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
System Frequency 59.94 Hz/50.00 Hz
Recording File Format MOV (AVC), MOV (HEVC), AVCHD
Recording Format Please see page 4 for the “Recording Format” table
Recording Time Please see back cover for the “Recording Time” table.
2 Slot Functions Relay Rec, Simultaneous Rec, Background Rec
Special Recording Functions Pre Rec, Interval Rec, Time Stamp
Digital Video
Quantization MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
AVCHD: 4:2:0 8 bit
Video Compression Format H.264/MPEG-4 AVC High Profile
H.265/MPEG-H HEVC Main10 Profile
Digital Audio
Recording Audio Signal MOV: 48 kHz/24 bit, 2 ch, Linear PCM
AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
Headroom 12 dB/18 dB/20 dB switchable (menu)
Live Streaming
Video Compression Format H.264/MPEG-4 AVC Main Profile, High Profile
Audio Compression Format AAC-LC
Network Protocol RTSP/RTP/RTMP
Video Output
SDI OUT BNC x 1, SDI REC REMOTE supported
HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit):
• 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
• 1280 × 720: 59.94p, 50p
• 720 × 480: 59.94i • 720 × 576: 50i
HDMI OUT HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
Output format (4:2:2 10 bit):
• 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
• 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
• 1280 × 720: 59.94p, 50p
• 720 × 480: 59.94p • 720 × 576: 50p
VIDEO OUT 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω
Audio Input/Output
Built-in Microphone Stereo microphone
Input 1/2 XLR (3-pin) x 2 (INPUT1, INPUT2)
Input high impedance, LINE/MIC/MIC+48V (switchable SW)
MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu)
LINE: +4 dBu/0 dBu (switchable menu)
SDI OUT Linear PCM 2 ch
HDMI OUT Linear PCM 2 ch
Headphone 3.5 mm diameter stereo mini jack x 1
AV OUT 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
Speaker 20 mm diameter, round x 1
Other Input/Output
TC IN/OUT BNC x 1,
Used as the input and output terminals (switchable menu)
Input: 1.0 V to 4.0 V [p-p] 10 KΩ
Output: 2.0 V ± 0.5 V [p-p] low impedance
REMOTE 2.5 mm diameter super mini jack
LAN RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
USB 2.0 HOST Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
USB 3.0 DEVICE USB 3.1 GEN1 Type-C, USB Mass storage function
No USB bus power function
DC IN 12V DC 12 V EIAJ Type 4
Monitor/Viewfinder
LCD Monitor 3.5 type TFTLCD color monitor (3:2),
approx. 1,620,000 dots, Touch panel
video display (16: 9) area: Approx. 1,370,000 dots
Viewfinder 0.39 type OLED (organic EL display), approx. 2,360,000 dots,
video display (16: 9) area: approx. 1,770,000 dots
Included Accessories Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions (Items marked by an asterisk (*) come already attached to the camera)
