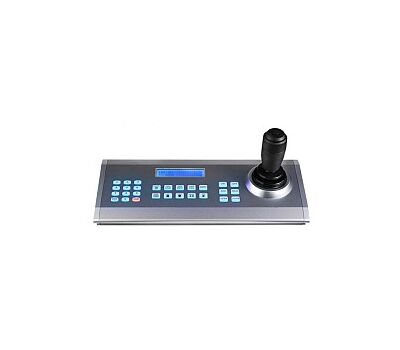

Avicon VK1 Keverőpult PTZ Joystickkal
• 28 gomb, szilikon gumival és 10 fokozatú háttérvilágítással
• 64 videokonferencia-kamerát képes vezérelni
• Multi interfész: RS485, RS422, RS232
• Multi-protocol: VISCA, PELCO-D/P, CISCO, POLYCOM
• 8 preset pozíciót lehet beállítani minden csatornához
• high-end joystick
• 64 videokonferencia-kamerát képes vezérelni
• Multi interfész: RS485, RS422, RS232
• Multi-protocol: VISCA, PELCO-D/P, CISCO, POLYCOM
• 8 preset pozíciót lehet beállítani minden csatornához
• high-end joystick
• Avicon VK1 Keverőpult PTZ Joystickkal
• Tápegység
• Kézikönyv
• Jótállás: 1 év
• Tápegység
• Kézikönyv
• Jótállás: 1 év
Avicon VK1 Specifications |
|||
Protocol |
VISCA, PELCO P/D, Polycom, Cisco, Canon, Panasonic | ||
Baud Rate |
1200、2400、4800、9600、19200 | ||
Joystick |
Triaxial + a button, light coding, accuracy of ±80 level | ||
LCD display screen |
English character version, blue backlight, 20 characters, 2lines | ||
Button |
64 | ||
Video switching matrix controller |
Can control 1 video matrix with 8 inputs and 4 outputs | ||
The communication dispatcher |
16X4=64, can control 16 communication dispatchers, each one divides into 4. | ||
Interface |
1*RS485 interface, 2000 meters distance for camera controlling 1*RS232 interface, Support communication dispatcher serial port expansion(max. 64) for camera controlling 1*RJ45(RS485/RS232) for Video communication matrix 1*USB connect to PC host for system controlling. |
||
Power Supply |
DC12V/500mA | ||
Color |
Silver | ||
Material of the appearance |
Aluminium Alloy | ||
Dimension |
358(L) * 154(W) * 150(H) | ||
Weight |
1.47KG |
