AVMatrix FE1121 3G-SDI Fiber Optic Extender Kit
The FE1121 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up
to 20km.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések

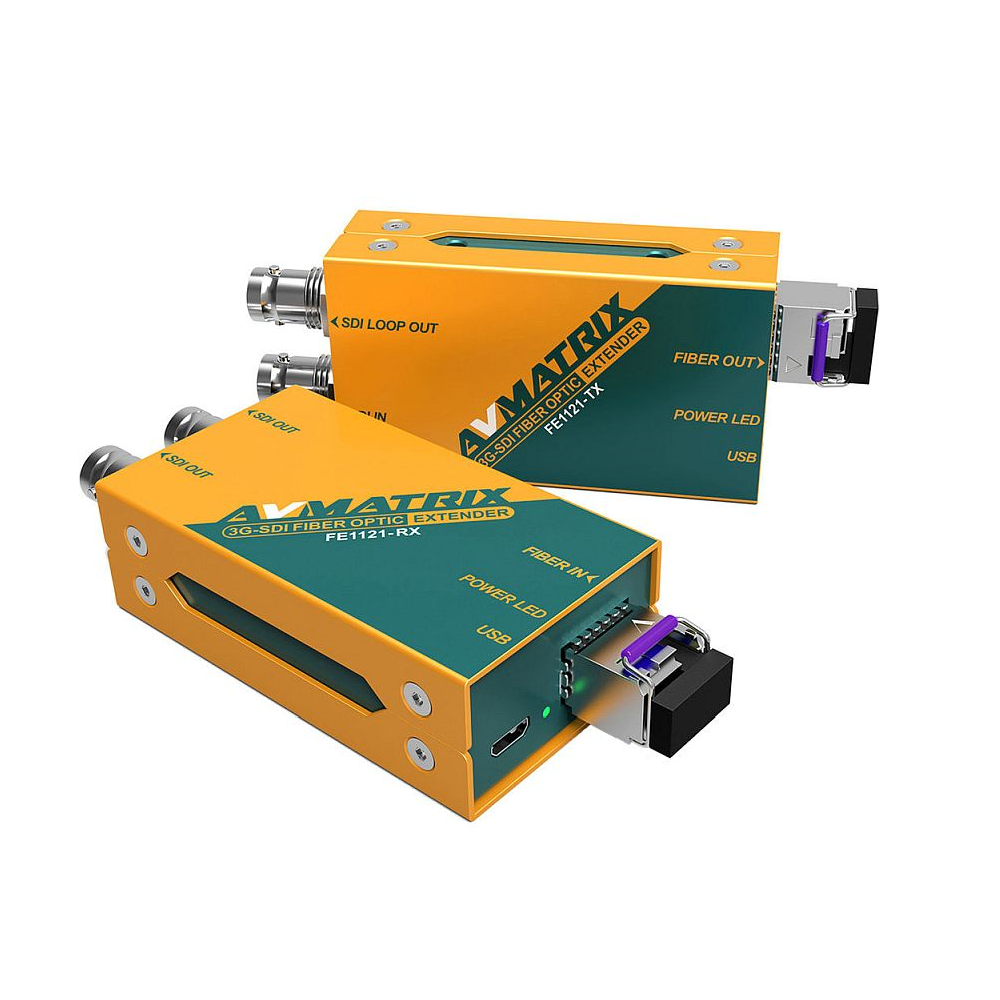

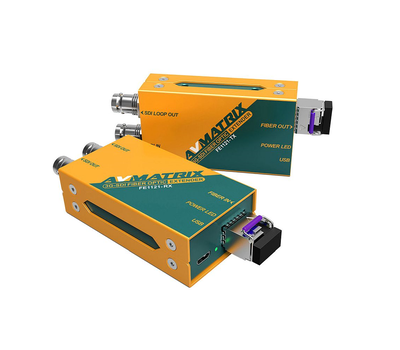

AVMatrix FE1121 3G-SDI Fiber Optic Extender Kit
The FE1121 3G-SDI Fiber Optic Extendr is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolution up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals.
AVMatrix FE1121 3G-SDI Fiber Optic Extender Kit jellemzők
• 20km átviteli távolság
• 3Gbit támogatás (Level A és Level B)
• SFP / LC adó & vevő

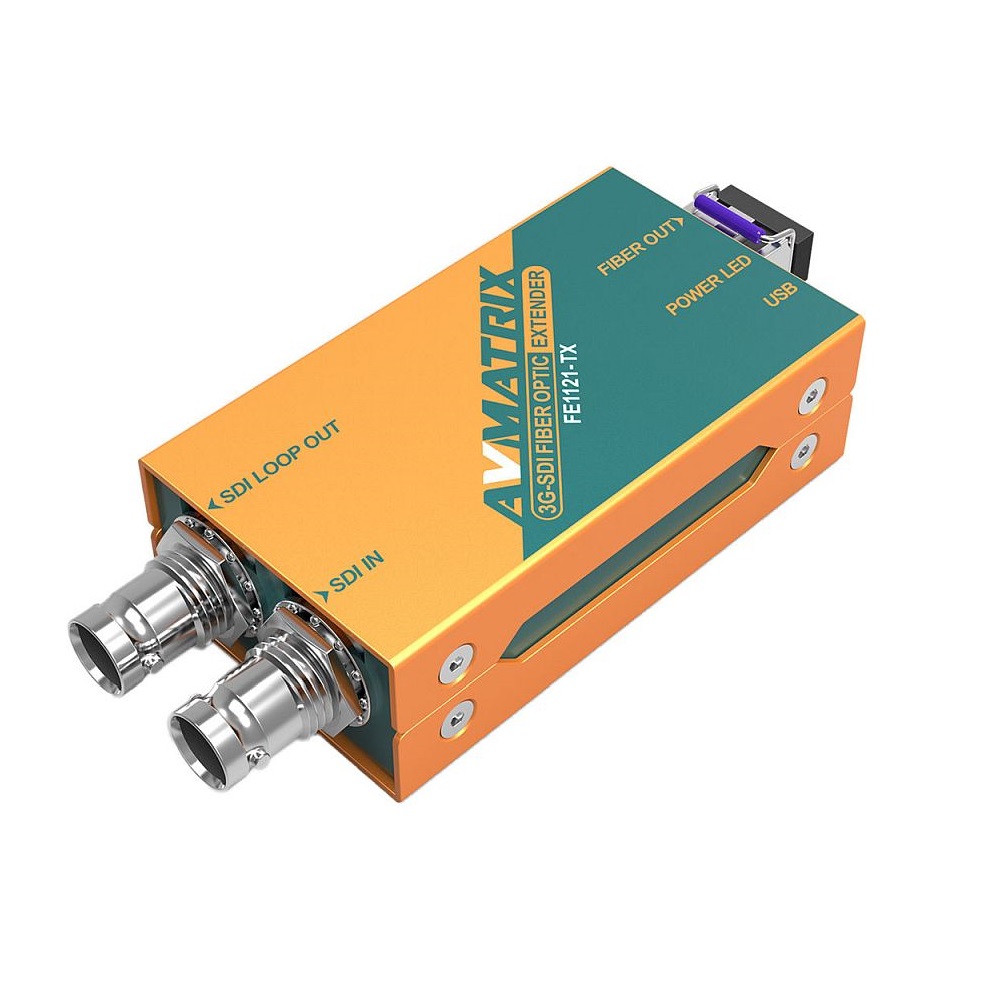

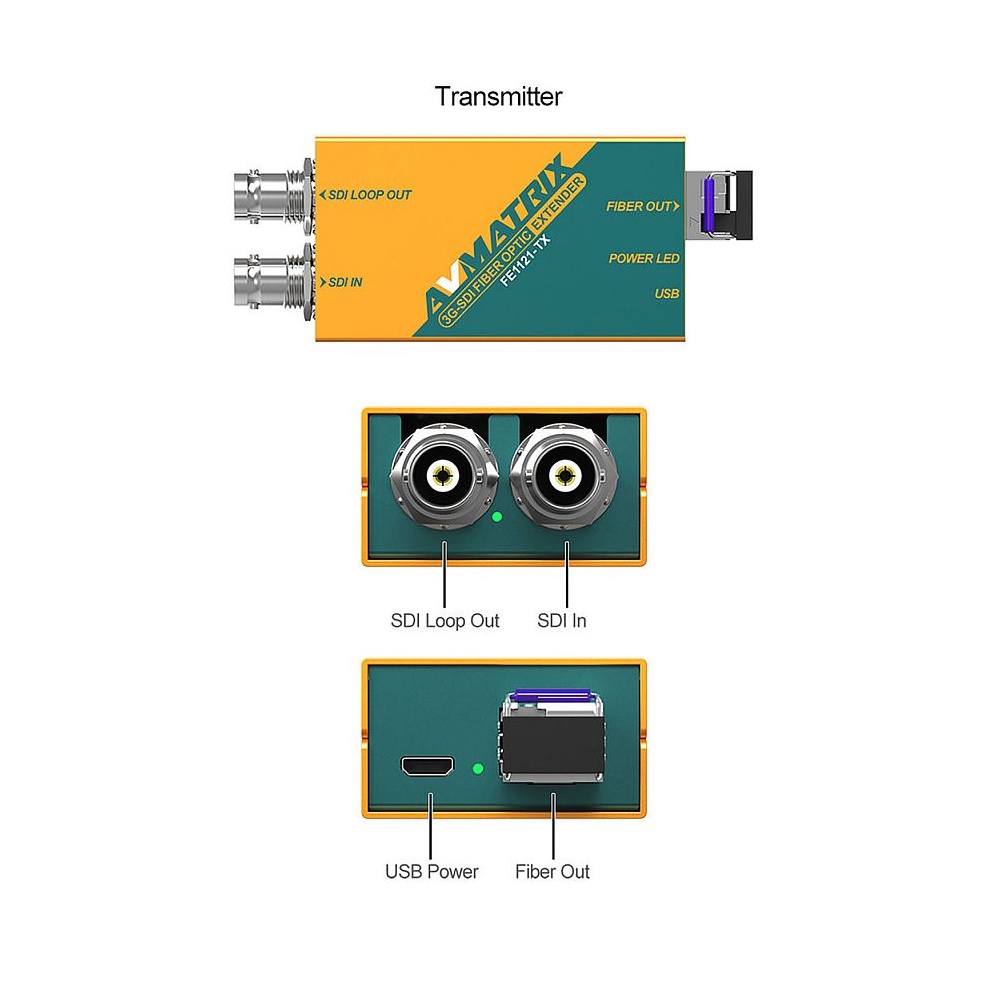

• Transmitter SDI VideoIinput: 1xSD/HD/3G-SDI
• Transmitter Loop Output: 1xSD/HD/3G-SDI
• Transmitter Fiber Optical Output: SFP module with LC connector
• Receiver Fiber Optical Input: SFP module with LC connector

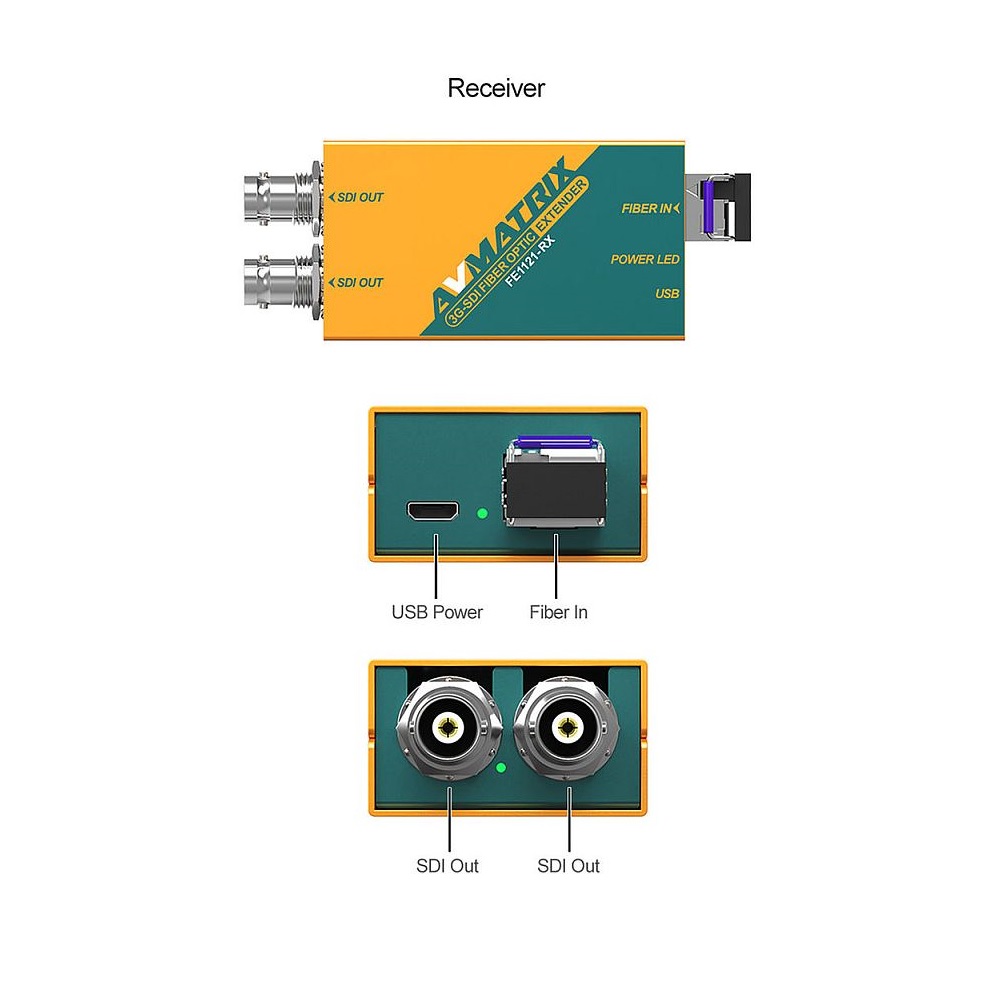

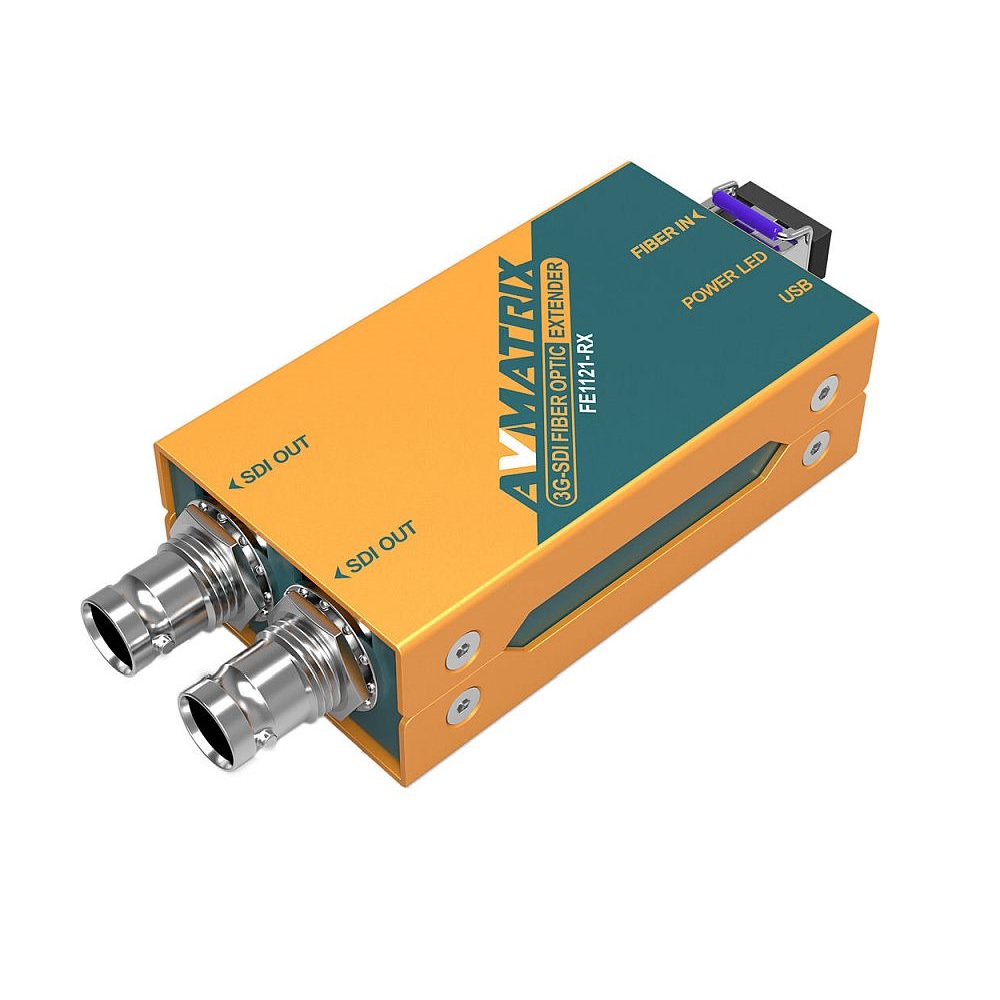

• Receiver SDI Video input: 2xSD/HD/3G-SDI
• SDI bemenet automatikus átkapcsolása SD, HD & 3G formátumokba
• LED állapotjelzők
• 3.3-5V üzemi feszültség
• Tartozék hálózati adapter (2x)
• Tartozék beépítő/felfogató keret (2x)
• Tartozék Micro-USB kábel (2x)
• 3 év garancia

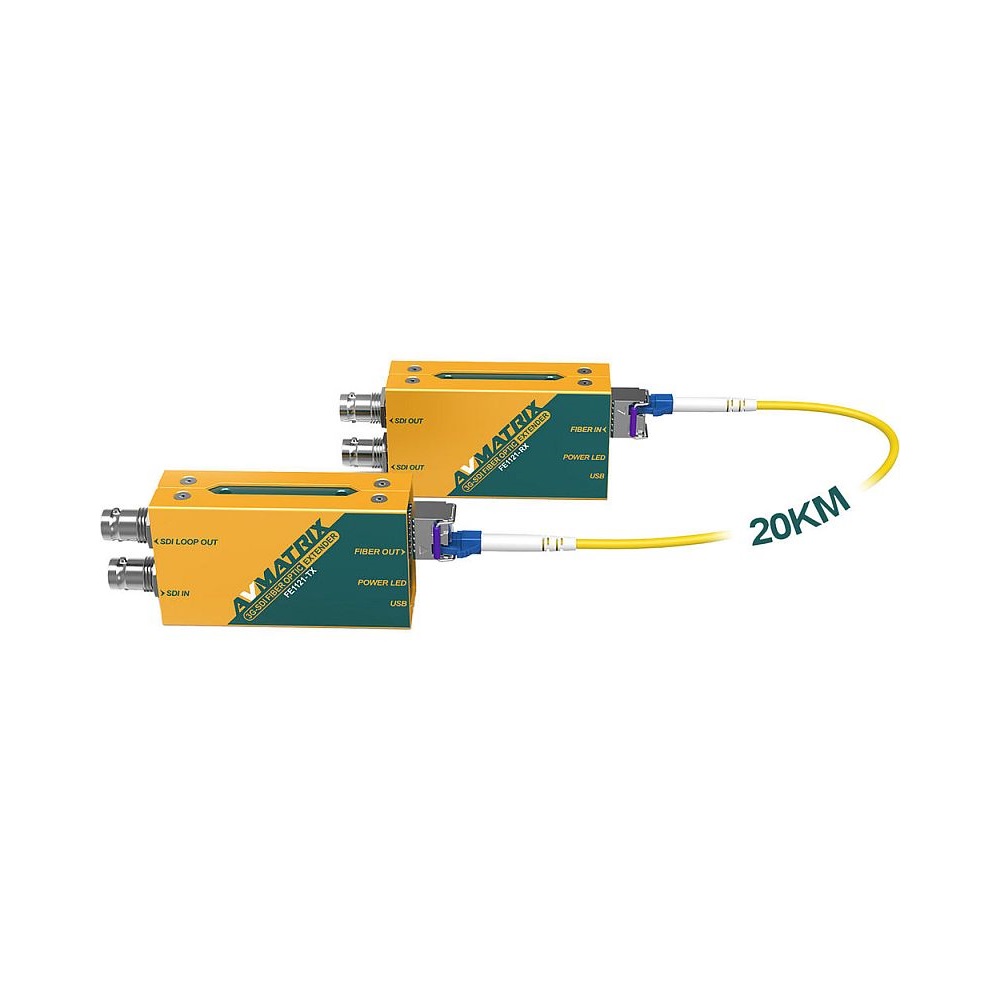

20km Transmission
The 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1490nm wavelength single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p (Max. bandwidth: 3Gbps) with audio and metadata
SFP module with LC connector
The fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFP MSA , SFF-8472 and SMPTE 297M-2006.
SDI Equalization & Re-clocking
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
AVMatrix FE1121 3G-SDI Fiber Optic Extender Kit jellemzők
• 20km átviteli távolság
• 3Gbit támogatás (Level A és Level B)
• SFP / LC adó & vevő
• Transmitter SDI VideoIinput: 1xSD/HD/3G-SDI
• Transmitter Loop Output: 1xSD/HD/3G-SDI
• Transmitter Fiber Optical Output: SFP module with LC connector
• Receiver Fiber Optical Input: SFP module with LC connector
• Receiver SDI Video input: 2xSD/HD/3G-SDI
• SDI bemenet automatikus átkapcsolása SD, HD & 3G formátumokba
• LED állapotjelzők
• 3.3-5V üzemi feszültség
• Tartozék hálózati adapter (2x)
• Tartozék beépítő/felfogató keret (2x)
• Tartozék Micro-USB kábel (2x)
• 3 év garancia
20km Transmission
The 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1490nm wavelength single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p (Max. bandwidth: 3Gbps) with audio and metadata
SFP module with LC connector
The fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFP MSA , SFF-8472 and SMPTE 297M-2006.
SDI Equalization & Re-clocking
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
• 1x FE1121-TX (adó)
• 1x FE1121-RX (vevő)
• 2x Bracket (felfogató konzol)
• 2x Hálózati adapter
• 2x Micro USB kábel
• Technikai specifikáció (angol nyelven)
• 3 év garancia
• 1x FE1121-RX (vevő)
• 2x Bracket (felfogató konzol)
• 2x Hálózati adapter
• 2x Micro USB kábel
• Technikai specifikáció (angol nyelven)
• 3 év garancia
| AVMatrix FE1121 3G-SDI Fiber Optic Extender Kit | ||
| CONNECTIONS | Transmitter SDI Video Input: 1xSD/HD/3G-SDI Transmitter SDI Loop Output: 1x SD/HD/3G-SDI Transmitter Fiber Optical Output: 1x SFP module (LC) Receiver Fiber Optical Input: 1x SFP module (LC) Receiver SDI Video Otput: 2x SD/HD/3G-SDI |
|
| STANDARDS | Optical Fiber Module: SFP module: Hot-pluggable Connector style: LC Fiber type: single-mode Optical wavelength: 1490nm Max. bandwidth: 3Gbps Optical transmit power: -6~0dBm Receiver sensitivity:-22dBm Single-mode Max. Distance: 20 km (12.5 miles) for 3G (1080P) Optical Fiber Compliance: SMPTE 297M 2006 SDI Compliance: 3Gbit Level A & Level B (all formats) SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 296M SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601 SDI Auto Switching: Auto selects SD/HD/3G-SDI on input SDI Video Rate: SD/HD/3G-SDI SDI Color Space: YUV, RGB SDI Equalization and Re-clocking: Yes, SDI input and output support up to 120m for 3G-SDI SDI Audio: Supports 16 channels embedded |
|
| SIZE | Dimension (LWD): 71x41x23mm Weight: 200+200g |
|
| POWER | Power: Micro USB Power Consumption: 1.5W Voltage Range: 3.3V~5V |
|
| ENVIRONMENT | Operating Temperature: -20°C~60°C Storage Temperature: -30°C~70°C Relative Humidity: 0%~90 non-condensing |
|
| WARRANTY | 3 year limited warranty | |
Nem található bejegyzés
74.663 Ft
