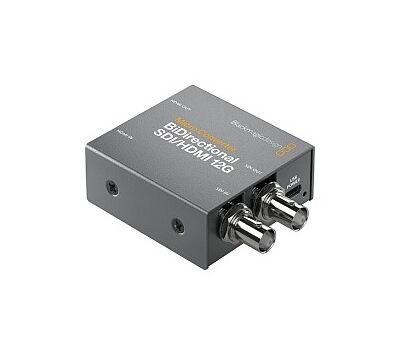

Blackmagic Design Bi-Directional SDI/HDMI 12G Micro Konverter
A Blackmagic Design SDI/HDMI 12G Bi-Directional Mikro konverter kétirányú működésű. A micro konverter
SDI/HDMI-HDMI/SDI átalaítására képes egyidejűleg.
Részletes leírás
Csomag tartalma
Küldés
Értékelések
Blackmagic Design Bi-Directional SDI/HDMI 12G Micro Konverter
Ehhez a termékhez nem jár tápegység. A tápegységgel együtt kapható változatot ide kattintva találja.
Micro Converter BiDirectional SDI/HDMI 12G Specifications |
|||
| Connections | |||
| SDI Video Inputs | 1 | ||
HDMI 2.0 Video Outputs |
1 x type A. | ||
HDMI 2.0 Video Outputs |
1 x type A. | ||
SDI Video Outputs |
Automatically matches the HDMI video input. | ||
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. | ||
| Multi Rate Support | Auto detection of SD, HD, 2K, Ultra HD and 4K. | ||
| Updates, Configurations and Power | USB Type‑C. | ||
| Reclocking | Yes | ||
Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | ||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 | ||
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. | ||
SDI Color Precision |
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
SDI Color Space |
YUV | ||
SDI Auto Switching |
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. | ||
| HDMI Video Standards | 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
||
| HDMI Color Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. | ||
| HDMI Color Space | YUV | ||
Copy Protection |
|||
HDMI input is unable to capture from copy protected HDMI sources. |
|||
Camera Control |
|||
Bidirectional signal conversion supports Blackmagic Camera Control and Tally. |
|||
| Settings Control | |||
Via MacOS™ and Windows™ software utility connected by USB. |
|||
| Power Requirements | |||
| Power Consumption | 5W max. | ||
| Operational Voltage Range | 4.4V to 5.25V DC | ||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40° C (32° to 104° F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
• 1x Blackmagic Design Bi-Direct SDI/HDMI 12G Micro Konverter
