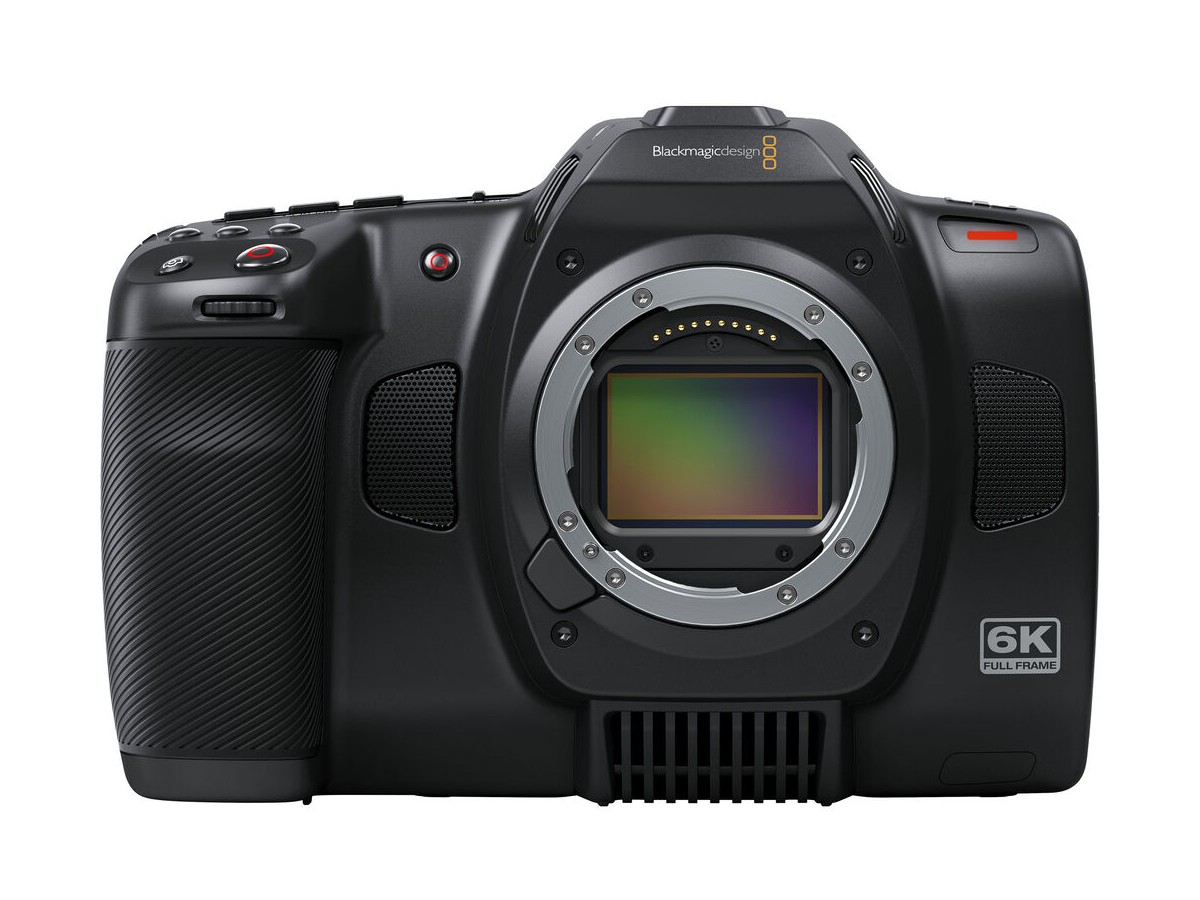

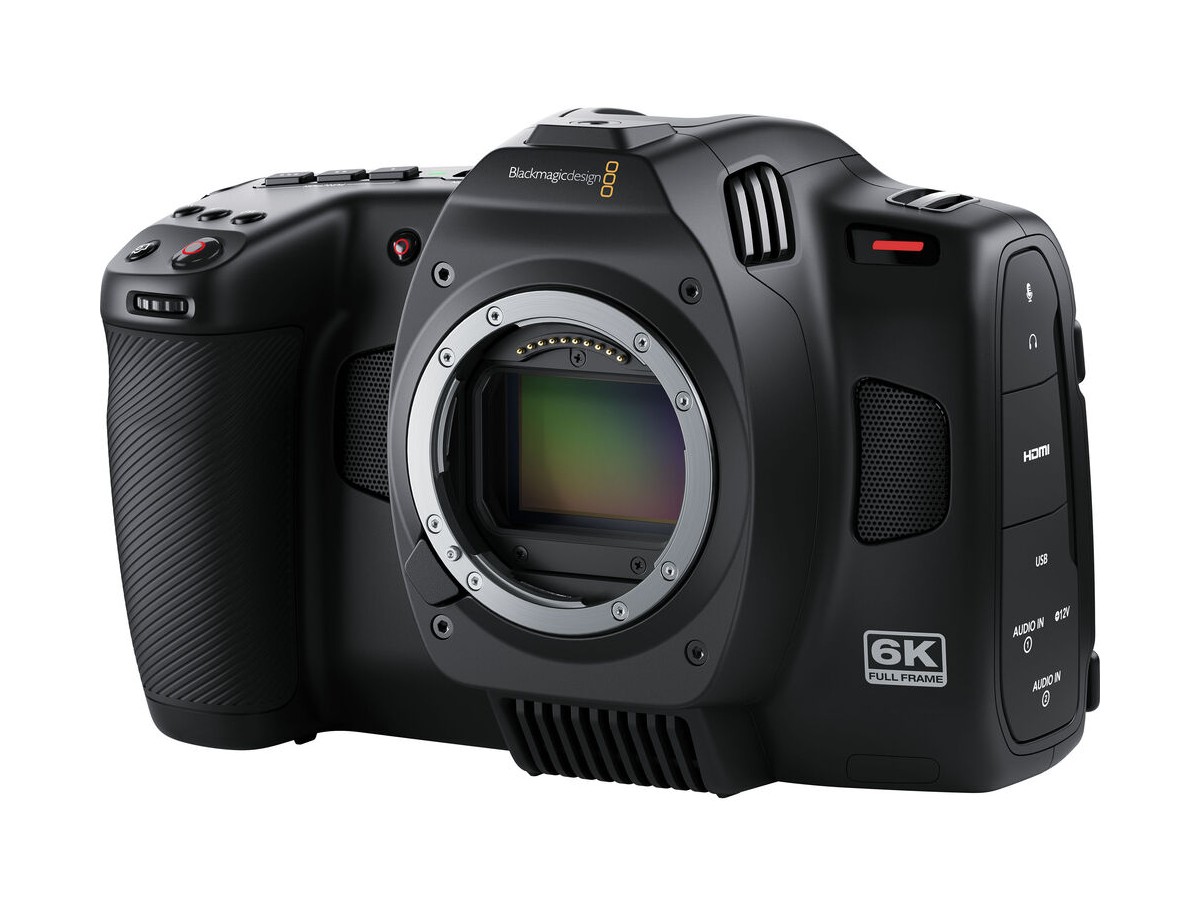

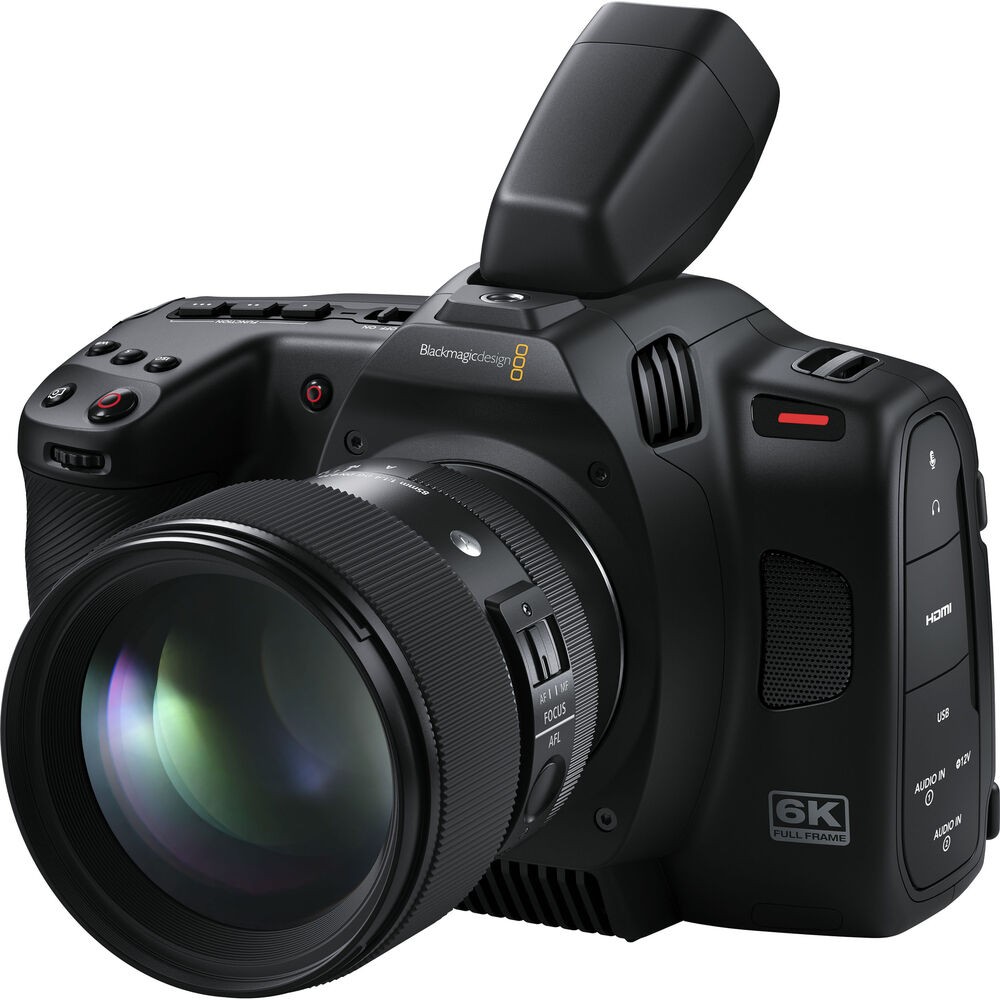

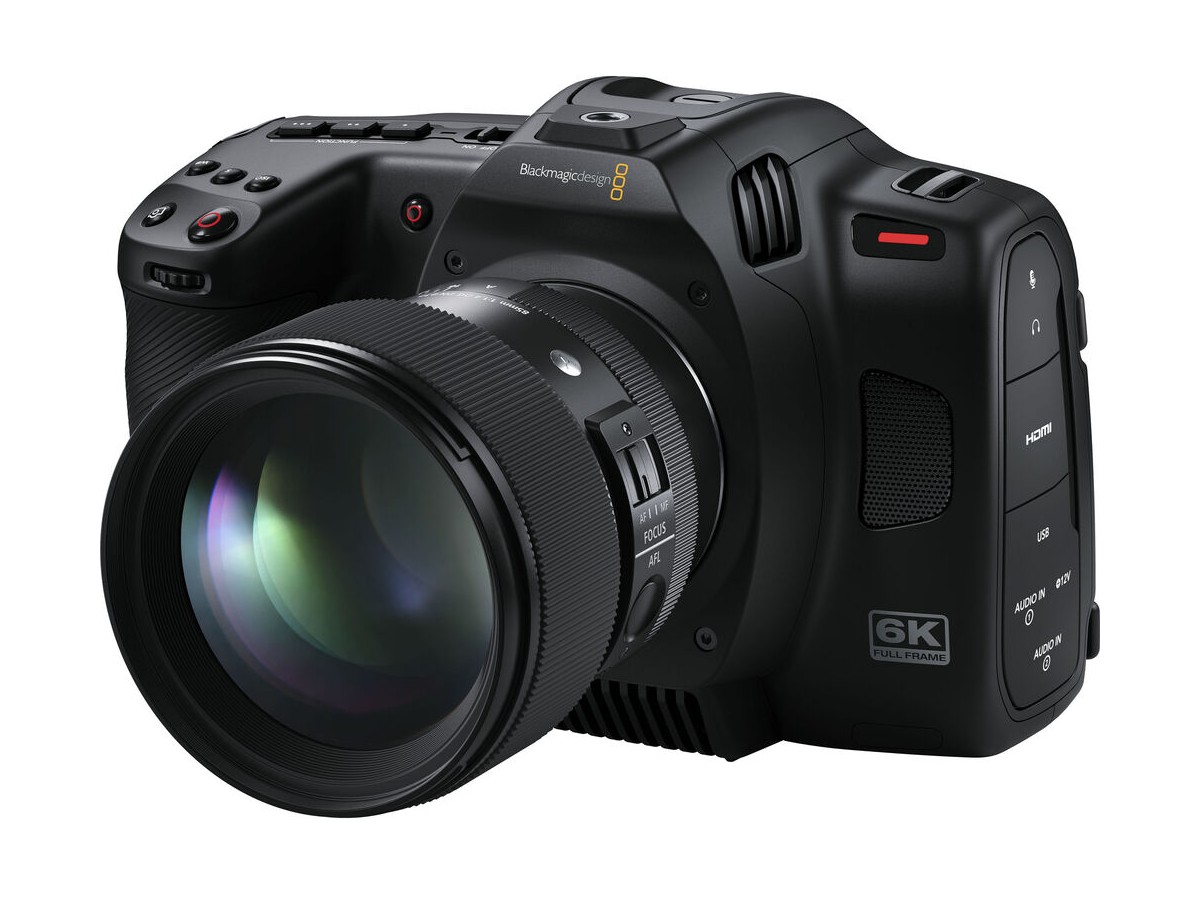

Blackmagic Design Cinema Camera 6K Kamera váz
Blackmagic Design Cinema Camera 6K Kamera váz
• 6K36 fps, natív felbontás: 6048x4032 px
• Leica L-Mount, OLPF szűrő
• Kettős 400/3200 natív ISO
• Fókusz- és íriszvezérlés
• 5"-os dönthető LCD érintőképernyő
• Rögzítés CFexpress Type-B kártyára vagy külső merevlemezre
• HDMI, USB-C, 2 x Mini-XLR audiocsatlakozó (48V fantomtáppal)
• 3.5mm audio sztereo bemenet, 3.5mm fejhallgató jack
• 3D LUT
• Bluetooth kameravezérlés
• Objektív sapka
• Kamera pánt
• Tápegység (30W)
• Sony L-sorozatú NP-F570 típusú akkumulátor
• USB-s akkumulátor töltő
• 1 év garancia
Blackmagic Design Cinema Camera 6K Specifications |
|||
Camera Features |
|||
Effective Sensor Size |
36mm x 24mm (Full Frame) |
||
Lens Mount |
Active L-Mount. |
||
Lens Control |
Iris and focus on supported lenses. |
||
Dynamic Range |
13 Stops. |
||
Dual Native ISO |
400 and 3200 |
||
Shooting Resolutions |
6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps |
||
Frame Rates |
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. |
||
Focus |
Auto focus available using compatible lenses. |
||
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. |
||

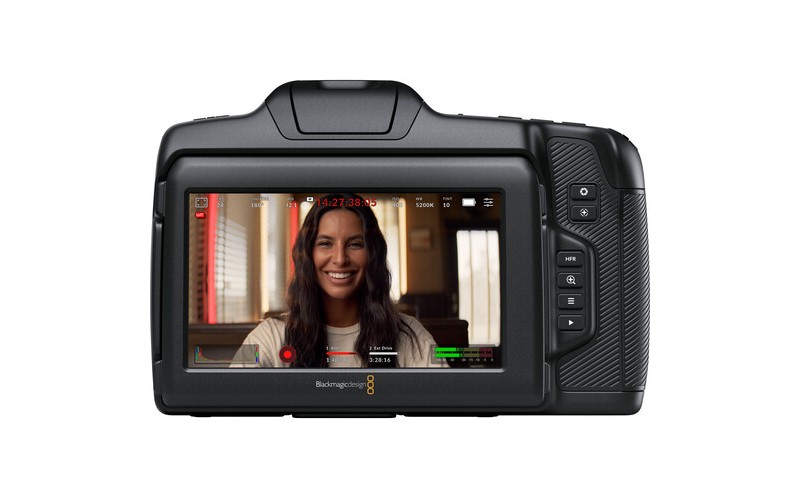

Screen Dimensions |
5” 1920 x 1080. |
||
Screen Brightness |
1500 nits |
||
Screen Type |
LCD capacitive touchscreen. |
||
| Metadata Support | Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. | ||
| Controls | Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button. | ||
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. | ||

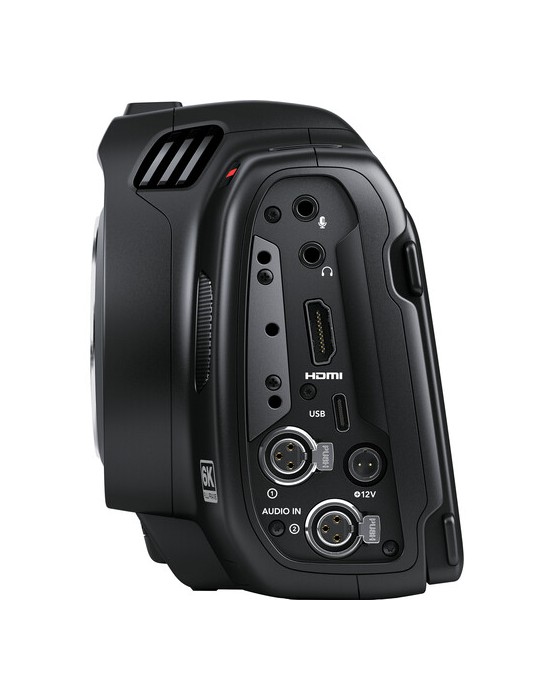

Connections |
|||
Total Video Inputs |
None |
||
Total Video Outputs |
1 x HDMI up to 1080p60 |
||
Analog Audio Inputs |
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.All audio inputs can also be used for Timecode input. |
||
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
||
Computer Interface |
USB Type-C for external drive recording, PTP camera control and software updates. |
||
Audio |
|||
Microphone |
Integrated stereo microphone. |
||
Built in Speaker |
1 x mono speaker. |
||
| Media |
|||
Media |
1 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording. |
||
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
||
Supported Codecs |
|||
Codecs |
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5, H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
||
| Control |
|||
External Control |
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman. |
||
| Storage Features |
|||
Storage Type |
1 x CFexpress Type B
1 x high speed USB-C expansion port for external media |
||
Recording Formats |
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies. |
||
| Storage Rates | Storage rates based on 30 frames per second.
6048 x 4032 (6K Open Gate 3:2) Blackmagic RAW 3:1 - 370 MB/s 4832 x 4032 (Anamorphic 6:5) Blackmagic RAW 3:1 - 297 MB/s 6048 x 3200 (6K DCI 17:9) Blackmagic RAW 3:1 - 295 MB/s 6048 x 2520 (6K 2.4:1) Blackmagic RAW 3:1 - 233 MB/s 4096 x 3072 (Super 35 4:3) Blackmagic RAW 3:1 - 192 MB/s 4096 x 2160 (4K DCI 17:9) Blackmagic RAW 3:1 - 136 MB/s 2112 x 1184 (Super 16 16:9) Blackmagic RAW 3:1 - 40 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s |
||
Power Requirements |
|||
Power Supply |
1 x External 12V power supply. |
||
External Power Input |
1 x 2‑pin locking connector. |
||
Battery Type |
NP-F570 |
||
Battery Life |
Approximately 60 minutes (recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%) |
||
| Power | 12V-20V. | ||
Environmental Specifications |
|||
Operating Temperature |
0°to 40°C (32° to 104°F) |
||
Storage Temperature |
-20°to 45°C (-4° to 113°F) |
||
Relative Humidity |
0% to 90% non-condensing |
||
