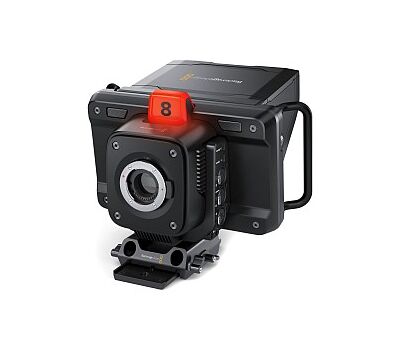

Blackmagic Design Studio Camera 4K Pro G2
• Akár UHD 4K 3840 x 2160p60 rögzítés
• HD Live Streaming
• 12G-SDI, HDMI és 10G Ethernet be- és kimenet

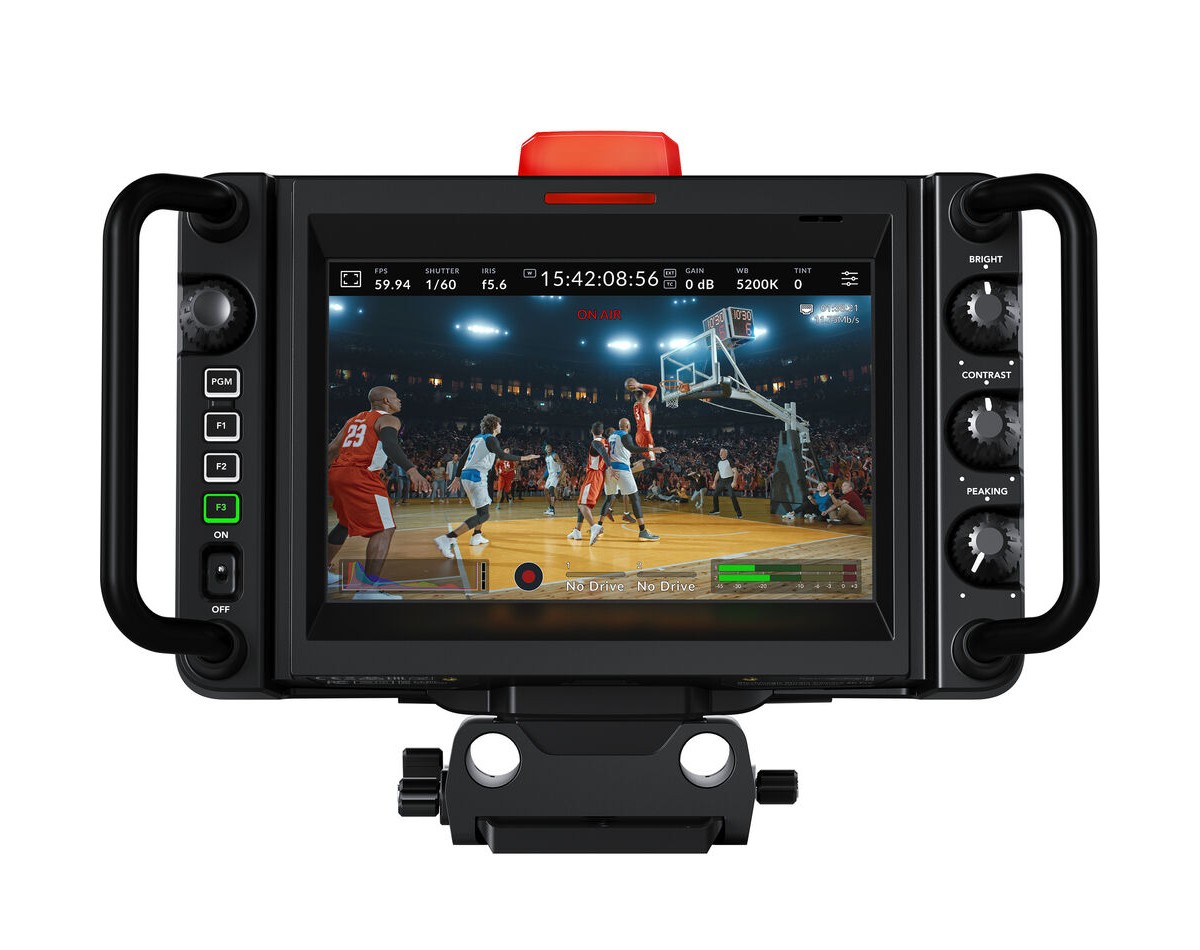

• 7" nagy fényerejű HDR LCD érintőképernyő
• Rögzítés külső USB-C meghajtóra
• Blackmagic RAW felvételek rögzítése, akár 25,600 ISO
• XLR és 3,5 mm-es hangbemenet, beépített mikrofonok
• Beépített DaVinci Resolve színkorrekció
• Tally, Talkback, ND-filterek
• Könnyű szénszálas polikarbonát kameratest
• MFT-Mount
• Tápellátás: 12V DC, PoE
• HD Live Streaming
• 12G-SDI, HDMI és 10G Ethernet be- és kimenet
• 7" nagy fényerejű HDR LCD érintőképernyő
• Rögzítés külső USB-C meghajtóra
• Blackmagic RAW felvételek rögzítése, akár 25,600 ISO
• XLR és 3,5 mm-es hangbemenet, beépített mikrofonok
• Beépített DaVinci Resolve színkorrekció
• Tally, Talkback, ND-filterek
• Könnyű szénszálas polikarbonát kameratest
• MFT-Mount
• Tápellátás: 12V DC, PoE
• Blackmagic Design Studio Camera 4K Pro G2
• Napellenző
• Porvédő sapka
• Univerzális tápegység nemzetközi aljzatadapterekkel
• 15 mm-es LWS állványrögzítő
• DaVinci Resolve 18 ingyenes letöltése
• Jótállás: 1 év
• Napellenző
• Porvédő sapka
• Univerzális tápegység nemzetközi aljzatadapterekkel
• 15 mm-es LWS állványrögzítő
• DaVinci Resolve 18 ingyenes letöltése
• Jótállás: 1 év
Blackmagic Design Studio Camera 4k Pro G2 Specifications |
|||
| Camera Features | |||
Effective Sensor Size |
17.78mm x 10mm (Four Thirds) | ||
Lens Mount |
Active MFT Mount. | ||
Lens Control |
Iris, focus, zoom on supported lenses. | ||
Dynamic Range |
13 Stops. | ||
Dual Native ISO |
0dB and 18dB gain. | ||
Sensitivity at 0dB Gain |
f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
||
Signal to Noise Ratio |
63dB for 2160p. | ||
Shooting Resolutions |
3840 x 2160 (Ultra HD) up to 60 fps. | ||
Frame Rates |
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD | ||
Focus |
Auto focus available using compatible lenses. | ||
Screen Dimensions |
7 inch 1920 x 1200 | ||
Screen Type |
LCD capacitive touchscreen. | ||
Screen Brightness |
2000 nits | ||
Controls |
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. | ||
| Mounting Options | 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount. |
||
| Connection | |||
SDI Video Inputs |
1 | ||
SDI Video Outputs |
1 | ||
SDI Rates |
1.5G, 3G, 6G, 12G. | ||
HDMI 2.0 Video Outputs |
1 | ||
Analog Audio Input |
2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
||
Analog Audio Output |
1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. |
||
Reference Input |
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Program SDI Input on camera or on Blackmagic Studio Converter. |
||
SDI Audio Output |
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 | ||
Remote Control |
Remote camera control over SDI, HDMI or Ethernet. | ||
| Ethernet | 10Gb/s | ||
| Computer Interface | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A. | ||
| Audio | |||
| Microphone | Integrated stereo microphone. | ||
| Built in Speaker | 1 x mono speaker. | ||
| Streaming | |||
| Direct Streaming | Blackmagic Studio Camera 4K Pro G2 supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. | ||
| Streaming Platforms | ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo. | ||
| Standards | |||
| SD Video Standards | None | ||
| HD Video Standards | 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 | ||
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 | ||
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. | ||
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. | ||
| Media | |||
| Media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. | ||
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. | ||
| Supported Codecs | |||
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5 |
||
| Storage Features | |||
| Storage Type | 2 x USB‑C 3.1 Gen 1 expansion ports for external media. | ||
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate. | ||
| Storage Rates | Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s
|
||
| Control | |||
| External Control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. Camera Control REST API over Ethernet or USB Ethernet for external control via HTTP when used with REST client applications such as Postman. |
||
| Network Management | |||
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. | ||
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. | ||
| FTP | Download files from any drive attached to your camera using FTP. | ||
| SMB | File sharing using SMB | ||
| Color Corrector | |||
DaVinci YRGB |
|||
| Talkback and Tally | |||
| Live Tally Indicator | 1 x front facing for talent,
1 x rear facing for operator. |
||
| Talkback | SDI Channels 15 and 16. | ||
| Power Requirements | |||
| Power Supply | 1 x External 12V DC 60W power supply. | ||
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies. |
||
| Power Usage | 26 ‑ 40 W using DC input. 30 ‑ 46 W using PoE input. |
||
| Optional Accessories | |||
Blackmagic Focus Demand |
|||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40° C (32° to 104° F) | ||
| Storage Temperature | -20° to 45° C (-4° to 113° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
