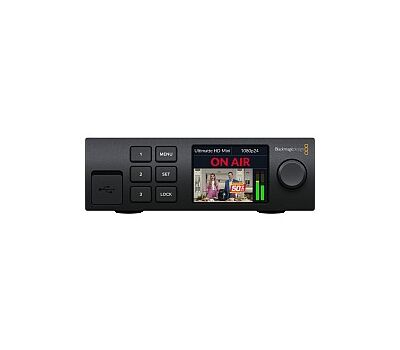

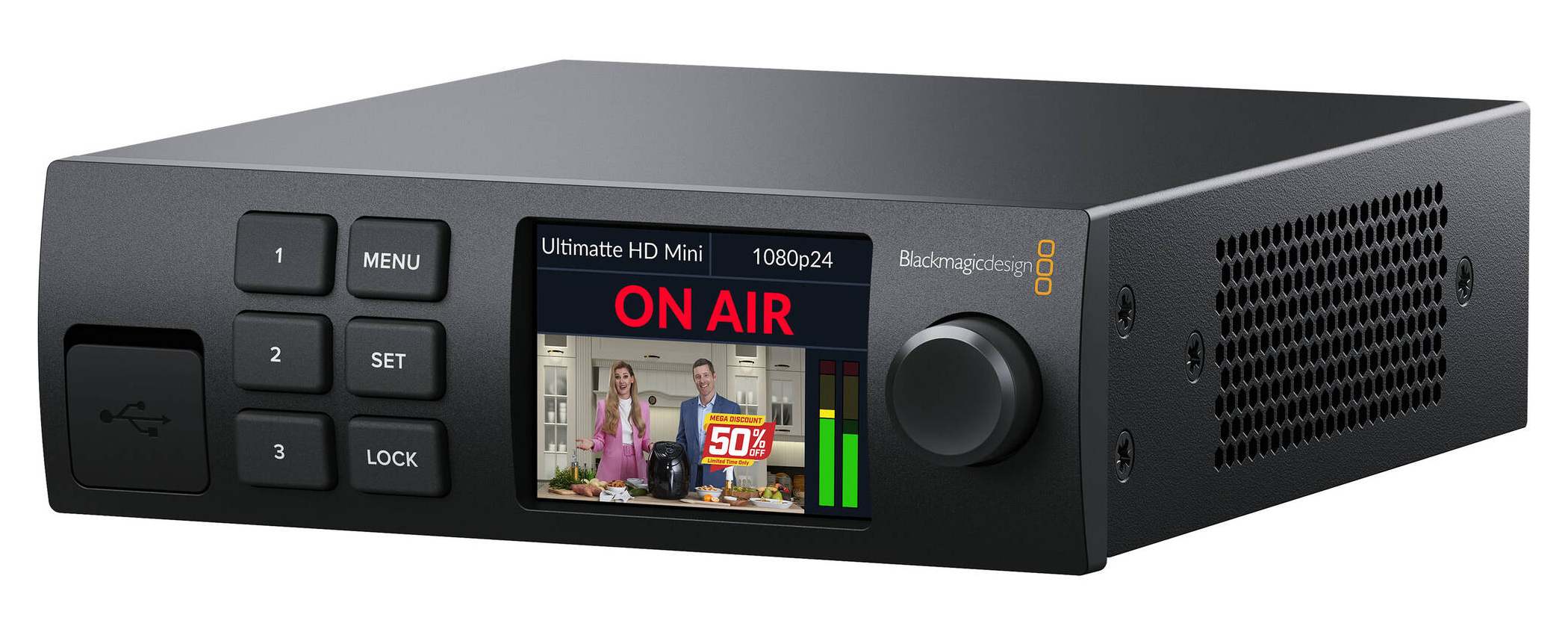

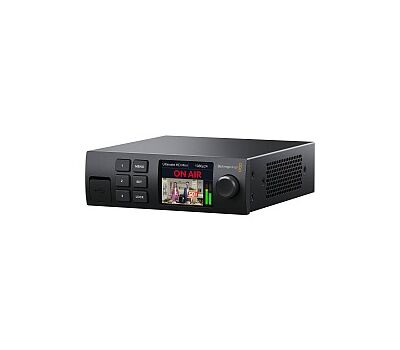

Blackmagic Design Ultimatte 12 HD Mini Keyer
• 1080p60
• 1-Touch Keying
• 2x HDMI bemenet
• SD/HD/3G-SDI monitorbemenet
• SDI és HDMI PGM és monitor kimenetek
• 1-Touch Keying
• 2x HDMI bemenet
• SD/HD/3G-SDI monitorbemenet
• SDI és HDMI PGM és monitor kimenetek
• Blackmagic Design Ultimatte 12 HD Mini
• Jótállás: 1 év
• Jótállás: 1 év
Blackmagic Design Ultimatte 12 HD Mini Specifications |
|||
Connections |
|||
SDI Video Inputs |
2 Monitor In for monitor cascade plus Return In for camera contro |
||
SDI Video Outputs |
2 |
||
HDMI Video Inputs |
2 |
||
HDMI Video Outputs |
1 |
||
Video Input Re-Sync |
On all inputs. |
||
SDI Rates |
270Mb, 1.5G, 3G. |
||
Ethernet |
Up to 1Gb/s for device control and loading stills into Media Pool. |
||
Computer Interface |
1 x USB-C 3.0 for device configuration and software updates. |
||
|
Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
||
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. |
||
Video Sampling |
4:2:2 |
||
Color Precision |
10-bit |
||
Color Space |
REC 601, REC 709. |
||
Multiple Rate Support |
Auto detection of SD and HD. |
||
|
Composite Sources |
|||
Foreground |
1 x HDMI In |
||
Background |
1 x HDMI In Still from Media Pool |
||
Background Matte |
Internal Window Still from Media Pool |
||
Garbage Matte |
Internal Window Still from Media Pool |
||
Holdout Matte |
Internal Window Still from Media Pool |
||
| Layer | Still from Media Pool | ||
| Layer Matte | Internal Window Still from Media Pool |
||
Composite Outputs |
|||
Program |
1 x HDMI 1 x 3G-SDI |
||
|
Monitor |
|||
Monitor In |
1 x 3G-SDI for monitor cascade |
||
Monitor Out |
1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction. |
||
Media Pool |
|||
Background Still Image Formats |
TGA, TIFF, BMP, PNG, JPG. |
||
Background with Alpha Still Image Formats |
TGA, TIFF, BMP. |
||
Layer Image Still Image Formats |
TGA, TIFF, BMP, PNG, JPG. |
||
Layer with Alpha Still Image Formats |
TGA, TIFF, BMP. |
||
Garbage Matte Still Image Formats |
TIFF, BMP, PNG, JPG. |
||
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG. | ||
| Media Pool Memory | 6GB non-volatile internal storage. | ||
Displays |
|||
Displays |
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus. |
||
|
Control |
|||

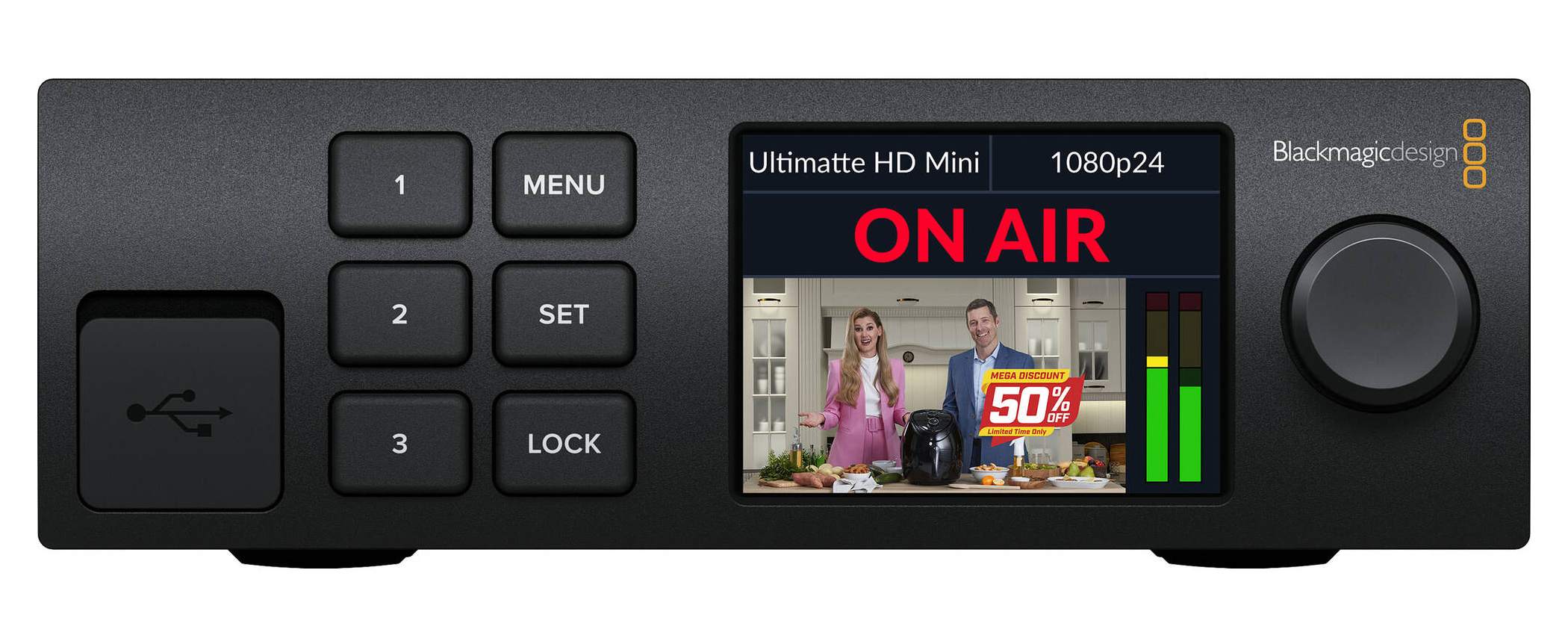

Front Panel |
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob |
||
Control Connection |
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. |
||
Software Control |
Ultimatte Software Control supported on Mac™ or Windows™ computers. |
||
Hardware Control Panel |
Ultimatte Smart Remote 4 |
||
| Camera Control | Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers. | ||
| Custom Control | Ethernet protocol included in the Ultimatte instruction manual. | ||
Software |
|||
Software Updates |
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. |
||
Configuration |
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB. |
||
|
Operating Systems |
|||
Operating Systems |
Mac 11.0 Big Sur, Mac 12.0 Monterey or later. Windows 10, 64-bit. Windows 11. |
||
|
Power Requirements |
|||
Power Supply |
1 x Internal 100-240V AC, 50/60Hz |
||
Power Usage |
12W |
||
|
Accessories |
|||
| Optional Accessories | Ultimatte Smart Remote 4 | ||
| Physical Installation | |||
| Physical Installation | One third rack unit width, 1 rack unit height. |
||
| Environmental Specifications | |||
| Operating Temperature | 0° to 40°C (32° to 104°F) | ||
| Storage Temperature | -20° to 60°C (-4° to 140°F) | ||
| Relative Humidity | 0% to 90% non-condensing. | ||
