Datavideo HS-1300 6-CH Video Streaming Studio
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések

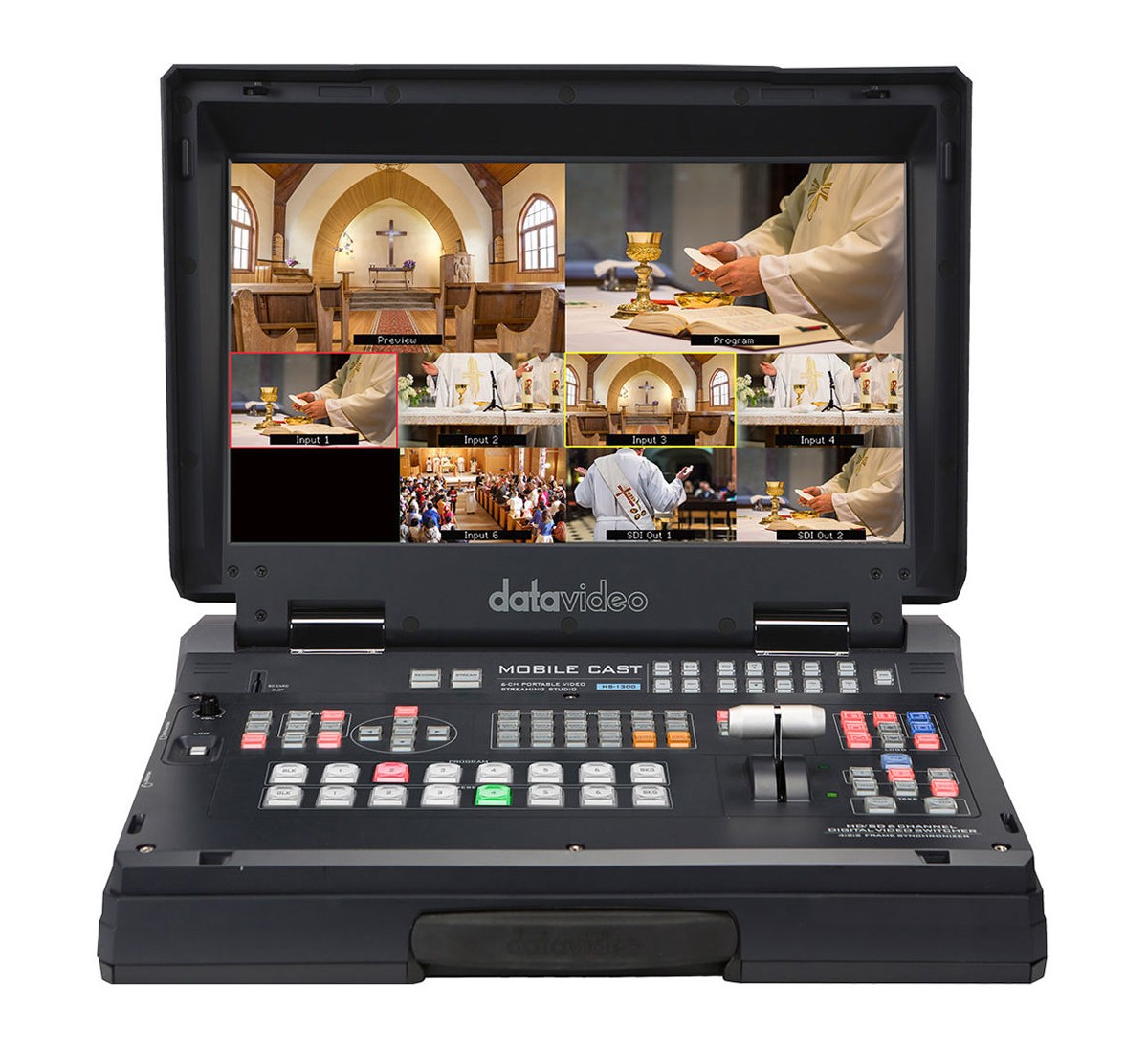

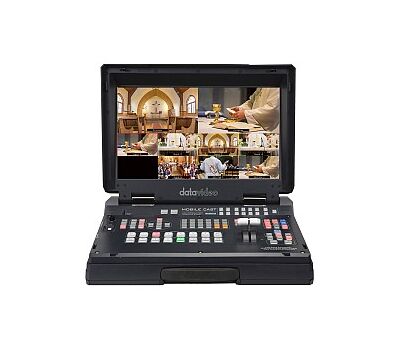

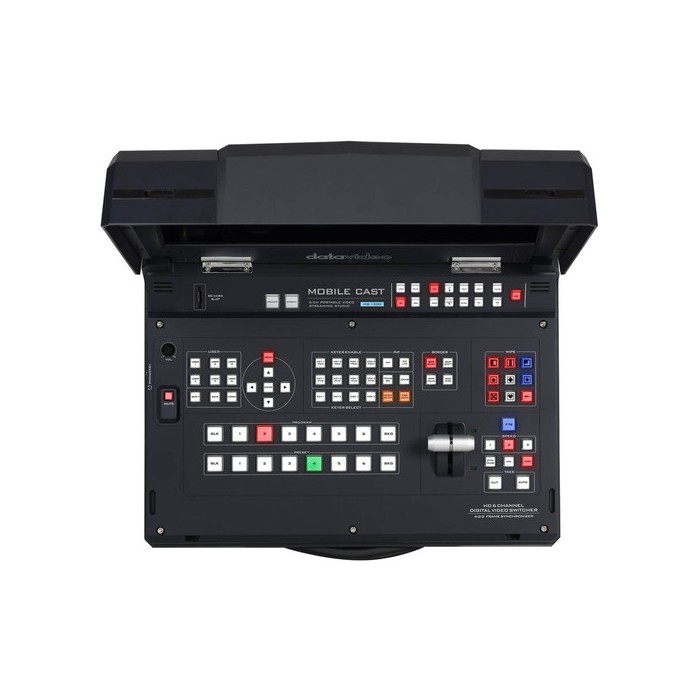

Datavideo HS-1300 6-CH Video Streaming Studio

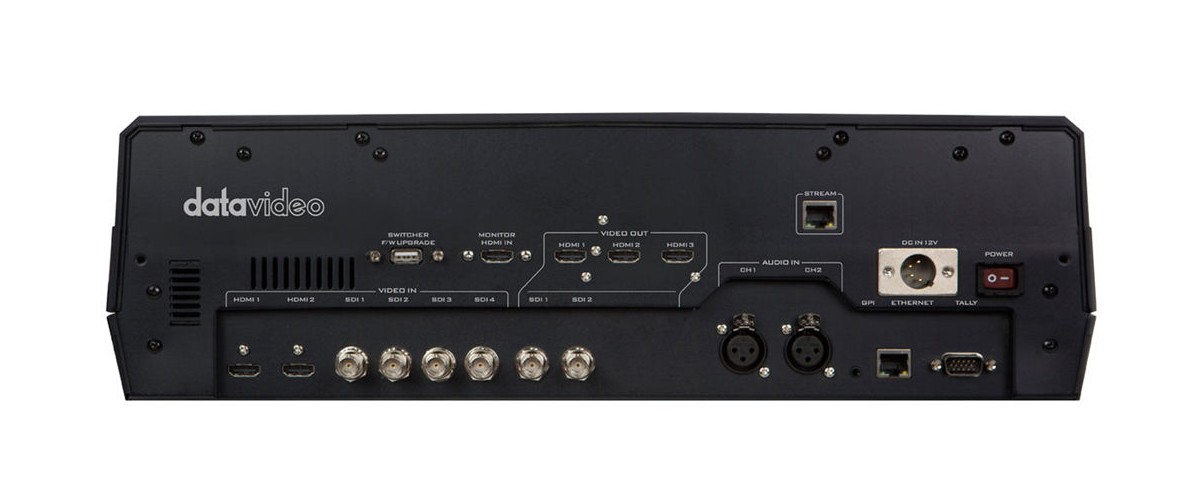

• Bemenetek: 4 SDI, 2 HDMI
• Kimenetek: 2 SDI, 3 HDMI
• Különböző bitsebességhez való kódolás (rögzítéshez és streaminghez)
• H.264 AVC kódolás akár 10 Mb/s sebességig
• 2 XLR audiobemenet
• Cross-point, Tally és GPI
• 2x Chroma Key, 1x PiP
• 17,3" LCD képernyő 1600x900 felbontással
• Könnyen kezelhető menürendszer
• Fejhallgató kimenet hang kontrollhoz
• Kimenetek: 2 SDI, 3 HDMI
• Különböző bitsebességhez való kódolás (rögzítéshez és streaminghez)
• H.264 AVC kódolás akár 10 Mb/s sebességig
• 2 XLR audiobemenet
• Cross-point, Tally és GPI
• 2x Chroma Key, 1x PiP
• 17,3" LCD képernyő 1600x900 felbontással
• Könnyen kezelhető menürendszer
• Fejhallgató kimenet hang kontrollhoz
• Datavideo HS-1300 6-CH Video Streaming Studio
• Tápegység tápkábellel
• Jótállás: 1 év
• Tápegység tápkábellel
• Jótállás: 1 év
Datavideo HS-1300 Specification |
|||
Model Number |
HS-1300 |
||
Video Standard |
HD |
||
Video Format |
1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
||
Input Routable / Crosspoint |
All 6, repeatable |
||
Video Input |
4x HD-SDI 2x HDMI |
||
Computer Graphic Interface |
2 via HDMI |
||
Computer Graphic Interface |
4 via HDMI |
||
Down-converted Output |
3 x HDMI 2.0 for PGM 1 x HDMI for CG Preview |
||
Down-converted Output |
---- |
||
Video Output |
3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview |
||
Analogue Audio Input | 2x Balanced XLR | ||
Analogue Audio Output | 1x Stereo headphone | ||
Digital Embedded Audio Support |
Input 2 channels, Output 2 channels | ||
Audio Delay Calibration |
------ | ||
A+V Switching |
Yes | ||
USK | 2x USK support Chromakey | ||
DSK | 2, support Lumakey & Linear key (Key / Fill) | ||
Picture in Picture |
1 | ||
Logo Insertion |
-------- | ||
Title Creator |
--------- | ||
Built-in Audio Mixer |
-------- | ||
Built-in Monitor Display |
17.3” HD TFT LED backlit, 1600x900 pix | ||
Camera Control |
DVIP/ RS-422/ RS-232 | ||
Streaming | |||
Streaming | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
||
Streaming Audio Encode | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
||
Streaming Protocol | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS SRT |
||
Streaming Control | Web browser UI for configuration and control Socket commands | ||
Recording File System |
FAT, exFAT, NTFS | ||
Recording File Format | MP4 | ||
Streaming & Recording Setting Control | Web UI for system configuration and control | ||
Others | |||
Special Features |
Streaming encoder and recorder 2 chromakey virtual studio 9 stinger transition and 30 virtual sets included |
||
Dimension (LxWxH) |
455 x 355 x 134 mm | ||
Weight | 16.3 Lbs (7.4 kg), Reinforce Plastic Case | ||
Power | DC 12V, 5A | ||
Operating Temp. Range |
0~40 °C | ||
What's in the Box |
1 x HS-1300 Product 1 x AD Switch DC 12V with AC Cord |
