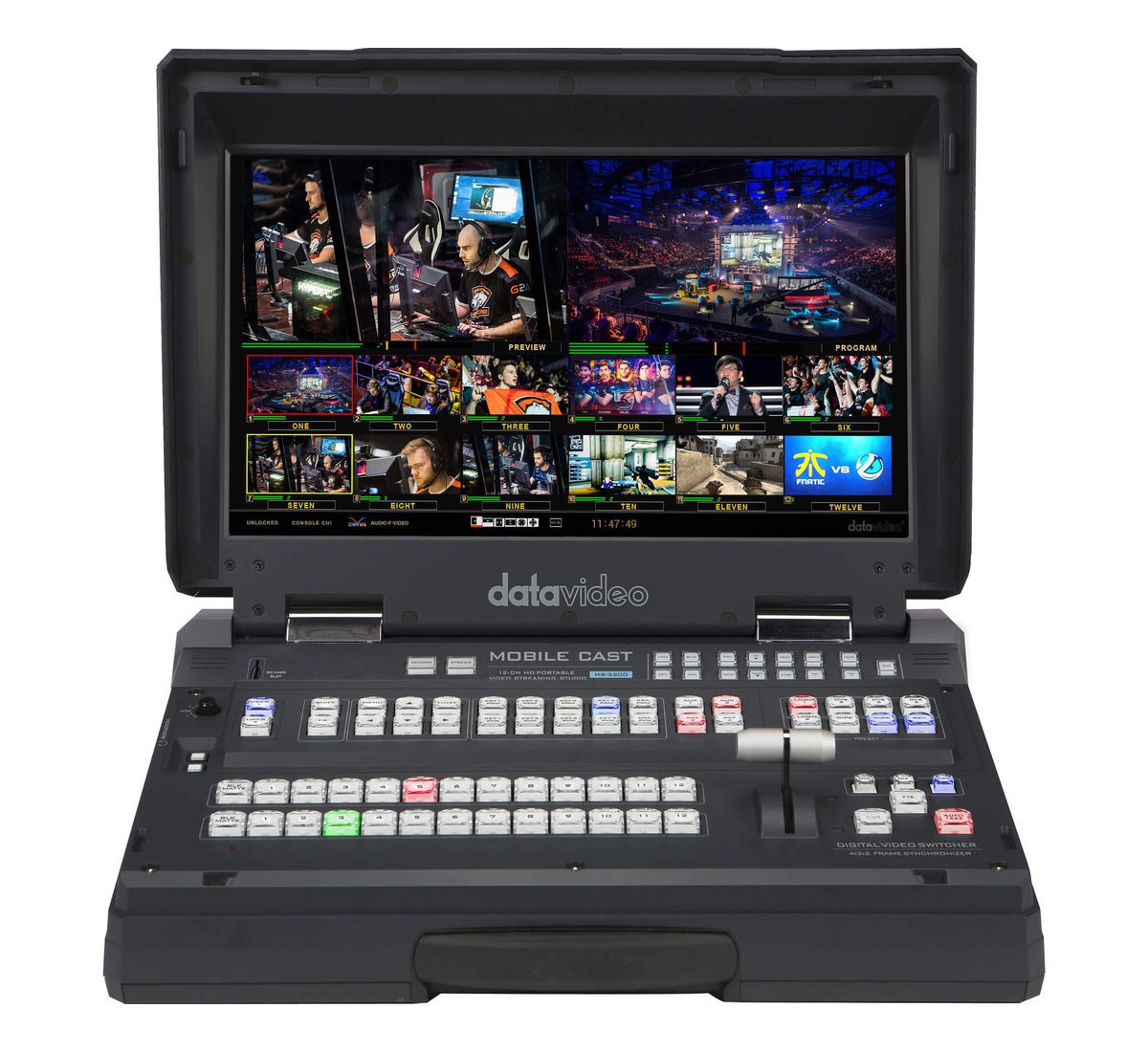

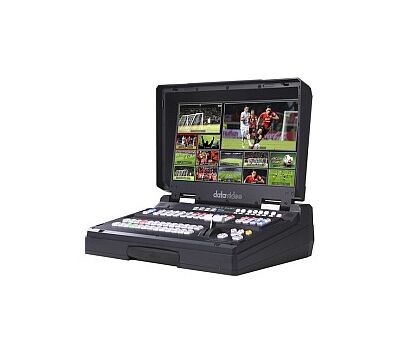

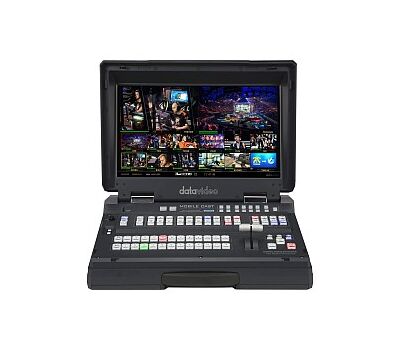

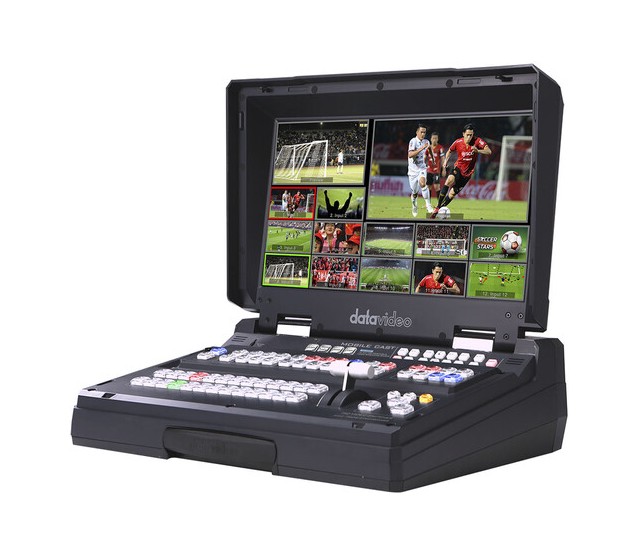

Datavideo HS-3200 12-Ch Video Streaming Studio
• 17,3" Full HD 1080p videomonitorral ellátva
• Multiview kijelző
• 8x SDI és 4x HDMI bemenet
• 5x SDI és 4x HDMI kimenet
• 4x Video Keyers
• Beépített H.264 web streaming encoder
• USB-port firmware frissítéshez
• SD-kártya foglalat
• Multiview kijelző
• 8x SDI és 4x HDMI bemenet
• 5x SDI és 4x HDMI kimenet
• 4x Video Keyers
• Beépített H.264 web streaming encoder
• USB-port firmware frissítéshez
• SD-kártya foglalat
• Datavideo HS-3200
• 12V DC AD kapcsoló AC kábellel
• Jótállás: 1 év ( termék regisztráció esetén 3 év)
• 12V DC AD kapcsoló AC kábellel
• Jótállás: 1 év ( termék regisztráció esetén 3 év)
Datavideo HS-3200 Specification |
|||
Model Number |
HS-3200 |
||
Video Standard |
Full HD |
||
Video Format |
1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
||
Input Routable / Crosspoint |
All 12, repeatable |
||
Video Input |
8x SDI, 4x HDMI |
||
Computer Graphic Interface |
4 via HDMI |
||
Down-converted Output |
1x SDI |
||

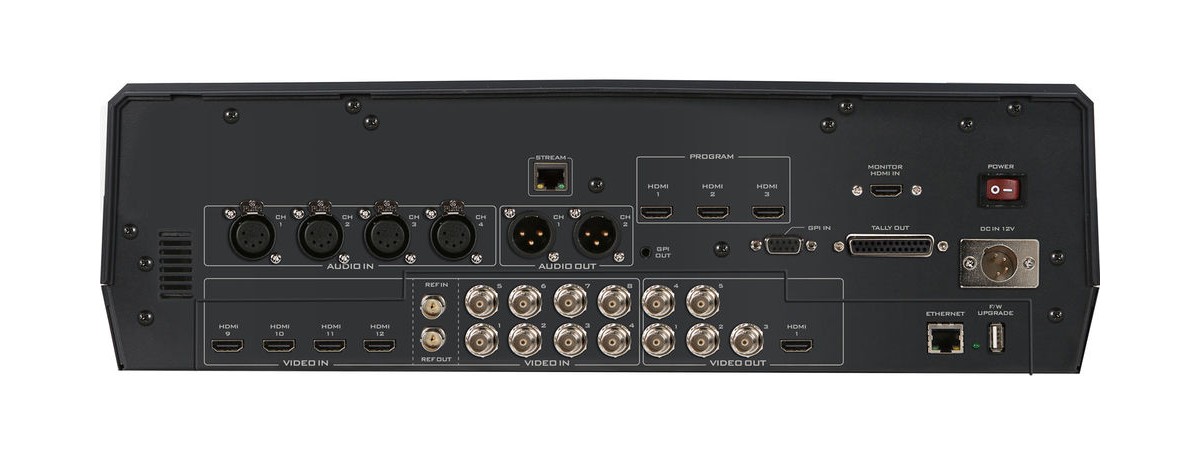

| Video Output |
5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source |
||
| Analogue Audio Input | 2x Balanced XLR 1x Stereo RCA (L/R) De-embedded Digital Audio |
||
| Analogue Audio Output | 2x Balanced XLR | ||
| Digital Embedded Audio Support |
Input 2 channels, Output 4 channels | ||
| Audio Delay Calibration |
Up to 16 frames | ||
| A+V Switching |
Yes | ||
| USK | 4 | ||
| DSK | 2, support Lumakey & Linear key (Key / Fill) |
||
| Picture in Picture |
8 (4x Keyer, 4x Flex Source) | ||
| Logo Insertion |
2 | ||
| Title Creator |
Yes, CG-200 software free download | ||
| Built-in Audio Mixer |
-------- | ||
| Built-in Monitor Display |
17.3” HD TFT LED backlit, 1920x1080 pix | ||
| Camera Control |
--------- | ||
| Streaming | |||
| Streaming | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
||
| Streaming Audio Encode | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
||
| Streaming Protocol | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS SRT |
||
| Streaming Control | Web browser UI for configuration and control Socket commands | ||
| Recording File System |
FAT, exFAT, NTFS | ||
| Recording File Format | MP4 | ||
| Streaming & Recording Setting Control | Web UI for system configuration and control | ||
| Others | |||
| Special Features |
4 Chroma-Key Virtual Studio 9 stinger transition and 4 user preset Built in TC-200 CG interface Streaming encoder and recorder 12x9 matrix seamless switch |
||
| Dimension (LxWxH) |
455 x 355 x 134 mm | ||
| Weight | 17.8 Lbs (8.1 kg), Reinforce Plastic Case | ||
| Power | DC 12V, 11A | ||
| Operating Temp. Range |
0~40 °C | ||
| What's in the Box |
1 x HS-3200 Unit 1 x AD Switch DC 12V with AC Cord |
||
Nem található bejegyzés
74.190 Ft
