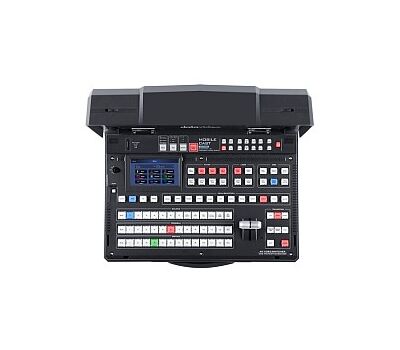

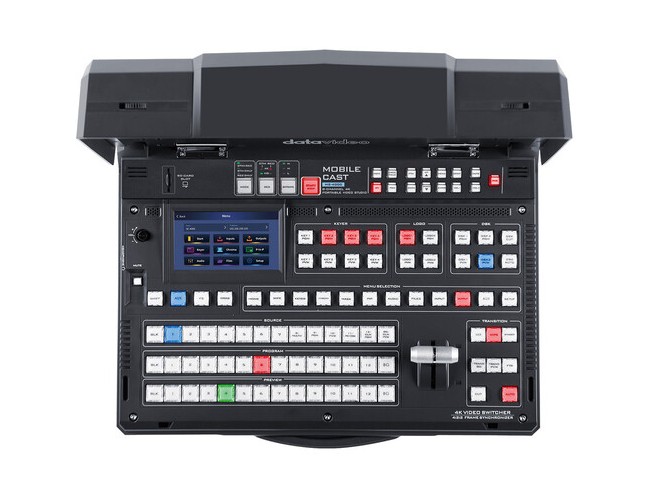

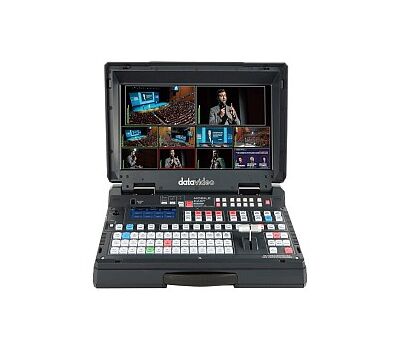

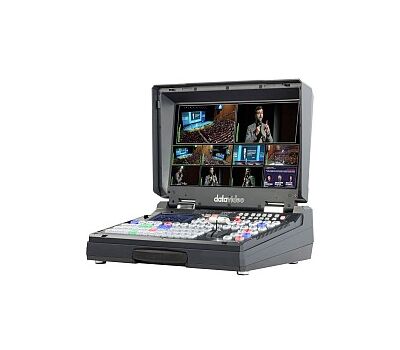

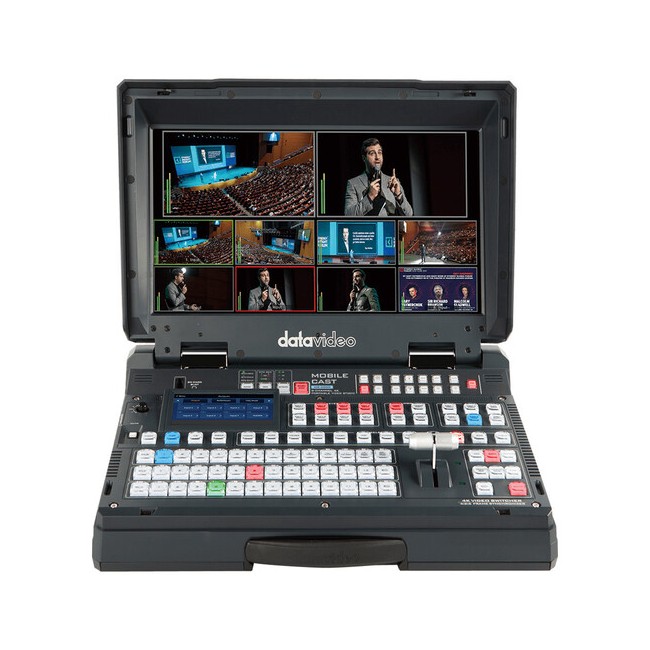

Datavideo HS-4000 8-Ch Video Streaming Studio
• Integrált 17,3"-os UHD 4K video multiview kijelző
• 5"-os érintőképernyős vezérlő kijelző és gombok

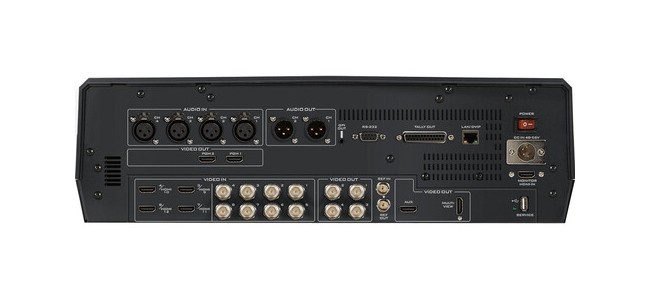

• 8x 12G-SDI és 4x HDMI bemenet
• 4x 12G-SDI és 3x HDMI kimenet
• Rögzítő és live streaming encoder
• Videokulcsok, SRT, átmenetek, PiP
• Audio I/O és szinkronizálás
• 5"-os érintőképernyős vezérlő kijelző és gombok
• 8x 12G-SDI és 4x HDMI bemenet
• 4x 12G-SDI és 3x HDMI kimenet
• Rögzítő és live streaming encoder
• Videokulcsok, SRT, átmenetek, PiP
• Audio I/O és szinkronizálás
• Datavideo HS-4000
• Tápegység
• Jótállás: 1 év ( termék regisztráció esetén 2 év)
• Tápegység
• Jótállás: 1 év ( termék regisztráció esetén 2 év)
Datavideo HS-4000 Specification |
|||
Model Number |
HS-4000 |
||
Video Standard |
4K & HD |
||
Video Format |
3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 |
||
Input Routable / Crosspoint |
Yes |
||
Video Input |
Total 8 live inputs (select 8 from 12) 8 x 12G-SDI 4 x HDMI |
||
Computer Graphic Interface |
4 via HDMI |
||
Down-converted Output |
Yes (Coming soon by firmware update) |
||
Video Output |
4 x 12G-SDI / 1 x HDMI |
||
Analogue Audio Input | 4x Balanced XLR | ||
Analogue Audio Output | 2x Balanced XLR | ||
Digital Embedded Audio Support |
Input 4 channels, Output 4 channels | ||
Audio Delay Calibration |
Up to 16 frames | ||
A+V Switching |
Yes | ||
USK | 4 | ||
DSK | 2, support Lumakey & Linear key (Key / Fill) |
||
Picture in Picture |
2 | ||
Logo Insertion |
2 | ||
Title Creator |
Yes (Coming soon by firmware update) | ||
Built-in Audio Mixer |
-------- | ||
Built-in Monitor Display |
17.3” 4K TFT LED backlit, 3840x2160 pix | ||
Camera Control |
--------- | ||
Streaming | |||
Streaming | H.264: MAX RES: 4K@30 420 8bit codec H.265: MAX RES: 4K@60 420 8bit codec |
||
Streaming Audio Encode | AAC 2CH, 16bit 48KHz 192Kbps |
||
Streaming Protocol | RTSP RTMP SRT |
||
Streaming Control | Web browser UI for configuration and control Socket commands | ||
Recording File System |
FAT, exFAT | ||
Recording File Format | MP4(H.265+ AAC) or (H.264+ AAC) | ||
Streaming & Recording Setting Control | Web UI for system configuration and control | ||
Others | |||
Special Features |
5" Touch Panel 17.3" 4K Monitor 4 Chroma-Key Virtual Studio Streaming encoder and recorder |
||
Dimension (LxWxH) |
455 x 355 x 134 mm | ||
Weight | 9.2 kg, Reinforce Plastic Case | ||
Power | DC 56V, 4.46A | ||
Operating Temp. Range |
0~40 °C | ||
What's in the Box |
1 x HS-4000 Unit 1 x AD Switch DC 48~56V with AC Cord |
