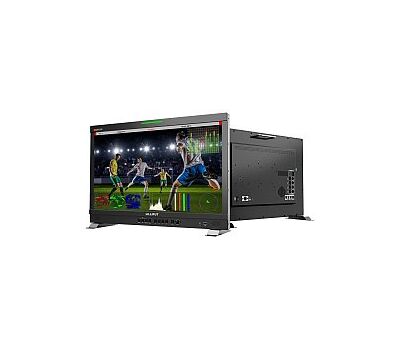

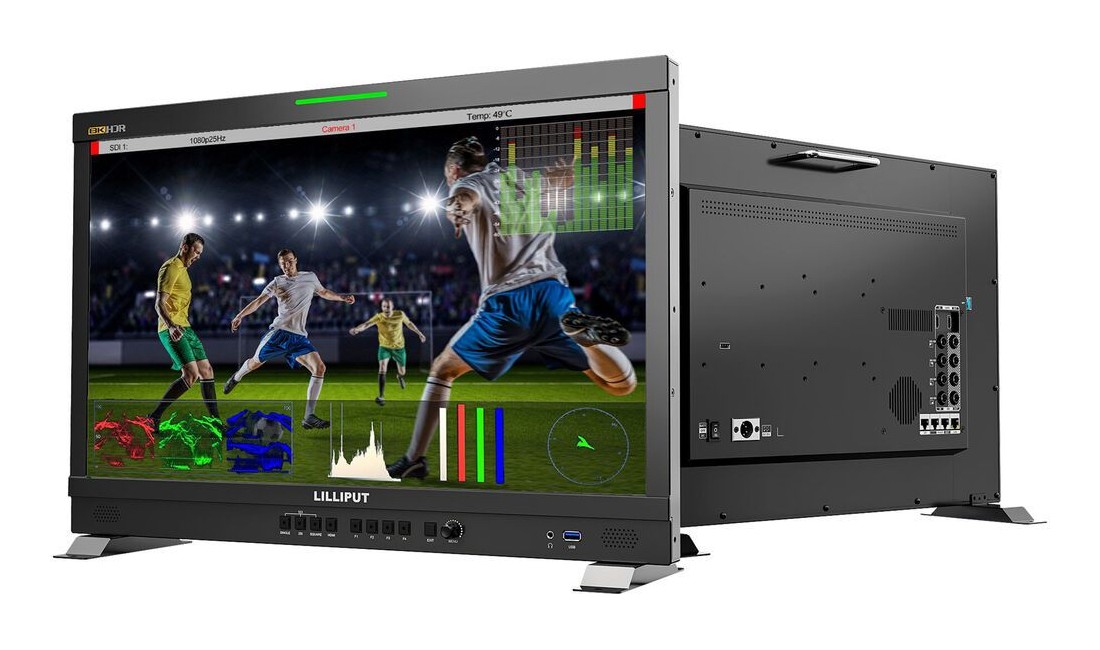

Lilliput Q28-8K 28.8" SDI/HDMI Broadcast Studio Monitor
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Lilliput Q28-8K 28.8" SDI/HDMI Broadcast Studio Monitor
• 28" 3840x2160 px
• Akár 8K felbontás Quad-Link 12G-SDI-on keresztül
• 300 cd/m2 fényerő, 1000:1 kontrasztarány
• 12 bites adatfolyam feldolgozás 10 (8+2) bites jelfeldolgozásra 10 bites panellel
• HDR, 3D LUT
• V-Mount akkumulátor hátfal
• Akár 8K felbontás Quad-Link 12G-SDI-on keresztül
• 300 cd/m2 fényerő, 1000:1 kontrasztarány
• 12 bites adatfolyam feldolgozás 10 (8+2) bites jelfeldolgozásra 10 bites panellel
• HDR, 3D LUT
• V-Mount akkumulátor hátfal
• Lilliput Q28-8K 28.8" SDI/HDMI Broadcast Studio Monitor
• V-Mount akkumulátor hátfal
• Tápegység
• 1 év jótállás
• V-Mount akkumulátor hátfal
• Tápegység
• 1 év jótállás
Lilliput Q28-8K Specifications |
|||
| Display | |||
Panel |
28" | ||
| Physical Resolution | 3840x2160 | ||
| Aspect Ratio | 16:9 | ||
Brightness |
300cdm² | ||
Contrast |
1000:1 | ||
Viewing Angle |
178°/178°(H/V) | ||
| HDR | ST2084 300/1000/10000/HLG | ||
| Supported Log formats | SLog2/SLog3/CLog/NLog/ArriLog/JLog or User.. | ||
| Look up table (LUT) support | 3D LUT (cube format) | ||
| Calibration | Calibration to REc.709 with optiional calibration until | ||

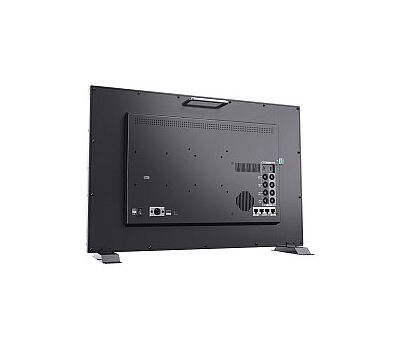

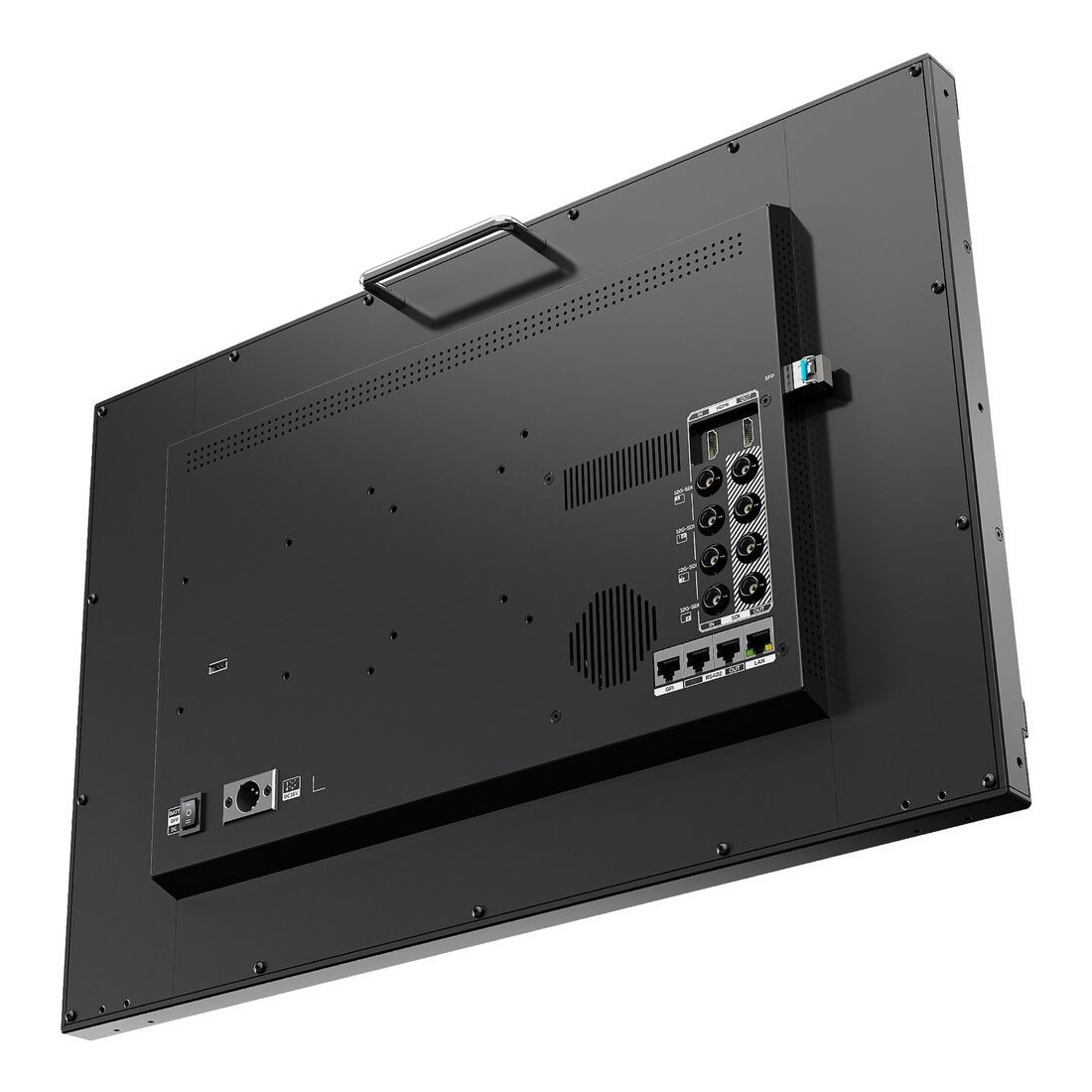

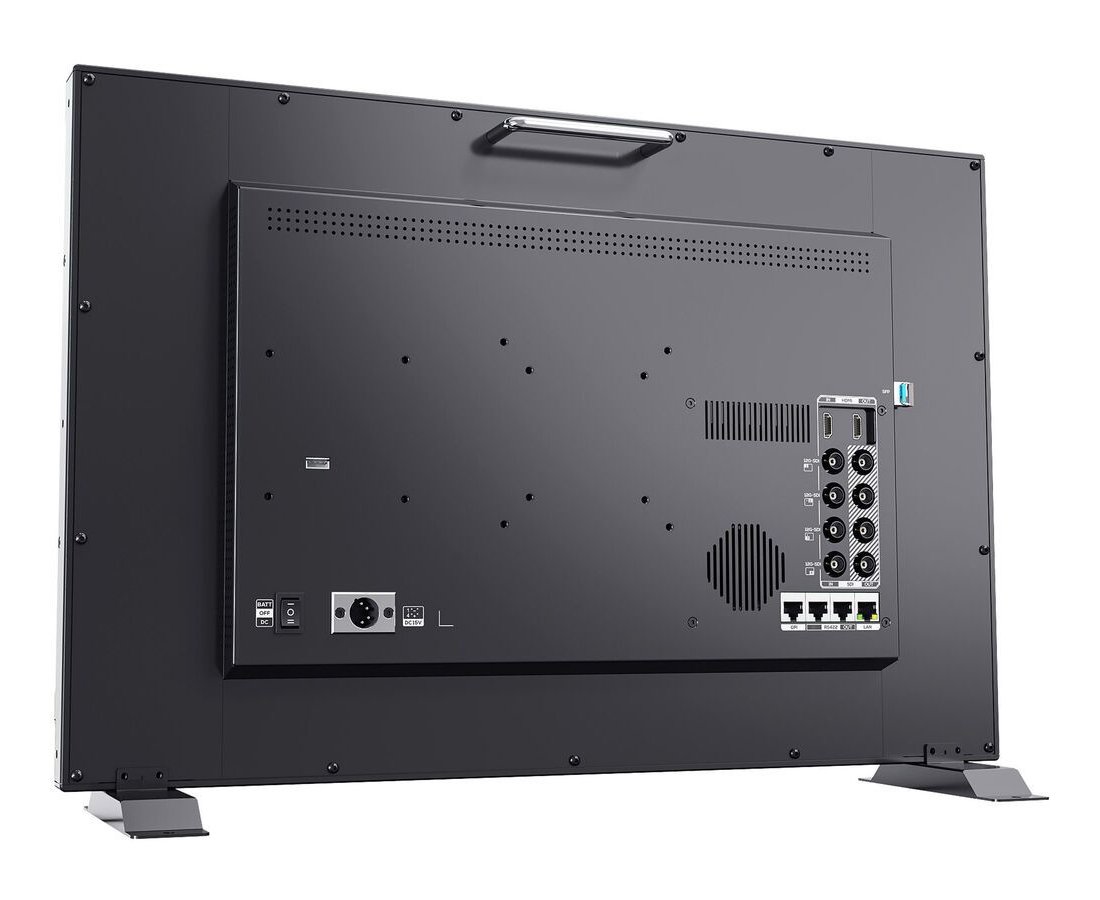

| Video Input | |||
| SDI | 4x12G( Supported 8K-SDI Formats Quad Link) | ||
| SFP | 1x12G SFP +(Fiber module for optional) | ||
| HDMI | 1xHDMI 2.0 | ||
| Supported Formats | |||
| SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30,1080i50/60... | ||
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080p SF 24/25/30, 1080i 50/60, 720p 56/60 | ||
| HDMI | 2160P 24/25/30/50/60, 1080P 24/25/30/50/60,720P 50/60 | ||
| Video Loop Output | |||
| SDI | 4x12G, (supported 8K-SDI Format Quad Link) | ||
| SFP | 1x12G SFP + (Fiber module for optional) | ||
| HDMI | 1xHDMI 2.0 | ||
| Power | |||
| Input Voltage | DC 12V - 24V | ||
| Power Consumption | <= 60W (15V) | ||
| Audio In/Out (48kHz PCM Auudiio) | |||
| SDI | 16ch 48kHz 24-bit | ||
| HDMI | 8ch 24-bit | ||
| Ear Jack | 3.5mm | ||
| Built-in Speakers | 2 | ||
| Remote Control | |||
| RS422 | In/Out | ||
| GPI | 1 | ||
| LAN | 1 | ||
| Power | |||
| Input Voltage | DC 12-24V | ||
| Power Consumption | <65W (15V) | ||
| Compatible batteries | V-Lock or Anton Bauer Mount | ||
| Input Voltage ( batterí) | 14.8V nominal | ||
| Environment | |||
| Operating Temperature | 0°C-50°C | ||
| Storage Temperature | -20°C-60°C | ||
| Other | |||
| Dimension | 638x414x3x45.7mm | ||
| Weight | 8.6kg | ||
Nem található bejegyzés
74.663 Ft
