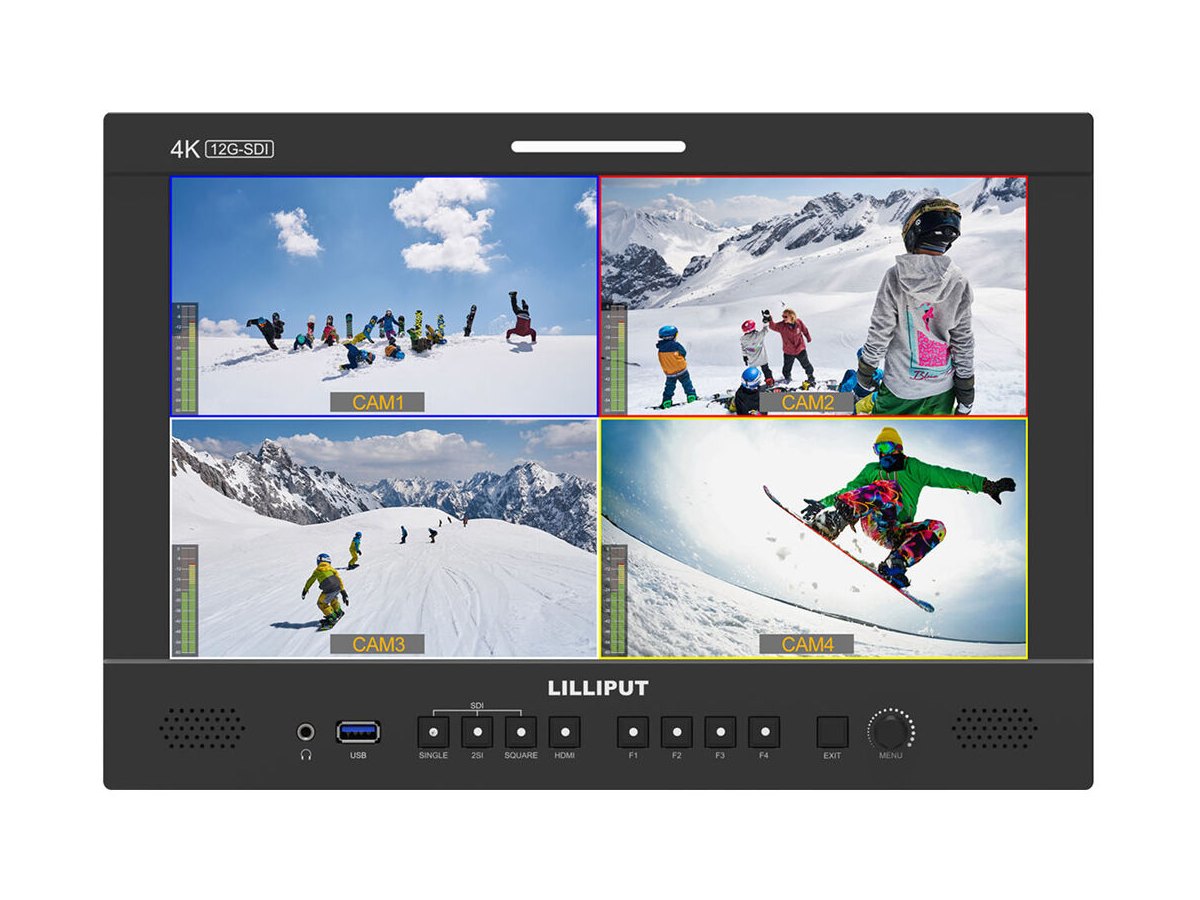

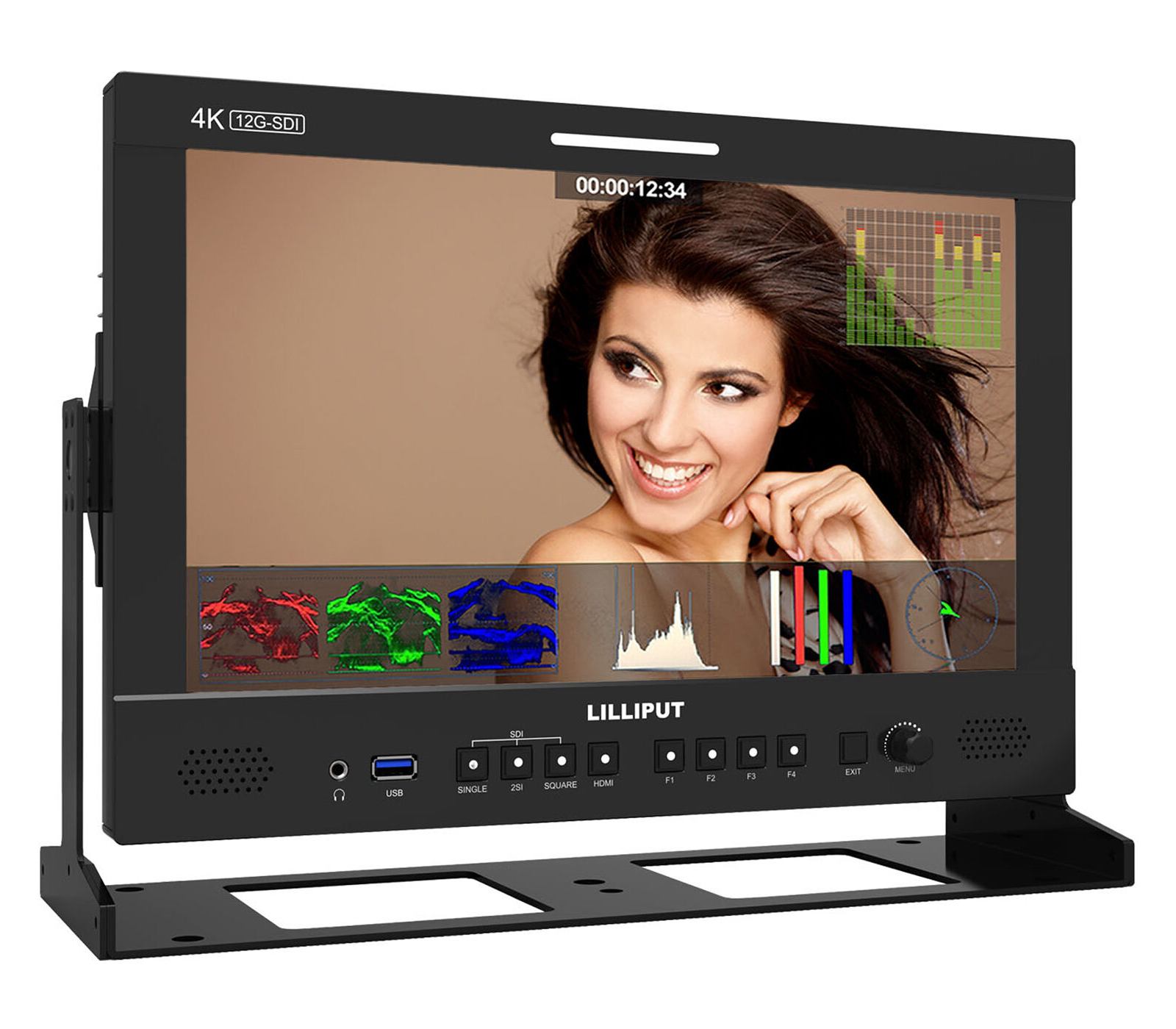

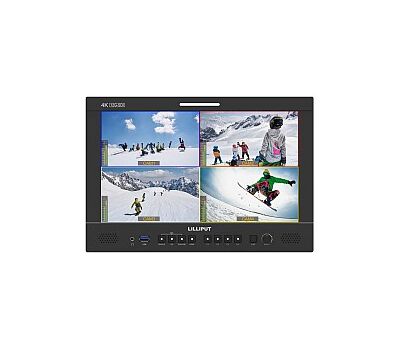

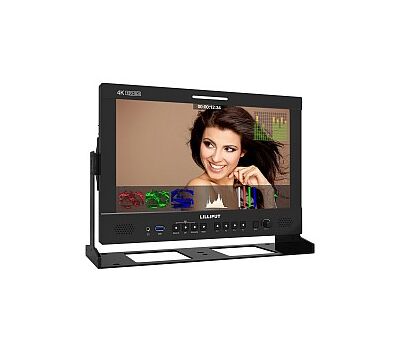

Lilliput Q13 13.3"-os Broadcast Monitor
• 13,3" UHD 4K (3840 x 2160)
• 300 nit
• Bemenetek: 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0
• 178° láthatósági szög
• 3D-LUT, HDR
• V-Mount akkumulátor hátfal
• 300 nit
• Bemenetek: 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0
• 178° láthatósági szög
• 3D-LUT, HDR
• V-Mount akkumulátor hátfal
• Lilliput Q13
• Tápegység
• Pendrive
• VESA hátfal
• Tartó
• V-Mount akkumulátor hátfal
• 1 év jótállás
• Tápegység
• Pendrive
• VESA hátfal
• Tartó
• V-Mount akkumulátor hátfal
• 1 év jótállás
Lilliput Q13 Specifications |
|||
Display | |||
Panel
|
13.3" | ||
Physical Resolution | 3840*2160 | ||
Aspect Ratio | 16:09 | ||
Brightness | 300 cd/m² | ||
Contrast | 1000:01:00 | ||
Viewing Angle | 178°/178°(H/V) | ||
HDR | ST2084 300/1000/10000/HLG | ||
Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | ||
Look up table (LUT) support | 3D LUT (.cube format) | ||
Technology | Calibration to Rec.709 with optional calibration unit | ||
Video input | |||
SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) | ||
HDMI | 1×HDMI 2.0 | ||
SFP | 1×12G SFP+(Fiber module for optional) | ||
Video loop output | |||
SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) | ||
HDMI | 1×HDMI 2.0 | ||
Support formats | |||
SDI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | ||
SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
Audio in/out | |||
SDI | 16ch 48kHz 24-bit | ||
HDMI | 8ch 24-bit | ||
Ear Jack | 3.5mm | ||
Built-in Speakers | 2 | ||
Power | |||
Input Voltage | DC 12-24V | ||
Power Consumption | =31.5W (15V) | ||
Compatible Batteries | V-Lock or Anton Bauer Mount | ||
Input Voltage(battery) | 14.8V nominal | ||
Environment | |||
Operating Temperature | 0°C~50°C | ||
Storage Temperature | -20°C~60°C | ||
Other | |||
Dimension(LWD) | 340mm × 232.8mm × 46mm | ||
Weight | 2.4kg | ||
Remote Control | |||
RS422 | In/out | ||
GPI | 1 | ||
LAN | 1 |
