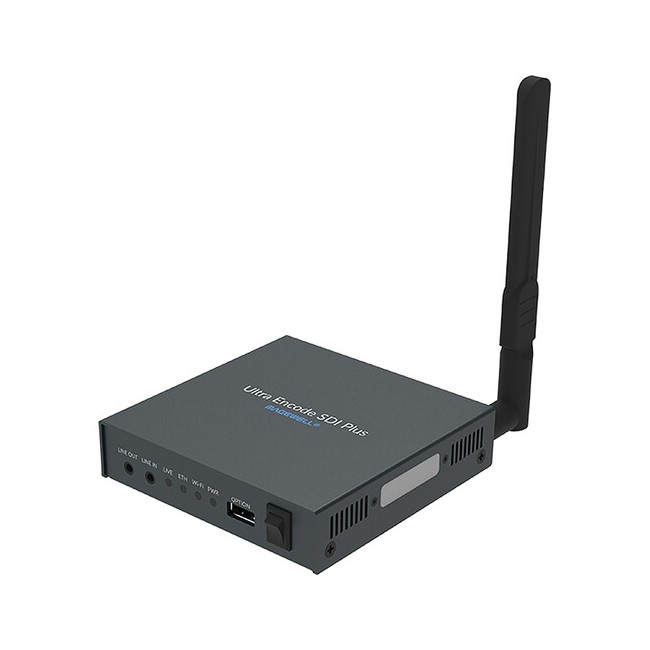

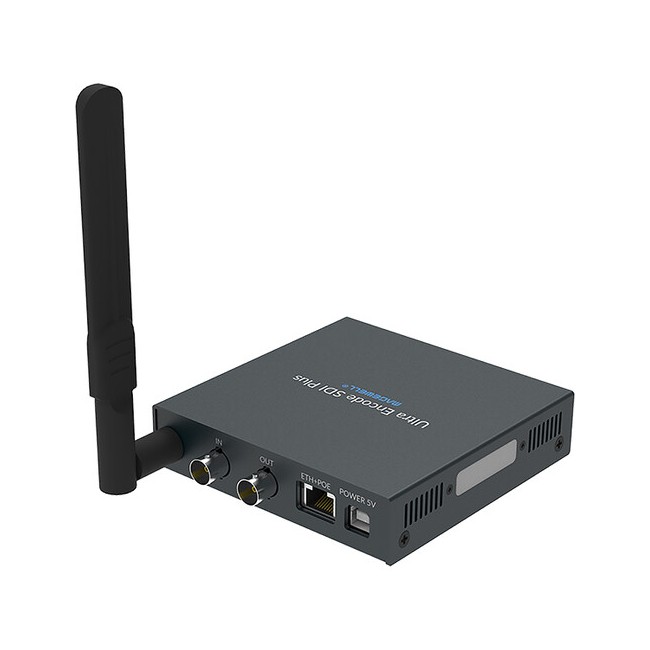

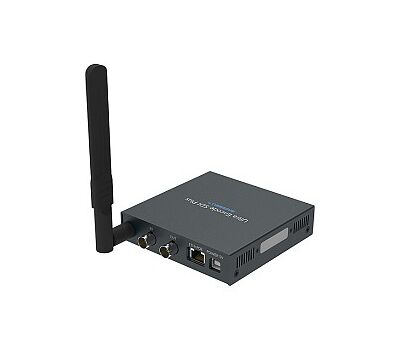

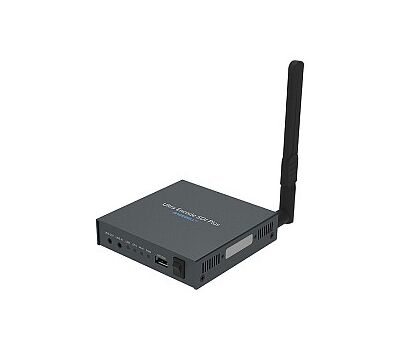

Magewell Ultra Encode SDI Plus
Magewell Ultra Encode SDI Plus
• Univerzális enkóder
• SDI jel átalakítása NDI|HX2/NDI|HX3, H.264/H.265 (HEVC) formátumokra
• Rögzítés, streamelés
• DCI 4K60 4:2:0
• 2x USB-A port, PoE
• Twitch/YouTube/Facebook Live
• Tápegység
• SDI kábel
• USB-A to USB-B kábel
• WiFi antenna
• T-Bracket
• 2 év jótállás
Magewell Ultra Encode SDI Plus Specifications |
|||
Input & Loop-through | |||
Video |
Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS (ST 425)/6G (ST 2081) standards | ||
Typical resolution/frame rate |
4096x2160p 23.98/24/25/29.97/30 2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720x576 25p/50i (PAL SD) 720x480 29.97p/59.94i (NTSC SD) |
||
Color sampling |
YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4 Audio | ||
SDI embedded audio |
16-Channel, 24-bit, 192kHz sample rate | ||
Audio from 3.5 mm LINE IN |
2-Channel, 24-bit, 192kHz sample rate | ||
Encoding Features |
|||
Video Bitrate |
NDI® HX3: up to 62.0Mbps, down to 1.5Mbps Others: up to 32.0Mbps, down to 256kpbs |
||
Dual-stream encoding |
main stream and sub stream | ||
Main stream Resolution/frame rate |
4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 Native CEA–608/608 over 708 captions Sub stream Supports enabling/disabling sub stream |
||
Resolution/frame rate |
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 |
||
H.264/H.265 (HEVC) Codec |
System timecode or RP–188 standard timecode for SEI Message setting H.265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Image rotation: 0°, 90°, 180°, 270° Cropping Output 3D video |
||
Audio | Encode up to 8 audio streams Up to 8 channels can be selected for mapping when SDI input carries more than 8 audio channels Supports mapping between source channels and encoded audio channels Contains 1 x 8-channel stream and 7 x 2-channel streams Bitrate: 256/192/128/96/64/48/32/16 kbps Output source embedded audio and line in through LINE OUT |
||
Live stream | |||
Natively supports streaming to | Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event. |
||
Supports streaming protocols | RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI®|HX2/NDI® HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included) |
||
Record | |||
Record | Supports setting and managing recording function and tasks Supports recording to local storage Supports format and performance test Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording |
||
MP4, MOV | up to 4 hours | ||
TS | no limit Supports exporting or downloading files through Web UI Supports recording scheduler |
||
Web UI | |||
Access Web UI via PC and smartphone |
|||
API | |||
Provides APIs for 3rd party control system |
|||
Network Connections | |||
Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T |
|||

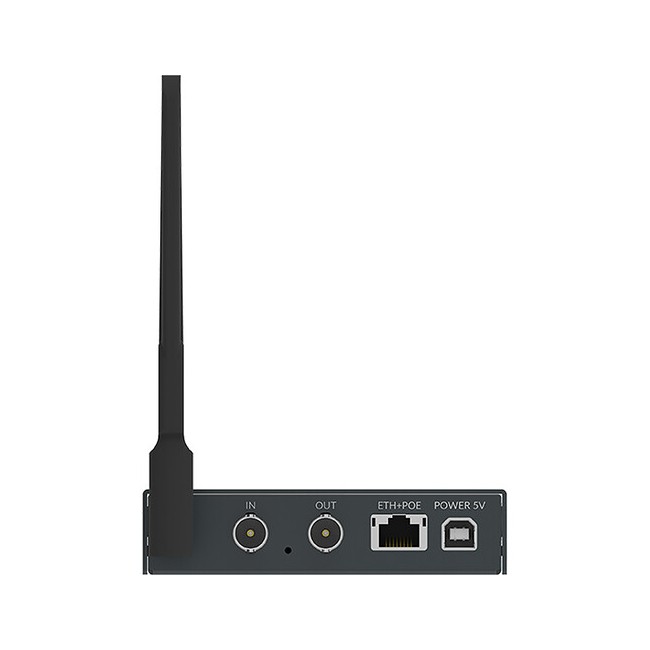

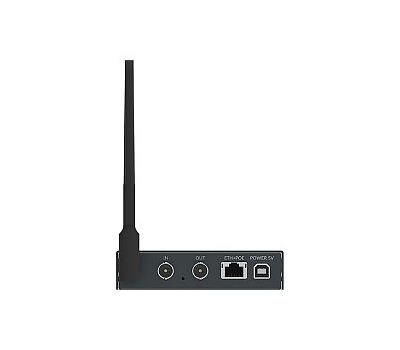

Input/Output Ports | |||
2 x SD/HD/3G BNC ports |
|||
Storage | |||
USB flash drive (not supplied): FAT32, NTFS, exFAT |
|||

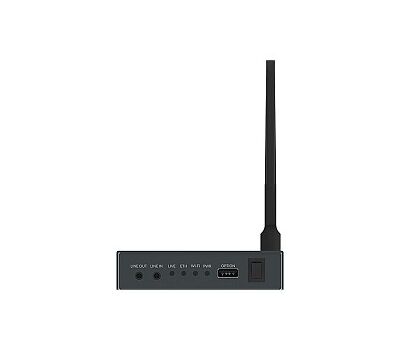

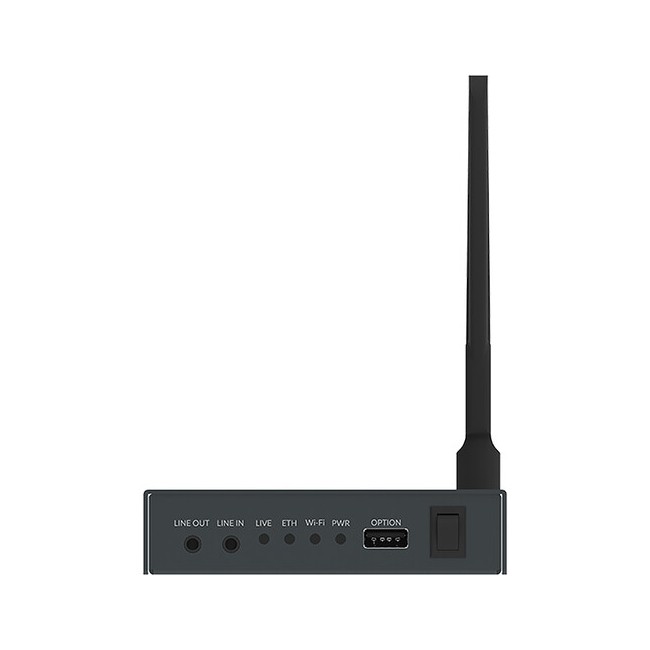

Indicators | |||
LEDs indicating the status of power, input signal, streaming, Ethernet, Wi-Fi connection |
|||
Power Supply and Consumption | |||
DC 5V/3A |
|||
Form Factor | |||
106.6mm x 106.2mm x 25mm |
|||
Accessories | |||
1 x 5V Power Adapter |
|||
Screw Mounting Hole | |||
|
