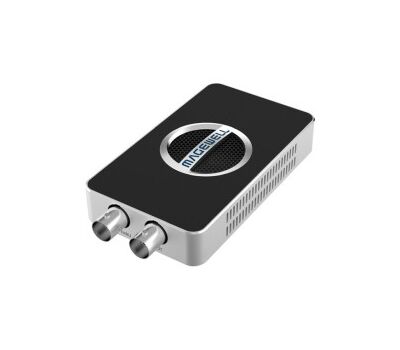

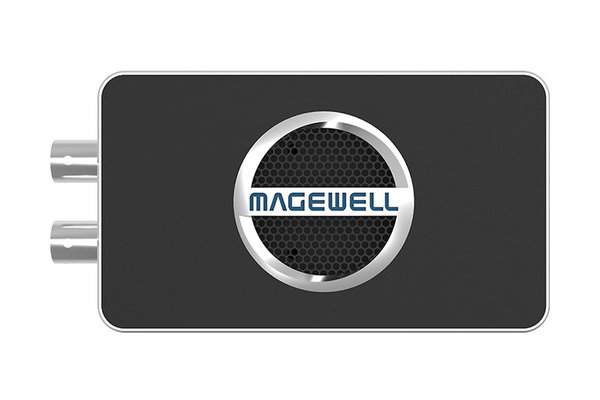

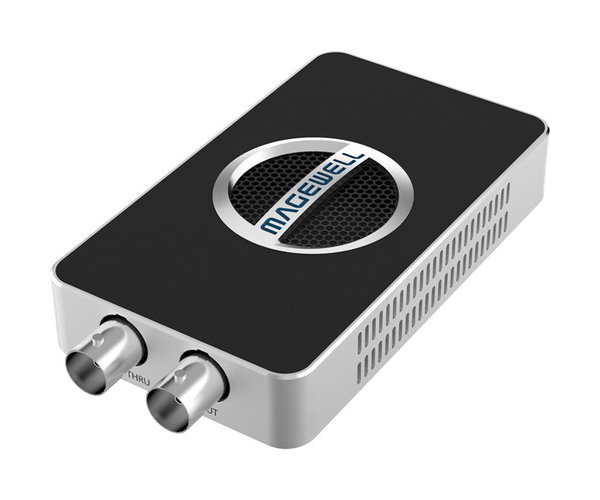

Magewell USB Capture SDI 4K Plus
A Magewell USB Capture SDI 4K Plus USB-csatlakozón keresztül csatlakozik a számítógéphez, és lehetővé teszi a 4K DCI
felbontású (4096 x 2160) jel rögzítését beágyazott hanggal egy 6G-SDI bemeneten keresztül.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Magewell USB Capture SDI 4K Plus

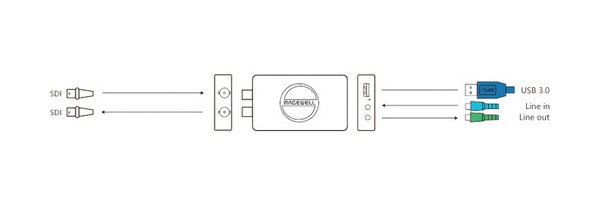

• 6G-SDI bemenet és loop-through
• Audio be- és kimenet
• USB 3.0
• 6G/2K/3G/HD/SD-SDI jelek rögzítése (Akár 4096 x 2160)
• Kompatibilis a Windows, Mac, Linux és Chrome OS operációs rendszerekkel
• Plug-and-play működés
• UVC protokolltámogatás
• Felfelé/lefelé skálázás
• 10-bites /12-bites színmélység
• Képes 24/7 működésre
• Audio be- és kimenet
• USB 3.0
• 6G/2K/3G/HD/SD-SDI jelek rögzítése (Akár 4096 x 2160)
• Kompatibilis a Windows, Mac, Linux és Chrome OS operációs rendszerekkel
• Plug-and-play működés
• UVC protokolltámogatás
• Felfelé/lefelé skálázás
• 10-bites /12-bites színmélység
• Képes 24/7 működésre
• Magewell USB Capture SDI 4K Plus
• USB 3.0 kábel
• Jótállás: 3 év
• USB 3.0 kábel
• Jótállás: 3 év
Magewell USB Capture SDI 4K Plus Specifications |
|||
Input Features |
Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit) |
||
Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit |
|||
Up to 8-channel embedded audio |
|||

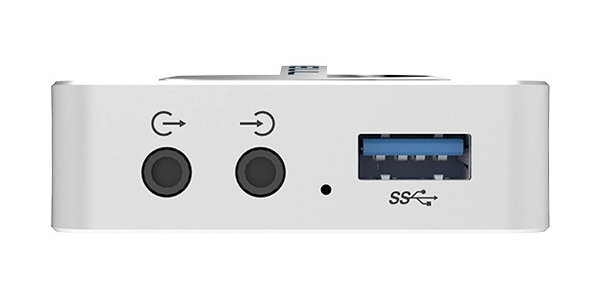

Input analog audio via 3.5mm line in |
|||

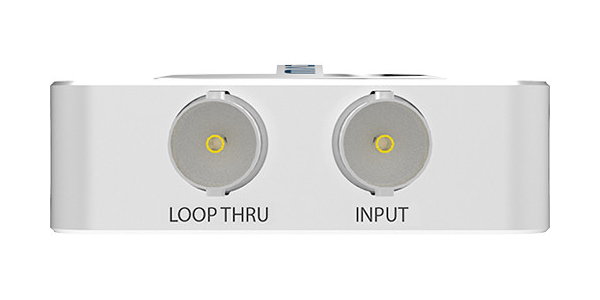

SD/HD/3G/6G-SDI BNC input & loop through |
|||
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard |
|||
Input SDI signals transmitted up to 75m for 6G-SDI signal | |||
Process and Capture Features |
Video processing pipelines with ~640Mpixels/s processing bandwidth |
||
Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency): 4096x2160p/3840x2160p 23.98/24/25/29.97/30 2560x1440p60 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90 720x576p25 720x480p30 |
|||
Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos |
|||
Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror |
|||
Output audio of SDI signal via 3.5 mm line out |
|||
Up to 2 audio channels at 48KHz |
|||
Included Software |
USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting |
||
SDK & APIs |
The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc |
||
Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession/AudioUnit |
|||
Output Interface |
USB 3.0 compatible with USB 2.0 compatible with USB 3.1 Gen 1 |
||
Compatible Software |
Zoom Rooms |
||
Recommended OS |
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above |
||
LED Indicator |
Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal |
||
Form Factor (LxWxH) |
110.7mm x 56.8mm x 17mm |
||
Power Consumption |
5V max current: ~0.86 A |
||
Max power consumption: ~4.3 W |
|||
Working Environment |
Operating temperature: 0 to 45 deg C |
||
Storage temperature: –20 to 70 deg C |
|||
Relative humidity: 5% to 90% non-condensing |
