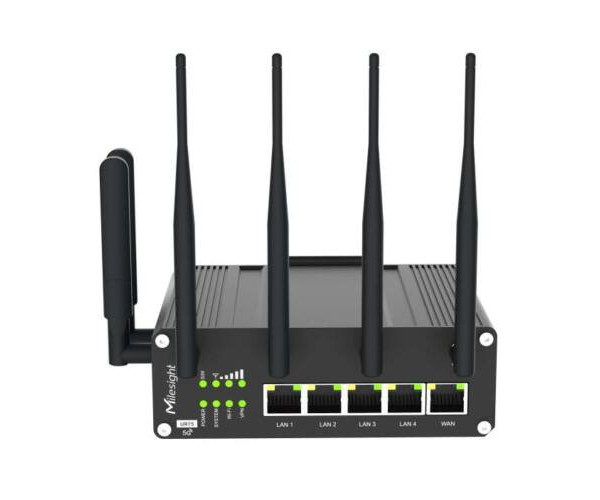

Milesight UR75-500GL-G-P-W Router
Featuring a high-performance industrial platform with a quad-core processor & dualSIM card mobile module, the Milesight 5G
UR75 router provides lightning-fast & stable access to the Internet via a 5-port Gb Ethernet switch with PoE or 802.11 ac WiFi.
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Milesight UR75-500GL-G-P-W Router
Fast Speed 4G/5G Network:
• Speed Upgrades
• Low Latency
• Massive Capacity
• Increased Bandwidth
Rich Interfaces:
• 2 x 2 MIMO 802.11ac Wi-Fi
• 1 x RS232 + 1 x RS485
• 1 x Digital Input & Output
Quick Network Backup: Dual SIM ensures link failover and avoids roaming cost.
High Reliability & Stability:
• Qualcomm Quad-Core Processor
• 5G NSA & SA Modes
• CAT4/6/12/20 Cellular Modem (optional)
Remote Management: Device management in Bulk on Milesight DeviceHub
Fit into Any Harsh Environment: Operating Temperature from -40 to 70 °C
Edge Intelligence:
• Azure
• AWS Greengrass
• Python Programming
• Speed Upgrades
• Low Latency
• Massive Capacity
• Increased Bandwidth
Rich Interfaces:
• 2 x 2 MIMO 802.11ac Wi-Fi
• 1 x RS232 + 1 x RS485
• 1 x Digital Input & Output
Quick Network Backup: Dual SIM ensures link failover and avoids roaming cost.
High Reliability & Stability:
• Qualcomm Quad-Core Processor
• 5G NSA & SA Modes
• CAT4/6/12/20 Cellular Modem (optional)
Remote Management: Device management in Bulk on Milesight DeviceHub
Fit into Any Harsh Environment: Operating Temperature from -40 to 70 °C
Edge Intelligence:
• Azure
• AWS Greengrass
• Python Programming
• Milesight UR75-500GL-G-P-W Router
Milesight UR75-500GL-G-P-W Specifications |
|||
Interfaces |
|||
SIM Slots |
2 |
||
Ethernet Ports |
5 × 10/100/1000 Mbps |
||
Serial Ports |
1 × RS232 + 1 × RS485 |
||
DI/DO |
1 × DI + 1 × DO |
||
Voice |
N/A |
||
Antenna Connectors |
3 x Cellular Connectors 1 x Cellular/GPS Connector 2 x Wi-Fi Connectors |
||
Network |
|||
Cellular |
5G, 4G CAT4/6/9/12/20 (Optional) |
||
Wi-Fi |
IEEE 802.11b/g/n/ac |
||
Serial Port |
Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master |
||
Network Protocols |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH |
||
AAA |
RADIUS, TACACS+, LDAP, Local Authentication |
||
Firewall |
URL Filtering/ACL/DMZ/Port Mapping/MAC Binding/SPI/DoS Protection |
||
Reliability |
VRRP, WAN Fail-over, Dual SIM Backup |
||
VPN |
OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE |
||
Maintenance |
|||
Management |
Web, CLI, SMS, Watchdog, On-demand Dial Up |
||
Multilevel Authority |
Multiple Levels of User Authority |
||
Capabilities |
|||
CPU |
716 MHz, Quad-Core ARM Cortex-A7 |
||
Flash |
8 GB |
||
Memory |
512 MB DDR3 |
||
Built-in |
Watchdog |
||
* GPS (Under Development) |
GPS + GLONASS |
||
Extended Memory |
1 × M.2 NVMe SSD Slot |
||
Hardware |
|||
Power Input |
9 ~ 48 VDC |
||
Power Output (Optional) |
4 × 802.3af/at PoE PSE |
||
Ingress Protection |
IP30 |
||
Housing & Weight |
Metal, 525 g (1.16 lb) |
||
Dimensions |
135 × 118 × 45 mm (5.31 × 4.65 × 1.77 in) |
||
Mounting |
Desktop, Wall or DIN Rail Mounting |
||
Others |
|||
Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C |
||
Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) to +185℉)℉)) |
||
Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
||
Certifications |
RoHS, CE, FCC |
