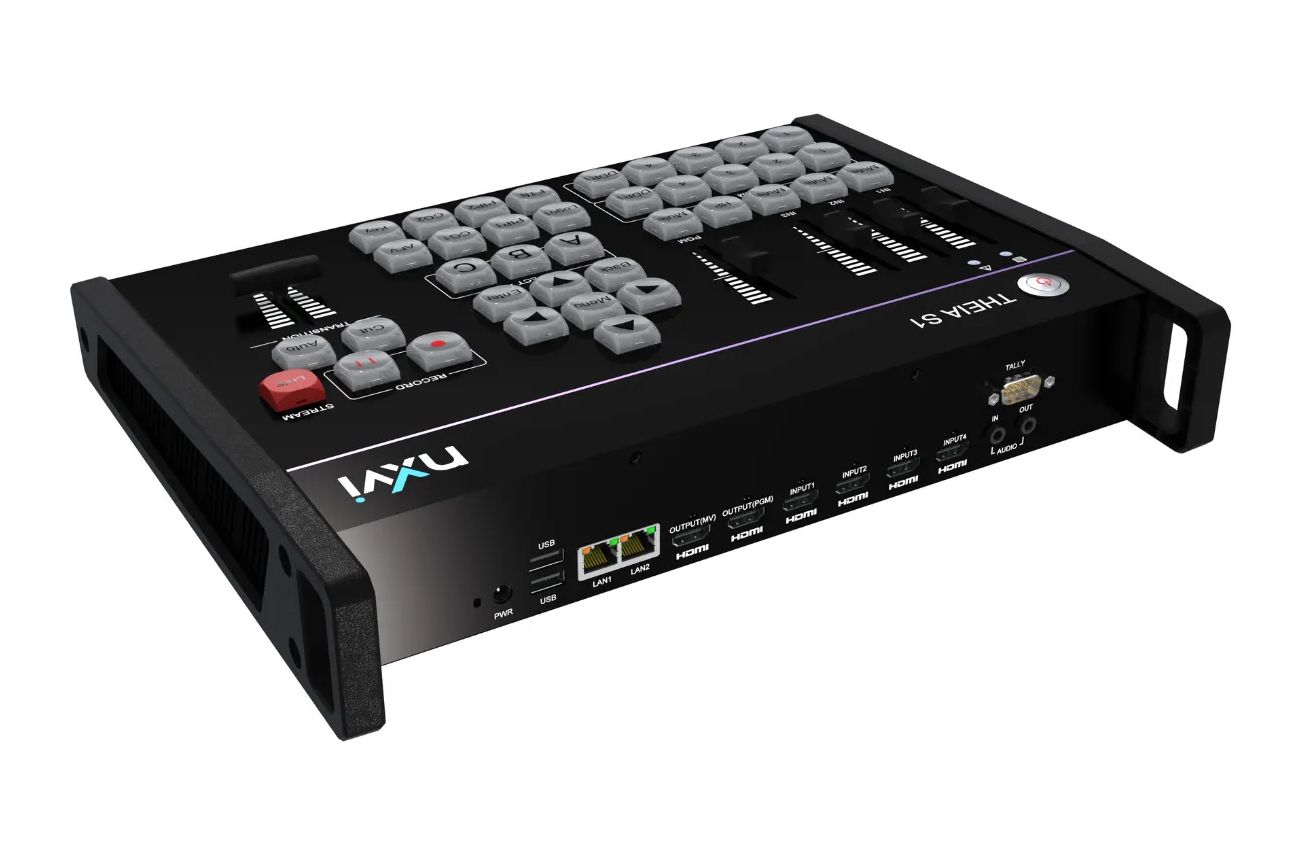

NxVi Theia S1 - 4K Live Streaming Mixer
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
NxVi Theia S1 - 4K Live Streaming Mixer
• 4-ch Mixer, rögzítő és streaming eszköz
• 4Kp60 videobemenetek: 2x Gigabit Lan port, HDMI, NDI
• 1 Program és 1 Multiview kimenet
• Több forrásból származó hang keverése
• DVE, logó, felirat, CG, PiP, DDR, chroma keyer és átmenet effektek
• Cut, Auto gombok és T-bar, Tally
• 4Kp60 videobemenetek: 2x Gigabit Lan port, HDMI, NDI
• 1 Program és 1 Multiview kimenet
• Több forrásból származó hang keverése
• DVE, logó, felirat, CG, PiP, DDR, chroma keyer és átmenet effektek
• Cut, Auto gombok és T-bar, Tally
• NxVi Theia S1
• Tápegység
• Jótállás: 1 év
• Tápegység
• Jótállás: 1 év
NxVi Theia S1 Specifications |
|||
Interface | |||
Video Input |
4ch 4K video input (Full HD compatible), including HDMI and NDI interfaces (HDMI1 supports 4:2:0/4:2:2/4:4:4/RGB chroma subsampling, HDMI2/3/4 supports 4:2:2/4:4:4/RGB chroma subsampling; audio sampling rates in 32/44.1/48kHz) | ||
Video Output |
1ch HDMI output for Program (4Kp60 with 48kHz audio sample rate) 1ch HDMI output for Multiview (1080p60) |
||
Unbalanced Analog Audio |
1ch stereo input (32/44.1/48kHz) 1ch stereo output in 3.5mm jack (48kHz) |
||
Ethernet |
Gigabit Ethernet x2 (10/100/1000Mbps) | ||
Video Resolution |
|||
Input |
3840×2160 in 30p, 50p, 59.94p, 60p 1920×1080 in 25p, 29.97p, 30p, 50p, 59.94p, 60p 1920×1080 in 50i, 59.94i, 60i 1280×720 in 25p, 29.97p, 30p, 50p, 59.94p, 60p |
||
Output |
3840x2160 in 30p, 50p, 59.94p, 60p 1920×1080 in 25p, 30p, 50p, 60p 1280×720 in 25p, 30p, 50p, 60p |
||
Output (Multiview) |
1920×1080 in 60p | ||
Graphic Keyer |
|||
Keyer |
Chroma, Mask, Luma | ||
CG-Keyer x2, Logo-Keyer |
Logo, subtitle, graphic and news ticker support | ||
PIP-Keyer x2 |
Up to 5-source selection | ||
Transition Effect |
Built-in over 30 effects | ||
Media Player |
DDR player x1 External USB storage for DDR playback |
||
Media Storage |
USB x2 for recording and playback | ||
Streaming Codec |
HEVC/AVC (video) with AAC (audio) | ||
Streaming Protocol |
HLS,RTMP, RTP, SRT and UDP |
||
Power Input |
AC Adapter 100V-240V, 50/60Hz with DC 12V/5A output | ||
Power Consumption |
< 40W | ||
Dimension |
342mm(W) x 266.8mm(D) x 58.2mm(H) | ||
Operating Temperature |
0℃-40℃ | ||
Storage Temperature |
-20℃~60℃ | ||
Certification | CE/FCC (Class B)/TUV/CB/RoHS/KC |
